Page 20 of 523

The new integrated key is programmed.The RKE trans-
mitter will also be programmed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed RKE transmitter with inte-
grated key, contact your authorized dealer for details.
NOTE: If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be repro-
grammed.
General Information
The Sentry Key system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM — IF EQUIPPED
The Vehicle Security Alarm (VSA) system monitors the
vehicle doors and liftgate for unauthorized entry and the
ignition switch for unauthorized operation. If something
triggers the alarm, the system will prevent the vehicle
from starting, sound the horn intermittently, flash the
headlights and taillights, and flash the Vehicle Security
Light in the instrument cluster.
Rearming of the System
If something triggers the alarm, and no action is taken to
disarm it, the system will turn off the horn after three
minutes, turn off all of the visual signals after 15 minutes,
and then the system will rearm itself.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 21 of 523

To Arm the System
1. Remove the key from the ignition switch and exit the
vehicle.
2. Lock the doors and liftgate by pressing the power door
LOCK switch or the LOCK button on the Remote Keyless
Entry (RKE) transmitter.
NOTE:The system will not arm if you lock the doors
with the manual door LOCK plungers or the door LOCK
cylinder on the driver’s door.
3. Close all doors. The Vehicle Security Light in the
instrument cluster will flash rapidly for about 16 seconds
to signal that the system is arming. During this period,
opening any door or the liftgate will cancel the arming
process. If the system arms successfully, the Vehicle
Security Light will flash at a slower rate to indicate the
alarm is set. NOTE:
For added security, whenever the Security
Alarm is armed, the HomeLink/Garage Door Opener
(if equipped) is disabled as well.
To Disarm the System
Either press the UNLOCK button on the RKE transmitter
or insert a valid ignition key into the ignition lock
cylinder and turn the key to the ON position.
NOTE:
•Unlocking the doors with the manual door LOCK
plungers or the door LOCK cylinder on the driver’s
door will not disarm the system.
•When the system is armed, the interior power door
LOCK switches will not unlock the doors.
The Security Alarm System is designed to protect your
vehicle; however, you can create conditions where the
system will give you a false alarm. If the previously
described arming sequence has occurred, the system will
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2
Page 110 of 523

send the corresponding phone number associated with
the phonebook entry, as tones over the phone.
NOTE:
•You may not hear all of the tones due to cellular phone
network configurations; this is normal.
•Some paging and voice mail systems have system time
out settings that are too short and may not allow the
use of this feature.
Barge In - Overriding Prompts
The “Voice Recognition” button can be used when you
wish to skip part of a prompt and issue your voice
recognition command immediately. For example, if a
prompt is askingWould you like to pair a phone, clear
a, you could press the “Voice Recognition” button and
say, Pair a Phone to select that option without having to
listen to the rest of the voice prompt.
Turning Confirmation Prompts On/Off
Turning confirmation prompts off will stop the system
from confirming your choices (e.g., the UConnect sys-
tem will not repeat a phone number before you dial it).
•Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
Setup Confirmations. The UConnectsystem will
play the current confirmation prompt status and you
will be given the choice to change it.
Phone and Network Status Indicators
If available on the radio and/or on a premium display
such as the instrument panel cluster, and supported by
your cell phone, the UConnect system will provide
notification to inform you of your phone and network
status when you are attempting to make a phone call
using UConnect. The status is given for roaming, net-
work signal strength, phone battery strength, etc.
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 161 of 523

ELECTRONIC SPEED CONTROL — IF EQUIPPED
When engaged, this device takes over the accelerator
operation at speeds greater than 25 mph (40 km/h).
Electronic Speed Control Operation
The speed control lever is located on the right side of the
steering wheel.
To Activate
Push and release the ON/OFF button located
on the end of the speed control lever. The
Cruise Indicator Light in the instrument cluster
will illuminate. To turn the system OFF, push
and release the ON/OFF button a second time. The
Cruise Indicator Light will turn off. Be sure to turn the
system OFF when not in use.
NOTE:
•The Electronic Speed Control System will automati-
cally turn off when the engine is turned OFF.
•The Electronic Speed Control System is designed to
shut down if you operate multiple speed control
switch-functions simultaneously (i.e., Set and Cancel).
If this occurs, push and release the ON/OFF button to
reactivate the system and then reestablish the desired
Set speed.
Speed Control Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159
3
Page 201 of 523
UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features .................203
Instrument Cluster ......................204
Instrument Cluster Descriptions ............205
Electronic Vehicle Information Center (EVIC) —
If Equipped ...........................221
▫ Electronic Vehicle Information Center (EVIC)
Displays ............................223
▫ Oil Change Required ...................225
▫ Trip Functions .......................226 ▫
Compass Display .....................227
▫ Personal Settings (Customer Programmable
Features) ...........................230
Radio General Information ................233
▫ Radio Broadcast Signals .................233
▫ Two Types Of Signals ..................233
▫ Electrical Disturbance ..................233
▫ AM Reception .......................233
▫ FM Reception ........................2344
Page 205 of 523
INSTRUMENT PANEL FEATURES
1 — Side Window Demist Outlet5 — HAZARD Switch9 — Climate Control
2 — Air Outlet 6 — Switch Bank10 — Radio
3 — Instrument Cluster 7 — Beverage Cooler/Storage Compartment* 11 — Ignition Switch
4 — Storage Compartment or Remote Display Panel* 8 — Glove Box * If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 203
4
Page 206 of 523

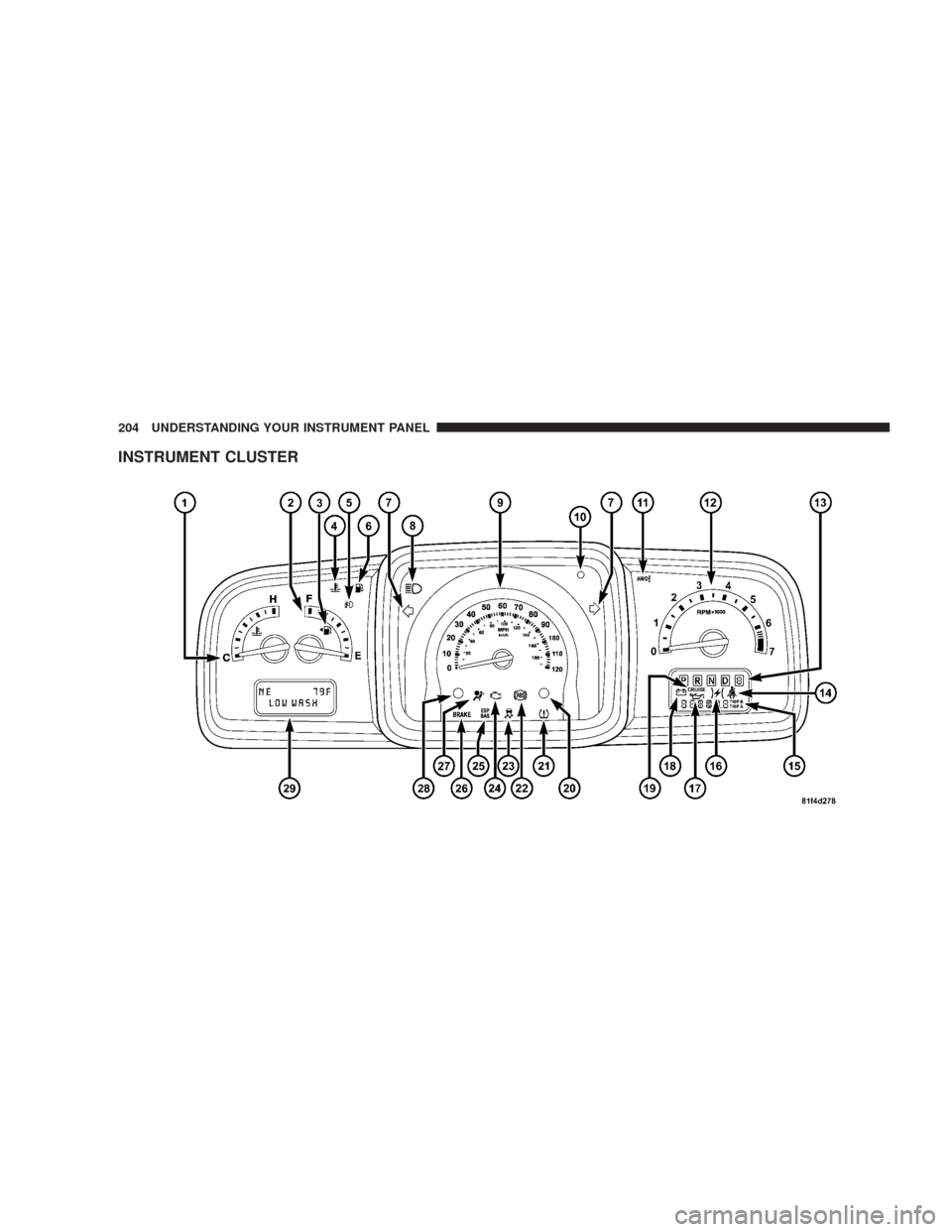

INSTRUMENT CLUSTER
204 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 207 of 523

INSTRUMENT CLUSTER DESCRIPTIONS
1. Coolant Temperature Gauge
The temperature gauge indicates engine coolant tem-
perature. Any reading within the normal range indicates
that the cooling system is operating satisfactorily. The
gauge pointer will likely indicate a high temperature
when driving in hot weather, up mountain grades, in
heavy traffic, or when towing a trailer. If the pointer rises
to the “H” mark, safely pull over and stop the vehicle. If
the Air Conditioning A/C system is on, turn it off. Also,
shift the transaxle into NEUTRAL and idle the vehicle. If
the needle remains on the “H” mark, turn the engine OFF
immediately and call for service. (See page 394 for more
information.)
NOTE:The gauge pointer will remain near its last
reading when the engine is turned off. It will return to a
true reading when the engine is restarted.
CAUTION!
Do not leave your vehicle unattended with the en-
gine running, as you would not be able to react to the
temperature indicator light if the engine overheats.
2. Fuel Gauge
The fuel gauge shows the level of fuel in the tank when
ignition switch is in the ON position.
3. Fuel Cap Indicator This symbol indicates the side of the vehicle
where the fuel filler cap is located.
UNDERSTANDING YOUR INSTRUMENT PANEL 205
4
