2009 DODGE GRAND CARAVAN headlamp

Headlamp Off DelayWhen this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, press
and release the RESET button until 0, 30, 60, or 90
appears.
Easy Exit Seat
This feature provides automatic driver seat positioning to
enhance driver mobility when entering and exiting the
vehicle. To make your selection, press and release the
RESET button until YES (Y) or NO (N) appears.
NOTE:
The seat will return to the memorized seat
location (if Recall Memory with Remote Key Unlock is set
to ON) when the RKE transmitter is used to unlock the
door. Refer to “Easy Entry/Exit Seat” under “Driver
Memory Seat” in Section 3 of this manual for more
information.
Tilt MIRR. In Reverse
When this feature is selected and the vehicle is placed in
a reverse gear, the side mirrors tilt downward to allow
the driver to see into the previous blind spot and avoid
objects in close proximity to the rear of the vehicle.
Key-Off Power Delay
When this feature is selected, the power window
switches, radio, hands-free system (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and power outlets will remain active for up to 10 minutes
after the ignition switch is turned OFF. Opening a vehicle
door will cancel this feature. To make your selection,
press and release the RESET button until Off, 45 sec.,
5 min., or 10 min. appears.
ILLUMIN. Approach
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
UNDERSTANDING YOUR INSTRUMENT PANEL 265 4

▫Cooling System . . . . . . . . . . . . . . . . . . . . 451
▫ Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . 456
▫ Automatic Transaxle . . . . . . . . . . . . . . . . . 458
▫ Appearance Care And Protection From
Corrosion . . . . . . . . . . . . . . . . . . . . . . . . . . 461
▫ Cleaning The Instrument Panel
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . 466
m Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 467
▫ Totally Integrated Power Module (TIPM) . . 467
m Vehicle Storage . . . . . . . . . . . . . . . . . . . . . . 475
m Replacement Light Bulbs . . . . . . . . . . . . . . . 475
m Bulb Replacement . . . . . . . . . . . . . . . . . . . . 476
▫ Headlamps . . . . . . . . . . . . . . . . . . . . . . . 476 ▫
Front Park/Turn Signal Lamps . . . . . . . . . 477
▫ Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . 477
▫ Rear Tail, Stop, Turn Signal, Side Marker
And Backup Lamps . . . . . . . . . . . . . . . . . . . 478
▫ Center High-Mounted Stop Lamp
(CHMSL) . . . . . . . . . . . . . . . . . . . . . . . . . . 479
▫ License Lamp . . . . . . . . . . . . . . . . . . . . . . 479
m Fluids And Capacities . . . . . . . . . . . . . . . . . 480
m Fluids, Lubricants And Genuine Parts . . . . . . 481
▫ Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 481
▫ Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . 482
432 MAINTAINING YOUR VEHICLE

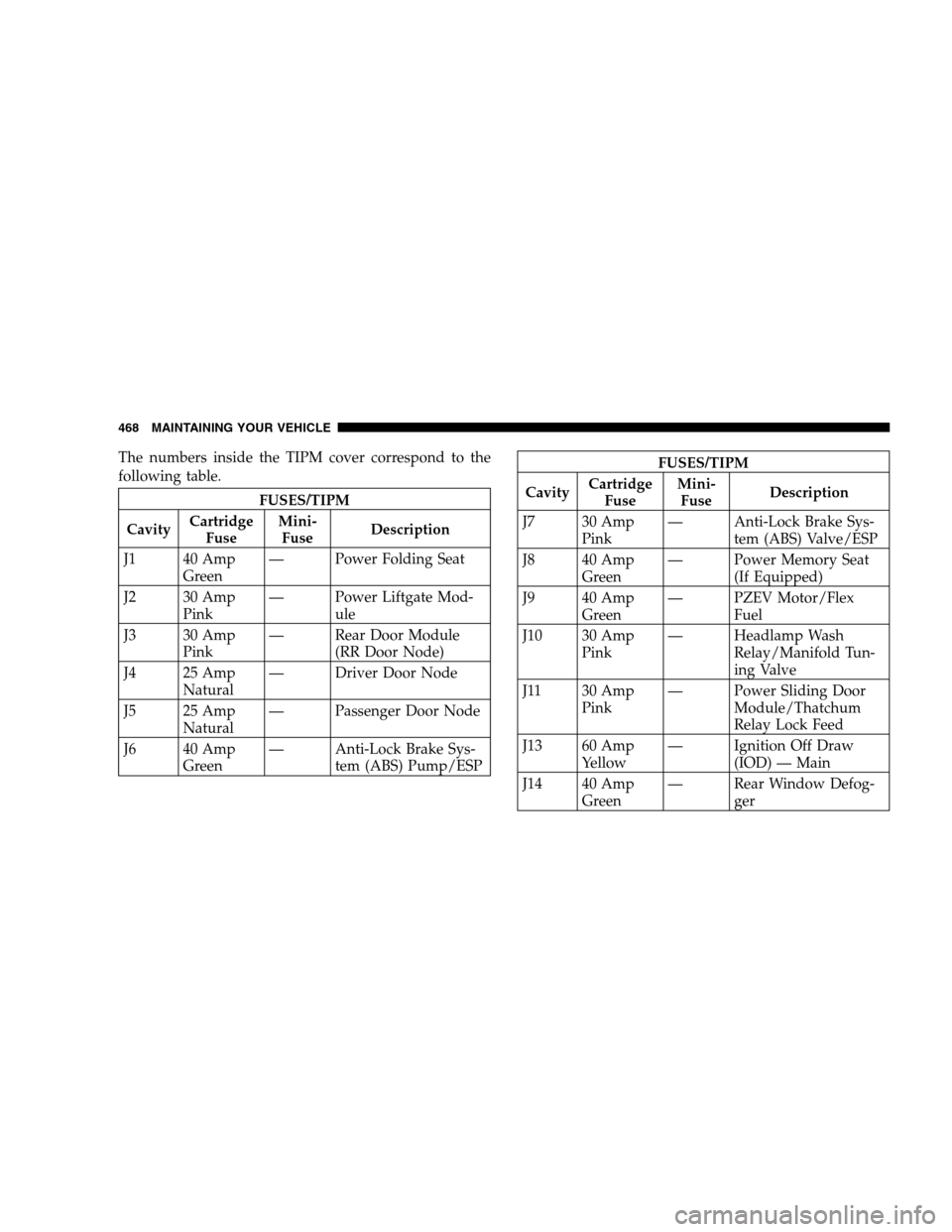

The numbers inside the TIPM cover correspond to the
following table.
FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
J1 40 Amp Green — Power Folding Seat
J2 30 Amp Pink — Power Liftgate Mod-
ule
J3 30 Amp Pink — Rear Door Module
(RR Door Node)
J4 25 Amp Natural — Driver Door Node
J5 25 Amp Natural — Passenger Door Node
J6 40 Amp Green — Anti-Lock Brake Sys-
tem (ABS) Pump/ESP
FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
J7 30 Amp Pink — Anti-Lock Brake Sys-
tem (ABS) Valve/ESP
J8 40 Amp Green — Power Memory Seat
(If Equipped)
J9 40 Amp Green — PZEV Motor/Flex
Fuel
J10 30 Amp Pink — Headlamp Wash
Relay/Manifold Tun-
ing Valve
J11 30 Amp Pink — Power Sliding Door
Module/Thatchum
Relay Lock Feed
J13 60 Amp Yellow — Ignition Off Draw
(IOD) — Main
J14 40 Amp Green — Rear Window Defog-
ger
468 MAINTAINING YOUR VEHICLE

FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M34 — 10 Amp RedPark Assist (PRK
ASST), Heater Ventila-
tion, Air Conditioning
Module (HVAC
MOD), Headlamp
Wash (HDLP WASH),
Compass (COMPAS),
IR Sensor, Rear Cam-
era, Lamp Door FT
Drv/Pass, Lamp
Flashlight, AHLM,
Relay Diesel Cabin
Heater, Rad Fan Die-
sel
M35 — 10 Amp RedHeated MirrorsFUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M36 — 20 Amp YellowPower Outlet #3
(BATT)
M37 — 10 Amp RedAnti-Lock Brake Sys-
tem (ABS), Electronic
Stability Program
(ESP), Stop Lamp
Switch (STP LP SW),
Fuel Pump Rly Hi
Control
M38 — 25 Amp NaturalDoor Lock/Unlock
Motors (LOCK/
UNLOCK MTRS),
Liftgate Lock/Unlock
Motors
474 MAINTAINING YOUR VEHICLE

NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
LIGHT BULBS — Exterior Bulb Number
Backup, Tail, Stop Light . . . . . . . . . . . . . . . . . . . 3157
Center High-Mounted Stop Light . . . LED (See Note 1)
Fog Light — If Equipped . . . . . . . . . . . . . . . PSX24W
Front Side Marker,
Park/Turn Signal. . . . . . . . . . . . . . . P27 / 7W or 3157
Headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . H13
License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Note 1: The Center High-Mounted Stop Light (CHMSL)
uses LED lights that are not serviceable separately. The
CHMSL must be replaced as an assembly see your
authorized dealer.BULB REPLACEMENT
Headlamps
1. Raise the hood to access the rear of the headlamp
housing.
2. Slide the red lock tab rearward on the connector, then
depress the tab and remove the connector from the bulb.
3. Twist the headlamp bulb and pull the bulb from the
headlamp housing.
4. Install the new headlamp bulb and twist until locked
into the headlamp housing. CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
476 MAINTAINING YOUR VEHICLE

5. Connect the wiring connector to bulb and slide red
lock tab forward.
Front Park/Turn Signal Lamps
1. Raise the hood to access the rear of the headlamp
housing.
2. Twist the turn signal socket and remove from the
headlamp housing, then pull the bulb out.
3. Push the new bulb into the socket and reinstall the
socket by twisting until locked into the headlamp
housing.
Fog Lamps
NOTE:Access to the fog lamp bulb is from the rear of
the fascia. On the left rear side of the fascia, remove the
push pin and lower the hinged access door on the air
dam. 1. From behind the bumper fascia, or the access panel on
the air dam, twist the bulb counterclockwise, and remove
bulb. CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
2. Disconnect the wire harness from the bulb.
3. Reconnect the wiring harness to the new bulb and
reinstall the bulb by twisting clockwise.
MAINTAINING YOUR VEHICLE 477 7
