▫Rear 60/40 Seat Third Row Center Three
Point Belt — If Equipped................ 46
▫Seat Belt Pretensioners................. 48
▫Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 49
▫Seat Belts And Pregnant Women.......... 50
▫Seat Belt Extender..................... 50
▫Driver And Right Front Passenger
Supplemental Restraint System
(SRS)—Airbags....................... 51
▫Event Data Recorder (EDR).............. 60▫Child Restraint....................... 62
Engine Break-In Recommendations.......... 71
Safety Tips........................... 72
▫Transporting Passengers................ 72
▫Exhaust Gas......................... 73
▫Safety Checks You Should Make Inside The
Vehicle............................. 74
▫Periodic Safety Checks You Should Make
Outside The Vehicle................... 74
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

is out. It also prevents shifting out of PARK unless the
key is in the ON position and the brake pedal is
depressed.
SENTRY KEY
The Sentry KeyImmobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.NOTE:A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the Vehicle Security Light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

Vehicle Security Alarm is arming. The Vehicle Security
Light in the instrument panel cluster will flash rapidly for
about 15 seconds to indicate that the alarm is being set.
After the alarm is set, the Vehicle Security Light will flash
at a slower rate to indicate that the Vehicle Security
Alarm is armed.
NOTE:If the Vehicle Security Light stays on continu-
ously during vehicle operation, have the Vehicle Security
Alarm checked by your authorized dealer.
To Disarm the System
Use the RKE transmitter to unlock the doors. If some-
thing has triggered the Vehicle Security Alarm in your
absence, the horn will sound three times when you
unlock the doors. Check the vehicle for tampering.
The Vehicle Security Alarm will also disarm if the vehicle
is started with a programmed Sentry Key. If an unpro-
grammed Sentry Keyis used to start a vehicle, the
engine will start and run for two seconds and then shutdown. After six unsuccessful attempts at starting the
engine, the Vehicle Security Alarm will shut down until
the correct key is used. To exit alarming mode, press the
RKE transmitter UNLOCK button or start the vehicle
with a programmed Sentry Key.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will arm unexpectedly. If you
remain in the vehicle and lock the doors with the
transmitter, the alarm will sound when you pull the door
handle to exit.
NOTE:You may accidentally activate the Vehicle Secu-
rity Alarm (horn sounds and lights flash) by entering the
vehicle without using the RKE transmitter to unlock the
door(s). The Vehicle Security Alarm can be disarmed with
the RKE transmitters unlock button or by inserting a
programmed Sentry Keyinto the ignition and turning
the key to the ON position.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

Airbag Warning Light
You will want to have the airbags ready to
inflate for your protection in an impact. While
the airbag system is designed to be mainte-
nance free, if any of the following occurs, have
an authorized dealer service the system promptly:
•The Airbag Warning Light does not come on or flickers
during the 6 to 8 seconds when the ignition switch is
first turned ON.
•The light remains on or flickers after the 2.5 to 8 sec-
onds interval.
•The light flickers or comes on and remains on while
driving.
NOTE:If the speedometer, tachometer or any engine
related gauges are not working, the airbag control mod-
ule may also be disabled. The airbags may not be ready
to inflate for your protection. Promptly check the fuseblock for blown fuses. Refer to “Fuse Block” in Section 7.
See your authorized dealer if the fuse is good.
Event Data Recorder (EDR)
In the event of an accident, your vehicle is designed to
record up to five seconds of specific vehicle data param-
eters (see the following list) in an event data recorder
prior to the moment of airbag deployment, or near
deployment, and up to a quarter second of high-speed
deceleration data during and/or after airbag deploy-
ment. EDR data are ONLY recorded if an airbag deploys,
or nearly deploys, and are otherwise unavailable.
NOTE:
1. A near-deployment event occurs when the airbag
sensor detects severe vehicle deceleration usually indica-
tive of a crash, but not severe enough to warrant airbag
deployment.
2. Under certain circumstances, EDR data may not be
recorded (e.g., loss of battery power).
60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Data parameters that may be recorded:
•Diagnostic trouble code(s) and warning light status for
electronically-controlled safety systems, including the
airbag system
•Airbag disable light status (if equipped)
•Timeof airbag deployment (in terms of ignition
cycles and vehicle mileage)
•Airbag deployment level (if applicable)
•Impact acceleration and angle
•Seat belt status
•Brake status (service and parking brakes)
•Accelerator status (including vehicle speed)
•Engine control status (including engine speed)
•Transmission gear selection
•Cruise control status
•Traction/stability control status
•Tire Pressure Monitoring System status
Child Restraint
Everyone in your vehicle needs to be buckled up all the
time - babies and children, too. Every state in the United
States and all Canadian provinces require that small
children ride in proper restraint systems. This is the law,
and you can be prosecuted for ignoring it. Children
12 years and under should ride properly buckled up in a
rear seat, if available. According to crash statistics, chil-
dren are safer when properly restrained in the rear seats
rather than in the front.
There are different sizes and types of restraints for
children from newborn size to the child almost large
enough for an adult seat belt. Always check the child seat
Owner’s Manual to ensure you have the right seat for
your child. Use the restraint that is correct for your child.
62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75
2

System Status (EVIC Displays)
When the appropriate conditions exist, the EVIC displays
the following messages:
•TURN SIGNALS ON (with a continuous warning
chime)
•PERSONAL SETTINGS NOT AVAILABLE – Vehicle
not in PARK
•LEFT/RIGHT FRONT DOOR AJAR (one or more,
with a single chime if speed is above 1 mph/1 km/h)
•LEFT/RIGHT REAR DOOR AJAR (one or more, with
a single chime if speed is above 1 mph/1 km/h)
•DOOR(S) AJAR (with a single chime if vehicle is in
motion)
•LOW WASHER FLUID (with a single chime)
•OIL CHANGE REQUIRED (with a single chime)
•SERVICE PARK ASSIST SYSTEM (with a single chime)
•SERVICE PARK ASSIST SYSTEM
•COOLANT LOW
•LIFTGATE OPEN
•CHECK TPM SYSTEM (with single chime) (Premium
TPM System Only)
Oil Change Required — If Equipped
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will flash in the EVIC display for approximately 10 sec-
onds after a single chime has sounded to indicate the next
scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169
3

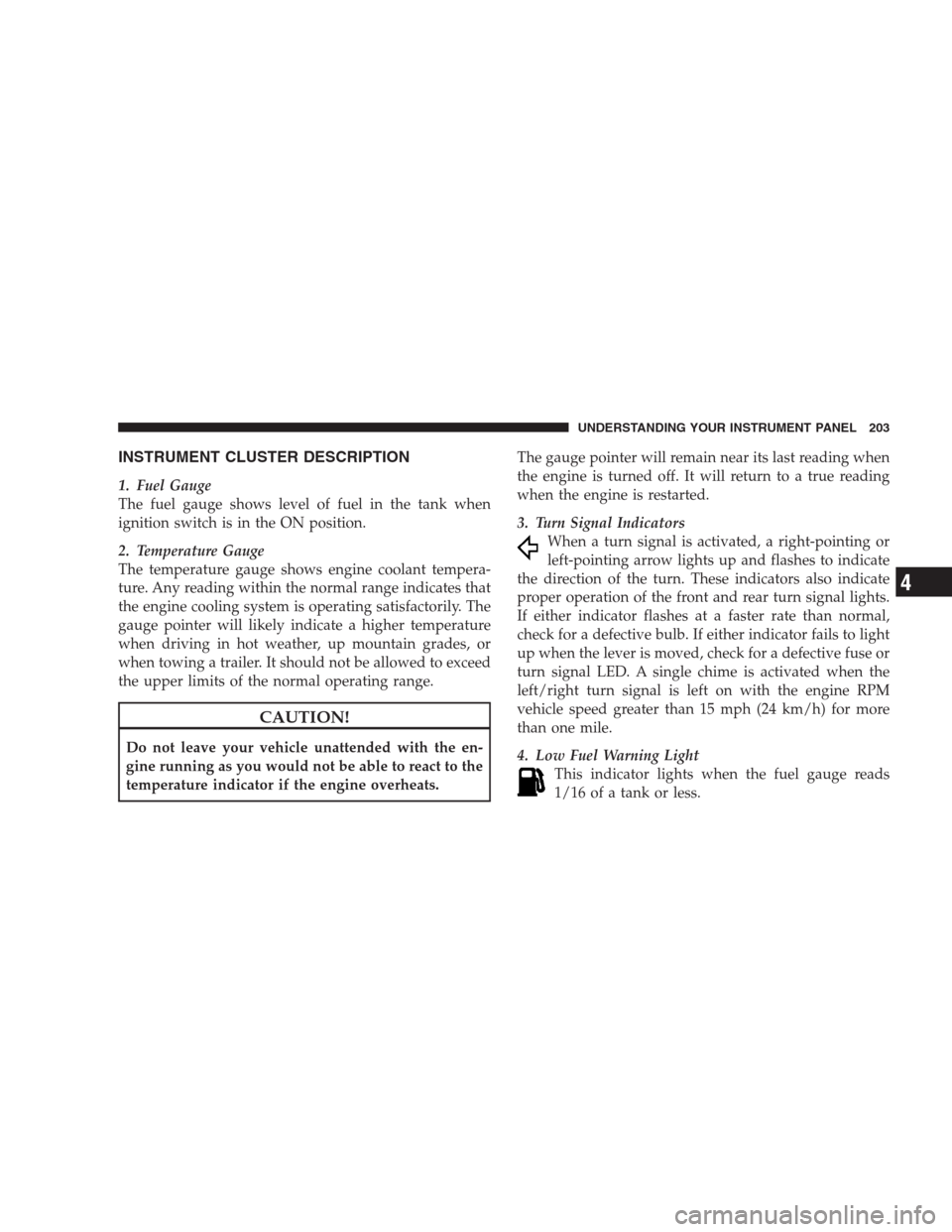

INSTRUMENT CLUSTER DESCRIPTION
1. Fuel Gauge
The fuel gauge shows level of fuel in the tank when
ignition switch is in the ON position.
2. Temperature Gauge
The temperature gauge shows engine coolant tempera-
ture. Any reading within the normal range indicates that
the engine cooling system is operating satisfactorily. The
gauge pointer will likely indicate a higher temperature
when driving in hot weather, up mountain grades, or
when towing a trailer. It should not be allowed to exceed
the upper limits of the normal operating range.
CAUTION!
Do not leave your vehicle unattended with the en-
gine running as you would not be able to react to the
temperature indicator if the engine overheats.The gauge pointer will remain near its last reading when
the engine is turned off. It will return to a true reading
when the engine is restarted.
3. Turn Signal Indicators
When a turn signal is activated, a right-pointing or
left-pointing arrow lights up and flashes to indicate
the direction of the turn. These indicators also indicate
proper operation of the front and rear turn signal lights.
If either indicator flashes at a faster rate than normal,
check for a defective bulb. If either indicator fails to light
up when the lever is moved, check for a defective fuse or
turn signal LED. A single chime is activated when the
left/right turn signal is left on with the engine RPM
vehicle speed greater than 15 mph (24 km/h) for more
than one mile.
4. Low Fuel Warning Light
This indicator lights when the fuel gauge reads
1/16 of a tank or less.
UNDERSTANDING YOUR INSTRUMENT PANEL 203
