2009 DODGE CHARGER coolant

3.5 Liter Engine with All Wheel Drive (MOPARAntifreeze/Coolant 5
Year/100,000 Mile Formula) 11.4 Quarts 10.8 Liters
5.7 Liter Engine without Severe Duty II Cooling System (MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula) 14.7 Quarts 13.9 Liters
5.7 Liter Engine with Severe Duty II Cooling System (MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula) 15.1 Quarts 14.3 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
428 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology) or equivalent
Engine Oil (2.7L Engine) Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for cor-
rect SAE grade.
Engine Oil (3.5L Engine) Use API Certified SAE 10W-30 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for cor-
rect SAE grade.
Engine Oil (5.7L Engine) Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for cor-
rect SAE grade.
Spark Plugs (2.7L Engine) TE10MCC5 (Gap 0.050 in [1.27 mm])
Spark Plugs (3.5L Engine) ZFR5LP–13G (Gap 0.050 in [1.27 mm])
Spark Plugs (5.7L Engine) LZFR5C–11 (Gap 0.043 in [1.1 mm])
MAINTAINING YOUR VEHICLE 429
7

NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicle’s
oil if it has been six months since your last oil change,
even if the oil change indicator message is NOT
illuminated.
•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 6,000 miles (10,000 km) or six months, which-
ever comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Oil Change
Required” under “Electronic Vehicle Information Center (EVIC)” in Section 4 or under “Odometer/Trip Odom-
eter” under “Instrument Cluster Descriptions” in Sec-
tion 4.
At Each Stop for Fuel
•Check the engine oil level. Refer to “Engine Oil” under
“Maintenance Procedures” in Section 7.
•Check the windshield washer solvent and add if
required.
Once a Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery, and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
master cylinder, power steering, and transmission,
and add as needed.
MAINTENANCE SCHEDULES 433
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

54,000 Miles (90,000 km) or
54 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏ Rotate tires.
❏ Inspect the rear axle fluid. Inspect the
front axle fluid — All Wheel Drive
(AWD).
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
60,000 Miles (100,000 km) or 60 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ Replace the engine air cleaner filter.
❏ Replace the spark plugs (2.7L and 5.7L Engines).
❏ Replace the air conditioning filter (if equipped)
❏ Inspect the brake linings; replace if necessary.
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Change the automatic transmission fluid and filter if using your vehicle for any of the
following: police, taxi, fleet, or frequent trailer towing.
❏ Change the transfer case fluid if using your vehicle for any of the following: police, taxi,
fleet, or frequent trailer towing — All Wheel Drive (AWD).
❏ Flush and replace the engine coolant at 60 months if not done at 102,000 miles
(170 000 km).
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 439
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

96,000 Miles (160,000 km) or 96 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Replace the air conditioning filter (if equipped)
❏ Inspect the brake linings; replace if necessary.
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends and boot seals; replace if necessary.
❏ Change the rear axle fluid and on models equipped with All Wheel Drive (AWD) change the
front axle fluid if using your vehicle for any of the following: police, taxi, fleet, off-road, or
frequent trailer towing.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
102,000 Miles (170,000 km) or
102 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏ Rotate tires.
❏ Replace the spark plugs (3.5L
Engines).
❏ Replace the timing belt (3.5L Engine).
❏ Flush and replace the engine coolant if
not done at 60 months.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 443
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

About Your Brakes....................... 292
ABS (Anti-Lock Brake System) .............. 294
Adding Engine Coolant (Antifreeze) .......... 399
Adding Fuel ........................... 337
Adding Washer Fluid ..................... 393
Additives, Fuel ......................... 335
Adjustable Pedals ....................... 140
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 389
Air Conditioner Maintenance ............... 391
Air Conditioning ..................... 253,255
Air Conditioning Controls ................. 253
Air Conditioning Filter .................262,392
Air Conditioning, Operating Tips ............ 263
Air Conditioning Refrigerant .............391,392
Air Conditioning System ..........253,255,256,391
Air Pressure, Tires ....................... 311
Airbag ................................ 52
Airbag Deployment ..................... 59,62
Airbag Light ..................... 60,65,79,175Airbag Maintenance
....................... 64
Airbag, Side .......................... 54,60
Airbag, Window (Side Curtain) .............54,60
Alarm, Panic ............................ 24
Alarm (Security Alarm) .................18,180
Alarm System (Security Alarm) ............... 18
All Wheel Drive (AWD) ................286,405
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 243
Antifreeze (Engine Coolant) ...........398,399,427
Disposal ............................ 400
Anti-Lock Brake System (ABS) ............294,296
Anti-Lock Warning Light .................. 182
Anti-Theft Security Alarm (Theft Alarm) ........ 18
Appearance Care ........................ 406
Arming Theft System (Security Alarm) ......... 18
Assistance Towing ....................... 103
Auto Down Power Windows ................ 36
Auto Unlock, Doors ....................... 31
460 INDEX

Anti-Lock (ABS)....................... 294
Fluid Check ....................... 403,430
Master Cylinder ....................... 403
Parking ............................. 292
Warning Light ........................ 179
Brakes ............................... 402
Brake/Transmission Interlock ............... 275
Break-In Recommendations, New Vehicle ........ 77
Brightness, Interior Lights .................. 136
Bulb Replacement ..................... 418,419
Bulbs, Light .......................... 80,418
Calibration, Compass ..................... 191
Capacities, Fluid ........................ 427
Caps, Filler Fuel ............................... 337
Oil (Engine) .......................... 387
Power Steering ........................ 291
Radiator (Coolant Pressure) ............... 400Car Washes
............................ 407
Carbon Monoxide Warning ...............78,336
Cargo (Vehicle Loading) ................... 340
Cellular Phone ........................ 89,252
Certification Label ....................... 340
Chains, Tire ............................ 319
Changing A Flat Tire ..................... 357
Chart, Tire Sizing ........................ 303
Check Engine Light
(Malfunction Indicator Light) ............... 383
Checking Your Vehicle For Safety ............. 78
Checks, Safety ........................... 78
Child Restraint .................... 67,69,72,74
Child Restraint Tether Anchors .............71,72
Child Safety Locks ........................ 33
Clean Air Gasoline ....................... 333
Cleaning Wheels ............................. 408
Windshield Wiper Blades ................ 393
462 INDEX

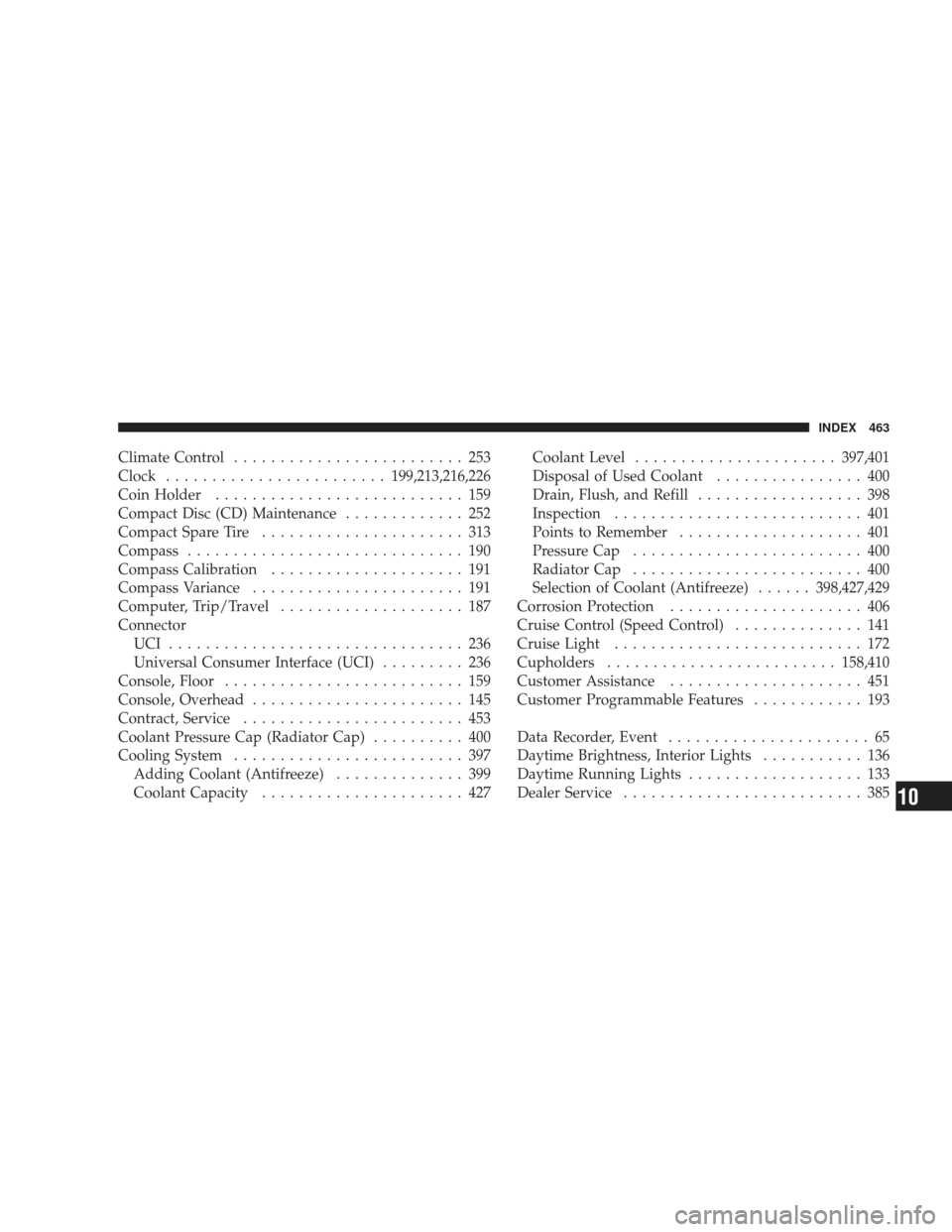

Climate Control......................... 253
Clock ........................ 199,213,216,226
Coin Holder ........................... 159
Compact Disc (CD) Maintenance ............. 252
Compact Spare Tire ...................... 313
Compass .............................. 190
Compass Calibration ..................... 191
Compass Variance ....................... 191
Computer, Trip/Travel .................... 187
Connector UCI ................................ 236
Universal Consumer Interface (UCI) ......... 236
Console, Floor .......................... 159
Console, Overhead ....................... 145
Contract, Service ........................ 453
Coolant Pressure Cap (Radiator Cap) .......... 400
Cooling System ......................... 397
Adding Coolant (Antifreeze) .............. 399
Coolant Capacity ...................... 427 Coolant Level
...................... 397,401
Disposal of Used Coolant ................ 400
Drain, Flush, and Refill .................. 398
Inspection ........................... 401
Points to Remember .................... 401
Pressure Cap ......................... 400
Radiator Cap ......................... 400
Selection of Coolant (Antifreeze) ......398,427,429
Corrosion Protection ..................... 406
Cruise Control (Speed Control) .............. 141
Cruise Light ........................... 172
Cupholders ......................... 158,410
Customer Assistance ..................... 451
Customer Programmable Features ............ 193
Data Recorder, Event ...................... 65
Daytime Brightness, Interior Lights ........... 136
Daytime Running Lights ................... 133
Dealer Service .......................... 385
INDEX 463
10
