2009 DODGE CHARGER TPMS

5. Once you repair or replace the original road tire, and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically and the TPM Telltale
Light will turn OFF, as long as no tire pressure is below
the low-pressure warning limit in any of the four active
road tires. The vehicle may need to be driven for up to
20 minutes above 15 mph (25 km/h) in order for the
TPMS to receive this information.
Premium System — If Equipped
The Tire Pressure Monitor System (TPMS) uses wireless
technology with wheel rim mounted electronic sensors to
monitor tire pressure levels. Sensors mounted to each
wheel as part of the valve stem transmit tire pressure
readings to the receiver module.
NOTE:It is particularly important for you to check the
tire pressure in all of the tires on your vehicle monthly
and to maintain the proper pressure. The TPMS consists of the following components:
•Receiver module,
•Four TPM sensors,
•Various TPMS messages, which display in the Elec-
tronic Vehicle Information Center (EVIC), and
•TPM Telltale Light
The matching full size spare wheel and tire assembly (if
equipped) has a TPM sensor. The full size spare can be
used in place of any of the four road tires. A spare with a
pressure below the low-pressure limit will not cause the
TPM Telltale Light to illuminate or the chime to sound.
STARTING AND OPERATING 327
5

turn off. The vehicle may need to be driven for up to
20 minutes above 15 mph (25 km/h) in order for the
TPMS to receive this information.
Check TPMS Warning
If a system fault is detected, the TPM Telltale Light will
flash on and off for 75 seconds and then remain on solid.
The system fault will also sound a chime. In addition, the
EVIC will display aCHECK TPM SYSTEM message for
three seconds and then display dashes (- -) in place of the
pressure value to indicate which sensor is not being
received.
STARTING AND OPERATING 329
5

If the ignition key is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the TPM Telltale Light will no longer
flash, and theCHECK TPM SYSTEM message will no
longer display, and a pressure value will display in place
of the dashes. A system fault can occur due to any of the
following:
1. Signal interference due to electronic devices or driving
next to facilities emitting the same radio frequencies as
the TPM sensors.
2. Installing aftermarket window tinting that contains
materials that may block radio wave signals.
3. Accumulation of snow or ice around the wheels or
wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors. NOTE:
Vehicles with Full Size Spare
1. The matching full size spare wheel and tire assembly
has a TPM sensor that can be monitored by the TPMS.
2. If you install the full size spare in place of a road tire
that has a pressure below the low-pressure warning limit,
upon the next ignition key cycle, a chime will sound and
the TPM Telltale Light will turn ON. In addition, the
EVIC will display a low pressure message and a graphic
showing the low tire pressure value flashing.
3. After driving the vehicle for up to 20 minutes above
15 mph (25 km/h) the TPM Telltale Light will turn OFF,
as long as no tire pressure is below the low-pressure
warning limit in any of the four active road tires.
330 STARTING AND OPERATING

NOTE:
Vehicles with Compact Spare
1. The compact spare tire does not have a TPM sensor.
Therefore, the TPMS will not monitor the pressure in the
compact spare tire.
2. If you install the compact spare tire in place of a road
tire that has a pressure below the low-pressure warning
limit, upon the next ignition key cycle, the TPM Telltale
Light will remain ON and a chime will sound. In
addition, the graphic in the EVIC will still display a
flashing pressure value.
3. After driving the vehicle for up to 20 minutes above
15 mph (25 km/h), the TPM Telltale Light will flash on
and off for 75 seconds and then remain on solid. In
addition, the EVIC will display aCHECK TPM SYS-
TEM message for three seconds and then display dashes
(- -) in place of the pressure value.
4. For each subsequent ignition key cycle, a chime will
sound, the TPM Telltale Light will flash on and off for 75 seconds and then remain on solid, and the EVIC will
display a
CHECK TPM SYSTEM message for three
seconds and then display dashes (- -) in place of the
pressure value.
5. Once you repair or replace the original road tire and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically. In addition, the
TPM Telltale Light will turn OFF and the graphic in the
EVIC will display a new pressure value instead of dashes
(- -), as long as no tire pressure is below the low-pressure
warning limit in any of the four active road tires. The
vehicle may need to be driven for up to 20 minutes above
15 mph (25 km/h) in order for the TPMS to receive this
information.
STARTING AND OPERATING 331
5

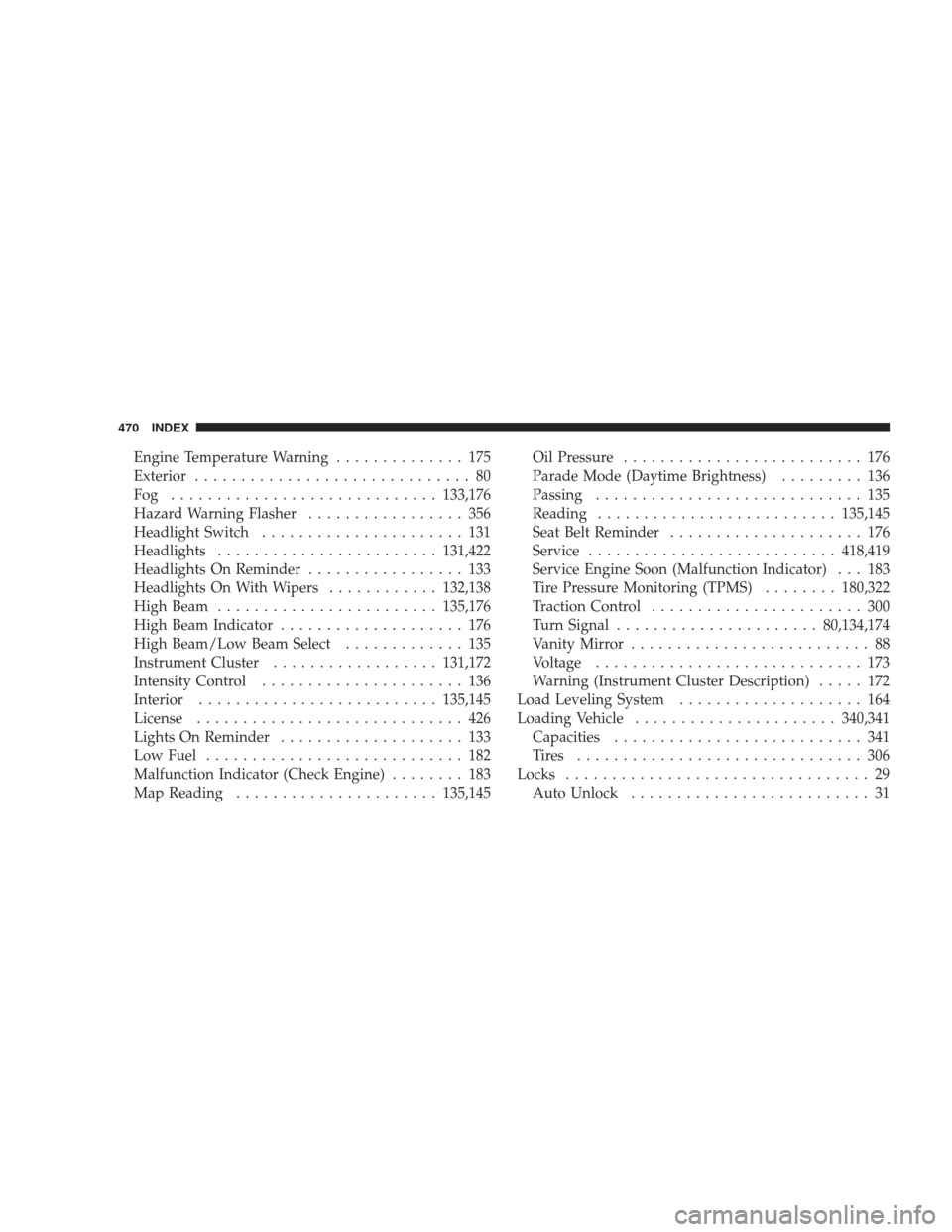

Engine Temperature Warning.............. 175
Exterior .............................. 80
Fog ............................. 133,176
Hazard Warning Flasher ................. 356
Headlight Switch ...................... 131
Headlights ........................ 131,422
Headlights On Reminder ................. 133
Headlights On With Wipers ............132,138
High Beam ........................ 135,176
High Beam Indicator .................... 176
High Beam/Low Beam Select ............. 135
Instrument Cluster .................. 131,172
Intensity Control ...................... 136
Interior .......................... 135,145
License ............................. 426
Lights On Reminder .................... 133
Low Fuel ............................ 182
Malfunction Indicator (Check Engine) ........ 183
Map Reading ...................... 135,145Oil Pressure
.......................... 176
Parade Mode (Daytime Brightness) ......... 136
Passing ............................. 135
Reading .......................... 135,145
Seat Belt Reminder ..................... 176
Service ........................... 418,419
Service Engine Soon (Malfunction Indicator) . . . 183
Tire Pressure Monitoring (TPMS) ........180,322
Traction Control ....................... 300
Turn Signal ...................... 80,134,174
Vanity Mirror .......................... 88
Voltage ............................. 173
Warning (Instrument Cluster Description) ..... 172
Load Leveling System .................... 164
Loading Vehicle ...................... 340,341
Capacities ........................... 341
Tires ............................... 306
Locks ................................. 29
Auto Unlock .......................... 31
470 INDEX

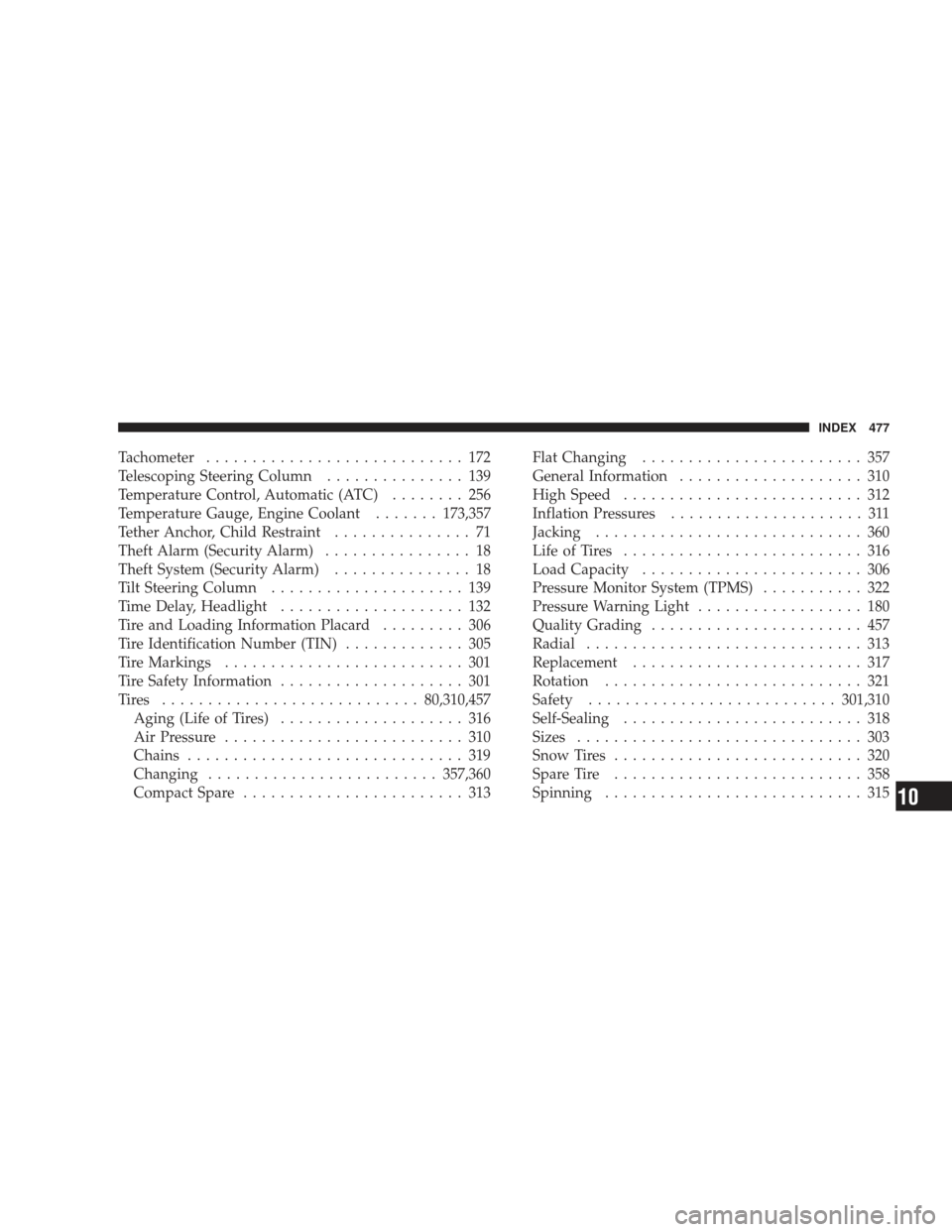

Tachometer............................ 172
Telescoping Steering Column ............... 139
Temperature Control, Automatic (ATC) ........ 256
Temperature Gauge, Engine Coolant .......173,357
Tether Anchor, Child Restraint ............... 71
Theft Alarm (Security Alarm) ................ 18
Theft System (Security Alarm) ............... 18
Tilt Steering Column ..................... 139
Time Delay, Headlight .................... 132
Tire and Loading Information Placard ......... 306
Tire Identification Number (TIN) ............. 305
Tire Markings .......................... 301
Tire Safety Information .................... 301
Tires ............................ 80,310,457
Aging (Life of Tires) .................... 316
Air Pressure .......................... 310
Chains .............................. 319
Changing ......................... 357,360
Compact Spare ........................ 313 Flat Changing
........................ 357
General Information .................... 310
High Speed .......................... 312
Inflation Pressures ..................... 311
Jacking ............................. 360
Life of Tires .......................... 316
Load Capacity ........................ 306
Pressure Monitor System (TPMS) ........... 322
Pressure Warning Light .................. 180
Quality Grading ....................... 457
Radial .............................. 313
Replacement ......................... 317
Rotation ............................ 321
Safety ........................... 301,310
Self-Sealing .......................... 318
Sizes ............................... 303
Snow Tires ........................... 320
Spare Tire ........................... 358
Spinning ............................ 315
INDEX 477
