Towing Tips
Before setting out on a trip, practice turning, stopping,
and backing up the trailer in an area located away from
heavy traffic.
Automatic Transmission
The DRIVE range can be selected when towing. How-
ever, if frequent shifting occurs while in this range, use
the Electronic Range Select (ERS) or Autostickmode (if
equipped) to select a lower gear range.
NOTE:Using a lower gear range while operating the
vehicle under heavy operating conditions will improve
performance and extend transmission life by reducing
excessive shifting and heat build up. This action will also
provide better engine braking.
If you REGULARLY tow a trailer for more than 45 min-
utes of continuous operation, then change the automatic
transmission fluid and filter according to the intervalspecified for “police, taxi, fleet, or frequent trailer tow-
ing” in the Maintenance Schedule. Refer to Section 8 for
the proper maintenance intervals.
Electronic Speed Control — If Equipped

Do not use in hilly terrain or with heavy loads.
When using the speed control, if you experience speed
drops greater than 10 mph (16 km/h), disengage until
you can get back to cruising speed.
Use speed control in flat terrain and with light loads to
maximize fuel efficiency.
Autostick/Electronic Range Select (ERS)

By using the Electronic Range Select (ERS) or
Autostickmode and selecting a specific gear range,
frequent shifting can be avoided. The highest gear
range should be selected that allows for adequate
5
STARTING AND OPERATING 335

performance. For example, choose “4” if the desired
speed can be maintained. Choose “3” or “2” if needed
to maintain the desired speed.
Extended driving at high RPM should be avoided to
prevent excess heat generation. A reduction in vehicle
speed may be required to avoid extended driving at
high RPM. Return to a higher gear range or vehicle
speed when road conditions and RPM level allows.
Cooling System
To reduce potential for engine and transmission over-
heating, take the following actions:
City Driving
When stopped for short periods, put transmission in
NEUTRAL and increase engine idle speed.
Highway Driving
Reduce speed.
Air Conditioning
Turn off temporarily.
RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.)
Recreational towing is allowed ONLY if the driveshaft
is removed.Towing with the rear wheels on the ground
while the driveshaft is connected can result in severe
transmission damage.
336 STARTING AND OPERATING

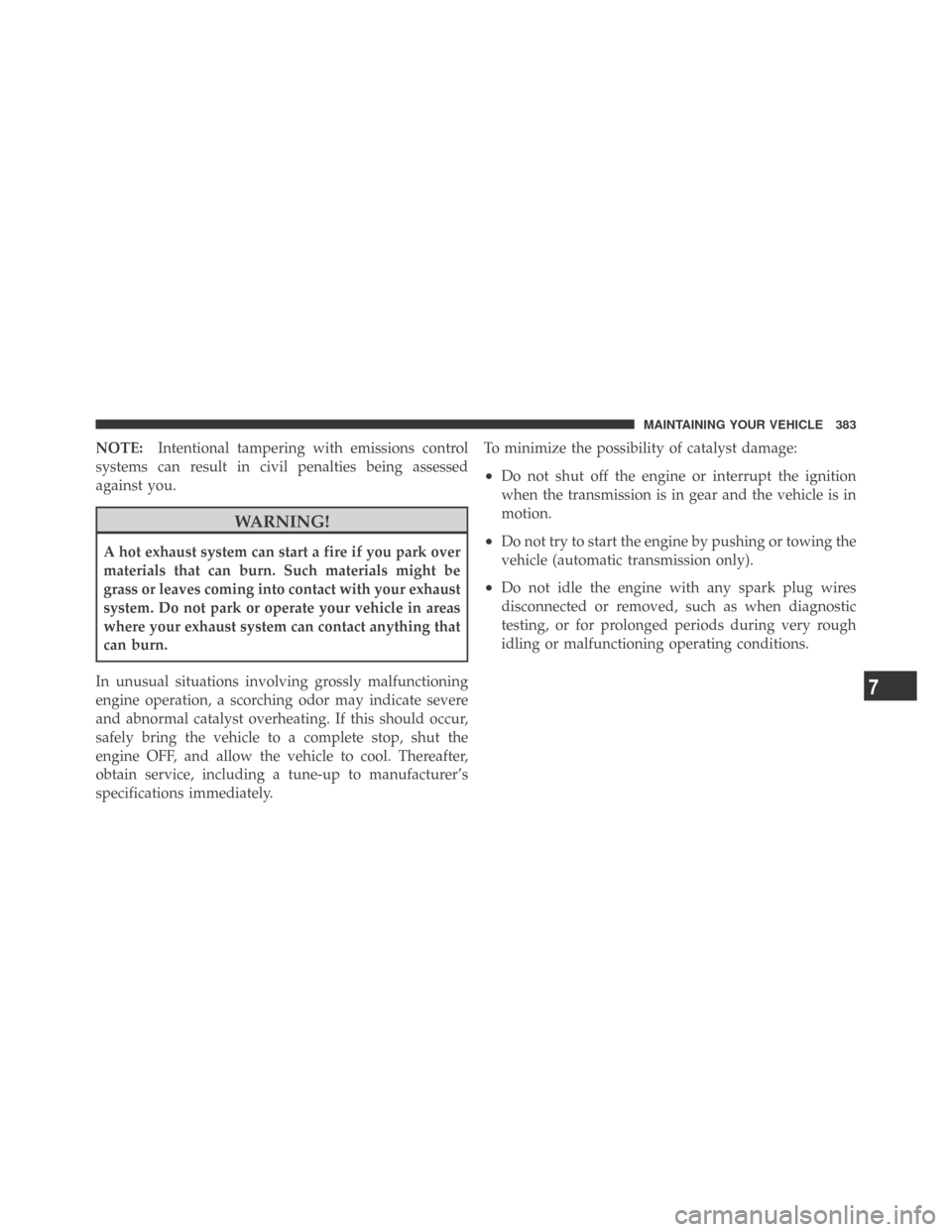

NOTE:Intentional tampering with emissions control
systems can result in civil penalties being assessed
against you.
WARNING!
A hot exhaust system can start a fire if you park over
materials that can burn. Such materials might be
grass or leaves coming into contact with your exhaust
system. Do not park or operate your vehicle in areas
where your exhaust system can contact anything that
can burn.
In unusual situations involving grossly malfunctioning
engine operation, a scorching odor may indicate severe
and abnormal catalyst overheating. If this should occur,
safely bring the vehicle to a complete stop, shut the
engine OFF, and allow the vehicle to cool. Thereafter,
obtain service, including a tune-up to manufacturer’s
specifications immediately.To minimize the possibility of catalyst damage:
•Do not shut off the engine or interrupt the ignition
when the transmission is in gear and the vehicle is in
motion.
•Do not try to start the engine by pushing or towing the
vehicle (automatic transmission only).
•Do not idle the engine with any spark plug wires
disconnected or removed, such as when diagnostic
testing, or for prolonged periods during very rough
idling or malfunctioning operating conditions.
7
MAINTAINING YOUR VEHICLE 383

Jump Starting.......................... 356
Key, Programming........................ 16
Key, Replacement........................ 16
Key, Sentry (Immobilizer)................... 14
Key-In Reminder......................... 14
Keyless Entry System...................... 20
Keyless Go....................... 12,175,245
Keys................................. 12
Kicker Sound System..................... 227
Knee Bolster............................ 45
Lane Change and Turn Signals.............. 122
Lap/Shoulder Belts....................... 37
LATCH (Lower Anchors and
Tether for CHildren).................... 60,62
Latches................................ 69
Hood............................... 117
Lead Free Gasoline...................... 316Leaks, Fluid............................ 69
LifeofTires ............................ 303
LightBulbs .......................... 69,408
Lights.............................. 69,119
Airbag........................ 51,54,68,158
Alarm .............................. 164
Anti-Lock.........................166,279
Automatic Headlights................... 120
Brake Assist Warning................... 287
Brake Warning.....................163,277
Bulb Replacement...................408,409
Center Mounted Stop................... 413
Courtesy/Reading...................123,132
Cruise .............................. 156
Daytime Running...................... 121
Dimmer Switch, Headlight.............122,123
Electronic Stability Program (ESP) Indicator . . . 287
Electronic Throttle Control Warning......... 157
Engine Temperature Warning.............. 159
10
INDEX 453
