2009 Citroen C4 key

23
11
22
11
33
22
Press the MENU button then select the CONFIGURATION function, then SOUNDS, then ACTIVATE AUXILIARY SOURCE to acti vate the audio equipment auxiliary input.
Connect the portable equipment (MP3 player…) to the JACK socket or to the audio sockets (white and red, RCA type) located in the glove box using a suitable cable.
Press the SOURCE button several times in succession and select AUX.
The displaying and management of the commands takes place via the portable equipment.
It is not possible to copy the fi les onto the hard disk from the auxiliary input.
USING THE AUXILIARY INPUT (AUX)
JACK/RCA AUDIO CABLE NOT SUPPLIED
AUDIO CD CHANGER
PLAYING A CD
Insert the CDs in a multi-slot changer (not MP3 compatible) one by one. On a single slot changer (MP3 compatible), press LOAD, select the number of the CD, then insert the CD, or press and hold LOAD and insert the CDs one by one.
Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the alphanumeric keypad to select the corresponding CD.
Press one of the buttons to select a track on the CD.
It is not possible to copy the fi les onto the hard disc from the CD changer.
CD CHANGER

25
11
22
33
11
22
06 INTERNAL TELEPHONE
ENTERING THE PIN CODE
Open the slot by pressing the button using the tip of a pen.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
Your SIM card must be installed and removed with the NaviDrive audio and telematics system switched off and the ig nition off.
Enter the PIN code on the keypad.
Confi rm the PIN code by pressing button #.
PIN CODE
When entering your PIN code, tick the STORE PIN ta b for access to the telephone without having to enter this code when it is used subsequently.
INSTALLING YOUR SIM CARD
(NOT SUPPLIED)

28
11
22
33
55
66
44
06 MAKING TELEPHONE CALLS
CALLING A CONTACT
Turn the dial and select the DIAL function.
Press the PICK UP button to display the telephone short-cut menu.
Press the dial to confi rm the selection.
Dial the telephone number of your contact using the alphanumeric keypad.
Press the PICK UP button to call the number dialled.
Press the HANG UP button to end the call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button to accept a call.
Press the HANG UP button to refuse a call.
You can also press and hold the steering wheel control TEL button to access the telephone menu: calls log, directory, voice mailbox.
To select the telephone used, press MENU, then select TELEMATICS, then BLUETOOTH FUNCTIONS, then BLUETOOTH ACTIVATION MODE. Then sel ect: - DEACTIVATED: to use the internal telephone, - ACTIVATED AND VISIBLE: to use the bluetooth telephone, visible to all telephones, - ACTIVATED AND NOT VISIBLE: to use the bluetoo th telephone, not visible to other telephones, it is not possible to match a new telephone.
Select CALL LIST or PHONE BOOK and press OK. Selec t the number required and confi rm to make the call.
DIAL

7
8
10
9 A pre-set list (by entering the fi rst few letters) of the towns in the A pre-set list (by entering the fi rst few letters) of the towns in the country selected can be accessed via the LIST butto n ontton on the virtual keypad.
During guidance, pressing the end of the lighting stalk repeats the last guidance instruction.
Repeat steps 5 to 7 for the "Street" and "House number"functions.
Select the "Save to address book" function to reco rd thord the address entered in a directory fi le. Press the dial to confi rm the selection. entered in a directory fi le. Press the dial to confi rm the selection. MyWay allows up to 4000 contact fi les to be record ed. MyWay allows up to 4000 contact fi les to be recorded.
To speed up the process, the post code can be ente redtered directly after selecting the "Postal code" function. Use the virtual keypad to enter the letters and digits.
Select the route type: "Fast route", "Short route" or "Optimized route" and press the dial to confi rm.
Then select "Start route guidance" and the press the dial to confi rm.
You can zoom in/zoom out on the map using the dial . It is possible to scroll the map or select its orientation viaion via the short-cut menu of the FULL SCREEN MAP. Press the dial the n select cut menu of the FULL SCREEN MAP. Press the dial then select "Map settings".
It is also possible to select a destination via "Choose frose from address book" or "Choose from last destinations".
CHOOSE FROM ADDRESS BOOK CHOOSE FROM LAST DESTINATIONS CHOOSE FROM LAST DESTINATIONS
To clear a destination; from steps 1 to 3, select "Choose from last destinations". A long press on one of the destinations displays a list of actions from which you can select: Delete entry Delete list
START ROUTE GUIDANCE

10
03
1
2
3
4
7
85
6
NAVIGATION - GUIDANCE
SEARCHING FOR POINTS OF INTEREST
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and press the dial to confi rm.
Select the "POI nearby" function to search for POIs around the vehicle.
Select the "POI search" function and press the dial to confi rm.
"NAVIGATION" MENU
POI SEARCH
POI NEARBY
Select the "POI in city" function to search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.
Select the "POI near route" function to search for POIs near the route.
Select the "POI in country" function to search for POIs in the country required.
Select the "POI near destination" function to search for POIs near the point of arrival of the route.
POI NEAR DESTINATION
POI IN COUNTRY
POI NEAR ROUTE
A list of cities present in the country selected can be accbe accessed via the LIST button on the virtual keypad.
POI IN CITY
The points of interest (POIs) indicate all of the service locations in the vicinity (hotels, various businesses, airports...).

14
11
2
3
05
SELECTING A STATION
When the current radio station is displayed on the screen, press the dial.
The radio source short-cuts menu appears and providesovides access to the following short-cuts:
Select the function required and press the dial to confi rm to gain access to the corresponding settings.
TRAFFIC INFO (TA)
The RDS, if displayed, allows you to continue listening to the same The RDS, if displayed, allows you to continue listening to the same station by automatic retuning to alternative freque ncies. However, in station by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assured certain conditions, coverage of an RDS station may not be assured throughout the entire country as radio stations do not cover 100 % of throughout the entire country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during the territory. This explains the loss of reception of the station during a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. Thi s phenomenon is a normal result of the way in which radio waves are transmitted and does n ot in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE - TRAFFIC INFO
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning the dial and press to confi rm.
While listening to the radio, press one of the buttons to select the previous or next station on the list.
Press one of the buttons on the numeric keypad for moor more than 2 seconds to store the current station. Press the button on the numeric keypad to recall the stothe stored radio station.
RDS
RADIOTEXT
REGIONAL PROG.
AM
RADIO
A long press of one of the buttons starts the automatic search for a station with a lower or higher frequency.

17
1
2
3
4
06
1
4
2
3
5
Connect the portable equipment (MP3/WMA player…) to the audio Connect the portable equipment (MP3/WMA player…) to the audio sockets (white and red, RCA type) in the glove box using a JACK/sockets (white and red, RCA type) in the glove box using a JACK/RCA audio cable.
Press the MUSIC button then press it again or select the "Music" Menu function and press the dial to confi rm.
Select the AUX music source and press the dial to confi rm. Play begins automatically.
Select the "External device" function and press the dial to activate it.
EXTERNAL DEVICE
The display and management of the controls is via the portable The display and management of the controls is via the portable equipment.
USING THE EXTERNAL DEVICE (AUX)
AUDIO/RCA CABLE NOT SUPPLIED
MUSIC MEDIA PLAYERS
Insert one or more CDs in the changer. Press the MUSIC button.
Press one of the buttons on the numeric keypad to select the corresponding CD.
Select the CD CHANGER music source and press the dial to confi rm.
Select the SELECT MUSIC function and press the dial to confi rm.
CD CHANGER
PLAYING A CD (NOT MP3/WMA COMPATIBLE)
Press the MUSIC button again or select the MUSIC MENU function and press the dial to confi rm.
CD CHANGER
SELECT MUSIC
MUSIC MENU

19
2
3
11
2
3
4

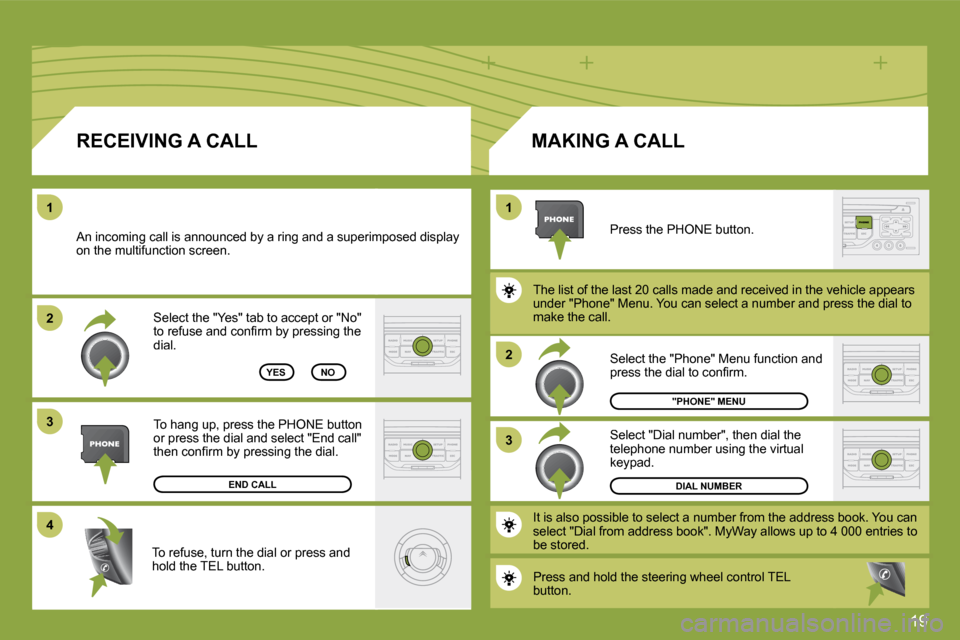

To refuse, turn the dial or press and hold the TEL button.
Select the "Yes" tab to accept or "No" to refuse and confi rm by pressing the dial.
RECEIVING A CALL MAKING A CALL
An incoming call is announced by a ring and a superimposed display An incoming call is announced by a ring and a superimposed display on the multifunction screen.
YES
To hang up, press the PHONE button or press the dial and select "End call" then confi rm by pressing the dial.
END CALL
Press the PHONE button.
Press and hold the steering wheel control TEL button.
It is also possible to select a number from the address bress book. You can select "Dial from address book". MyWay allows up to 4 000 entries to select "Dial from address book". MyWay allows up to 4 000 entries to be stored.
Select "Dial number", then dial the telephone number using the virtual keypad.
Select the "Phone" Menu function and press the dial to confi rm.
DIAL NUMBER
"PHONE" MENU
The list of the last 20 calls made and received in the vehicle appears The list of the last 20 calls made and received in the vehicle appears under "Phone" Menu. You can select a number and pre sd press the dial to make the call.
NO
