104
VIII
S A F E T Y
* According to country.
Side airbags *
System which protects the driver
and front passenger in the event of
a serious side impact in order to limit
t h e r i s k o f i n j u r y t o t h e c h e s t .
Each side airbag is incorporated in
the front seat back frame, on the
door side.
Operation
It is triggered unilaterally in the
event of a serious side impact
applied to all or part of the side
impact zone
B , perpendicular to the
longitudinal centreline of the vehicle
on a horizontal plane and directed
from the outside towards the inside
of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the

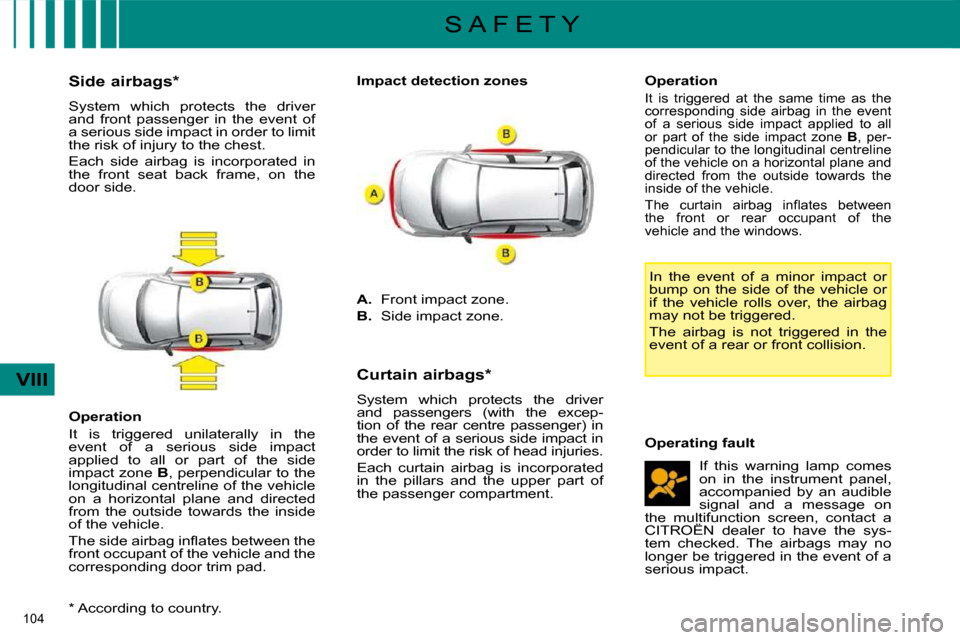

corresponding door trim pad. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Curtain airbags *
System which protects the driver
a n d p a s s e n g e r s ( w i t h t h e e x c e p -
tion of the rear centre passenger) in
the event of a serious side impact in
o r d e r t o l i m i t t h e r i s k o f h e a d i n j u r i e s .
Each curtain airbag is incorporated
in the pillars and the upper part of
the passenger compartment. Operation
It is triggered at the same time as the
corresponding side airbag in the event
of a serious side impact applied to all
or part of the side impact zone
B , per-
pendicular to the longitudinal centreline
of the vehicle on a horizontal plane and
directed from the outside towards the
inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the
vehicle and the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be triggered.
The airbag is not triggered in the
event of a rear or front collision.
Operating fault If this warning lamp comes
on in the instrument panel,
accompanied by an audible
signal and a message on
the multifunction screen, contact a
CITROËN dealer to have the sys-
tem checked. The airbags may no
longer be triggered in the event of a
serious impact.
Page 119 of 279
114
IX
D R I V I N G
Press the brake pedal.
Operate the starter.
When the engine is running,
place the selector on R , D or M
as required .
Check, in the instrument panel,
the position engaged.
Gradually release the brake ped-
al and accelerate.
To avoid a difference between
the position of the selector and
the actual position of the gear-
box, only exit from position P
with the ignition on and the brake
pedal pressed.
Park Reverse gear
This position of the selector is used
to prevent the vehicle from moving
when you are stationary.
To select position P, move the
selector back to the highest po-
sition (towards R ), then push it
forwards and then to the left. Only engage this position when
the vehicle is stationary. To prevent
snatching, do not accelerate too
soon after selection.
Neutral
Never select position N if the vehicle
is moving.
Never select positions P or
R if the vehicle is not sta-
tionary.
If, while the vehicle is moving, po-
sition N is engaged inadvertently,
allow the engine to idle before en-
gaging position D or M .
Otherwise, when the ignition is on or
the engine is running:
reposition the selector in position P ,
put your foot on the brake pedal
and then select the gear you
want. Automatic operation
Move the selector to position D .
The gearbox constantly selects the gear that is best suited to the
following conditions:
- driving style,
- r o a d p r o fi l e ,
- vehicle load.
The gearbox is then operating in
auto-adaptive mode, without re-
quiring any action on your part.
For certain manoeuvres (for exam-
ple overtaking), you can obtain maxi-
mum acceleration by pressing the
accelerator pedal down hard, which
then produces an automatic change
down to a lower gear.
When braking, the gearbox may
change down automatically in order
to provide effective engine braking.
If you lift your foot off the accelera-
tor abruptly, the gearbox will not
change up.
To exit position P , move the se-
lector to the right and then to the
position you want.
Only engage this position when
the vehicle is completely sta-
tionary. In this position, the front
wheels are locked. Make sure
that the selector is correctly posi-
tioned.
Page 120 of 279
115
IX
D R I V I N G
Manual operation
SPORT and SNOW
programmes
These two special programmes sup-
plement the automatic operation in
v e r y s p e c i fi c c o n d i t i o n s o f u s e .
Position of the selector for manual
gear changing.
T h e fl a s h i n g o f t h e w a r n i n g l a m p f o r
the position requested signals that
this position is not yet obtained.
I f t h e w a r n i n g l a m p i s o n fi x e d , t h e
p o s i t i o n i s c o n fi r m e d .
Lighting of a dash in the rev coun-
ter indicates an operating fault. In
this case:
- a marked snatching may be felt
when selecting R for reverse
gear,
- the gearbox is locked in a gear,
- do not exceed 60 mph (approx. 100 km/h).
Consult a CITROËN dealer.
- A request to change gear is ac-
cepted only if the engine speed
permits it.
- For safety reasons, depending on the engine speed, a change
up or down may be performed
automatically.
- It is possible at any time to move from position D (driving in auto-
matic mode) to position M (driving
in sequential mode) or vice versa.
- The SPORT and SNOW modes
do not operate in sequential
mode.
SPORT programme "S"
With the lever in position D and
the engine running, press but-
ton " S ".
The gearbox automatically favours a
dynamic style of driving.
" S " appears on the instrument panel.
Move the selector to position M .
Push the lever towards the "+"
sign to change up a gear.
Pull the lever towards the "-"
sign to change down a gear.
- If the vehicle stops or reduces speed (for example when ap-
proaching a stop sign), the gear-
box changes down automatically,
t o fi r s t g e a r i f n e c e s s a r y .
- In sequential mode, it is not nec- essary to release the accelerator
during gear changes. SNOW programme "
"
With the lever in position D and
the engine running, press button
" ".
The gearbox adapts to driving on
slippery roads.
This programme facilitates starting
and traction in conditions of poor grip.
" " appears on the instrument panel.
Return to automatic operation
Press the button selected again
at any time to exit from the pro-
gramme engaged and return to
auto-adaptive mode.
Page 127 of 279
122
D R I V I N G
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that
the sensors may be dirty.
When the vehicle is being driven
at a speed below approximately
6 mph (10 km/h), certain sourc-
es of noise (motorcycles, lorries,
pneumatic drills, ...) may trigger the
reversing audible signal.
Reactivation
Press button A again, the warning
lamp switches off, the system is
reactivated.
Deactivation Operating fault
If an operating fault occurs, this warn-
ing lamp is displayed on the instrument
panel and/or a message appears on
the multifunction screen, accompa-
nied by an audible signal (short beep),
when reverse gear is engaged.
Consult a CITROËN dealer.
Press button A , the warning lamp
comes on, the system is fully de-
activated.
The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended by
CITROËN).
Page 129 of 279
125
X
C H E C K S
BLEEDING THE DIESEL FILTER
Protective cover
Removal
Remove the protective cover by
u n c l i p p i n g fi r s t p o i n t 1 , then 3
and 4 .
Unclip point 2 pulling towards
you, then lift.
R e fi t t i n g
Clip point 2 fi r s t .
Lower the cover, centring it.
Clip points 1 and 4 , pushing ver-
tically and slightly rearwards.
Clip point 3 , pushing vertically. Bleeding water from the fuel
filter
Bleed on a regular basis (at every
oil change).
To evacuate the water, slacken the
bleed screw or the water-in-diesel-
fuel sensor, which is located at the
b a s e o f t h e fi l t e r .
P e r s i s t u n t i l w a t e r c e a s e s t o fl o w o u t .
Then retighten the bleed screw or
the water-in-diesel-fuel sensor.
Page 136 of 279
132
X
C H E C K S
Brake pads Brake wear depends on
the style of driving, par-
ticularly in the case of ve-
hicles used in town, over
short distances. It may be
necessary to have the condition of
the brakes checked, even between
vehicle services.
Unless there is a leak in the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
Manual gearbox
The gearbox does not re-
quire any maintenance (no
oil change).
6 - s p e e d e l e c t r o n i c g e a r b o x
system The gearbox does not re-
quire any maintenance (no
oil change).
Automatic gearbox The gearbox does not re-
quire any maintenance (no
oil change). Brake disc wear
For information relating to
checking the brake disc
wear, contact a CITROËN
dealer.
Parking brake If a loss of effectiveness
of this system is noticed,
the parking brake must be
checked, even between
two services.
This system must be checked by a
CITROËN dealer. Only use products recom-
mended by CITROËN or
products of equivalent quality
a n d s p e c i fi c a t i o n s .
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and of-
f e r s v e r y s p e c i fi c p r o d u c t s .
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Refer to the Maintenance and
Warranty Guide for the details of the
level checking interval for this com-
ponent.
Refer to the Maintenance and
Warranty Guide for details of the
checking interval for this component.
Refer to the Maintenance and
Warranty Guide for details of the
level checking interval for this com-
ponent.
Page 137 of 279
133
XI
P R A C T I C A L I N F O R M A T I O N
CHANGING A WHEEL
Access to the tools
The tools are located in the spare
w h e e l , u n d e r t h e b o o t fl o o r .
To gain access to them:
open the boot,
l i f t t h e fl o o r ,
unclip and remove the box con-
t a i n i n g t h e t o o l s . List of tools
A l l o f t h e s e t o o l s a r e s p e c i fi c t o y o u r
v e h i c l e . D o n o t u s e t h e m f o r o t h e r
p u r p o s e s .
1. Wheelbrace
2. Centring guide
3. Tool for bolt protectors on
aluminium wheels
4. Jack with handle
5. Aluminium wheel central
embellisher removal tool
6. Socket for anti-theft bolts
(located in the glove box)
A d j u s t s t o t h e w h e e l b r a c e .
7. R e m o v a b l e t o w i n g e y e Access to the spare wheel
The spare wheel is installed in the
b o o t , u n d e r t h e fl o o r .
Removing the wheel
U n d o t h e y e l l o w c e n t r a l s c r e w b y
a q u a r t e r t u r n .
Raise the spare wheel towards
y o u r e a r w a r d s .
Remove the wheel from the boot
s p a c e .
Page 138 of 279
133
XI
P R A C T I C A L I N F O R M A T I O N
CHANGING A WHEEL
Access to the tools
The tools are located in the spare
w h e e l , u n d e r t h e b o o t fl o o r .
To gain access to them:
open the boot,
l i f t t h e fl o o r ,
unclip and remove the box con-
t a i n i n g t h e t o o l s . List of tools
A l l o f t h e s e t o o l s a r e s p e c i fi c t o y o u r
v e h i c l e . D o n o t u s e t h e m f o r o t h e r
p u r p o s e s .
1. Wheelbrace
2. Centring guide
3. Tool for bolt protectors on
aluminium wheels
4. Jack with handle
5. Aluminium wheel central
embellisher removal tool
6. Socket for anti-theft bolts
(located in the glove box)
A d j u s t s t o t h e w h e e l b r a c e .
7. R e m o v a b l e t o w i n g e y e Access to the spare wheel
The spare wheel is installed in the
b o o t , u n d e r t h e fl o o r .
Removing the wheel
U n d o t h e y e l l o w c e n t r a l s c r e w b y
a q u a r t e r t u r n .
Raise the spare wheel towards
y o u r e a r w a r d s .
Remove the wheel from the boot
s p a c e .
