"Foot on brake" The fl ashing of this warning
lamp on the display informs
you that you need to press
the brake pedal in order to
be able to start the engine on a ve-
hicle with the (6-speed) Electronic
Gearbox System, or to move out of
position P in the case of an automatic
gearbox.
It may also fl ash to prompt you to
brake when engaging reverse gear.
In the case of the Electronic Gearbox
System, this warning lamp fl ashes to
indicate overheating of the clutch if
you use the accelerator excessively
to hold the vehicle on an uphill slope.
Use the brake pedal instead.
Electric child lock
If lit, the child lock is activa ted.
This warning lamp is displayed
a few seconds after the func-
tion is activated. Deactivation warning lamps
If one of the following warning lamps
comes on, this confi rms that the
corresponding system has been
switched off intentionally.
Passenger's air bag system
deactivation
Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically
when the vehicle is started.
A specifi c button, located on the
dashboard, permits deactivation of
the system. This is confi rmed by
continuous lighting of this warning
lamp and of the indicator lamp on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically. Warning lamps
Diesel engine pre-heating
Wait until this has gone out
before operating the starter.
The passenger's air bag system is put into service automatically
when the vehicle is started.
A specifi c control, located in the glove
box, permits deactivation of the system.
This is confi rmed by continuous lighting
of this warning lamp on the instrument
panel or a message on the NaviDrive
multifunction screen.
When the engine is running or the
vehicle is moving, the lighting of
one of the following warning lamps
indicates the occurrence of a fault
requiring action on the part of the
driver.
Any fault resulting in the displaying of
a warning lamp must be investigated
further by reading the associated mes-
sage on the multifunction screen.
Should you encounter any problems,
do not hesitate to contact a CITROËN
dealer.

26
I
I N S T R U M E N T S a n d C O N T R O L S Maximum coolant temperature If this comes on, it indicates
that the temperature in the
cooling system is too high.
Stop the vehicle as soon as
it is safe to do so.
Low fuel level When the tank is full, all the
bars are lit.
If the fuel low warning lamp
comes on accompanied by
an audible signal and a message on
the multifunction screen, there are
approximately 7 litres of fuel remain-
ing in the tank and the 2 or 3 bars
fl ash on the instrument panel.
When the last bar goes out, there
are approximately 2 litres of fuel re-
maining in the tank.
Lighting is associated
with the lighting of an-
other warning lamp:
Service If this comes on, it indi-
cates the occurrence
of a problem in one
of the systems which
does not have a spe-
cifi c warning lamp.
It is accompanied by a message on
the multifunction screen.
The warning lamp comes on tempo-
rarily in the case of minor faults.
In the case of major faults, the warning
lamp remains on until the operating
fault is rectifi ed. Contact a CITROËN
dealer as soon as possible. Braking
If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:
- signifi cant drop in the fl uid level in the circuit,
-
electronic brake force distribution
(EBFD) faulty (simultaneous lighting
of the ABS warning lamp),
Stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Dynamic stability control
(ESP/ASR)
The ESP/ASR system is put
into service automatically
when the vehicle is started.
Unless the system has been de-
activated, if this warning lamp and
the indicator lamp on the button
come on continuously, this indi-
cates the occurrence of a fault in the
ESP/ASR system or in the hill start
assistance. Engine autodiagnostics system
If this comes on, it indicates
the occurrence of a fault in
the engine management
system.
If it fl ashes, it indicates the occur-
rence of a fault in the emission control
system.
Central alert
- punctured wheel,
- braking,
- coolant temperature,
Stop the vehicle as soon as it is safe
to do so.
Contact a CITROËN dealer.
Anti-lock braking system (ABS) If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not prevent op-
eration of the vehicle’s servo-assisted
braking system.

27
I
I N S T R U M E N T S a n d C O N T R O L S
Airbags If this comes on, it indicates
the occurrence of a fault in
one of the airbag or seat belt
pretensioner systems.
Door open
A door, the boot or the bonnet
is open:
- if the speed is below 6 mph (10 km/h), this warning lamp
comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning lamp
comes on continuously, accom-
panied by an audible signal. Seat belt not fastened/
unfastened
Driver's seat belt not fastened:
-
The warning lamp comes on if the
driver’s seat belt is not fastened
when the ignition is switched on and
between 0 and 12 mph (approx.
20 km/h).
- Above 12 mph (approx. 20 km/h),
the warning lamp fl ashes for approxi-
mately 120 seconds, accompanied by
an audible signal. It then remains on.
Front passenger and rear passenger
seat belts not fastened:
- When the ignition is switched on, the warning lamp always comes
on if the passenger's seat belt is
not fastened.
It goes off when the engine is running,
doors closed and after 30 seconds.
- If a seat belt is unfastened, the warning lamp comes on between 0
and 12 mph (approx. 20 km/h).
- Above 12 mph (approx. 20 km/h), the warning lamp fl ashes for ap-
proximately 120 seconds, accom-
panied by an audible signal. Maintenance indicator
System which informs the driver
when the next service is due, in ac-
cordance with the manufacturer’s
servicing schedule.
The point at which the service is due
is calculated from the last indicator
zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last
service.

27
I
I N S T R U M E N T S a n d C O N T R O L S
Airbags If this comes on, it indicates
the occurrence of a fault in
one of the airbag or seat belt
pretensioner systems.
Door open
A door, the boot or the bonnet
is open:
- if the speed is below 6 mph (10 km/h), this warning lamp
comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning lamp
comes on continuously, accom-
panied by an audible signal. Seat belt not fastened/
unfastened
Driver's seat belt not fastened:
-
The warning lamp comes on if the
driver’s seat belt is not fastened
when the ignition is switched on and
between 0 and 12 mph (approx.
20 km/h).
- Above 12 mph (approx. 20 km/h),
the warning lamp fl ashes for approxi-
mately 120 seconds, accompanied by
an audible signal. It then remains on.
Front passenger and rear passenger
seat belts not fastened:
- When the ignition is switched on, the warning lamp always comes
on if the passenger's seat belt is
not fastened.
It goes off when the engine is running,
doors closed and after 30 seconds.
- If a seat belt is unfastened, the warning lamp comes on between 0
and 12 mph (approx. 20 km/h).
- Above 12 mph (approx. 20 km/h), the warning lamp fl ashes for ap-
proximately 120 seconds, accom-
panied by an audible signal. Maintenance indicator
System which informs the driver
when the next service is due, in ac-
cordance with the manufacturer’s
servicing schedule.
The point at which the service is due
is calculated from the last indicator
zero reset. It is determined by two
parameters:
- the distance travelled,
- the time elapsed since the last
service.

28
I
I N S T R U M E N T S a n d C O N T R O L S

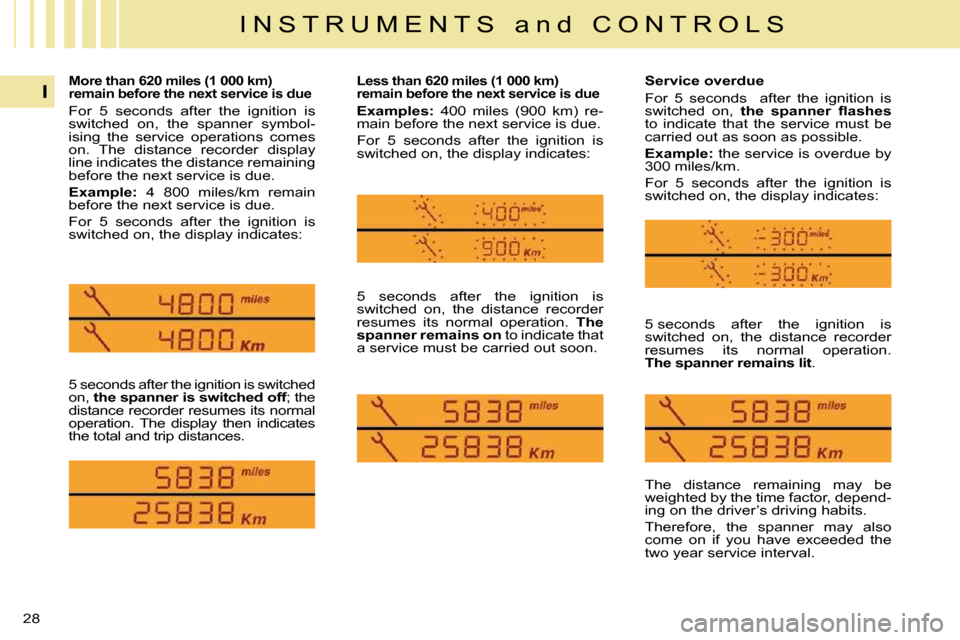

5 seconds after the ignition is switched
on, the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances.
Less than 620 miles (1 000 km)
remain before the next service is due

Examples
: 400 miles (900 km) re-
main before the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates: Service overdue
For 5 seconds after the ignition is
switched on,
the spanner fl ashes
to indicate that the service must be
carried out as soon as possible.

Example: the service is overdue by
300 miles/km.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is
switched on, the distance recorder
resumes its normal operation. The
spanner remains on to indicate that
a service must be carried out soon. 5 seconds after the ignition is
switched on, the distance recorder
resumes its normal operation.

The spanner remains lit .
More than 620 miles (1 000 km)
remain before the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbol-
ising the service operations comes
on. The distance recorder display
line indicates the distance remaining
before the next service is due.

Example: 4 800 miles/km remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
The distance remaining may be
weighted by the time factor, depend-
ing on the driver’s driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.

29
I
I N S T R U M E N T S a n d C O N T R O L S
Maintenance indicator zero reset Engine oil level indicator
After each service, the maintenance
indicator must be reset to zero.
The procedure for resetting to zero
is as follows:

 switch off the ignition,

 press and hold the trip distance
recorder zero reset button,

 switch on the ignition; the dis-
tance recorder display begins a
countdown,

 when the display indicates "=0" ,
release the button; the spanner
disappears. System which informs the driver
whether the engine oil level is correct
or not.
This information is displayed for a
few seconds when the ignition is
switched on, after the service infor-
mation.
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Oil level correct
Oil level low
This is indicated by the fl ashing of

"OIL" , accompanied by an audible
signal and a message on the multi-
function screen.
If the low oil level is confi rmed by a
check using the dipstick, it is essential
that the level is topped up to prevent
damage to the engine. Oil level gauge fault
This is indicated by the fl ashing of

"OIL --" . Contact a CITROËN dealer.
Dipstick
Refer to the "Checks" section to
locate the dipstick and the oil fi ller
cap on your engine. There are 2 marks on
the dipstick:
- A = max; never ex-
ceed this level,
- B = min; top up the
level via the oil fi ller
cap, using the type
of oil suited to your
engine.
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be taken into ac-
count.

30
I
I N S T R U M E N T S a n d C O N T R O L S
Total distance recorder
System which measures the total
distance travelled by the vehicle
during its life.
The total and trip distances are dis-
played for thirty seconds when the
ignition is switched off, when the
driver's door is opened and when
the vehicle is locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other pe-
riod since it was reset to zero by the
driver.

 With the ignition on, press the
button until zeros appear. Dashboard lighting rheostat
Activation

 Turn control A or press control B
to adjust the brightness of the
dashboard lighting,

 With control B , press until the
brightness is at maximum, release,
press until you reach minimum.
Deactivation
When the lights are off, or in day mode
in the case of vehicles fi tted with day-
time running lights, the button has no
effect.
System permitting manual adjustment
of the brightness of the dashboard to
suit the level of ambient light.
The rheostat is active if the sidelamps
are on and applies to:
- the instrument panel,
- the display screens.

31
II
M U L T I F U N C T I O N S C R E E N S
MULTIFUNCTION SCREEN A
Presentation

1. Time

2. Date and display zone

3. Ambient temperature
When the ambient temperature is
between +3 °C and -3 °C, the tem-
perature display fl ashes (ice risk).
The ambient temperature displayed
may be greater than the actual tem-
perature, if the vehicle is parked in
bright sunlight.
The display of certain types of in-
formation is sometimes by scrolling
and sometimes by alternating be-
tween them.
A. Access to the "Main Menu"

B. Scrolling in the screen menus

C. Selection and confi rmation in the
menus of the function chosen or
the value modifi ed

D. Cancellation of the operation or
return to the previous display

E. Selection of the type of information
to be displayed in zone 2 (date,
radio-CD and trip recorder)

B or F. Within the menus, choice
of activation/deactivation of
functions and selection of
adjustments
Controls Main Menu
By pressing button A , then using
button B , you have access to the
following functions:
