2009 CHRYSLER SEBRING CONVERTIBLE jump start

WARNING! (Continued)
•Do not attempt to push or tow your vehicle to get
it started. Vehicles equipped with an automatic
transmission cannot be started this way. Unburned
fuel could enter the catalytic converter and once
the engine has started, ignite and damage the
converter and vehicle. If the vehicle has a dis-
charged battery, booster cables may be used to
obtain a start from a booster battery or the battery
in another vehicle. This type of start can be dan-
gerous if done improperly. Refer to Section 6 for
proper jump-starting procedures and follow them
carefully.
If the engine fails to start after you have followed the
“Normal Starting” or “Extreme Cold Weather” proce-
dures, it may be flooded. To clear any excess fuel, push
the accelerator pedal all the way to the floor and hold it.
Then, turn the ignition switch to the START position andrelease it as soon as the starter engages. The starter motor
will disengage automatically in 10 seconds. Once this
occurs, release the accelerator pedal, turn the ignition
switch to the LOCK position, wait 10 to 15 seconds, then
repeat the normal starting procedure.
CAUTION!
To prevent damage to the starter, do not crank the
engine for more than 15 seconds at a time. Wait 10 to
15 seconds before trying again.
After Starting
The idle speed will automatically decrease as the engine
warms up.
STARTING AND OPERATING 269
5

WHAT TO DO IN EMERGENCIES
CONTENTS
Hazard Warning Flasher................ 352
If Your Engine Overheats................ 352
▫Engine Oil Overheating — 2.4L Engine Only
(If Equipped)....................... 353
Jacking And Tire Changing............... 354
▫Preparations For Jacking............... 354
▫Jack Location....................... 355
▫Spare Tire Stowage................... 355▫Jacking Instructions................... 356
Jump-Starting Procedure................ 361
Freeing A Stuck Vehicle................. 364
Towing A Disabled Vehicle............... 365
▫With The Ignition Key................. 365
▫Without The Ignition Key.............. 366
6

10. Place the deflated (flat) tire in the cargo area,have the
tire repaired or replaced as soon as possible.
11. Check the spare tire pressure as soon as possible.
Correct pressure as required.
JUMP-STARTING PROCEDURE
The battery is stored between the left front headlight
assembly and the left front wheel splash shield. Access is
through the splash shield.
Jump-starting remote battery terminals are located under
the hood.
WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is on. You can be hurt by the fan.
(Continued)
WARNING! (Continued)
•Do not attempt to push or tow your vehicle to get
it started. Vehicles equipped with an automatic
transaxle cannot be started this way. Unburned
fuel could enter the catalytic converter and once
the engine has started, ignite and damage the
converter and vehicle. If the vehicle has a dis-
charged battery, booster cables may be used to
obtain a start from another vehicle. This type of
start can be dangerous if done improperly, so
follow this procedure carefully.
•Do not use a booster battery or any other booster
source with an output that exceeds 12-Volts.
1. Wear eye protection and remove any metal jewelry
such as watchbands or bracelets that might make an
inadvertent electrical contact.
WHAT TO DO IN EMERGENCIES 361
6

2. When boosting from a battery in another vehicle, park
that vehicle within booster cable reach, but without
allowing the vehicles to touch. Set the parking brake,
place the automatic transaxle in PARK and turn ignition
to LOCK for both vehicles.
WARNING!
Do not permit vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
3. Turn off the heater, radio, and all unnecessary electri-
cal loads.4. Remove the protective cover over the remote jump-
start positive battery post(+)in the engine compartment.
Connect one end of the jumper cable to the positive
battery post. Connect the other end of the same cable to
the positive terminal of the booster battery. Refer to the
following illustration for jump-starting connections.
5. Connect the other cable, first to the negative terminal
of the booster battery andthen to the engine ground (-)
of the vehicle with the discharged battery.Make sure
you have a good contact on the engine ground. Refer to
the following illustration for jump-starting connections.
362 WHAT TO DO IN EMERGENCIES

6. If the vehicle is equipped with Sentry KeyImmobi-
lizer, turn the ignition switch to the ON position for three
seconds before moving the ignition switch to the START
position.7. Start the engine in the vehicle that has the booster
battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.
8. When removing the jumper cables, reverse the se-
quence exactly. Be careful of the moving belts and fan.
9. Reinstall the protective cover over the remote jump-
start positive battery post.
WARNING!
During cold weather when temperatures are below
freezing point, electrolyte in a discharged battery
may freeze. Do not attempt jump-starting because
the battery could rupture or explode. The battery
temperature must be brought up above the freezing
point before attempting a jump-start.
Jump-Starting Location
WHAT TO DO IN EMERGENCIES 363
6

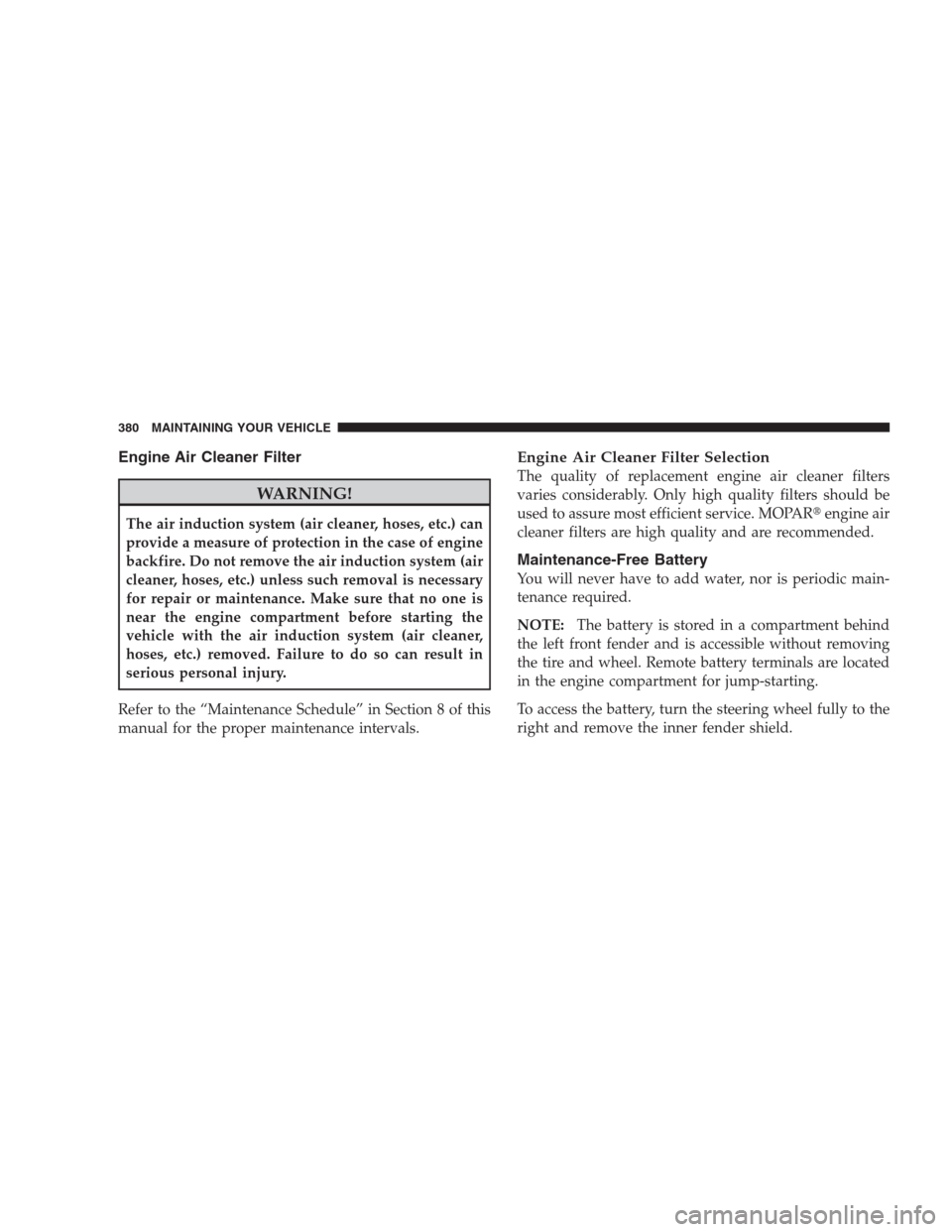

Engine Air Cleaner Filter
WARNING!
The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.
Refer to the “Maintenance Schedule” in Section 8 of this
manual for the proper maintenance intervals.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service. MOPARengine air
cleaner filters are high quality and are recommended.
Maintenance-Free Battery
You will never have to add water, nor is periodic main-
tenance required.
NOTE:The battery is stored in a compartment behind
the left front fender and is accessible without removing
the tire and wheel. Remote battery terminals are located
in the engine compartment for jump-starting.
To access the battery, turn the steering wheel fully to the
right and remove the inner fender shield.
380 MAINTAINING YOUR VEHICLE

Oil (Engine).......................... 376
Power Steering........................ 282
Disabled Vehicle Towing................... 365
Disposal
Antifreeze (Engine Coolant)............... 392
Engine Oil........................... 379
Door Locks............................. 30
Door Locks, Automatic.................... 31
Door Opener, Garage..................... 158
Driver’s Seat Back Tilt.................... 140
Driving
On Slippery Surfaces.................... 279
Through Flowing, Rising, or Shallow
Standing Water........................ 280
E-85 Fuel............................. 330
Electric Rear Window Defrost............... 173
Electric Remote Mirrors................... 100
Electrical Power Outlets................... 164Electronic Speed Control (Cruise Control)...... 155
Electronic Stability Program (ESP)............ 294
Electronic Vehicle Information Center (EVIC).... 193
Emergency Deck Lid Release................ 37
Emergency, In Case of
Hazard Warning Flasher................. 352
Jacking............................. 354
Jump Starting......................... 361
Overheating.......................... 352
Towing............................. 365
Emergency Trunk Release................... 37
Emission Control System Maintenance......373,424
Engine..........................369,370,371
Air Cleaner.......................... 380
Block Heater......................... 270
Break-In Recommendations................ 72
Checking Oil Level..................... 376
Coolant (Antifreeze).................388,421
Cooling............................. 388
456 INDEX

Exhaust Gas Caution..................74,330
Fuel Requirements..................325,420
Jump Starting......................... 361
Oil ...........................376,420,421
Oil Change Interval............185,196,377,424
Oil Filler Cap.................369,370,371,378
Oil Filter............................ 379
Oil Filter Disposal...................... 379
Oil Selection.......................377,420
Oil Synthetic......................... 378
Overheating.......................... 352
Temperature Gauge..................... 181
Engine Oil Viscosity...................... 378
Enhanced Accident Response Feature.......... 58
Entry System, Illuminated.................. 20
Ethanol............................... 327
Event Data Recorder...................... 60
Exhaust Gas Caution................74,330,386
Exhaust System.......................74,386Extender, Seat Belt........................ 48
Exterior Lights.......................... 76
Fabric Care.........................400,401
Filler Location Fuel....................181,334
Filters
Air Cleaner.......................... 380
Air Conditioning....................261,383
Automatic Transaxle.................... 397
Engine Oil........................379,421
Engine Oil Disposal.................... 379
Flashers
Hazard Warning....................... 352
Turn Signal........................76,147
Flash-To-Pass........................... 148
Flat Tire Changing....................... 354
Flat Tire Stowage........................ 361
Flexible Fuel Vehicles..................... 330
Cruising Range........................ 333
INDEX 457
10
