2009 CHRYSLER PT CRUISER spark plugs replace

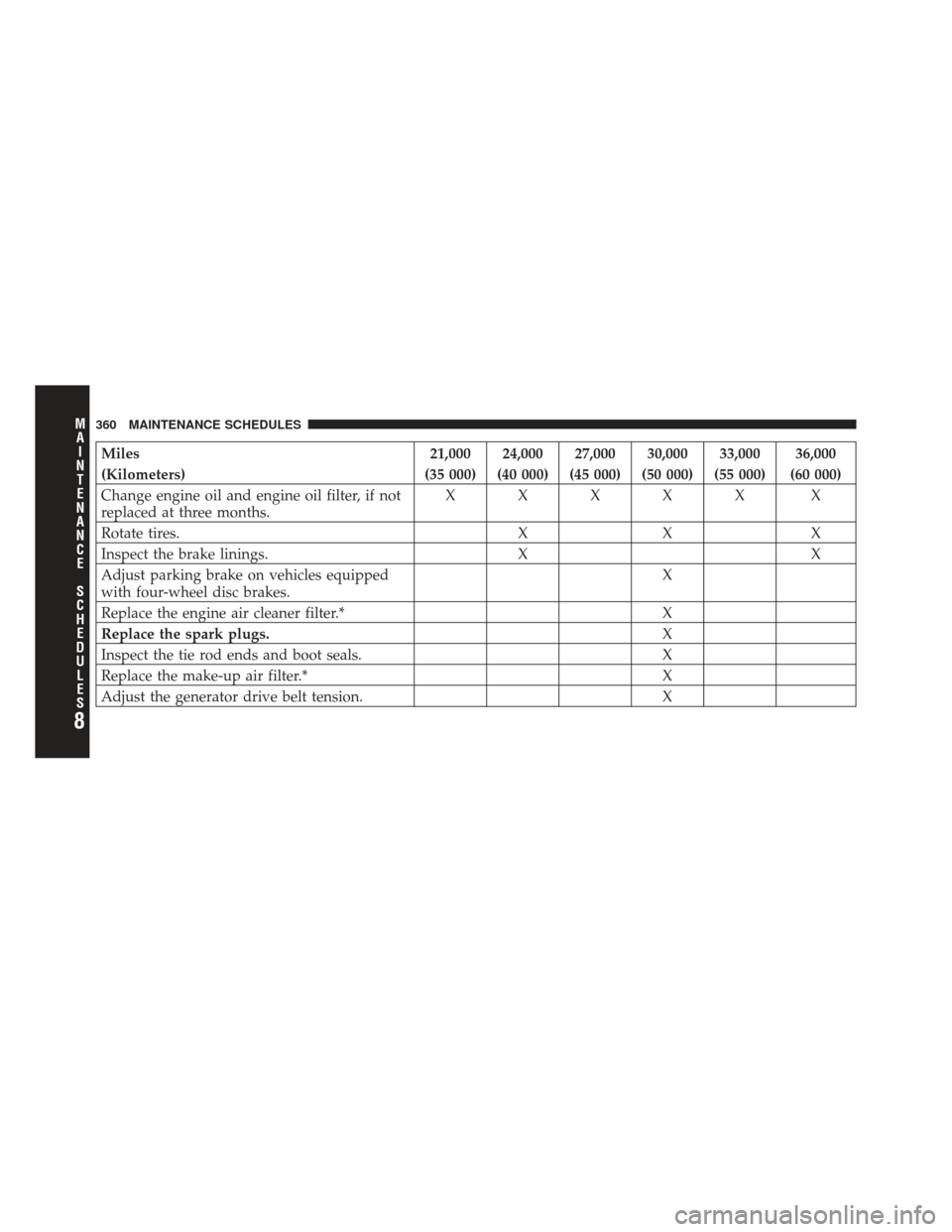

Miles21,000 24,000 27,000 30,000 33,000 36,000
(Kilometers) (35 000) (40 000) (45 000) (50 000) (55 000) (60 000)
Change engine oil and engine oil filter, if not
replaced at three months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. XX
Adjust parking brake on vehicles equipped
with four-wheel disc brakes. X
Replace the engine air cleaner filter.* X
Replace the spark plugs. X
Inspect the tie rod ends and boot seals. X
Replace the make-up air filter.* X
Adjust the generator drive belt tension. X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S360 MAINTENANCE SCHEDULES

Miles57,000 60,000 63,000 66,000 69,000 72,000
(Kilometers) (95 000) (100 000) (105 000) (110 000) (115 000) (120 000)
Change engine oil and engine oil filter, if not
replaced at three months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. XX
Adjust parking brake on vehicles equipped
with four-wheel disc brakes. X
Replace the engine air cleaner filter.* X
Replace the spark plugs and ignition cables. X
Inspect the tie rod ends and boot seal. X
Replace the make-up air filter.* X
Adjust the generator drive belt tension. X
Change the automatic transaxle fluid and
filter. X
Flush and replace engine coolant at
60 months, if not done at 102,000 miles
(170 000 km). X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S362 MAINTENANCE SCHEDULES

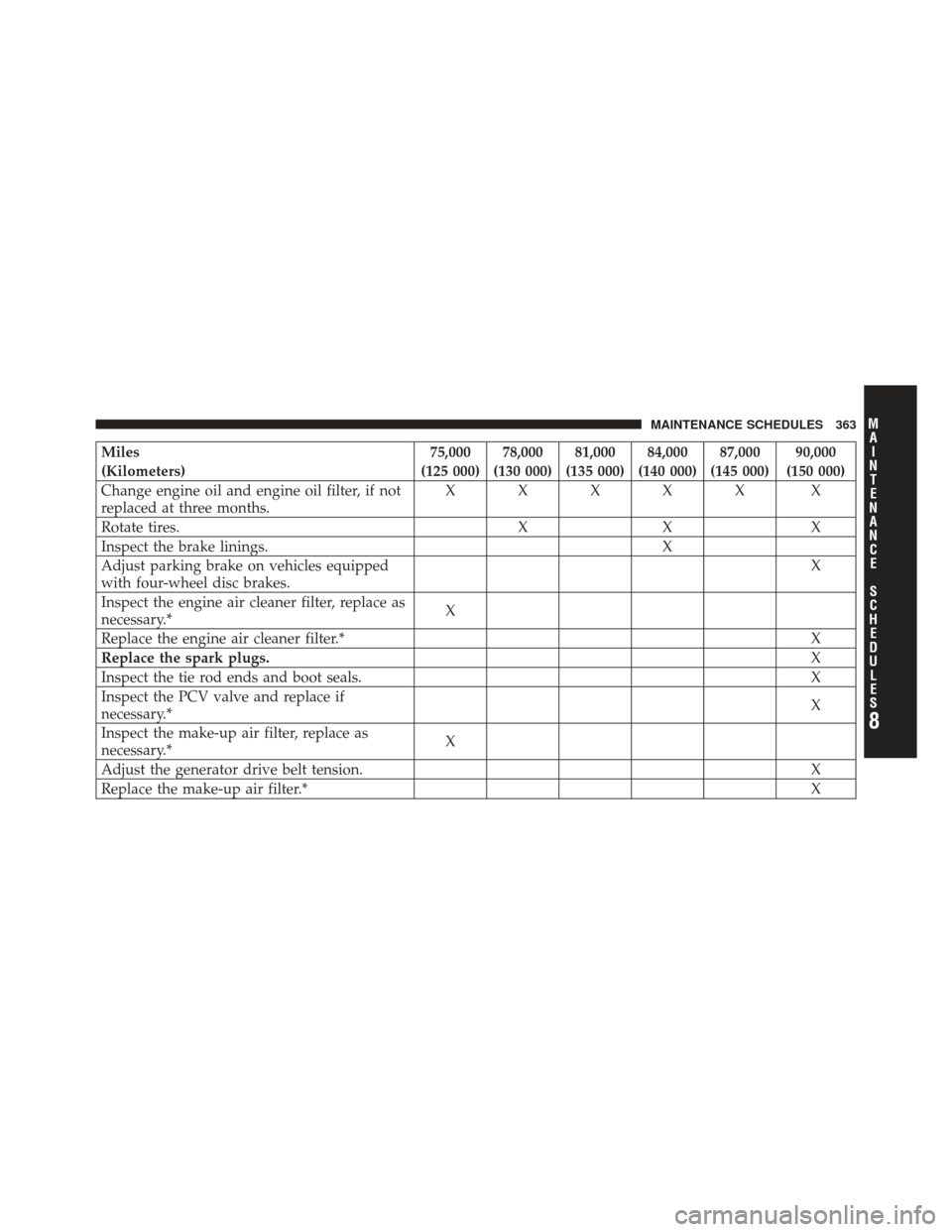

Miles75,000 78,000 81,000 84,000 87,000 90,000
(Kilometers) (125 000) (130 000) (135 000) (140 000) (145 000) (150 000)
Change engine oil and engine oil filter, if not
replaced at three months. XXXXX X
Rotate tires. XX X
Inspect the brake linings. X
Adjust parking brake on vehicles equipped
with four-wheel disc brakes. X
Inspect the engine air cleaner filter, replace as
necessary.* X
Replace the engine air cleaner filter.* X
Replace the spark plugs. X
Inspect the tie rod ends and boot seals. X
Inspect the PCV valve and replace if
necessary.* X
Inspect the make-up air filter, replace as
necessary.* X
Adjust the generator drive belt tension. X
Replace the make-up air filter.* X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 363

Miles108,000 111,000 114,000 117,000 120,000
(Kilometers) (180 000) (185 000) (190 000) (195 000) (200 000)
Change engine oil and engine oil filter, if not
replaced at three months. XXXXX
Rotate tires. XXX
Inspect the brake linings. X
Adjust parking brake on vehicles equipped with
four-wheel disc brakes. X
Replace the engine air cleaner filter.* X
Inspect the tie rod ends and boot seals. X
Replace the make-up air filter.* X
Replace the generator belt. X
Replace the power steering/air conditioning belt. X
Change automatic transaxle fluid and filter. X
Flush and replace the engine coolant at
120 months, if not replaced at 102,000 miles
(200 000 km). X
Replace the spark plugs and ignition cables. X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 365

Miles138,000 141,000 144,000 147,000 150,000
(Kilometers) (230 000) (235 000) (240 000) (245 000) (250 000)
Change engine oil and engine oil filter, if not
replaced at three months. XXXXX
Rotate tires. XXX
Inspect the brake linings. X
Adjust parking brake on vehicles equipped with
four-wheel disc brakes. X
Replace the engine air cleaner filter.* X
Adjust the generator belt tension. X
Replace the spark plugs. X
Change the manual transaxle fluid.† X
Replace the make-up air filter.* X
* This maintenance is recommended by the manufacturer
to the owner, but is not required to maintain the emis-
sions warranty.
‡ This maintenance is not required if previously replaced.
† This maintenance is required only for police, taxi,
limousine-type operation, or trailer towing.
This maintenance is required only for police, taxi,
limousine-type operation, or trailer towing.
Inspection and service should also be performed anytime
a malfunction is observed or suspected. Retain all
receipts.
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 367

Maintenance Schedule A — Non-Turbocharged
Miles6,000 12,000 18,000 24,000 30,000 36,000
(Kilometers) (10 000) (20 000) (30 000) (40 000) (50 000) (60 000)
[Months] [6] [12] [18] [24] [30] [36]
Change engine oil and engine oil filter. X XXXXX
Rotate tires. X XXXXX
Inspect the brake linings. X X
Adjust parking brake on vehicles equipped
with four-wheel disc brakes. X
Replace the engine air cleaner filter.* X
Replace the spark plugs. X
Inspect the tie rod ends and boot seals. X
Replace the make-up air filter.* X
Adjust the generator drive belt tension. X
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S368 MAINTENANCE SCHEDULES

Miles42,000 48,000 54,000 60,000 66,000
(Kilometers) (70 000) (80 000) (90 000) (100 000) (110 000)
[Months] [42] [48] [54] [60] [66]
Change engine oil and engine oil filter. X X X X X
Rotate tires. X X X X X
Inspect the brake linings. X
Adjust parking brake on vehicles equipped with
four-wheel disc brakes. X
Replace the engine air cleaner filter.* X
Replace the spark plugs and ignition cables. X
Inspect the tie rod ends and boot seals. X
Flush and replace the engine coolant at 60 months,
if not done at 102,000 miles (200 000 km) X
Replace the make-up air filter.* X
Adjust the generator drive belt tension. X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 369

Miles72,000 78,000 84,000 90,000 96,000 102,000
(Kilometers) (120 000) (130 000) (140 000) (150 000) (160 000) (170 000)
[Months] [72] [78] [84] [90] [96] [102]
Change engine oil and engine oil filter. X X X X X X
Rotate tires. X X X X X X
Inspect the brake linings. X X
Adjust parking brake on vehicles equipped
with four-wheel disc brakes. X
Replace the engine air cleaner filter.* X
Replace the spark plugs. X
Replace the engine timing belt.* X
Inspect the tie rod ends and boot seals. X
Inspect the PCV valve, replace if necessary.* X
Replace the make-up air filter.* X
Adjust the generator drive belt tension. X
Flush and replace the engine coolant, if not
replaced at 60 months. X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S370 MAINTENANCE SCHEDULES
