2009 CHRYSLER ASPEN fog light bulb

NExhaust System...................... 397
NCooling System...................... 400
NBrake System....................... 405
NAutomatic Transmission................ 406
NTransfer Case....................... 408
NAxles............................. 409
NAppearance Care And Protection From
Corrosion.......................... 410
mFuses.............................. 415
NInterior Fuses....................... 415
NUnderhood Fuses
(Power Distribution Center)............. 417
NUnderhood Fuses
(Integrated Power Module).............. 420mVehicle Storage....................... 423
mReplacement Light Bulbs................. 423
mBulb Replacement..................... 424
NHeadlights/Parking/Turn Signal.......... 424
NTail Lights, Turn Signals And Backup Lights
Ð Replacement...................... 425
NLicense Lights....................... 427
NCenter High-Mounted Stoplight.......... 428
NFog Lights......................... 429
mFluids And Capacities................... 431
mFluids, Lubricants And Genuine Parts....... 432
NEngine............................ 432
NChassis............................ 433
384 MAINTAINING YOUR VEHICLE

VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle's battery:
²Disconnect the Ignition Off Draw (I.O.D.) fuses located
in the Power Distribution Center (PDC). The I.O.D.
cavity includes a snap-in retainer that allows the fuse
to be disconnected without removing it from the fuse
block.
²The transfer case should be placed in the 4HI mode
and kept in this position to minimize the battery drain.
²As an alternative to the above steps you may discon-
nect the negative cable from the battery.
REPLACEMENT LIGHT BULBS
LIGHT BULBS Ð Interior Bulb No.
Dome Light.................... NotServiceable
Liftgate Lamp........................... 567
Overhead Console Lights........... NotServiceable
Reading Light................... NotServiceable
Visor Vanity Lights............... NotServiceable
LIGHT BULBS Ð Exterior Bulb No.
Headlight............................. H13
Front Park/Turn......................3457AK
Backup...............................3057
Center High-Mounted Stop Light............. 921
Front Side Marker........................ 168
Fog Lamp.............................9145
License Plate Light....................... 168
Rear Tail, Stop, Turn Signal and Side Marker....3057
MAINTAINING YOUR VEHICLE 423
7

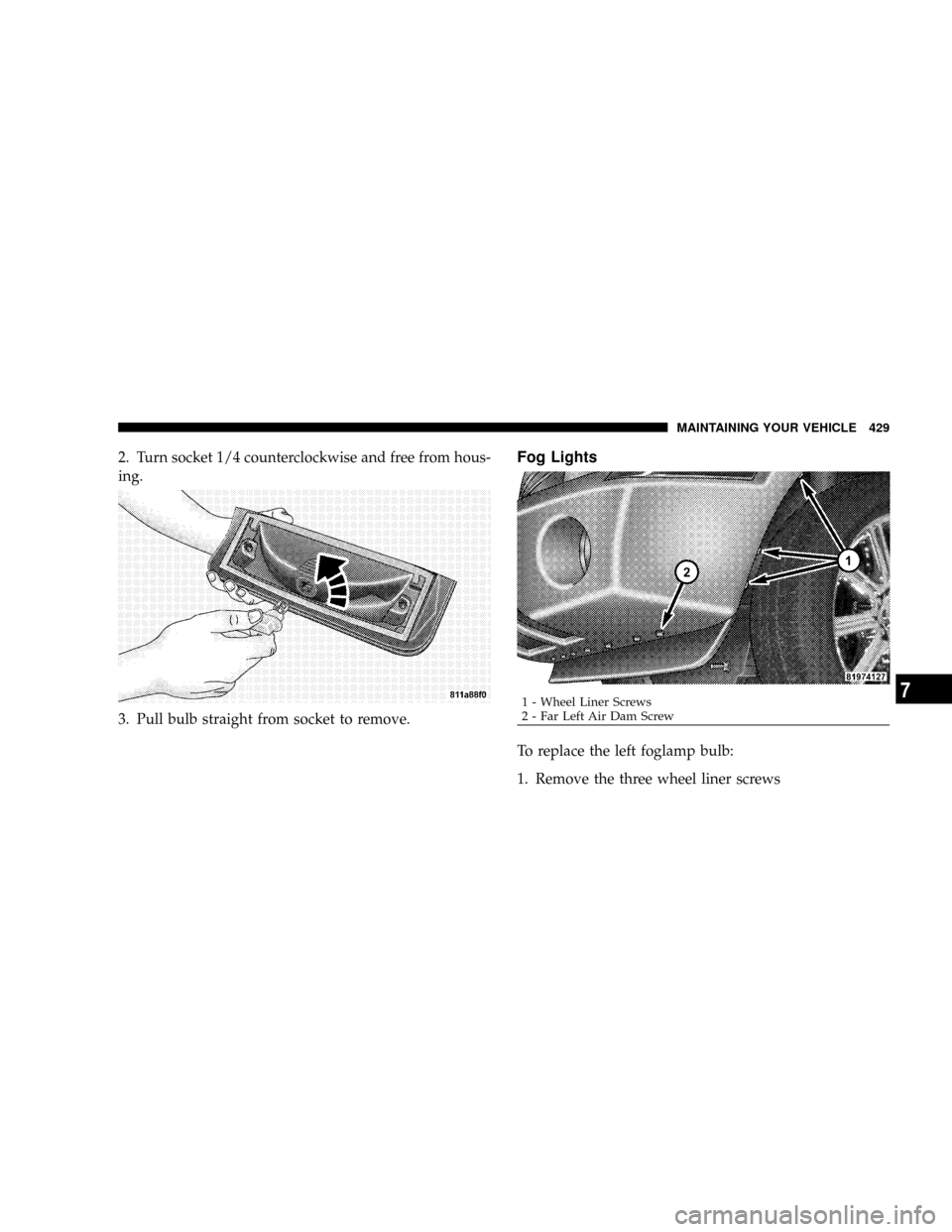

2. Turn socket 1/4 counterclockwise and free from hous-
ing.
3. Pull bulb straight from socket to remove.Fog Lights
To replace the left foglamp bulb:
1. Remove the three wheel liner screws
1 - Wheel Liner Screws
2 - Far Left Air Dam ScrewMAINTAINING YOUR VEHICLE 4297

2. Remove the far left air dam screw at the bottom of the
fascia.
3. Peel back the liner and access the fog light.
4. Rotate the socket and connector 1/4 turn counter-
clockwise and pull straight reward to disengage from the
light.
5. Remove the bulb from the socket and replace.The right fog light can be accessed from below the
vehicle. Follow the previous Steps 4 and 5 of the left fog
light to replace the bulb.
NOTE:These are halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat build-up, which reduces bulb
life.
430 MAINTAINING YOUR VEHICLE

Key, Sentry (Immobilizer)................... 15
Keyless Entry System...................... 21
Keys................................. 12
Knee Bolster............................ 54
Lane Change and Turn Signals.........148,204,425
Lap/Shoulder Belts....................... 41
LATCH (Lower Anchors and Tether for CHildren).. 68
Life of Tires............................ 322
Liftgate................................ 37
Lights..............................77,142
Airbag............................62,215
Anti-Lock Warning..................... 206
Back-Up............................. 425
Brake Warning........................ 210
Bulb Replacement...................423,424
Center Mounted Stop................... 428
Courtesy/Reading..................... 165
Cruise.............................. 215Daytime Running...................... 146
Dome.............................. 166
Electronic Stability Program (ESP)
Indicator.........................212,303
Fog ..........................147,209,429
Hazard Warning Flasher................. 368
High Beam........................... 149
High Beam/Low Beam Select............. 149
Instrument Cluster..................... 204
Interior..........................144,165
License............................. 427
Lights On Reminder.................... 146
Low Fuel............................ 204
Malfunction Indicator (Check Engine)........ 212
Passing............................. 149
Reading............................. 166
Seat Belt Reminder..................... 205
Service.............................. 423
Tire Pressure Monitoring (TPMS)........... 213
468 INDEX
