2009 CHRYSLER 300 octane

vehicle may need to be driven for up to 20 minutes above
15 mph (25 km/h) in order for the TPMS to receive this
information.
General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
The TPM sensors are regulated under one of the follow-
ing licenses:
United States.....................KR5S120123
Canada........................2671-S120123

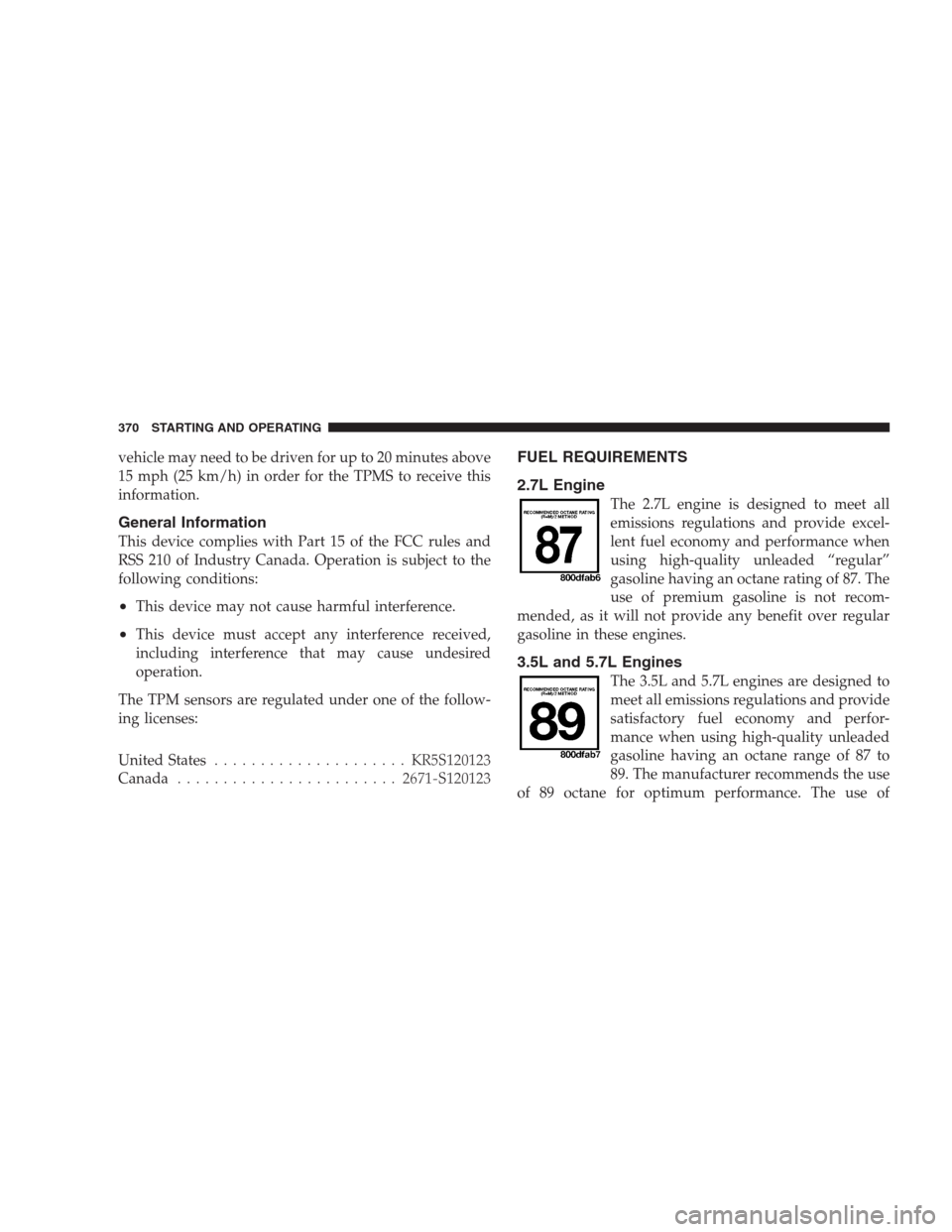

FUEL REQUIREMENTS
2.7L Engine
The 2.7L engine is designed to meet all
emissions regulations and provide excel-
lent fuel economy and performance when
using high-quality unleaded “regular”
gasoline having an octane rating of 87. The
use of premium gasoline is not recom-
mended, as it will not provide any benefit over regular
gasoline in these engines.
3.5L and 5.7L Engines
The 3.5L and 5.7L engines are designed to
meet all emissions regulations and provide
satisfactory fuel economy and perfor-
mance when using high-quality unleaded
gasoline having an octane range of 87 to
89. The manufacturer recommends the use
of 89 octane for optimum performance. The use of
370 STARTING AND OPERATING

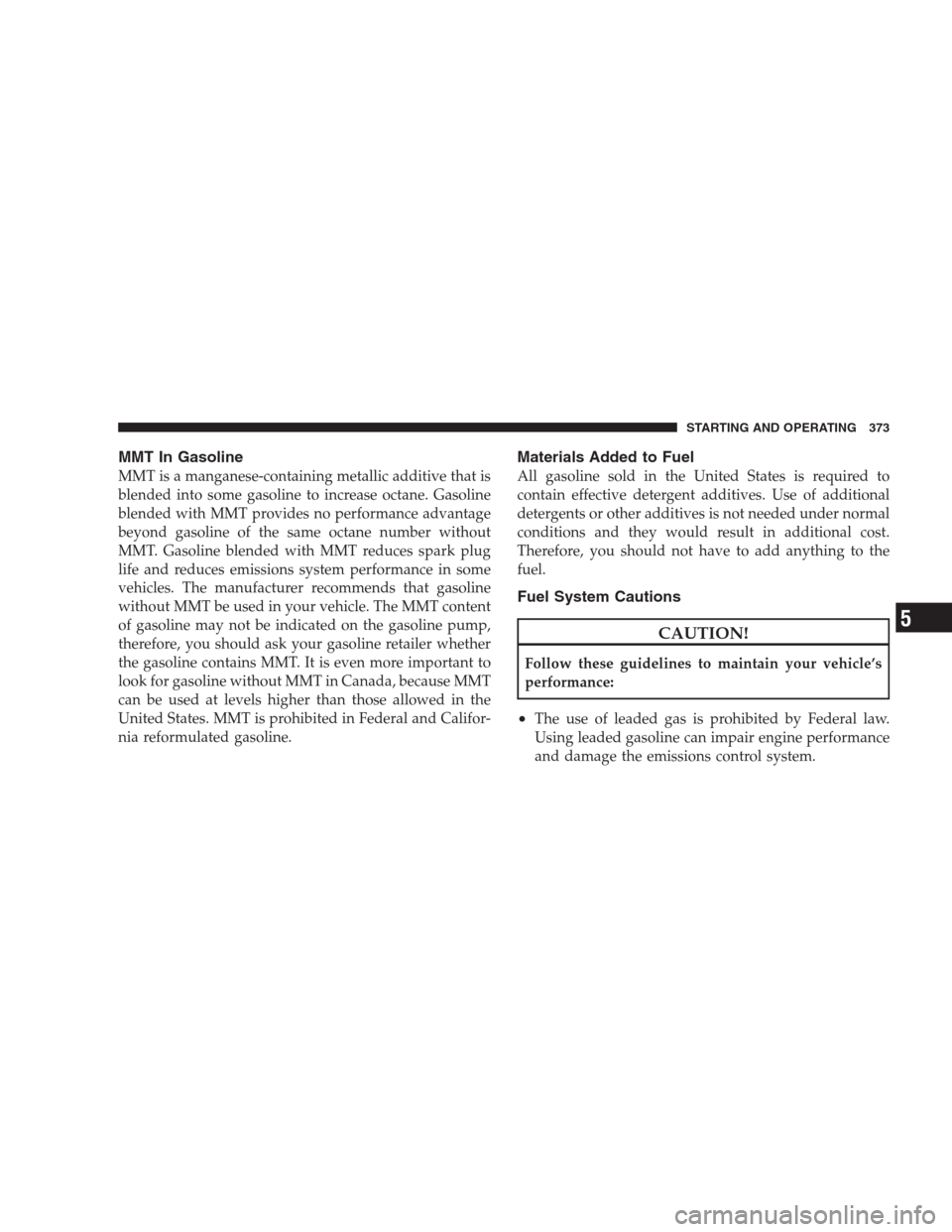

MMT In Gasoline
MMT is a manganese-containing metallic additive that is
blended into some gasoline to increase octane. Gasoline
blended with MMT provides no performance advantage
beyond gasoline of the same octane number without
MMT. Gasoline blended with MMT reduces spark plug
life and reduces emissions system performance in some
vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content
of gasoline may not be indicated on the gasoline pump,
therefore, you should ask your gasoline retailer whether
the gasoline contains MMT. It is even more important to
look for gasoline without MMT in Canada, because MMT
can be used at levels higher than those allowed in the
United States. MMT is prohibited in Federal and Califor-
nia reformulated gasoline.
Materials Added to Fuel
All gasoline sold in the United States is required to
contain effective detergent additives. Use of additional
detergents or other additives is not needed under normal
conditions and they would result in additional cost.
Therefore, you should not have to add anything to the
fuel.
Fuel System Cautions
CAUTION!
Follow these guidelines to maintain your vehicle’s
performance:
•The use of leaded gas is prohibited by Federal law.
Using leaded gasoline can impair engine performance
and damage the emissions control system.
STARTING AND OPERATING 373
5

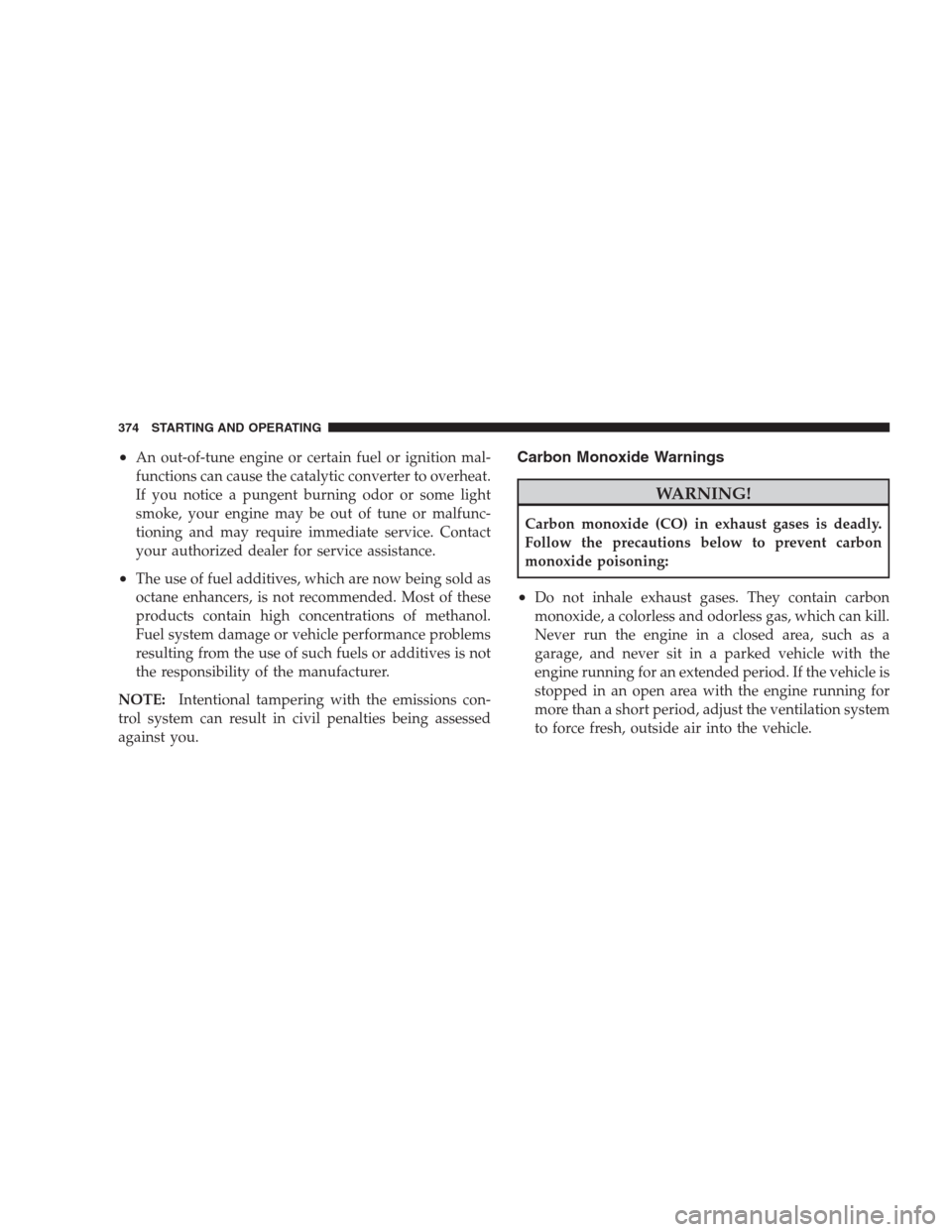

•An out-of-tune engine or certain fuel or ignition mal-
functions can cause the catalytic converter to overheat.
If you notice a pungent burning odor or some light
smoke, your engine may be out of tune or malfunc-
tioning and may require immediate service. Contact
your authorized dealer for service assistance.
•The use of fuel additives, which are now being sold as
octane enhancers, is not recommended. Most of these
products contain high concentrations of methanol.
Fuel system damage or vehicle performance problems
resulting from the use of such fuels or additives is not
the responsibility of the manufacturer.
NOTE:Intentional tampering with the emissions con-
trol system can result in civil penalties being assessed
against you.
Carbon Monoxide Warnings
WARNING!
Carbon monoxide (CO) in exhaust gases is deadly.
Follow the precautions below to prevent carbon
monoxide poisoning:
•Do not inhale exhaust gases. They contain carbon
monoxide, a colorless and odorless gas, which can kill.
Never run the engine in a closed area, such as a
garage, and never sit in a parked vehicle with the
engine running for an extended period. If the vehicle is
stopped in an open area with the engine running for
more than a short period, adjust the ventilation system
to force fresh, outside air into the vehicle.
374 STARTING AND OPERATING

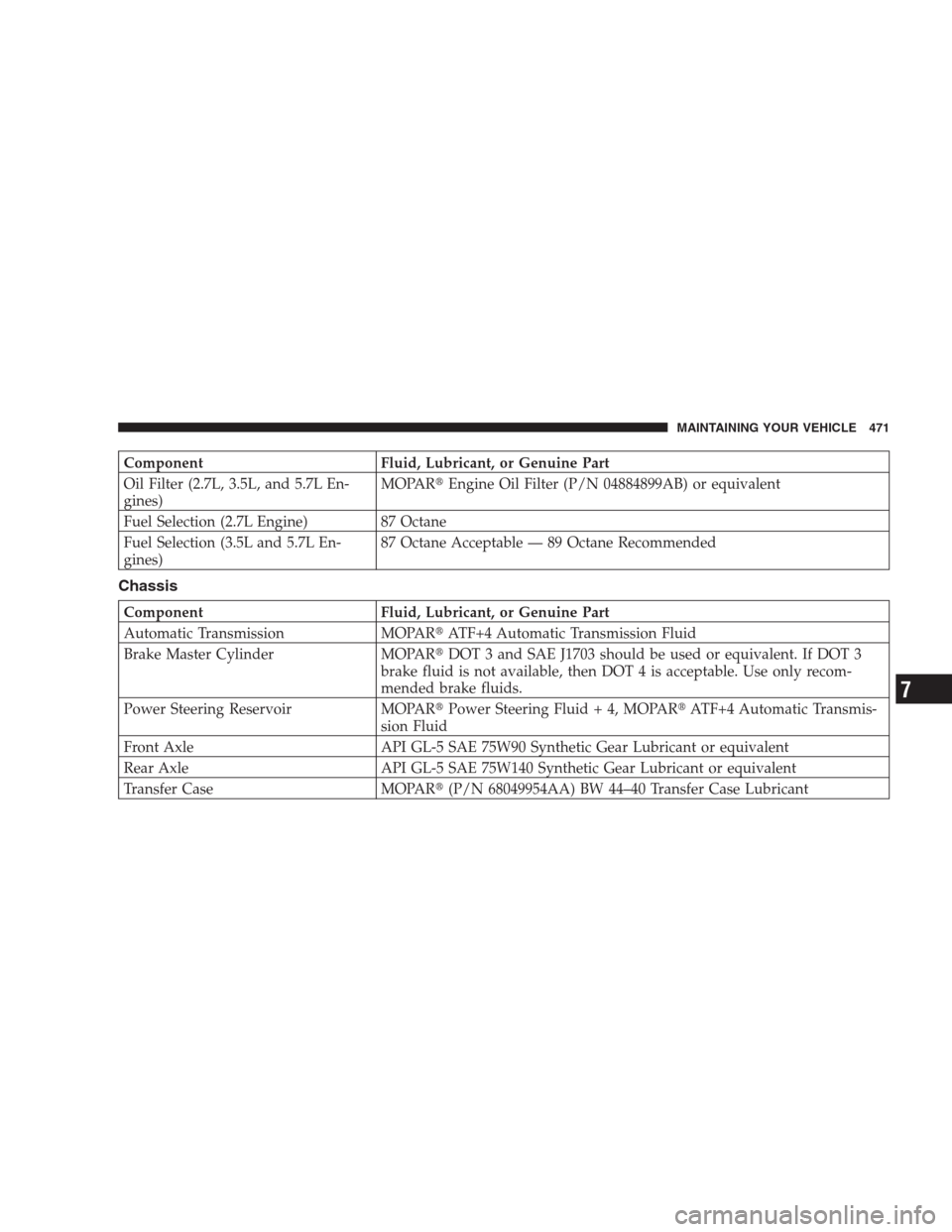

Component Fluid, Lubricant, or Genuine Part
Oil Filter (2.7L, 3.5L, and 5.7L En-
gines)MOPAREngine Oil Filter (P/N 04884899AB) or equivalent
Fuel Selection (2.7L Engine) 87 Octane
Fuel Selection (3.5L and 5.7L En-
gines)87 Octane Acceptable — 89 Octane Recommended
Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transmission MOPARATF+4 Automatic Transmission Fluid
Brake Master Cylinder MOPARDOT 3 and SAE J1703 should be used or equivalent. If DOT 3
brake fluid is not available, then DOT 4 is acceptable. Use only recom-
mended brake fluids.
Power Steering Reservoir MOPARPower Steering Fluid + 4, MOPARATF+4 Automatic Transmis-
sion Fluid
Front Axle API GL-5 SAE 75W90 Synthetic Gear Lubricant or equivalent
Rear Axle API GL-5 SAE 75W140 Synthetic Gear Lubricant or equivalent
Transfer Case MOPAR(P/N 68049954AA) BW 44–40 Transfer Case Lubricant
MAINTAINING YOUR VEHICLE 471
7

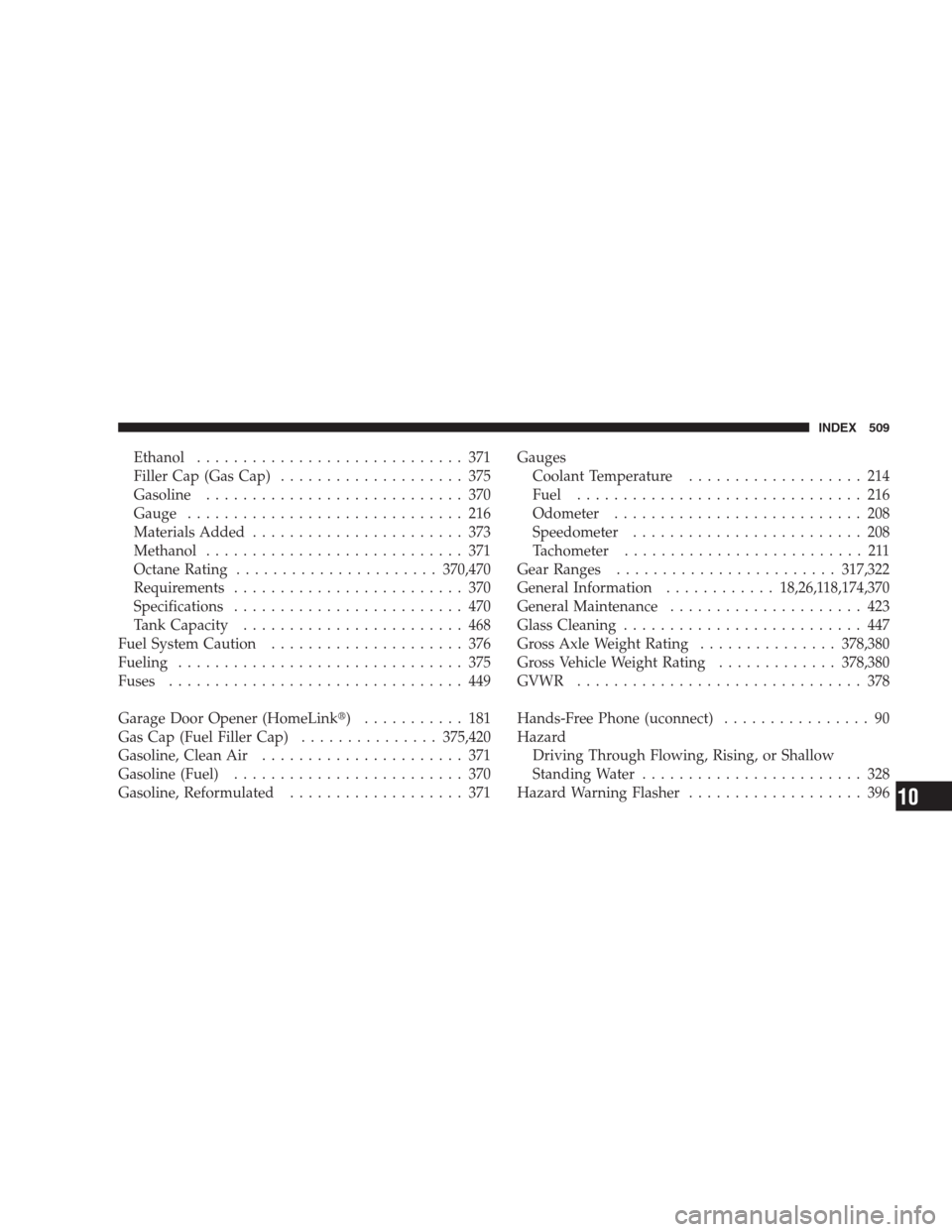

Ethanol............................. 371
Filler Cap (Gas Cap).................... 375
Gasoline............................ 370
Gauge.............................. 216
Materials Added....................... 373
Methanol............................ 371
Octane Rating......................370,470
Requirements......................... 370
Specifications......................... 470
Tank Capacity........................ 468
Fuel System Caution..................... 376
Fueling............................... 375
Fuses................................ 449
Garage Door Opener (HomeLink) ........... 181
Gas Cap (Fuel Filler Cap)...............375,420
Gasoline, Clean Air...................... 371
Gasoline (Fuel)......................... 370
Gasoline, Reformulated................... 371Gauges
Coolant Temperature................... 214
Fuel............................... 216
Odometer........................... 208
Speedometer......................... 208
Tachometer.......................... 211
Gear Ranges........................317,322
General Information............18,26,118,174,370
General Maintenance..................... 423
Glass Cleaning.......................... 447
Gross Axle Weight Rating...............378,380
Gross Vehicle Weight Rating.............378,380
GVWR............................... 378
Hands-Free Phone (uconnect)................ 90
Hazard
Driving Through Flowing, Rising, or Shallow
Standing Water........................ 328
Hazard Warning Flasher................... 396
INDEX 509
10

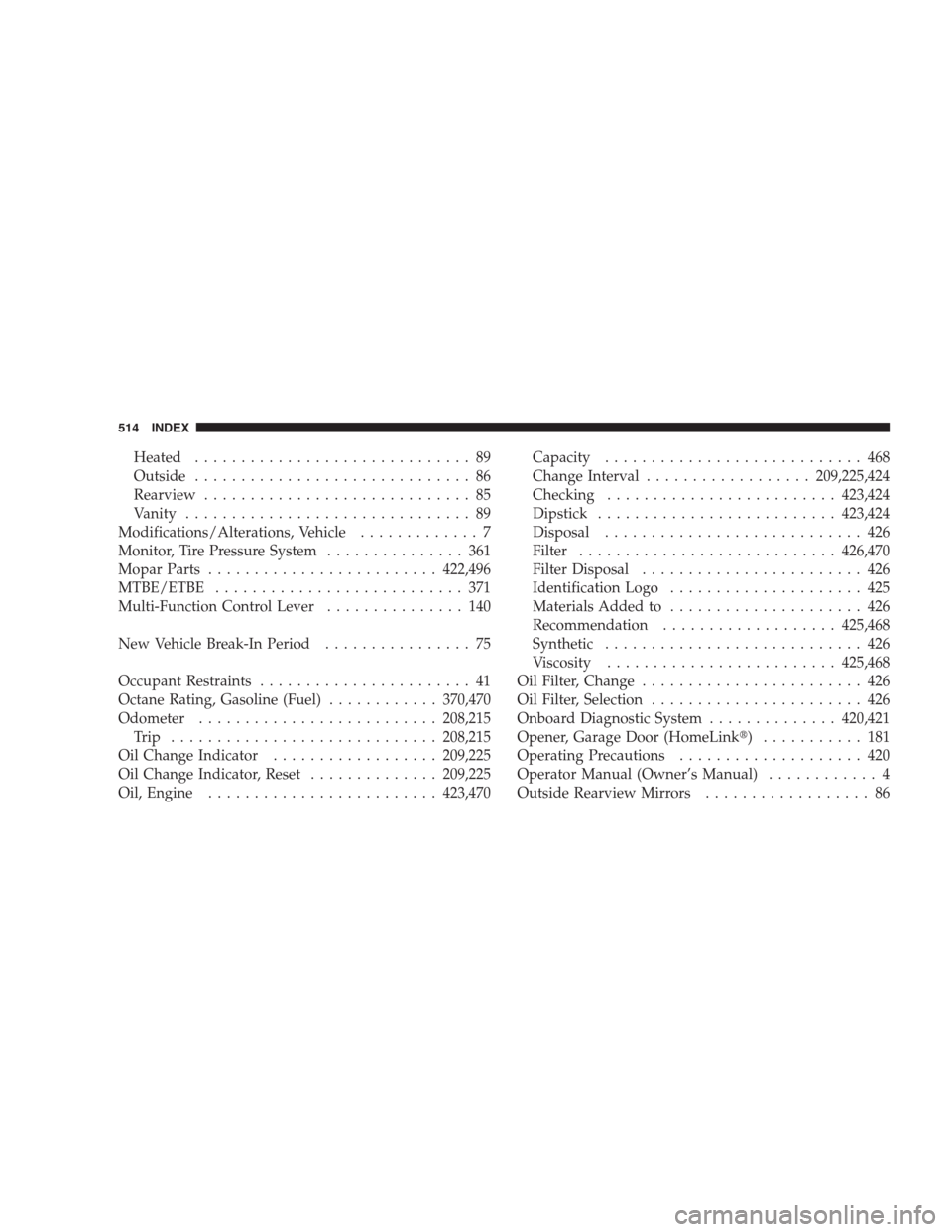

Heated.............................. 89
Outside.............................. 86
Rearview............................. 85
Vanity............................... 89
Modifications/Alterations, Vehicle............. 7
Monitor, Tire Pressure System............... 361
Mopar Parts.........................422,496
MTBE/ETBE........................... 371
Multi-Function Control Lever............... 140
New Vehicle Break-In Period................ 75
Occupant Restraints....................... 41
Octane Rating, Gasoline (Fuel)............370,470
Odometer..........................208,215
Trip .............................208,215
Oil Change Indicator..................209,225
Oil Change Indicator, Reset..............209,225
Oil, Engine.........................423,470Capacity............................ 468
Change Interval..................209,225,424
Checking.........................423,424
Dipstick..........................423,424
Disposal............................ 426
Filter............................426,470
Filter Disposal........................ 426
Identification Logo..................... 425
Materials Added to..................... 426
Recommendation...................425,468
Synthetic............................ 426
Viscosity.........................425,468
Oil Filter, Change........................ 426
Oil Filter, Selection....................... 426
Onboard Diagnostic System..............420,421
Opener, Garage Door (HomeLink) ........... 181
Operating Precautions.................... 420
Operator Manual (Owner’s Manual)............ 4
Outside Rearview Mirrors.................. 86
514 INDEX
