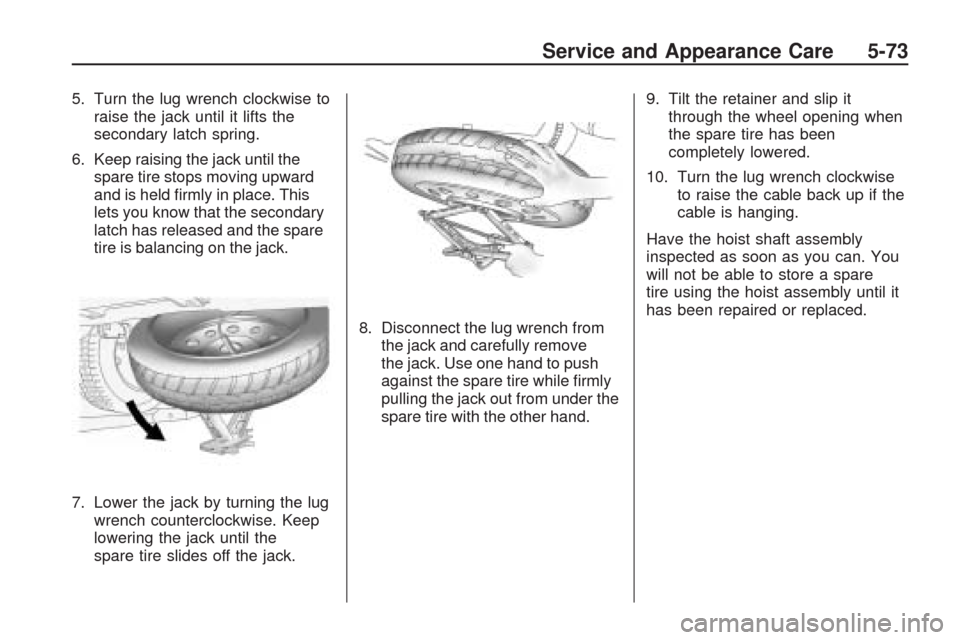

5. Turn the lug wrench clockwise to
raise the jack until it lifts the
secondary latch spring.
6. Keep raising the jack until the
spare tire stops moving upward
and is held rmly in place. This
lets you know that the secondary
latch has released and the spare
tire is balancing on the jack.
7. Lower the jack by turning the lug
wrench counterclockwise. Keep
lowering the jack until the
spare tire slides off the jack.8. Disconnect the lug wrench from
the jack and carefully remove
the jack. Use one hand to push
against the spare tire while rmly
pulling the jack out from under the
spare tire with the other hand.9. Tilt the retainer and slip it
through the wheel opening when
the spare tire has been
completely lowered.
10. Turn the lug wrench clockwise
to raise the cable back up if the
cable is hanging.
Have the hoist shaft assembly
inspected as soon as you can. You
will not be able to store a spare
tire using the hoist assembly until it
has been repaired or replaced.
Service and Appearance Care 5-73

8. Make sure the metal tube is
centered at the striker. Push
the tube toward the front of the
vehicle.
9. Close the liftgate and make sure
it is latched properly.
Storing the Tools
A. Tool Bag
B. Wing Bolt
C. Jack
Put back all tools as they were stored
in the jack storage compartment and
put the compartment cover back on.
1. Ensure that the bottom of the
jack is facing toward you.
2. Turn the jack (C) on its side and
place down on the holding
bracket.3. Reinstall the wing bolt (B) by
turning clockwise.
4. To replace the cover, line up the
tab at the front of the cover with
the notch in the cover opening.
Push the cover in place and make
sure that the rear clips are in the
slots and push the cover closed.
Store the center cap or the plastic
bolt-on wheel covers until a full size
tire is put back on the vehicle. When
you replace the compact spare with a
full-size tire, reinstall the bolt-on
wheel covers or the center cap.
Hand-tighten them over the wheel
nuts, using the lug wrench.
