Removing the Third Row Seat
To remove the seat, do the following:
1. Open the liftgate to access the controls for the seat.
2. Fold the seatback forward using the instructions
listed under “Folding the Seatbacks” previously.
The seat cannot be removed unless the seatback is
folded.
3. Unlatch the seat from
the oor by pulling the
carrying handle,
located at the rear of
the seat, rearward.
4. Roll the seat out of the vehicle. There is a track in
the oor to guide the seat wheels out of the vehicle.
Installing the Third Row Seat
To install the seat, do the following:
1. Open the liftgate to access the rear of the vehicle.
2. Slide the front outboard seat wheels into the
track on the oor and roll the seat forward. The front
latches should lock into place. If the latches do
not lock, try tilting the rear of the seat upward
slightly.
3. Lower the rear of the seat and push down on the
seat to engage the rear oor latches.
{CAUTION:
A seat that is not locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock the
seat into place properly when installing it.
4. Push and pull on the seat to make sure it is locked
into place. The seatback cannot be raised to the
upright position unless the seat is secured to
the oor.
5. Pull up on the seatback until it locks into the upright
position.
1-30

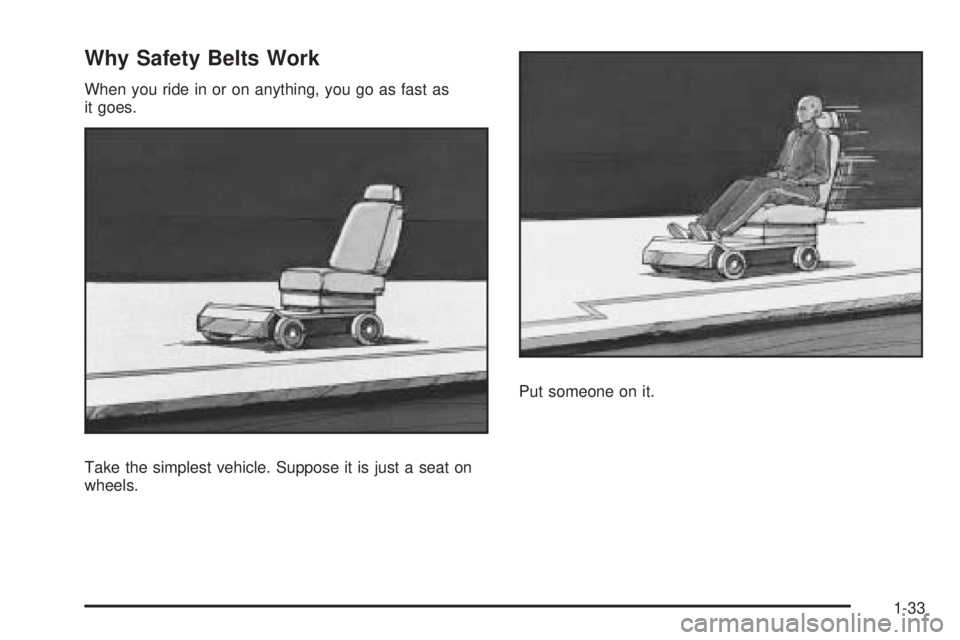

Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it is just a seat on
wheels.Put someone on it.
1-33

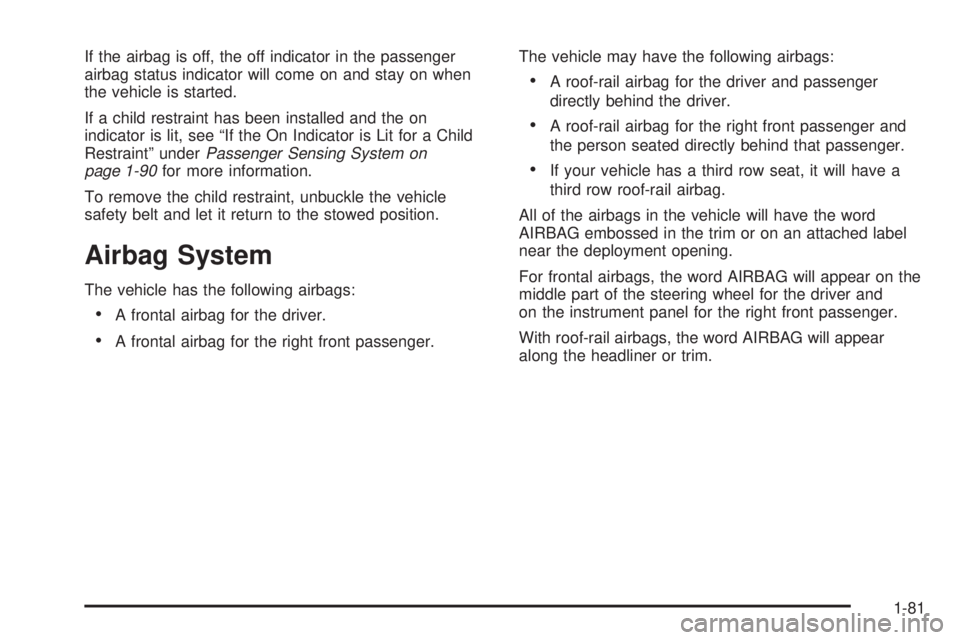

If the airbag is off, the off indicator in the passenger
airbag status indicator will come on and stay on when
the vehicle is started.
If a child restraint has been installed and the on
indicator is lit, see “If the On Indicator is Lit for a Child
Restraint” underPassenger Sensing System on
page 1-90for more information.
To remove the child restraint, unbuckle the vehicle
safety belt and let it return to the stowed position.
Airbag System
The vehicle has the following airbags:
A frontal airbag for the driver.
A frontal airbag for the right front passenger.The vehicle may have the following airbags:
A roof-rail airbag for the driver and passenger
directly behind the driver.
A roof-rail airbag for the right front passenger and
the person seated directly behind that passenger.
If your vehicle has a third row seat, it will have a
third row roof-rail airbag.
All of the airbags in the vehicle will have the word
AIRBAG embossed in the trim or on an attached label
near the deployment opening.
For frontal airbags, the word AIRBAG will appear on the
middle part of the steering wheel for the driver and
on the instrument panel for the right front passenger.
With roof-rail airbags, the word AIRBAG will appear
along the headliner or trim.
1-81

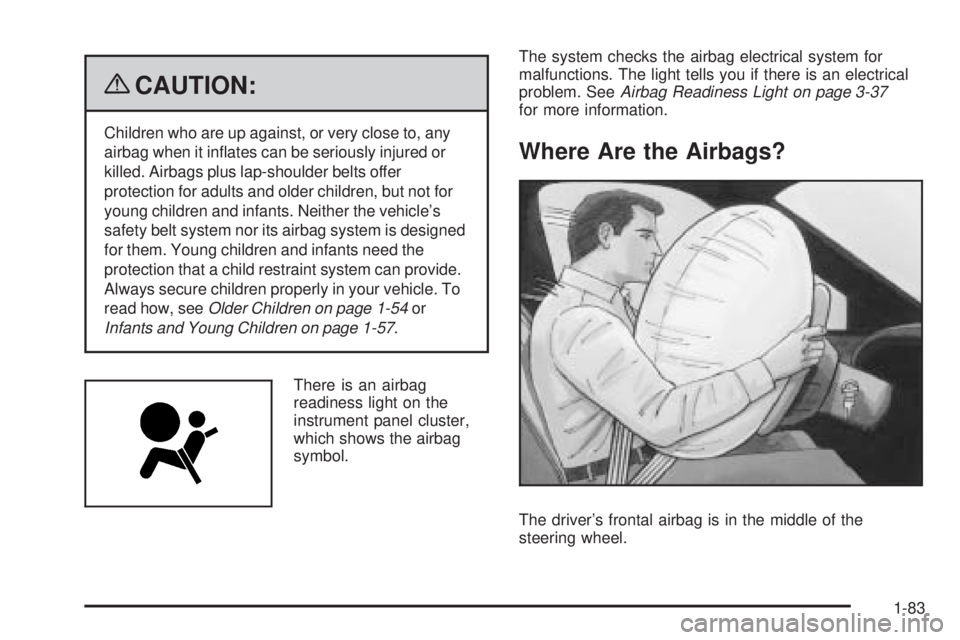

{CAUTION:
Children who are up against, or very close to, any
airbag when it inates can be seriously injured or
killed. Airbags plus lap-shoulder belts offer
protection for adults and older children, but not for
young children and infants. Neither the vehicle’s
safety belt system nor its airbag system is designed
for them. Young children and infants need the
protection that a child restraint system can provide.
Always secure children properly in your vehicle. To
read how, seeOlder Children on page 1-54or
Infants and Young Children on page 1-57.
There is an airbag
readiness light on the
instrument panel cluster,
which shows the airbag
symbol.The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-37
for more information.
Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
1-83

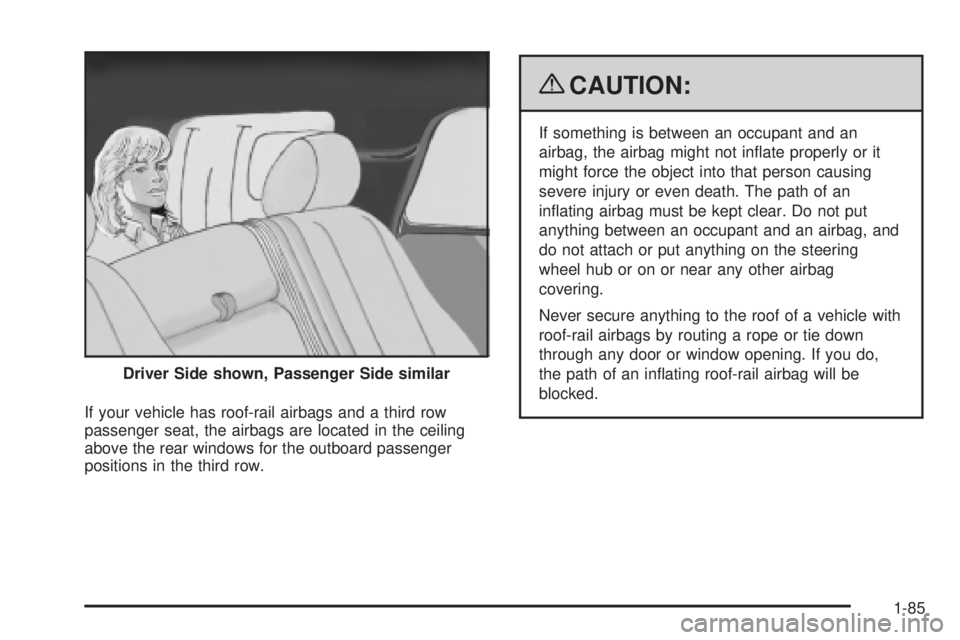

If your vehicle has roof-rail airbags and a third row
passenger seat, the airbags are located in the ceiling
above the rear windows for the outboard passenger
positions in the third row.
{CAUTION:
If something is between an occupant and an
airbag, the airbag might not inate properly or it
might force the object into that person causing
severe injury or even death. The path of an
inating airbag must be kept clear. Do not put
anything between an occupant and an airbag, and
do not attach or put anything on the steering
wheel hub or on or near any other airbag
covering.
Never secure anything to the roof of a vehicle with
roof-rail airbags by routing a rope or tie down
through any door or window opening. If you do,
the path of an inating roof-rail airbag will be
blocked. Driver Side shown, Passenger Side similar
1-85

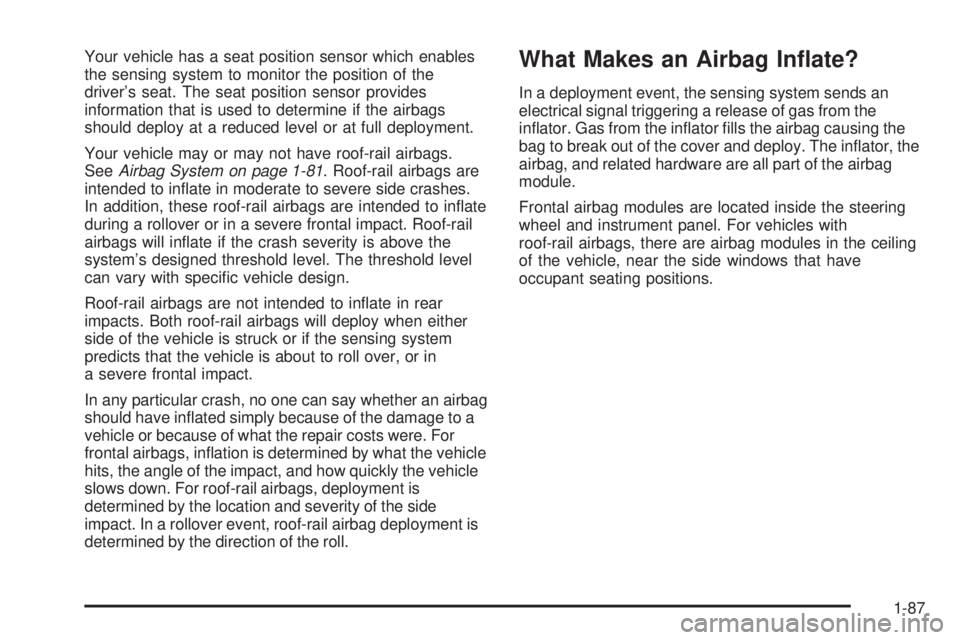

Your vehicle has a seat position sensor which enables
the sensing system to monitor the position of the
driver’s seat. The seat position sensor provides
information that is used to determine if the airbags
should deploy at a reduced level or at full deployment.
Your vehicle may or may not have roof-rail airbags.
SeeAirbag System on page 1-81. Roof-rail airbags are
intended to inate in moderate to severe side crashes.
In addition, these roof-rail airbags are intended to inate
during a rollover or in a severe frontal impact. Roof-rail
airbags will inate if the crash severity is above the
system’s designed threshold level. The threshold level
can vary with specic vehicle design.
Roof-rail airbags are not intended to inate in rear
impacts. Both roof-rail airbags will deploy when either
side of the vehicle is struck or if the sensing system
predicts that the vehicle is about to roll over, or in
a severe frontal impact.
In any particular crash, no one can say whether an airbag
should have inated simply because of the damage to a
vehicle or because of what the repair costs were. For
frontal airbags, ination is determined by what the vehicle
hits, the angle of the impact, and how quickly the vehicle
slows down. For roof-rail airbags, deployment is
determined by the location and severity of the side
impact. In a rollover event, roof-rail airbag deployment is
determined by the direction of the roll.What Makes an Airbag Inate?
In a deployment event, the sensing system sends an
electrical signal triggering a release of gas from the
inator. Gas from the inator lls the airbag causing the
bag to break out of the cover and deploy. The inator, the
airbag, and related hardware are all part of the airbag
module.
Frontal airbag modules are located inside the steering
wheel and instrument panel. For vehicles with
roof-rail airbags, there are airbag modules in the ceiling
of the vehicle, near the side windows that have
occupant seating positions.
1-87
