2009 CHEVROLET MALIBU remote start

Personalization Menu Modes
OIL LIFE RESET
When this feature is displayed, you can reset the engine
oil life system. To reset the system, seeEngine Oil Life
System on page 5-24. See “OIL LIFE” underDIC
Operation and Displays on page 3-44for more
information.
UNITS
This feature allows you to select the units of
measurement in which the DIC will display the vehicle
information. When UNITS appears on the display, press
and hold the reset button for at least one second to
scroll through the available settings:
ENGLISH (default in United States):All information
will be displayed in English units.
METRIC (default in Canada):All information will be
displayed in metric units.
To select a setting and move on to the next feature,
press the information button while the desired setting is
displayed on the DIC.
REMOTE START
If your vehicle has remote start, this feature allows
remote start to be turned off or on. Remote start allows
you to start the engine from outside of the vehicle using
your Remote Keyless Entry (RKE) transmitter. When
REMOTE START appears on the display, press and hold
the reset button for at least one second to scroll through
the available settings:
OFF:The remote start feature will be disabled.
ON (default):The remote start feature will be enabled.
SeeRemote Vehicle Start on page 2-7for more
information.
To select a setting and move on to the next feature,
press the information button while the desired setting is
displayed on the DIC.
3-51

9. Connect the other end of the negative (−) cable at
least 18 inches (45 cm) away from the dead battery,
but not near engine parts that move. The electrical
connection is just as good there, and the chance
of sparks getting back to the battery is much less.
10. Now start the vehicle with the good battery and run
the engine for a while.
11. Try to start the vehicle that had the dead battery.
If it will not start after a few tries, it probably needs
service.Notice:If the jumper cables are connected or
removed in the wrong order, electrical shorting may
occur and damage the vehicle. The repairs would not
be covered by the vehicle warranty. Always connect
and remove the jumper cables in the correct order,
making sure that the cables do not touch each other
or other metal.
A. Heavy, Unpainted Metal Engine Part or Remote
Negative (–) Terminal
B. Good Battery or Remote Positive (+) and Remote
Negative (–) Terminals
C. Dead Battery or Remote Positive (+) Terminal
Jumper Cable Removal
5-46

The TPMS matching process is outlined below:
1. Set the parking brake.
2. Turn the ignition switch to ON/RUN with the
engine off.
3. Press and hold the Remote Keyless Entry (RKE)
transmitter’s LOCK and UNLOCK buttons, at the
same time, for about ve seconds to start the TPMS
learn mode. The horn sounds twice indicating the
TPMS receiver is ready and in learn mode.
4. Start with the driver side front tire. The driver side
front turn signal also comes on to indicate that
corner’s sensor is ready to be learned.
5. Remove the valve cap from the tire’s valve
stem. Activate the TPMS sensor by increasing
or decreasing the tire’s air pressure for about
eight seconds. The horn chirp, can take up to
30 seconds to sound. It chirps one time and then
all the turn signals ash one time to conrm the
sensor identication code has been matched to
the tire/wheel position.
6. The passenger side front turn signal comes on to
indicate that corner sensor is ready to be learned.
Proceed to the passenger side front tire and
repeat the procedure in Step 5.7. The passenger side rear turn signal comes on to
indicate that corner sensor is ready to be learned.
Proceed to the passenger side rear tire and
repeat the procedure in Step 5.
8. The driver side rear turn signal comes on to
indicate that corner sensor is ready to be learned.
Proceed to the driver side rear tire, and repeat
the procedure in Step 5.
9. After hearing the single horn chirp for the driver
side rear tire, two additional horn chirps sound
to indicate the tire learning process is done.
Turn the ignition switch to LOCK/OFF.
If no tires are learned after entering the TPMS learn
mode, or if communication with the receiver stops, or
if the time limit has expired, turn the ignition switch to
LOCK/OFF and start over beginning with Step 2.
10. Set all four tires to the recommended air pressure
level as indicated on the Tire and Loading
Information label.
11. Put the valve caps back on the valve stems.
5-65

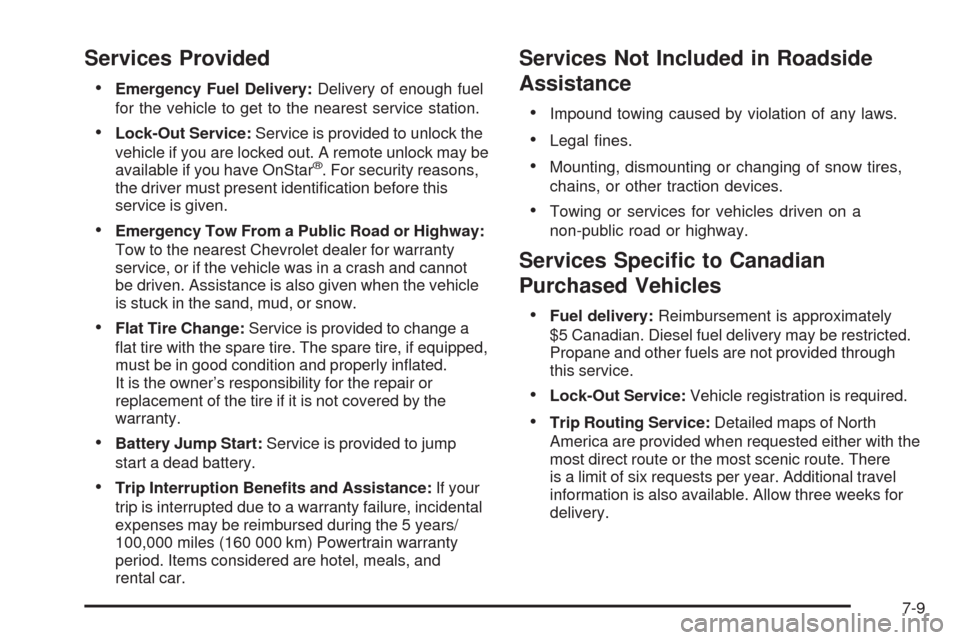

Services Provided
Emergency Fuel Delivery:Delivery of enough fuel
for the vehicle to get to the nearest service station.
Lock-Out Service:Service is provided to unlock the
vehicle if you are locked out. A remote unlock may be
available if you have OnStar
®. For security reasons,
the driver must present identication before this
service is given.
Emergency Tow From a Public Road or Highway:
Tow to the nearest Chevrolet dealer for warranty
service, or if the vehicle was in a crash and cannot
be driven. Assistance is also given when the vehicle
is stuck in the sand, mud, or snow.
Flat Tire Change:Service is provided to change a
at tire with the spare tire. The spare tire, if equipped,
must be in good condition and properly inated.
It is the owner’s responsibility for the repair or
replacement of the tire if it is not covered by the
warranty.
Battery Jump Start:Service is provided to jump
start a dead battery.
Trip Interruption Benets and Assistance:If your
trip is interrupted due to a warranty failure, incidental
expenses may be reimbursed during the 5 years/
100,000 miles (160 000 km) Powertrain warranty
period. Items considered are hotel, meals, and
rental car.
Services Not Included in Roadside
Assistance
Impound towing caused by violation of any laws.
Legal nes.
Mounting, dismounting or changing of snow tires,
chains, or other traction devices.
Towing or services for vehicles driven on a
non-public road or highway.
Services Specic to Canadian
Purchased Vehicles
Fuel delivery:Reimbursement is approximately
$5 Canadian. Diesel fuel delivery may be restricted.
Propane and other fuels are not provided through
this service.
Lock-Out Service:Vehicle registration is required.
Trip Routing Service:Detailed maps of North
America are provided when requested either with the
most direct route or the most scenic route. There
is a limit of six requests per year. Additional travel
information is also available. Allow three weeks for
delivery.
7-9

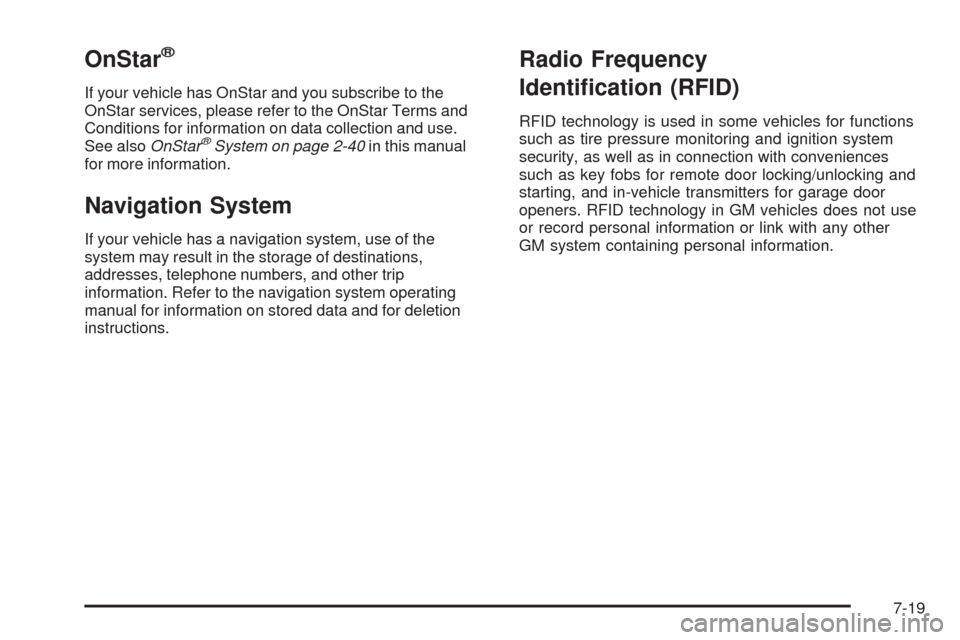

OnStar®
If your vehicle has OnStar and you subscribe to the
OnStar services, please refer to the OnStar Terms and
Conditions for information on data collection and use.
See alsoOnStar
®System on page 2-40in this manual
for more information.
Navigation System
If your vehicle has a navigation system, use of the
system may result in the storage of destinations,
addresses, telephone numbers, and other trip
information. Refer to the navigation system operating
manual for information on stored data and for deletion
instructions.
Radio Frequency
Identication (RFID)
RFID technology is used in some vehicles for functions
such as tire pressure monitoring and ignition system
security, as well as in connection with conveniences
such as key fobs for remote door locking/unlocking and
starting, and in-vehicle transmitters for garage door
openers. RFID technology in GM vehicles does not use
or record personal information or link with any other
GM system containing personal information.
7-19

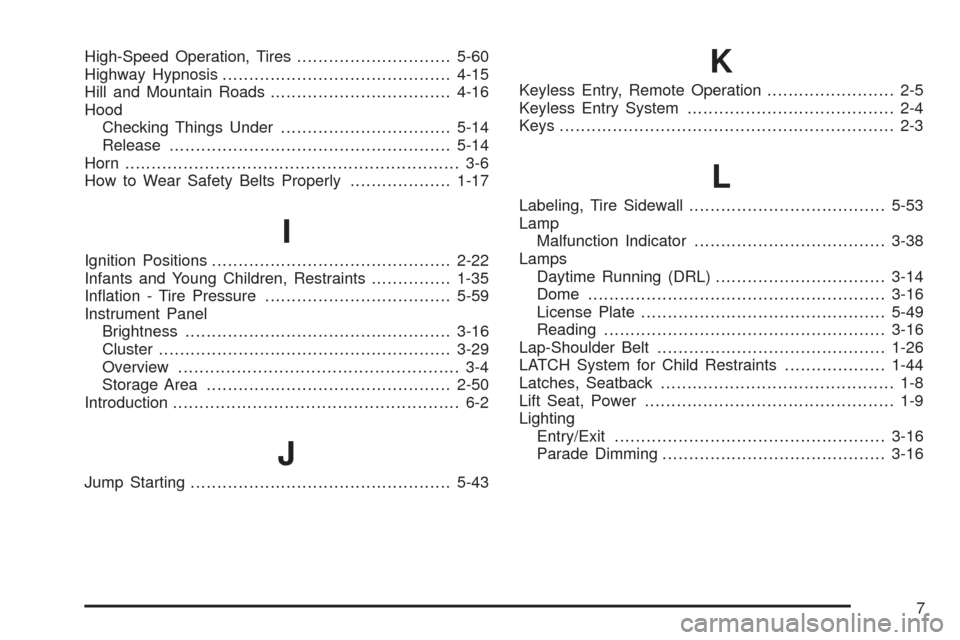

High-Speed Operation, Tires.............................5-60
Highway Hypnosis...........................................4-15
Hill and Mountain Roads..................................4-16
Hood
Checking Things Under................................5-14
Release.....................................................5-14
Horn ............................................................... 3-6
How to Wear Safety Belts Properly...................1-17
I
Ignition Positions.............................................2-22
Infants and Young Children, Restraints...............1-35
Ination - Tire Pressure...................................5-59
Instrument Panel
Brightness..................................................3-16
Cluster.......................................................3-29
Overview..................................................... 3-4
Storage Area..............................................2-50
Introduction...................................................... 6-2
J
Jump Starting.................................................5-43
K
Keyless Entry, Remote Operation........................ 2-5
Keyless Entry System....................................... 2-4
Keys............................................................... 2-3
L
Labeling, Tire Sidewall.....................................5-53
Lamp
Malfunction Indicator....................................3-38
Lamps
Daytime Running (DRL)................................3-14
Dome ........................................................3-16
License Plate..............................................5-49
Reading.....................................................3-16
Lap-Shoulder Belt...........................................1-26
LATCH System for Child Restraints...................1-44
Latches, Seatback............................................ 1-8
Lift Seat, Power............................................... 1-9
Lighting
Entry/Exit...................................................3-16
Parade Dimming..........................................3-16
7

Power
Door Locks.................................................2-10
Electrical System.........................................5-98
Lift Seat....................................................... 1-9
Outlet 115 Volt Alternating Current.................3-19
Retained Accessory (RAP)............................2-23
Seat ............................................................ 1-4
Steering Fluid.............................................5-36
Windows....................................................2-16
Pregnancy, Using Safety Belts..........................1-31
Pressure Cap.................................................5-33
Privacy..........................................................7-17
Navigation System.......................................7-19
OnStar .......................................................7-19
Radio Frequency Identication (RFID).............7-19
Programmable Automatic Door Locks.................2-11
Proposition 65 Warning, California....................... 5-4
R
Radio Frequency Identication (RFID),
Privacy......................................................7-19
Radio(s)........................................................3-59
Radios
Reception...................................................3-91
Setting the Clock.........................................3-57
Theft-Deterrent............................................3-89Reading Lamps..............................................3-16
Rear Door Security Locks................................2-12
Rearview Mirror, Automatic Dimming..................2-37
Rearview Mirrors.............................................2-37
Reclining Seatbacks.......................................... 1-6
Recommended Fluids and Lubricants.................6-12
Recreational Vehicle Towing.............................4-26
Reimbursement Program, GM Mobility................. 7-7
Remote Keyless Entry (RKE) System.................. 2-4
Remote Keyless Entry (RKE) System,
Operation..................................................... 2-5
Remote Vehicle Start........................................ 2-7
Removing the Flat Tire and Installing the
Spare Tire..................................................5-79
Removing the Spare Tire and Tools...................5-77
Replacement Bulbs.........................................5-50
Replacement Parts, Maintenance......................6-13
Reporting Safety Defects to General Motors.......7-16
Reporting Safety Defects to the Canadian
Government................................................7-16
Reporting Safety Defects to the United States
Government................................................7-15
Restraint System Check
Checking the Restraint Systems....................1-73
Replacing Restraint System Parts
After a Crash..........................................1-74
Retained Accessory Power (RAP)......................2-23
10

Shifting
Out of Park................................................2-34
Shifting Into Park............................................2-33
Signals, Turn and Lane-Change.......................... 3-7
Spare Tire
Compact....................................................5-89
Installing....................................................5-79
Removing...................................................5-77
Storing.......................................................5-85
Specications and Capacities..........................5-108
Speedometer..................................................3-30
Split Folding Rear Seat....................................1-10
Start Vehicle, Remote....................................... 2-7
Starting the Engine.........................................2-24
Steering........................................................4-10
Steering Wheel Controls, Audio.........................3-89
Steering Wheel, Tilt and Telescopic..................... 3-6
Storage Areas
Center Console...........................................2-50
Convenience Net.........................................2-51
Cupholders.................................................2-50
Driver Storage Compartment.........................2-51
Front Storage Area......................................2-50
Glove Box..................................................2-50
Instrument Panel.........................................2-50
Stuck in Sand, Mud, Ice, or Snow.....................4-19
Sun Visors.....................................................2-17
Sunroof.........................................................2-51T
Tachometer....................................................3-30
Taillamps
Turn Signal, and Stoplamps..........................5-48
Telescopic Wheel.............................................. 3-6
Text Telephone (TTY) Users............................... 7-6
Theft-Deterrent Feature....................................3-89
Theft-Deterrent Systems...................................2-18
Content Theft-Deterrent................................2-18
PASS-Key
®III+ Electronic Immobilizer............2-19
PASS-Key®III+ Electronic Immobilizer
Operation................................................2-20
Tilt Wheel........................................................ 3-6
Time, Setting..................................................3-57
Tire
Pressure Light.............................................3-37
Tires.............................................................5-51
Aluminum Wheels, Cleaning..........................5-95
Buying New Tires........................................5-68
Chains.......................................................5-74
Changing a Flat Tire....................................5-76
Cleaning....................................................5-96
Compact Spare...........................................5-89
Different Size..............................................5-70
High-Speed Operation..................................5-60
If a Tire Goes Flat.......................................5-75
Ination - Tire Pressure................................5-59
12
