Downloaded from www.Manualslib.com manuals search engine 31 - Knock Sensor
DIAGNOSIS & TESTING
LTSMW030006T
03
03–515Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Check reference values between ECM terminals and ground under the following conditions:
ECM TERMINAL NO.ITEMTEST METHOD DATA (DC VOLTAGE)
62 Knock sensor•
Test Method 1: Knock at
cylinder with rubber
hammer
• Test Method 2: Knock at
sensor slightly Output signal voltage
should exist.
On Board Diagnostic Logic
• Self-diagnosis detection logic.
DTC NO. DTC DEFINITION DTC DETECTION
CONDITION POSSIBLE CAUSE
31 Knock sensorAn excessive voltage from
the sensor is sent to ECM. •
Knock sensor
• Harness or connectors
• ECM
DTC Confirmation Procedure:
Before performing the following procedure, confirm that battery voltage is more than 12 V.
• Turn ignition switch off.
• Connect the X-431 scan tool to the Data Link Connector (DLC) - use the most current software available.
• Turn ignition switch on.
• With the scan tool, record and erase stored DTCs in the ECM.
• Run engine for a while then select view DTC.
• If DTC is detected, go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnosis & Testing Diagnostic Help in Sec-
tion 03 Electronic Engine Controls).
NOTE :
Before performing the following procedure, make sure that the ECM ground connection is in good condition.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
Diagnostic Procedure
1.CHECK GROUND CONNECTION
• Turn ignition switch off.
• Loosen and retighten ground screws on the body (See Ground Inspection in Section 03 Electronic Engine Con-
trols).
• Inspect the ground connection E-208 (See Vehicle Wiring Harness Layout - Engine Room Harness (With Mit-
subishi 2.4L Engine) in Section 16 Wiring).
Is the ground connections OK?
Ye s>>Go to the next step.
No
>>Repair or replace ground connection.
DIAGNOSIS & TESTING
03–516Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 2.CHECK KNOCK SENSOR ELECTRICAL CONNECTOR
• Disconnect the knock sensor electrical connector
E-066 (1).
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector
as necessary.
3.CHECK THE KNOCK SENSOR GROUND CIRCUIT
• Check continuity between knock sensor terminal 1 and ground.
• Continuity should exist.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the knock sensor ground circuit.
4.CHECK KNOCK SENSOR SIGNAL CIRCUIT
• Disconnect ECM harness connector.
• Check harness continuity between sensor connector E-066, terminal 1 and ground, sensor terminal 2 and ECM
terminal 62.
CHECK SENSOR CIRCUIT
ECM TERMINAL KNOCK SENSOR TERMINAL
62 2
• Also check harness for short to power and short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair circuit for an open or short in harness or connectors.
DIAGNOSIS & TESTING
LTSM030011
03
03–517Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 5.CHECK KNOCK SENSOR SIGNAL
• Connect knock sensor (1) connector.
• Set multimeter to voltage range.
• Check knock sensor (1) output signal as table
shown.
CHECK OUTPUT SIGNAL
KNOCK SENSOR TERMINAL NO. TEST METHODDATA (AVERAGE DC VOLTAGE)
1&2 •
Test Method 1: Knock at cylinder
with rubber hammer. Output signal voltage should exist.
• Test Method 2: Knock at sensor
slightly.
• Output signal voltage should exist.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace knock sensor.
6.CHECK DTC
• With the X-431 scan tool, read ECM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC 31 still present?
Ye s>>Replace the ECM.
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
DIAGNOSIS & TESTING
LTSM030011
03–518Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 6.CHECK INJECTOR POWER SUPPLY CIRCUIT FOR OPEN OR SHORT
• Turn ignition switch on.
• Check injector supply voltage between sensor ter-
minal 1 and ground in the electrical connector.
• Battery voltage should exist.
Is the check result normal?
Ye s>>Go to step 8.
No
>>Go to the next step.
7.DETECT MALFUNCTIONING PART
• Disconnect injector harness connector.
• Check the following:
Harness connectors A-102, E-105
Front fuse and relay box H3
Fuse 22, Fuse 12
Harness for open or short between injector and fuse
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace malfunctioning part.
8.CHECK INJECTOR CONTROL CIRCUITS FOR AN OPEN AND SHORT
• Turn ignition switch off.
• Disconnect ECM harness connector.
• Check harness continuity between following terminals.
INJECTOR
NO. ECM
TERMINAL INJECTOR
TERMINAL
112
21 42
322
41 52
DIAGNOSIS & TESTING
LTSMD030019
03–522Chery Automobile Co., Ltd.

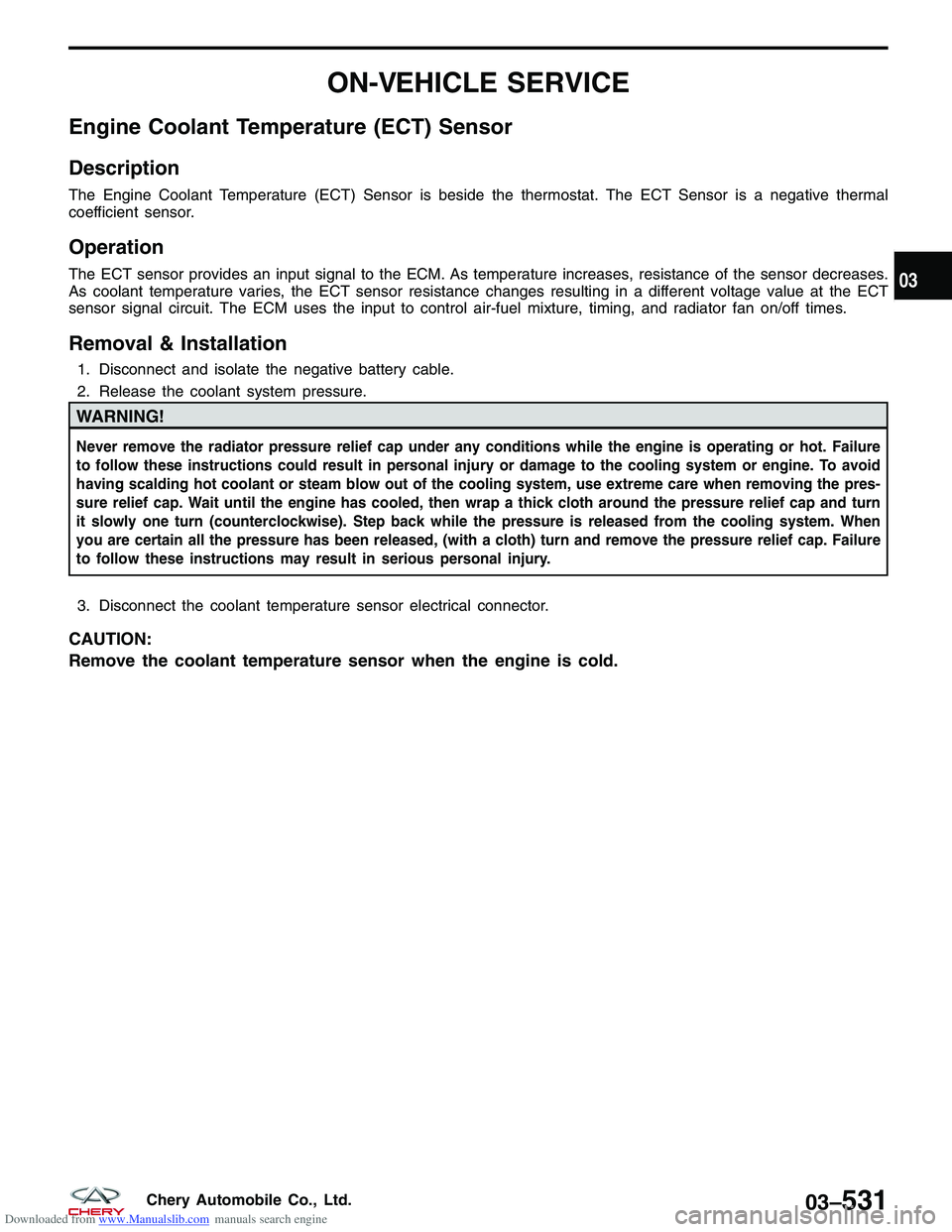

Downloaded from www.Manualslib.com manuals search engine ON-VEHICLE SERVICE
Engine Coolant Temperature (ECT) Sensor
Description
The Engine Coolant Temperature (ECT) Sensor is beside the thermostat. The ECT Sensor is a negative thermal
coefficient sensor.
Operation
The ECT sensor provides an input signal to the ECM. As temperature increases, resistance of the sensor decreases.
As coolant temperature varies, the ECT sensor resistance changes resulting in a different voltage value at the ECT
sensor signal circuit. The ECM uses the input to control air-fuel mixture, timing, and radiator fan on/off times.
Removal & Installation
1. Disconnect and isolate the negative battery cable.
2. Release the coolant system pressure.
WARNING!
Never remove the radiator pressure relief cap under any conditions while the engine is operating or hot. Failure
to follow these instructions could result in personal injury or damage to the cooling system or engine. To avoid
having scalding hot coolant or steam blow out of the cooling system, use extreme care when removing the pres-
sure relief cap. Wait until the engine has cooled, then wrap a thick cloth around the pressure relief cap and turn
it slowly one turn (counterclockwise). Step back while the pressure is released from the cooling system. When
you are certain all the pressure has been released, (with a cloth) turn and remove the pressure relief cap. Failure
to follow these instructions may result in serious personal injury.
3. Disconnect the coolant temperature sensor electrical connector.
CAUTION:
Remove the coolant temperature sensor when the engine is cold.
03
03–531Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 4. Remove the engine coolant temperature sensor(1).
(Tighten: Engine coolant temperature sensor to 20
N·m).
5. Discard the O-ring.
6. Installation is in the reverse order of removal. NOTE: Replace a new O-ring when installing.
Coolant Temperature Sensor (For Instrument Cluster)
Description
The coolant temperature sensor (for instrument cluster) is located on the water outlet fitting. It is bimetallic strip struc-
ture.
Operation
The coolant temperature sensor (for instrument cluster) provides an input to the instrument cluster. With the coolant
temperature changes the bimetallic strip will curve complete the circuit and the temperature gauge will change.
Removal & Installation
1. Disconnect and isolate the negative battery cable.
2. Disconnect the coolant temperature sensor (for
instrument cluster) electrical connector.
3. Remove the coolant temperature sensor (1) (for instrument cluster).
(Tighten: Coolant temperature sensor (for instru-
ment cluster) to 14 N·m)
ON-VEHICLE SERVICE
LTSM030007
LTSM030002
03–532Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 4. Installation is in the reverse order of removal.
CAUTION:
Before removing the coolant temperature sensor (for instrument cluster), release the coolant pres-
sure and make sure the engine is cold.
Knock Sensor
Description
The knock sensor is attached to the cylinder block. The knock sensor is designed to detect engine vibration that is
caused by detonation.
Operation
When the knock sensor detects a knock in one of the cylinders, it sends an input signal to the ECM. In response, the
ECM retards ignition timing for all cylinders by a scheduled amount.
Knock sensors contain a piezoelectric material which constantly vibrates and sends an input voltage (signal) to the
ECM while the engine operates. As the intensity of the vibration increases, the knock sensor output voltage also
increases.
The voltage signal produced by the knock sensor increases with the amplitude of vibration. The ECM receives an
input knock sensor voltage signal. If the signal rises above a predetermined level, the ECM will store that value in
memory and retard ignition timing to reduce engine knock. If the knock sensor voltage exceeds a present value, the
ECM retards ignition timing for all cylinders. It is not a selective cylinder retard.
The ECM ignores knock sensor input signal during engine idle conditions. Once the engine speed exceeds a spec-
ified value, knock retard is allowed.
Removal & Installation
1. Disconnect and isolate the negative battery cable.
2. Disconnect the knock sensor electrical connector.
3. Remove the knock sensor retaining bolt (1) andremove the knock sensor.
(Tighten: Knock sensor retaining bolt to 20 N·m).
4. Installation is in the reverse order of removal.
Oxygen Sensor
Description
This vehicle is equipped with two oxygen sensors (upstream oxygen sensor & downstream oxygen sensor). The oxy-
gen sensors are located before and after the three way catalyst. The oxygen sensors continually monitor the oxygen
level in the exhaust gas. The sensor is made of ceramic zirconia. The zirconia generates voltage from approximately
1 volt in richer conditions to 0 volt in leaner conditions.
Operation
The O2 sensors produce voltages from 0 to 1 volt, depending upon the oxygen content of the exhaust gas. When a
large amount of oxygen is present (caused by a lean air/fuel mixture, can be caused by misfire and exhaust leaks),
the sensors produces a low voltage. When there is a lesser amount of oxygen present (caused by a rich air/fuel
mixture, can be caused by internal engine problems) it produces a higher voltage. By monitoring the oxygen content
and converting it to electrical voltage, the sensors act as a rich-lean switch.
ON-VEHICLE SERVICE
LTSM030011
03
03–533Chery Automobile Co., Ltd.
