Map Appearance
This menu allows you to set the map appearance screen
options. The current setting appears as light blue.
2D:Select to display the map as a two-dimensional view.
3D:Select to display the map as a
three-dimensional view.Set 3D Viewing Angle:This feature allows you
to adjust the 3D viewing angle. To do so:
1. Touch 3D on the MAP APPEARANCE menu.
2. Touch Set 3D Viewing Angle.
The map screen with the 3D viewing angle bar
displays.
3. Touch the up or down arrows to set the viewing
angle.
4. Touch Return to save the settings and to exit this
menu or touch Reset to restore the viewing angle
to the default setting.
4-17

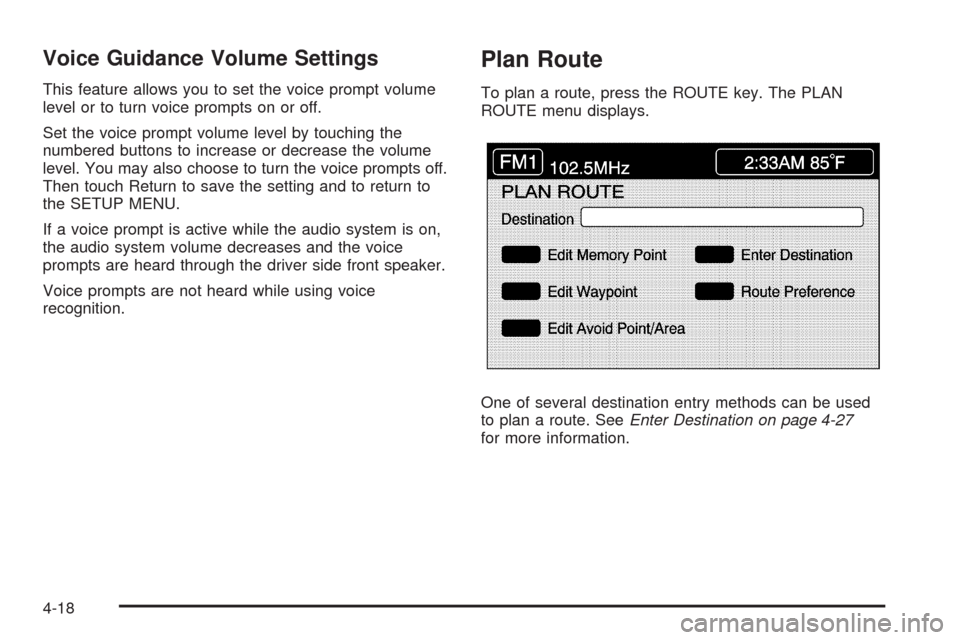

Voice Guidance Volume Settings
This feature allows you to set the voice prompt volume
level or to turn voice prompts on or off.
Set the voice prompt volume level by touching the
numbered buttons to increase or decrease the volume
level. You may also choose to turn the voice prompts off.
Then touch Return to save the setting and to return to
the SETUP MENU.
If a voice prompt is active while the audio system is on,
the audio system volume decreases and the voice
prompts are heard through the driver side front speaker.
Voice prompts are not heard while using voice
recognition.
Plan Route
To plan a route, press the ROUTE key. The PLAN
ROUTE menu displays.
One of several destination entry methods can be used
to plan a route. SeeEnter Destination on page 4-27
for more information.
4-18

Edit Memory Point
This feature allows you to store, delete, and edit
memory points. Touch the Edit Memory Point screen
button from the PLAN ROUTE menu to access the EDIT
MEMORY POINT screen.
Memory points can be stored in four different categories:
personal, business, entertainment, and marked point.
Memory points are stored when either START or MARK
are selected when setting a destination on the map
or when storing destinations in memory.A total of 60 locations can be stored. The last
10 destinations entered are stored under Previous
Destination. In addition, one memory point can be stored
under the Home category.
If all 60 stored points are entered, the system noties
you that there is no available storage left in memory
points. A memory point must be removed before storing
additional memory points.
Registering Memory Points
To store a memory point:
1. Select a category from the EDIT MEMORY
POINT menu.
2. Touch REGISTER.
3. Select a method for entering a destination. A map
appears displaying the memory point’s location.
4. If available, touch INFO to view the address
information for the memory point.
5. Touch Enter to store the point.
4-19

Editing Memory Points
This feature allows you to edit the contents stored in
memory. The following options are available:
Icon Editing of a Memory Point
Each memory point is displayed with a default icon.
To edit an icon:
1. Select the category of the memory point.
2. Select the item to be edited.
3. Touch the icon. The EDIT MEMORY POINT icon
screen appears.
4. Touch the icon you would like to use. The system
then returns to the EDIT MEMORY POINT menu.
5. Touch Return to go back to the previous screen.
The new memory point icon displays on the map.
Choose from 18 different icons, three of which are sound
icons. The same icon may be used for other memory
points as well.
Name Editing of a Memory Point
To modify the name of a stored memory point:
1. Select the category of the memory point.
2. Select the item to be edited.
3. Touch the NAME screen button and use the alpha
keypad to edit the name. Names may contain up to
15 alpha and/or numeric characters.
4. Touch Return to go to the previous screen.
Moving Memory Points
To move a memory point from one category to another:
1. Select the category of the memory point.
2. Select the memory point to be edited.
3. Touch CATEGORY. A list of categories appear.
The current category for the item will be highlighted
and cannot be selected.
4. Touch the screen button for the category you want
the memory point placed in. A pop-up window
appears displaying the change in category.
5. Touch Return to go back to the previous screen.
4-20

Edit Waypoint
Waypoints are destinations you can set along the way
to your nal destination. This feature allows you to
add, edit, and delete waypoints.
Five waypoints can be set up on the way to the nal
destination.
To access the WAYPOINT menu:
1. Press the ROUTE key.
2. Touch Edit Waypoint.
Adding a Waypoint
To add a waypoint to the route:
1. Touch Add Waypoint.
2. Enter a destination. SeeEnter Destination on
page 4-27.
A map appears showing the location of the
waypoint.
3. Touch Enter to add the waypoint.
4. Touch the ADD screen button to insert the waypoint
in the desired order.
5. The system displays the ROUTE INFORMATION
screen. From this screen, several options are
available.
4-23

Registering an Avoid Point/Area
To store an avoid point/area:
1. Touch Register Avoid Point/Area.
2. Enter a location. SeeEnter Destination on
page 4-27.
3. If desired, reduce or enlarge the area around the
point you want to avoid by using the REDUCE or
ENLARGE screen buttons.
If an avoid point cannot be avoided, the system
displays “Avoid Point and Area Stored. Route May
Not Avoid the Avoid Point and Areas.”
4. Touch Enter to set the area as an avoid point area.
When using the REDUCE or ENLARGE buttons, a
box appears to represent the area or an X appears
to represent the area avoided. When an avoid
point is set, the square will appear as green.
5. Touch Return to go back to the previous screen.
Editing an Avoid Point/Area
To edit an avoid point/area:
1. Touch Edit Avoid Point/Area. A list of avoided
points appear.
2. Select the avoided point/area you want to change.
A map of the avoided area appears.
3. Use REDUCE or ENLARGE to edit the avoided
point.
4. Touch Enter to set your new avoided area.
The system displays “Area Adjusted.”
5. Touch Return to go back to the previous screen.
Deleting an Avoid Point/Area
To delete an avoid point/area:
1. Touch Delete Avoid Point/Area. A list of avoided
points appear.
2. Select the avoided point/area to be deleted.
3. The system will ask to conrm the selection.
Touch Yes to delete the avoid point/area or
No to cancel.
If Yes is selected, the area will no longer be
avoided when traveling on a planned route.
4. Touch Return to go back to the previous screen.
4-26

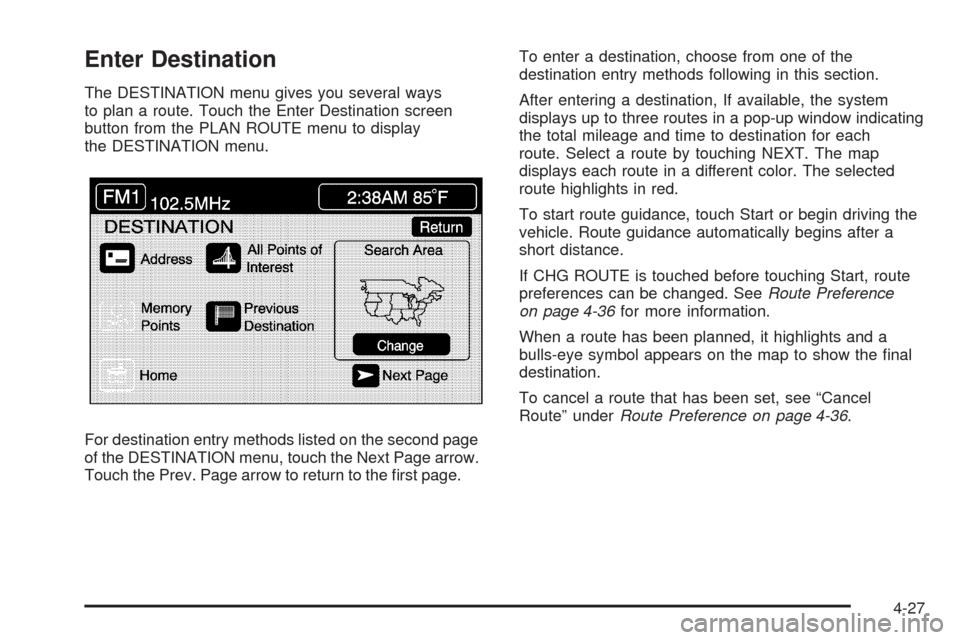

Enter Destination
The DESTINATION menu gives you several ways
to plan a route. Touch the Enter Destination screen
button from the PLAN ROUTE menu to display
the DESTINATION menu.
For destination entry methods listed on the second page
of the DESTINATION menu, touch the Next Page arrow.
Touch the Prev. Page arrow to return to the rst page.To enter a destination, choose from one of the
destination entry methods following in this section.
After entering a destination, If available, the system
displays up to three routes in a pop-up window indicating
the total mileage and time to destination for each
route. Select a route by touching NEXT. The map
displays each route in a different color. The selected
route highlights in red.
To start route guidance, touch Start or begin driving the
vehicle. Route guidance automatically begins after a
short distance.
If CHG ROUTE is touched before touching Start, route
preferences can be changed. SeeRoute Preference
on page 4-36for more information.
When a route has been planned, it highlights and a
bulls-eye symbol appears on the map to show the nal
destination.
To cancel a route that has been set, see “Cancel
Route” underRoute Preference on page 4-36.
4-27

The system lists all POIs available. Sort by name using
NAME SORT or touch DIST SORT to list POIs by
distance from the current location.
Select a location from the list. The system shows the
selected POI on the map. If available, a pop-up window
displays. Touch INFO to view the POI’s name,
address, city, and phone number, if available.
Touch Enter to plan the route.Memory Points
This destination entry method allows a memory point
to be set as the destination. Each time a destination
from the map screen is stored, the destination is stored
under MARKED POINT. SeeEdit Memory Point on
page 4-19for more information.
Destinations must be stored as memory points to select
from PERSONAL, BUSINESS, ENTERTAINMENT,
or MARKED POINT. If you have renamed the memory
point category name(s), the name(s) appear as you
changed them.
