2009 CADILLAC ESCALADE engine coolant

(j)A fluid loss in any vehicle system could indicate a
problem. Have the system inspected and repaired and
the fluid level checked. Add fluid if needed.
(k)If driving regularly under dusty conditions, inspect
the filter at each engine oil change.
(l)Visually inspect belt for fraying, excessive cracks, or
obvious damage. Replace belt if necessary.
(m)Check vent hose at transfer case for kinks and
proper installation. Check to be sure vent hose is
unobstructed, clear, and free of debris. During any
maintenance, if a power washer is used to clean mud
and dirt from the underbody, care should be taken to not
directly spray the transfer case output seals. High
pressure water can overcome the seals and contaminate
the transfer case fluid. Contaminated fluid will decrease
the life of the transfer case and should be replaced.
(n)Severe Service: Change transfer case fluid if
the vehicle is mainly used for trailer towing or driven
in city traffic, wet environment, or high ambient
temperatures.
Owner Checks and Services
These owner checks and services should be performed
at the intervals specied to help ensure vehicle
safety, dependability, and emission control performance.
Your dealer/retailer can assist with these checks and
services.Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to the
vehicle, make sure they are the proper ones, as shown
inRecommended Fluids and Lubricants on page 7-13.
At Each Fuel Fill
It is important to perform these underhood checks at
each fuel fill.
Engine Oil Level Check
Notice:It is important to check the engine oil
regularly and keep it at the proper level. Failure to
keep the engine oil at the proper level can cause
damage to the engine not covered by the vehicle
warranty.
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 6-16.
Engine Coolant Level Check
Check the engine coolant level and add DEX-COOL®
coolant mixture if necessary. SeeEngine Coolant
on page 6-26.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in the windshield
washer uid reservoir and add the proper uid if
necessary.
7-9

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name, part
number, or specication can be obtained from your
dealer/retailer.
Usage Fluid/Lubricant
Engine OilThe engine requires a special
engine oil meeting GM Standard
GM4718M. Oils meeting this
standard can be identied as
synthetic, and should also be
identied with the American
Petroleum Institute (API) Certied
for Gasoline Engines starburst
symbol. However, not all synthetic
API oils with the starburst symbol
will meet this GM standard. Look for
and use only oil that meets GM
Standard GM4718M. For the proper
viscosity, seeEngine Oil on
page 6-16.
Usage Fluid/Lubricant
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 6-26.
Hydraulic Brake
SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherOptikleen
®Washer Solvent.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Chassis
LubricationChassis Lubricant (GM Part No.
U.S. 12377985, in Canada
88901242) or lubricant meeting
requirements of NLGI #2, Category
LB or GC-LB.
7-13

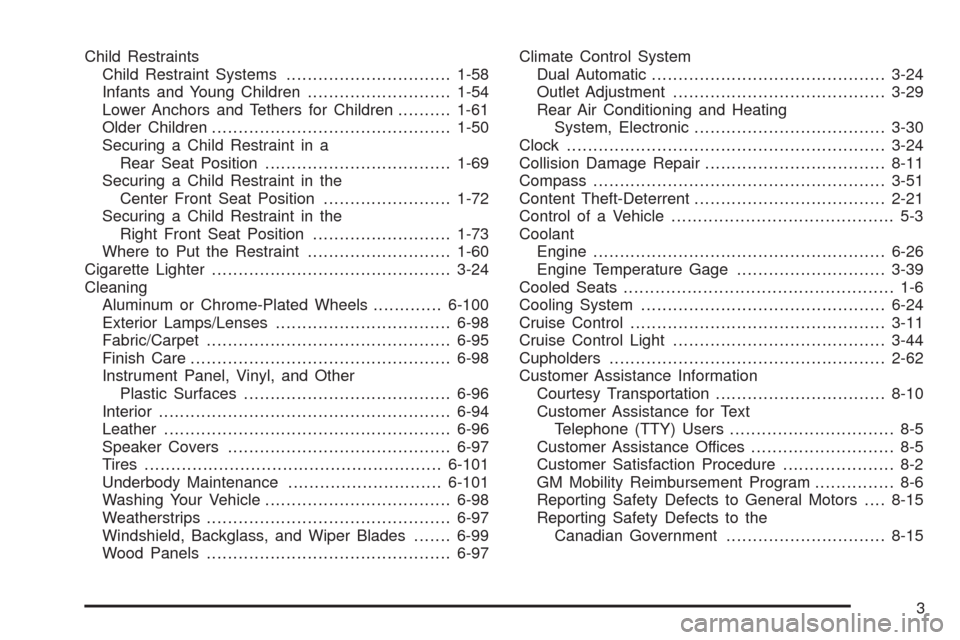

Child Restraints
Child Restraint Systems...............................1-58
Infants and Young Children...........................1-54
Lower Anchors and Tethers for Children..........1-61
Older Children.............................................1-50
Securing a Child Restraint in a
Rear Seat Position...................................1-69
Securing a Child Restraint in the
Center Front Seat Position........................1-72
Securing a Child Restraint in the
Right Front Seat Position..........................1-73
Where to Put the Restraint...........................1-60
Cigarette Lighter.............................................3-24
Cleaning
Aluminum or Chrome-Plated Wheels.............6-100
Exterior Lamps/Lenses.................................6-98
Fabric/Carpet..............................................6-95
Finish Care.................................................6-98
Instrument Panel, Vinyl, and Other
Plastic Surfaces.......................................6-96
Interior.......................................................6-94
Leather......................................................6-96
Speaker Covers..........................................6-97
Tires........................................................6-101
Underbody Maintenance.............................6-101
Washing Your Vehicle...................................6-98
Weatherstrips..............................................6-97
Windshield, Backglass, and Wiper Blades.......6-99
Wood Panels..............................................6-97Climate Control System
Dual Automatic............................................3-24
Outlet Adjustment........................................3-29
Rear Air Conditioning and Heating
System, Electronic....................................3-30
Clock............................................................3-24
Collision Damage Repair..................................8-11
Compass.......................................................3-51
Content Theft-Deterrent....................................2-21
Control of a Vehicle.......................................... 5-3
Coolant
Engine.......................................................6-26
Engine Temperature Gage............................3-39
Cooled Seats................................................... 1-6
Cooling System..............................................6-24
Cruise Control................................................3-11
Cruise Control Light........................................3-44
Cupholders....................................................2-62
Customer Assistance Information
Courtesy Transportation................................8-10
Customer Assistance for Text
Telephone (TTY) Users............................... 8-5
Customer Assistance Offices........................... 8-5
Customer Satisfaction Procedure..................... 8-2
GM Mobility Reimbursement Program............... 8-6
Reporting Safety Defects to General Motors....8-15
Reporting Safety Defects to the
Canadian Government..............................8-15
3

Electronic Immobilizer
PASS-Key®III+...........................................2-22
Electronic Immobilizer Operation
PASS-Key
®III+...........................................2-23
Engine
Air Cleaner/Filter.........................................6-19
Check and Service Engine Soon Lamp...........3-40
Coolant......................................................6-26
Coolant Heater............................................2-28
Coolant Temperature Gage...........................3-39
Drive Belt Routing.......................................7-16
Engine Compartment Overview......................6-14
Exhaust.....................................................2-38
Fan Noise..................................................6-33
Oil .............................................................6-16
Oil Life System...........................................6-18
Overheated Protection Operating Mode...........6-33
Overheating................................................6-30
Starting......................................................2-26
Entry Lighting.................................................3-21
Event Data Recorders.....................................8-17
Exit Lighting...................................................3-21
Extender, Safety Belt.......................................1-50
Exterior Lamps...............................................3-15
F
Features
Memory ....................................................... 1-7
Filter
Engine Air Cleaner......................................6-19
Finish Damage.............................................6-101
Flashers, Hazard Warning.................................. 3-5
Flash-to-Pass................................................... 3-8
Flat Tire........................................................6-76
Flat Tire, Changing.........................................6-76
Flat Tire, Storing.............................................6-89
Fluid
Automatic Transmission................................6-21
Power Steering...........................................6-34
Windshield Washer......................................6-35
Fog Lamp
Fog ...........................................................3-20
Fog Lamp Light..............................................3-44
Front Axle......................................................6-47
Fuel............................................................... 6-5
Additives...................................................... 6-6
California Fuel.............................................. 6-6
Driving for Better Economy............................. 5-2
E85 (85% Ethanol)........................................ 6-7
Filling a Portable Fuel Container....................6-11
Filling the Tank............................................. 6-9
5

Fuel (cont.)
Fuels in Foreign Countries.............................. 6-8
Gage .........................................................3-45
Gasoline Octane........................................... 6-5
Gasoline Specications.................................. 6-6
Fuses
Center Instrument Panel Fuse Block.............6-105
Fuses and Circuit Breakers.........................6-103
Instrument Panel Fuse Block.......................6-103
Underhood Fuse Block...............................6-106
Windshield Wiper.......................................6-103
G
Gage
Engine Coolant Temperature.........................3-39
Fuel..........................................................3-45
Speedometer..............................................3-33
Tachometer.................................................3-33
Garage Door Opener.......................................2-55
Garment Hooks..............................................2-63
Gasoline
Octane........................................................ 6-5
Specications............................................... 6-6
Getting Started
Getting Started, Navigation............................. 4-4
Global Positioning System (GPS)......................4-56
Glove Box.....................................................2-62
GM Mobility Reimbursement Program.................. 8-6
H
Hazard Warning Flashers................................... 3-5
Head Restraints............................................... 1-2
Headlamp
Aiming .......................................................6-48
Headlamps
Bulb Replacement.......................................6-50
Daytime Running Lamp................................3-19
Exterior Lamps............................................3-15
Flash-to-Pass............................................... 3-8
High Intensity Discharge (HID) Lighting...........6-51
High/Low Beam Changer................................ 3-8
On Reminder..............................................3-18
Heated Seats............................................1-5, 1-6
Heated Steering Wheel..................................... 3-6
Heater
Engine Coolant...........................................2-28
Heater...........................................................3-24
Highbeam On Light.........................................3-45
High-Speed Operation, Tires.............................6-63
Highway Hypnosis...........................................5-26
Hill and Mountain Roads..................................5-27
Hood
Checking Things Under................................6-12
Release.....................................................6-12
Horn ............................................................... 3-5
How to Wear Safety Belts Properly...................1-33
6
