2009 BMW Z4 SDRIVE35I USB

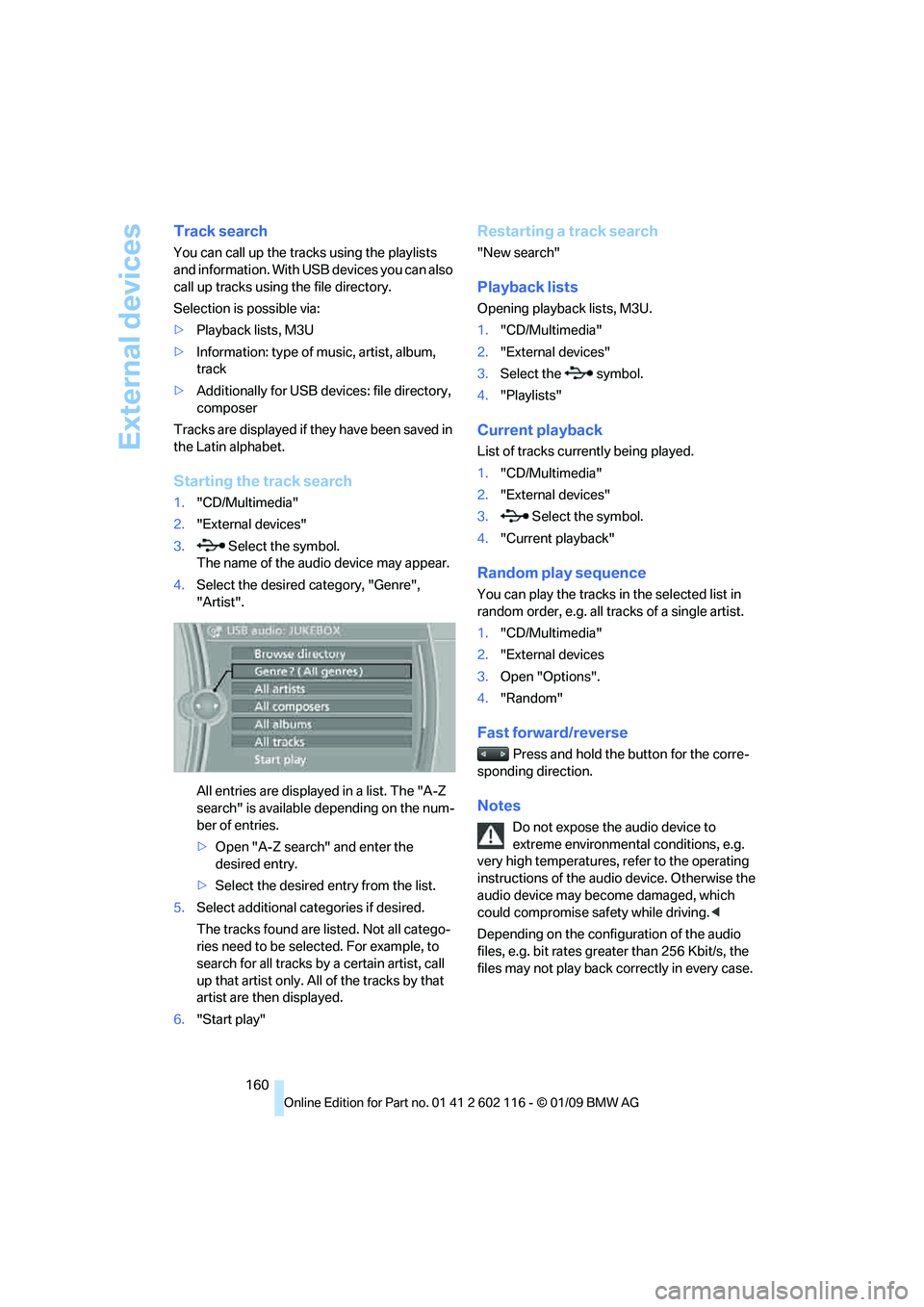

External devices
160
Track search
You can call up the tracks using the playlists
and information. With USB devices you can also
call up tracks using the file directory.
Selection is possible via:
>Playback lists, M3U
> Information: type of music, artist, album,
track
> Additionally for USB devices: file directory,
composer
Tracks are displayed if they have been saved in
the Latin alphabet.
Starting the track search
1. "CD/Multimedia"
2. "External devices"
3. Select the symbol.
The name of the audio device may appear.
4. Select the desired category, "Genre",
"Artist".
All entries are displayed in a list. The "A-Z
search" is available depending on the num-
ber of entries.
>Open "A-Z search" and enter the
desired entry.
> Select the desired entry from the list.
5. Select additional categories if desired.
The tracks found are lis ted. Not all catego-
ries need to be selected. For example, to
search for all tracks by a certain artist, call
up that artist only. All of the tracks by that
artist are then displayed.
6. "Start play"
Restarting a track search
"New search"
Playback lists
Opening playback lists, M3U.
1."CD/Multimedia"
2. "External devices"
3. Select the symbol.
4. "Playlists"
Current playback
List of tracks curre ntly being played.
1. "CD/Multimedia"
2. "External devices"
3. Select the symbol.
4. "Current playback"
Random play sequence
You can play the tracks in the selected list in
random order, e.g. all tr acks of a single artist.
1. "CD/Multimedia"
2. "External devices
3. Open "Options".
4. "Random"
Fast forward/reverse
Press and hold the button for the corre-
sponding direction.
Notes
Do not expose the audio device to
extreme environmental conditions, e.g.
very high temperatures, refer to the operating
instructions of the audi o device. Otherwise the
audio device may become damaged, which
could compromise safety while driving. <
Depending on the config uration of the audio
files, e.g. bit rates greater than 256 Kbit/s, the
files may not play back correctly in every case.

Navigation
Entertainment
Driving tips
161Reference
At a glance
Controls
Communications
Mobility

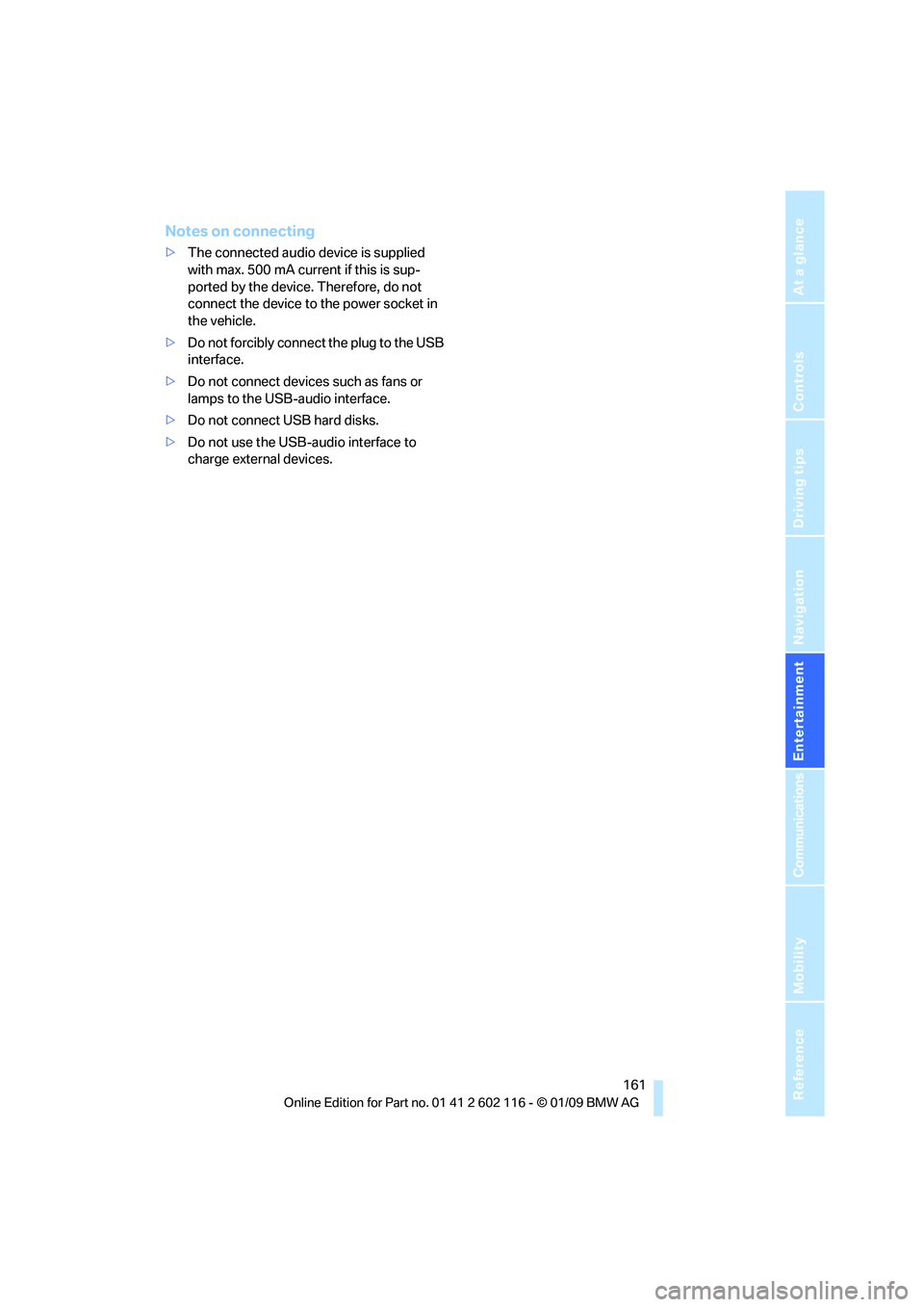

Notes on connecting
>The connected audio device is supplied
with max. 500 mA current if this is sup-
ported by the device. Therefore, do not
connect the device to the power socket in
the vehicle.
> Do not forcibly connect the plug to the USB
interface.
> Do not connect devices such as fans or
lamps to the USB-audio interface.
> Do not connect USB hard disks.
> Do not use the USB-audio interface to
charge external devices.
