Hand washes
When washing the vehicle by hand, use ample
water and optionally Auto Shampoo. Clean the
vehicle with gentle pressure, using a sponge or
a washing brush.
Before cleaning the windshield, deacti-
vate the rain sensor or switch off the igni-
tion in order to prevent undesired wiper activa-
tion.<
Obey local regulations for washing vehi-
cles by hand.<
Headlamps
Do not rub dry and never use abrasives or
strong solvents to clean the covers.
Use shampoo or insect remover to soften
insects and then rinse with ample water.
Remove accumulated ice and snow with win-
dow deicer, not a scraper.
Windows
Use glass cleaner to clean outer and inner sur-
faces of windows and mirror glass.
Do not clean mirror glass with cleansers
that contain powdered quartz.<
Wiper blades
Clean with soapy water and replace regularly to
prevent streaking.
Wax residues and dirt on the windshield
cause streaking during wiper operation
and lead to premature wear on wiper blades and
can cause the rain sensor to malfunction.<
Caring for vehicle finish
Regular care and maintenance helps your vehi-
cle retain its value and protects its finish against
the long-term effects of finish-damaging sub-
stances.
Environmental factors that occur locally or
regionally can have a negative impact on the fin-
ish of your vehicle and may damage it. It is
therefore important to adjust the frequency and
extent of vehicle care accordingly.Immediately remove particularly corrosive sub-
stances such as spilled fuel, oil, grease, brake
fluid, tree sap, or bird droppings; otherwise,
they can damage the finish.
Repairing damages to finish
Depending on the severity of the damage,
have stone damage or scratches touched
up immediately in order to prevent rust from
forming.<
BMW recommends having paint damage pro-
fessionally repaired in accordance with factory
guidelines using Genuine BMW finish materials.
Waxing
It is time to wax the vehicle when water no
longer beads on the clean surface of the paint.
Use only products that contain carnauba wax or
synthetic waxes to protect the finish.
Rubber seals
Only treat with water or rubber cleaner.
To avoid noise or damage, do not use
care products that contain silicone when
caring for rubber seals.<
Chrome parts
Carefully clean parts such as the radiator grille,
door handles, or window frames with ample
water and added shampoo, particularly when
they have been exposed to road salts. Use
chrome polish for additional treatment.
Light-alloy wheels
By design, the system produces dust during
braking, which settles on the light-alloy wheels.
Remove it frequently with an acid-free wheel
cleaner.
Do not use corrosive, acid-containing,
strongly alkaline, or coarse cleansers or
steam cleaners hotter than 1407/606; oth-
erwise, you can damage your vehicle.<
Aluminum running boards
Superficial rust on the aluminum running
boards can be removed with a special cleanser.

Replacing components

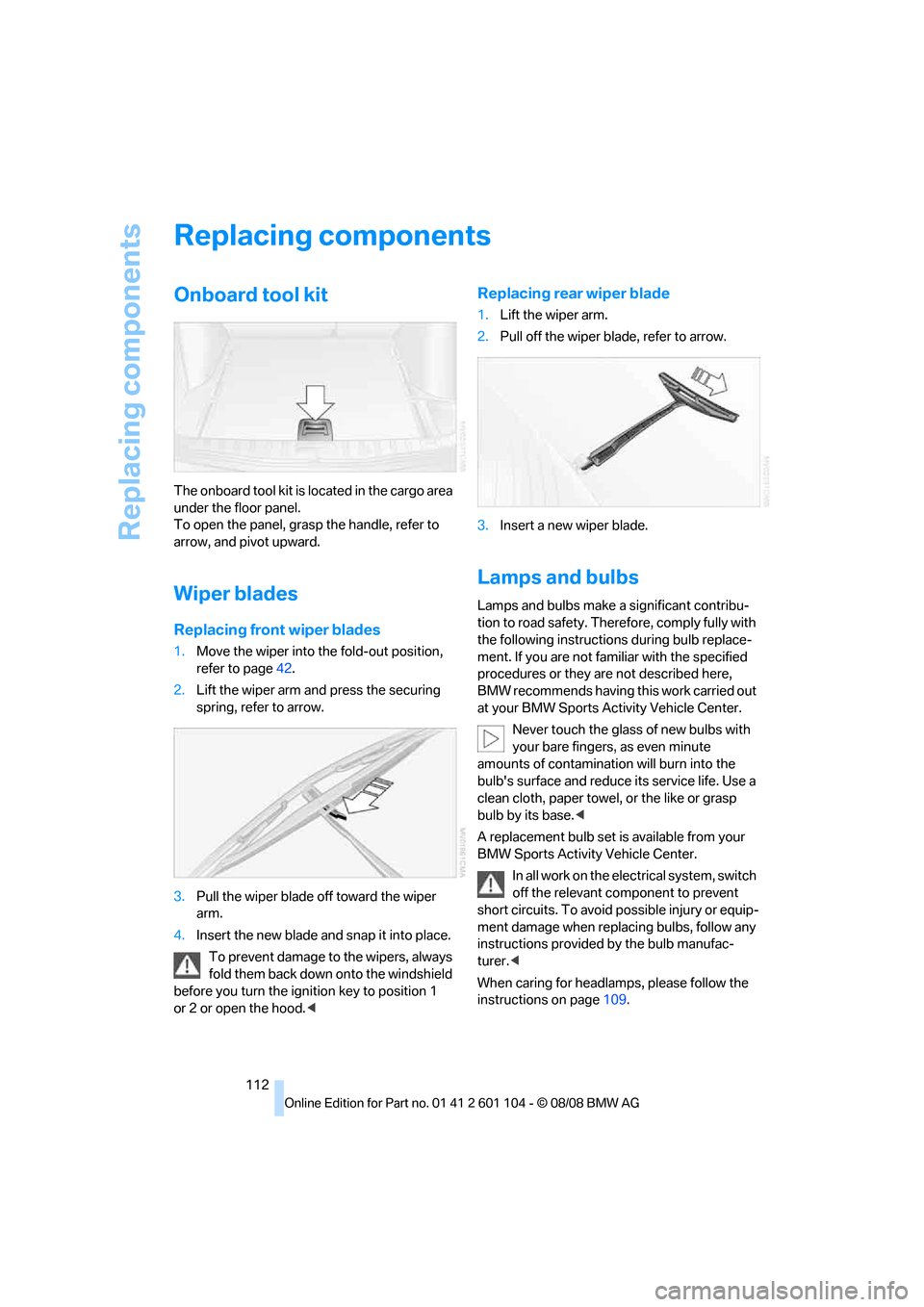

112
Replacing components
Onboard tool kit
The onboard tool kit is located in the cargo area
under the floor panel.
To open the panel, grasp the handle, refer to
arrow, and pivot upward.
Wiper blades
Replacing front wiper blades
1.Move the wiper into the fold-out position,
refer to page42.
2.Lift the wiper arm and press the securing
spring, refer to arrow.
3.Pull the wiper blade off toward the wiper
arm.
4.Insert the new blade and snap it into place.
To prevent damage to the wipers, always
fold them back down onto the windshield
before you turn the ignition key to position 1
or 2 or open the hood.<
Replacing rear wiper blade
1.Lift the wiper arm.
2.Pull off the wiper blade, refer to arrow.
3.Insert a new wiper blade.
Lamps and bulbs
Lamps and bulbs make a significant contribu-
tion to road safety. Therefore, comply fully with
the following instructions during bulb replace-
ment. If you are not familiar with the specified
procedures or they are not described here,
BMW recommends having this work carried out
at your BMW Sports Activity Vehicle Center.
Never touch the glass of new bulbs with
your bare fingers, as even minute
amounts of contamination will burn into the
bulb's surface and reduce its service life. Use a
clean cloth, paper towel, or the like or grasp
bulb by its base.<
A replacement bulb set is available from your
BMW Sports Activity Vehicle Center.
In all work on the electrical system, switch
off the relevant component to prevent
short circuits. To avoid possible injury or equip-
ment damage when replacing bulbs, follow any
instructions provided by the bulb manufac-
turer.<
When caring for headlamps, please follow the
instructions on page109.

Reference
At a glance
Controls
Driving tips
Mobility
113
Please have your BMW Sports Activity
Vehicle Center work on lamps whose
replacement is not described here.<
Light-emitting diodes LEDs
Light-emitting diodes installed behind translu-
c e n t l e n s e s s e r v e a s t h e l i g h t s o u r c e f o r m a n y o f
the controls and displays in your vehicle. These
light-emitting diodes are related to ordinary
lasers.
Do not remove the covers, and never
stare into the unfiltered light for several
hours, as irritation of the retina could result.<
Xenon lamps*
The service life of these bulbs is very long and
the probability of failure is very low, provided
that they are not switched on and off an unusual
number of times. If one of these bulbs should
nevertheless fail, it is possible to continue driv-
ing with great caution using the fog lamps, pro-
vided traffic laws in your area do not prohibit
this.
To avoid risk of potentially fatal injuries
due to the extremely high voltages at
which these units operate, service work should
always be entrusted to qualified personnel.<
Halogen low beams
H7 bulb, 55 watts
Always wear gloves and eye protection –
the atmosphere inside the H7 bulb is
pressurized. Failure to observe this precaution
can lead to injuries should the bulb be dam-
aged.<
For checking and adjusting headlamp
aim, please contact your BMW Sports
Activity Vehicle Center.<
Driver's side
1.Position the screwdriver from the onboard
tool kit and pull off the lamp cover.
Exercise caution when handling the
screwdriver; otherwise, personal
injury can occur or the vehicle can be dam-
aged.<2.Press the bulb holder downward and
remove.
3.Remove the bulb, install a new bulb.
4.Place the bulb holder with the lower edge
against the bracket and press it in until the
lamp base locks into place.
Front passenger side
Before replacing the bulb, remove the reservoir
for the windshield washing system from the
bracket. To do so, unscrew the screws, refer to
arrow, using the screwdriver from the onboard
tool kit and set reservoir aside.
Bear in mind that the windshield washing
system reservoir is heavy. Failure to take
this into account can lead to personal injury or
damage to the vehicle.<

Replacing components
114 For bulb replacement procedure, refer to
Driver's side.
Halogen high beams
H7 bulb, 55 watts
Always wear gloves and eye protection –
the atmosphere inside the H7 bulb is
pressurized. Failure to observe this precaution
can lead to injuries should the bulb be dam-
aged.<
For checking and adjusting headlamp
aim, please contact your BMW Sports
Activity Vehicle Center.<
Driver's side
1.Open the clip and remove the lamp cover.
2.Press the bulb holder downward and
remove, refer to Low beams.
3.Pull off the lamp base; plug in a new lamp
base.
4.Place the lamp base with the lower edge
against the bracket and press it in until the
lamp base locks into place.
Make sure that the cover does not fall into
the engine compartment; otherwise, the
vehicle can be damaged or other road users can
be endangered.<
Front passenger side
Before replacing the bulb, remove the reservoir
of the windshield washer system from the
bracket, refer to Halogen low beams on
page113.
For bulb replacement procedure, refer to
Driver's side.
Parking and roadside parking lamps
W5W bulb, 5 watts
A bulb is located over each high beam.
1.Remove bulb cover for high beams, refer to
Halogen high beams.
2.Remove bulb holder.
3.Remove and replace the bulb.
Turn signal, front
Lamp PSY24W, 24 Watt
or PSY24W Silver Vision
*
Access to the turn signal is at the edge of the
lamp unit, refer to arrow.
Make sure that the lamp base does not fall
into the engine compartment; otherwise,
the vehicle can be damaged or other road users
can be endangered.<
1.Turn the lamp base and remove it.
2.Replace the bulb.
3.Insert the lamp base. If it does not snap into
place immediately, turn the lamp base until
it does.

Reference
At a glance
Controls
Driving tips
Mobility
115
Side-mounted turn signals
W5W bulb, 5 watts
1.Use finger pressure against the rear end of
the lamp, refer to arrow, to press it forward
for removal.
2.Apply gentle pressure to the bulb while
turning it to the left and pull it out.
3.Install in the reverse order.
Front fog lamps
H11 bulb, 55 watts
Always wear gloves and eye protection –
the atmosphere inside the H11 bulb is
pressurized. Failure to observe this precaution
can lead to injuries should the bulb be dam-
aged.<
1.Pull the cover in front of the fog lamp for-
ward.
2.Loosen the screw, refer to arrow, pivot
headlamp out on this side and remove
toward the front.
3.Turn the lamp base at the back of the head-
lamp to the left and remove it.
4.Disconnect the cable connector.
5.Slide new bulb onto plug connector; be sure
it snaps firmly into place.6.Install in the reverse order.
Tail lamps
>Turn signal lamp:
PY21WSV bulb, 21 watts
>Other bulbs:
W16W bulb, 16 watts
1Brake lamp
2Parking lamp/rear lamp, LED
3Turn signal
4Backup lamp
5Rear lamp, LED
In the event of a defect involving the lamps 2, 4
and 5, please consult your BMW Sports Activity
Vehicle Center.
Changing
Open the flap in the side panel, refer to page78.
Turn signal lamp:
1.Turn bulb holder to the left, refer to arrow1,
and remove.
2.Apply gentle pressure to the bulb fitting
while turning it to the left, remove and
replace.

Reference
At a glance
Controls
Driving tips
Mobility
131
Capacities
Notes
Fuel tank
Fuel reserve US gal./liters
US gal./litersapprox. 17.7/67
approx. 2/8Fuel specification:
page93
Windshield washer system
incl. headlamp washer systemUS quarts/liters approx. 3.2/3.0
approx. 6.9/6.5For details: page43

Everything from A to Z
132
Everything from A to Z
Index
A
ABS Antilock Brake
System51
– indicator lamp12
Acceleration assistance
– refer to Acceleration
assistant53
– refer to DSC51
Acceleration assistant53
Accessories, refer to For your
own safety5
Accident, refer to Receiving
assistance121
Activated-charcoal filter68
Adaptive Head Light60
Adding engine oil104
Adjusting seats28
– electrically28
– mechanically28
– mechanically, Sports seat29
Airbags57
– deactivating front passenger
side35,57
– indicator lamp for front
passenger airbags58
– sitting safely27
– warning lamp58
Air circulation, refer to
Recirculated-air
mode64,68
Air conditioner63
Air distribution
– air conditioner64
– automatic climate control67
Airing, refer to
Ventilation65,68
Air outlets, refer to
Ventilation65,68
Air pressure, refer to Tire
inflation pressure94
Air vents, refer to
Ventilation65,68Air volume64
– adjusting manually67
AKI, refer to Fuel
specifications93
Alarm system25
– avoiding unintentional
alarms26
All-season tires, refer to
Special characteristics of
winter tires99
All wheel drive, refer to
xDrive52
Anchorage points78
Antifreeze
– coolant105
– washer fluid43
Antilock Brake System
ABS51
– indicator lamp12
Anti-theft alarm system, refer
to Alarm system25
Approved axle load, refer to
Weights130
Approved engine oils104
Approved gross vehicle
weight, refer to Weights130
Armrest
– front73
– rear73
Ashtray74
AUC Automatic recirculated-
air control68
Audio device, external74
Automatic
– air distribution67
– air volume67
– recirculated-air control
AUC68
Automatic climate control66
Automatic cruise control44
Automatic curb monitor33
Automatic deactivation of
front passenger airbags57Automatic headlamp
control60
Automatic transmission with
Steptronic40
– indicator lamp41
– interlock38
– selector lever interlock40
– shiftlock40
– towing123
– tow starting124
AUTO program67
Average fuel consumption49
– setting units48
Average speed49
– setting units48
Avoiding unintentional
alarms26
Axle weights, refer to
Weights130
B
Backrest, refer to Seats28
Backrest contour, refer to
Lumbar support29
Backup lamps, bulb
replacement115
Bandages, refer to First-aid
kit122
Bar, towing124
Battery119
– charging119
– disposal119
– indicator lamp12
– jump starting122
– power failure119
– remote control18
– warning lamp119
Belts, refer to Safety belts32
Beverage holder, refer to Cup
holders72

Reference
At a glance
Controls
Driving tips
Mobility
133
Blower, refer to
– Air volume64
– Air volume, adjusting
manually67
BMW homepage4
BMW maintenance
system106
Bottle holder, refer to Cup
holders72
Brake assistant51
– warning lamp53
Brake fluid105
– level105
– warning lamp105
Brake force display56
Brake lamps115
– brake force display56
– indicator lamp, defective
bulb12,59
– replacing bulbs115
Brake pads85
– breaking-in82
– warning lamp85
Brake pedal, refer to Safe
braking84
Brake rotors
– brake system82
– breaking-in82
Brakes84,105
– ABS51,84
– brake fluid105
– brake pads85
– breaking-in82
– handbrake39
– indicator/warning lamp12
Brake system105
– brake fluid105
– brake pads85
– breaking-in82
– disk brakes85
– warning lamp105
Brake wear warning
– refer to Brake pads85
– warning lamp105
Breakdown service, refer to
Receiving assistance121
Breaking-in82Bulb replacement, refer to
Lamps and bulbs112
Buttons on steering wheel13
C
California law
– Event Data Recorders107
– Proposition 65 Warning5
Calling, refer to telephone
operation instructions
Can holder, refer to Cup
holders72
Capacities131
Capacity, cargo area130
Care
– exterior108
– interior110
Care and maintenance
– car-care products108
– carpets110
– car washes108
– CD/DVD players110
– chrome sections109
– displays110
– fine wood components110
– finish109
– hand washes109
– headlamps109
– high pressure cleaning
jets108
– leather110
– light-alloy wheels109
– plastic components110
– rubber seals109
– running boards109
– safety belts110
– sensors110
– upholstery materials/cloth
coverings110
– windows109
– wiper blades109
Cargo, securing86Cargo area22,76
– capacity130
– cover77
– emergency release, refer to
Opening manually22
– enlarging76
– floor cover78
– foldable rear backrest76
– hatch, refer to Liftgate22
– lashing eyes78
– opening from outside22
– opening with remote
control20
– power socket74
Cargo loading85
– load86
– securing cargo86
– stowing cargo
86
– vehicle85
Caring for the vehicle
finish109
Caring for your vehicle108
Car keys, refer to Key set18
Car phone, refer to separate
Owner's Manual
Car phone preparation75
Car radio, refer to Owner's
Manual for Radio/Onboard
Computer
Car washes84,108
Cassette operation, refer to
Owner's Manual for Radio/
Onboard Computer
CD operation, refer to Owner's
Manual for Radio/Onboard
Computer
Central locking system19
– interior21
Changes, technical, refer to
For your own safety5
Changing a wheel116
Changing gears
– automatic transmission with
Steptronic41
– manual transmission40
Changing wheels98
Charge-current indicator
lamp12,119
