2009 BMW M3 COUPE load capacity

Practical interior accessories
110
Convertible
Depending on your vehicle's equipment, the
following storage spaces can be found in the
cargo bay:
>Storage compartment on the left side of the
cargo bay. To open turn handle by 90°
>Net
* for securing smaller objects, to be
attached to the fixtures on the floor panel
>Rubber strap
* for subdividing the cargo
bay; can be hooked onto the lateral lashing
eyes
>Stowage compartment under the floor
panel
Folding up the floor panel
Do not exceed the maximum permissible
load of 55 lbs/25 kg for the storage com-
partment under the floor panel, otherwise dam-
age could result.<
Coupe
Press the floor panel up and secure it with the
catch.
Convertible
To lift, grab hold of the floor panel at the open-
ing at the rear of the panel.
Lashing eyes
You will find lashing eyelets in the cargo bay for
securing luggage items with nets or tensioning
straps, refer to page119.
Coupe: ski bag*
The ski bag is designed for safe, clean transport
of up to 4 pairs of standard skis or up to
2snowboards.
With the ski bag you can stow skis with a length
of up to 6 ft 10 in/2.10 m. When skis of 6 ft 10 in/
2.10 m length are loaded, the overall capacity of
the ski bag is reduced due to its tapered design.
Loading
1.Take out the filler piece.
2.Press the button, reach into the recess and
fold down the cover.
3.Open the Velcro fastener, spread the ski
bag between the front seats and insert the
skis or snowboards.
The zip fastener makes objects in the ski
bag easier to reach.
4.Clip the hooks of the ski bag retaining strap
into the eyelet.
Only place clean skis in the ski bag. Wrap sharp
edges to prevent damage.
Securing cargo
After loading, secure the ski bag and its con-
tents. Tighten the retaining strap on the ten-
sioning buckle for this purpose.
ba8_E9293M3_cic.book Seite 110 Dienstag, 19. August 2008 12:01 12

Things to remember when driving
118 during brake applications to clean the rotors is
not reached.
This can also lead to a permanent loss in ride
comfort and to squealing noises during braking.
A loss in comfort can also be caused by
extended braking with little pressure on the
pedal.
Should corrosion form on the brake rotors, the
brakes will tend to respond with a pulsating
effect that even extended application will fail to
cure.
For information on brake system technology,
refer to Compound brake on page121.
When the vehicle is parked
Condensation forms while the automatic cli-
mate control is in operation, and then exits
under the vehicle. Traces of condensed water
under the vehicle are therefore normal.
Cargo loading
To avoid loading the tires beyond their
approved carrying capacity, never over-
load the vehicle. Overloading can lead to over-
heating and increases the rate at which damage
develops inside the tires. This can ultimately
result in a sudden blow-out.<
Make sure that no liquids are spilled or
leak from their containers in the cargo
bay, as this could result in damage to the vehi-
cle.<
Determining loading limit
1.Locate the following statement on your
vehicle's placard
*:
The combined weight of occupants
and cargo should never exceed
XXX kg or YYY lbs. Otherwise, overloading
can result in damage to the vehicle and
unstable driving conditions.<
2.Determine the combined weight of the
driver and passengers that will be riding in
your vehicle.
3.Subtract the combined weight of the driver
and passengers from XXX kilograms or YYY
pounds.
4.The resulting figure equals the available
amount of cargo and luggage load capacity.
For example, if the YYY amount equals
1,400 lbs. and there will be five 150-lb. pas-
sengers in your vehicle, the amount of avail-
able cargo and luggage load capacity is
650 lbs:
1,400 lbs. minus 750 lbs. = 650 lbs.
5.Determine the combined weight of luggage
and cargo being loaded on the vehicle. That
weight may not safely exceed the available
cargo and luggage load capacity calculated
in step 4.
6.If your vehicle will be towing a trailer, part of
the load from your trailer will be transferred
to your vehicle. Consult the manual for
transporting a trailer to determine how this
may reduce the available cargo and luggage
load capacity of your vehicle.
ba8_E9293M3_cic.book Seite 118 Dienstag, 19. August 2008 12:01 12

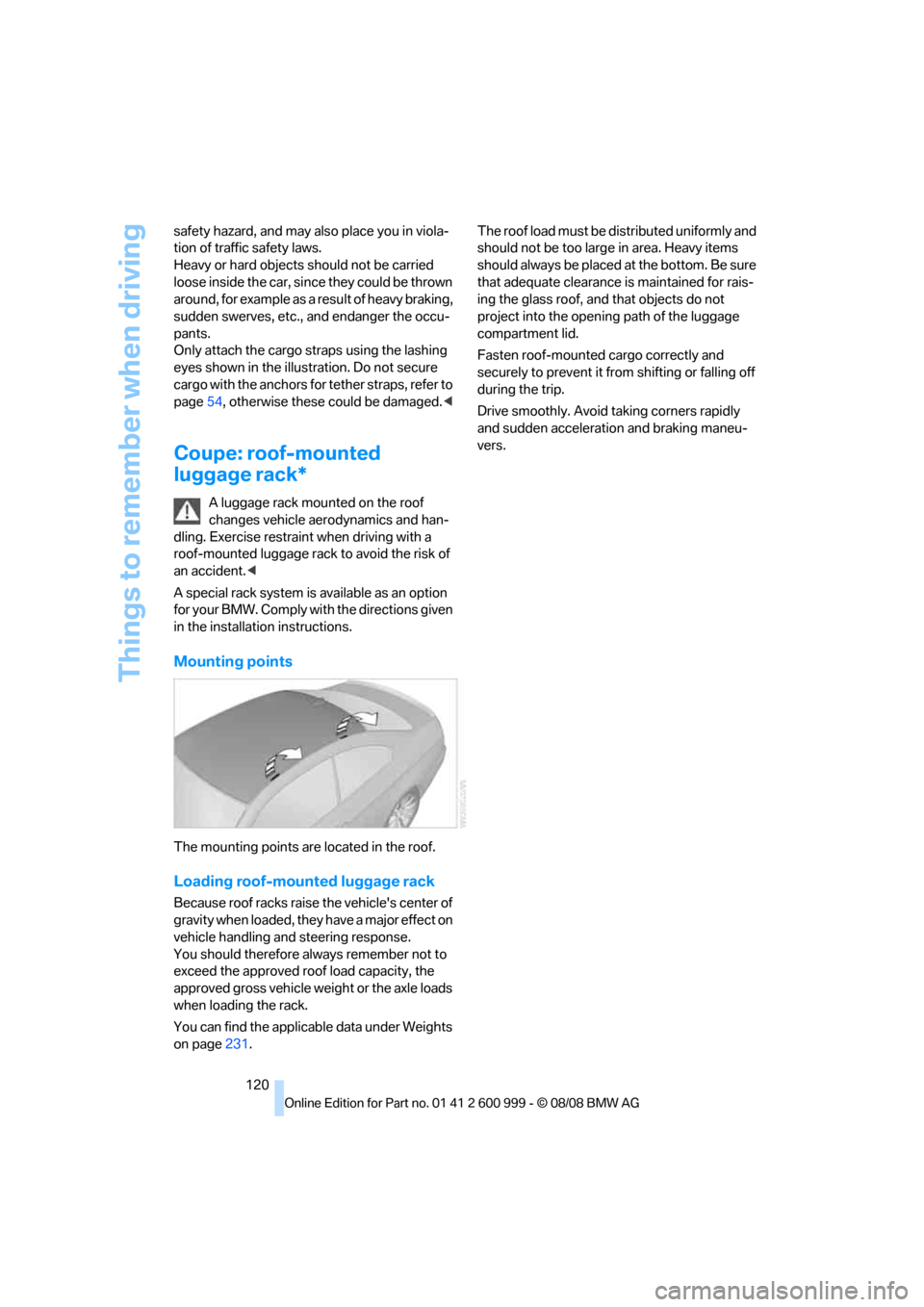

Things to remember when driving
120 safety hazard, and may also place you in viola-
tion of traffic safety laws.
Heavy or hard objects should not be carried
loose inside the car, since they could be thrown
around, for example as a result of heavy braking,
sudden swerves, etc., and endanger the occu-
pants.
Only attach the cargo straps using the lashing
eyes shown in the illustration. Do not secure
cargo with the anchors for tether straps, refer to
page54, otherwise these could be damaged.<
Coupe: roof-mounted
luggage rack*
A luggage rack mounted on the roof
changes vehicle aerodynamics and han-
dling. Exercise restraint when driving with a
roof-mounted luggage rack to avoid the risk of
an accident.<
A special rack system is available as an option
for your BMW. Comply with the directions given
in the installation instructions.
Mounting points
The mounting points are located in the roof.
Loading roof-mounted luggage rack
Because roof racks raise the vehicle's center of
gravity when loaded, they have a major effect on
vehicle handling and steering response.
You should therefore always remember not to
exceed the approved roof load capacity, the
approved gross vehicle weight or the axle loads
when loading the rack.
You can find the applicable data under Weights
on page231.The roof load must be distributed uniformly and
should not be too large in area. Heavy items
should always be placed at the bottom. Be sure
that adequate clearance is maintained for rais-
ing the glass roof, and that objects do not
project into the opening path of the luggage
compartment lid.
Fasten roof-mounted cargo correctly and
securely to prevent it from shifting or falling off
during the trip.
Drive smoothly. Avoid taking corners rapidly
and sudden acceleration and braking maneu-
vers.
ba8_E9293M3_cic.book Seite 120 Dienstag, 19. August 2008 12:01 12

Wheels and tires
200 work is not carried out properly, there is a dan-
ger of subsequent damage and related safety
hazards. Make sure that the new wheels are bal-
anced.<
Retreaded tires
BMW recommends that you do not use
retreaded tires, since driving safety may
be impaired. The causes for this include poten-
tially different tire casing structures and often
wide variations in tire age, which can result in a
limited service life.<
Correct wheels and tires
BMW recommends that you use only
wheel and tire combinations that BMW
has tested and approved for your particular
vehicle. Variations in factors such as manufac-
turing tolerances mean that even wheels and
tires with identical official size ratings could
actually have different dimensions, which could
lead to body contact and thus to severe acci-
dents. When selecting tires, also take their load
capacity into account. If non-approved wheels
and tires are used, BMW cannot evaluate their
suitability, and therefore cannot guarantee their
driving safety.<
You can inquire about the right wheel/tire com-
bination at your BMW center.
The correct combination of wheels and tires is
also necessary to ensure reliable operation of
various vehicle systems such as ABS or DSC.
To maintain good handling and vehicle
response, use only tires of a single brand and
tread configuration. After a tire has been dam-
aged, mount the previous wheel and tire combi-
nation again as soon as possible.
Wheels with Tire Pressure Monitor
TPM electronics
When mounting new tires or changing over
from summer to winter tires, or vice versa, only
use wheels with TPM electronics; otherwise the
Tire Pressure Monitor may not be able to detect
a puncture, refer to page85. Your BMW center
will be glad to advise you.
Recommended tire brands
Certain makes of tire are recommended by
BMW for each tire size. They are marked with a
clearly visible BMW designation on the sidewall
of the tire.
When properly used, these tires meet the high-
est standards in terms of safety and handling
characteristics.
Special characteristics of winter tires
BMW recommends winter tires for winter roads
or at temperatures below +457/+76.
Although all-season M+S tires provide better
winter traction than summer tires, they gener-
ally fail to provide the same levels of cold-
weather performance as winter tires.
Pay attention to speed
Always comply with the speed limit for the
winter tires mounted on your car; failure
to do so could result in tire damage and acci-
dents.<
Storage
Store wheels and tires in a cool, dry place with
as little exposure to light as possible. Always
protect tires against all contact with oil, grease
and fuels. Do not exceed the maximum tire
inflation pressure indicated on the sidewall of
the tire.
Swapping wheels between axles
BMW advises against swapping wheels
between the front and rear axles, even if all tires
have the same size, as this could impair driving
characteristics. With standard-equipment tires
ba8_E9293M3_cic.book Seite 200 Dienstag, 19. August 2008 12:01 12

Reference 231
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Weights
Coupe
Convertible
Capacities
M3
Approved gross weight lbs/kg 4,586/2,080
Load lbs/kg 882/400
Approved front axle load lbs/kg 2,249/1,020
Approved rear axle load lbs/kg 2,469/1,120
Approved roof load capacity lbs/kg 165/75
Cargo bay capacity cu ft/liters 15.2/430
M3
Approved gross weight lbs/kg 5,027/2,280
Load lbs/kg 882/400
Approved front axle load lbs/kg 2,337/1,060
Approved rear axle load lbs/kg 2,800/1,270
Cargo bay capacity cu ft/liters 7.4-12.4/210-350
Notes
Fuel tank US gal/liters approx. 16.6/63 Fuel grade: page195
including reserve of US gal/liters approx. 3.3/12.5
Window washer systemFor more details: page66
including headlamp washers US qt/liters approx. 4.8/4.5
ba8_E9293M3_cic.book Seite 231 Dienstag, 19. August 2008 12:01 12

Everything from A - Z
240 Care209
– automatic car washes209
– care products209
– carpets211
– CD/DVD drives212
– chrome parts210
– displays211
– exterior209
– fine wood parts211
– headlamps210
– high-pressure washer209
– interior211
– leather211
– light-alloy wheels211
– paintwork210
– plastic parts211
– retractable hardtop210
– rubber seals210
– safety belts211
– sensors and cameras211
– upholstery and cloth
trim211
– washing the car
manually210
– windows210
– wiper blades210
Cargo, securing119
Cargo bay
– capacity231
– convenient access34
– folding up the floor
panel110
– lamp, refer to Interior
lamps94
– opening from inside31
– opening from outside31
Cargo loading
– securing cargo119
– stowing cargo119
– vehicle118
Car jack
– jacking points219
Car key, refer to Remote
control26
Car phone
– installation location, refer to
Center armrest105
– refer to separate Owner's
ManualCar phone, refer to
Telephone172
Car radio, refer to Radio149
Car shampoo211
Car wash
– before entering57
Catalytic converter, refer to
Hot exhaust system116
CBS Condition Based
Service
207
CD, audio playback154
CD changer154
– controls146
– fast forward/reverse156
– installation location158
– random play sequence155
– selecting a track154
– switching on/off146
– tone control146
– volume146
CD player154
– controls146
– fast forward/reverse156
– random play sequence155
– selecting a track154
– switching on/off146
– tone control146
– volume146
Center armrest105
Center brake lamp
– replacing bulb217
Center console, refer to
Around the center
console14
Central locking
– from inside30
– from outside27
Central locking system27
– convenient access34
– hotel function31
Changes, technical, refer to
For your own safety5
Changing bulbs, refer to
Lamps and bulbs213
Changing gears60
Changing the language on the
Control Display79Changing the measurement
units on the Control
Display71
Changing wheels219
Chassis number, refer to
Engine compartment203
Check Control76
Child-restraint fixing system
LATCH54
Child-restraint systems53
Child seats, refer to
Transporting children
safely53
Chrome parts211
Chrome polish211
Cigarette lighter, refer to
Lighter107
Cleaning headlamps65
– washer fluid66
Cleaning your BMW, refer to
Care209
Clock
68
– 12h/24h mode75
– setting the time and date75
– setting time74
Closing
– from inside30
– from outside27
Clothes hooks106
Cockpit10
Cold start, refer to Starting the
engine56
Combined instrument, refer to
Instrument cluster12
Comfort access, refer to
Convenient access34
Comfort area, refer to Around
the center console14
Compartment for remote
control, refer to Ignition
lock55
Compass103
Computer69
– displays on Control
Display70
Computer, refer to iDrive16
Concierge service185
Condensation, refer to When
the vehicle is parked118
ba8_E9293M3_cic.book Seite 240 Dienstag, 19. August 2008 12:01 12

Reference 243
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Exterior mirrors48
– adjusting48
– automatic dimming
feature49
– automatic heating49
– folding in and out49
External audio device105
Eyes
– for tow-starting and towing
away224
– for tying down loads119
F
Failure messages, refer to
Check Control76
Failure of an electrical
consumer220
False alarm
– avoiding unintentional
alarm33
– switching off an alarm33
Fastening safety belts, refer to
Safety belts47
Fastest route for
navigation137
Fast forward
– CD changer156
– CD player156
Filter
– refer to Microfilter/activated-
charcoal filter for automatic
climate control99
First aid pouch222
Fixture for remote control,
refer to Ignition lock55
Flash when locking/
unlocking29
Flat tire
– Tire Pressure Monitor
TPM85
Flat tire, repairing217
Flat Tire Monitor FTM84
– indicating a flat tire85
– indicator/warning lamp85
– initializing the system84
– malfunction85
– snow chains84,201
– system limits84Flat tires, refer to Tire
condition199
Fluid reservoir, refer to
Washer fluid reservoir66
FM, waveband149
Folding up the floor panel110
Footbrake, refer to Braking
safely117
Footwell lamps, refer to
Interior lamps94
Forward position, engaging,
refer to Selector lever
positions58
For your own safety5
Free memory capacity, music
collection164
Front airbags88
FTM, refer to Flat Tire
Monitor84
Fuel195
– average consumption70
– gauge69
– high-quality brands195
– quality195
– specifications195
– tank contents, refer to
Capacities231
Fuel clock, refer to Fuel
gauge69
Fuel display, refer to Fuel
gauge69
Fuel filler door194
– releasing in the event of
electrical malfunction194
Fuses220
G
Garage door opener, refer to
Integrated universal remote
control101
Gasoline
– refer to Average
consumption70
Gasoline, refer to Required
fuel195
Gasoline display, refer to Fuel
gauge69Gasoline engine, checking
engine oil level203
Gear
– neutral59
Gear display, refer to Displays
in the instrument cluster60
Gearshift lever
– manual transmission57
Gearshifts
– manual transmission57
General driving notes116
Glass roof, electric37
– closing after electrical
malfunction37
– convenient operation28,30
– initializing37
– opening, closing37
– operation with convenient
access34
– pinch protection system37
– power failure37
– raising37
– remote control28
Glove compartment104
GPS navigation, refer to
Navigation system126
Grills96
Gross vehicle weight, refer to
Weights231
H
Handbrake, refer to Parking
brake57
Hands-free system14
Hazard warning flashers14
HD radio, refer to High
Definition Radio150
Head airbags88
Headlamp control,
automatic92
Headlamp flasher64
– indicator lamp11,13
Head restraints44
– rear, removing45
– sitting safely42
ba8_E9293M3_cic.book Seite 243 Dienstag, 19. August 2008 12:01 12

Everything from A - Z
248 Reverse gear59
– manual transmission58
Road map139
Roadside
Assistance185,221
Roadside parking lamps94
Roadworthiness test, refer to
Service requirements72
Roller sun blinds104
Rollover protection system,
convertible90
– resetting90
Roof load capacity231
Roof-mounted luggage
rack120
Rope, refer to Tow-starting,
towing away225
Rotary/pushbutton, refer to
iDrive16
Route137,138
– bypassing sections138
– changing137,138
– changing criteria137
– displaying streets or towns/
cities138
– map display139
– selecting137
Route instructions, refer to
Destination guidance
through voice
instructions138
Route map, refer to Map
display139
Route section, changing138
Route selection137
S
Safety-belt height
adjustment47
Safety belts47
– belt hand-over48
– damage48
– indicator/warning lamp48
– reminder48
– sitting safely42Safety systems
– airbags88
– Antilock Brake System
ABS82
– brake system82
– driving stability control
systems82
– Dynamic Stability Control
DSC82
– rollover protection system,
convertible90
– safety belts47
Satellite radio152
– enabling channel152
– selecting channel153
– storing channel153
Screen, refer to iDrive
controls16
Screw thread for tow
fitting224
SDARS, refer to Satellite
radio152
Sealant, filling218
Seat adjustment
– electric43
– mechanical43
Seat and mirror memory46
Seat belt reminder, refer to
'Fasten safety belts'
reminder48
Seat heating46
Seats42
– adjusting electrically43
– adjusting the seats43
– heating46
– memory, refer to Seat and
mirror memory46
– saving a setting, refer to Seat
and mirror memory46
– sitting safely42
Securing cargo110,112
Securing the vehicle
– from inside30
– from outside27
Selecting new scale for
navigation139
Selector lever positions58Sequential M Gearbox with
Drivelogic
– Drivelogic drive programs61
Sequential mode59
Service, refer to Roadside
Assistance221
Service car, refer to Roadside
Assistance221
Service data in the remote
control207
Service Interval Display, refer
to Condition Based Service
CBS207
Service Request189
Service requirement display,
refer to Condition Based
Service CBS207
Service requirements72
Services status190
Settings
– changing settings on the
Control Display79
– clock, 12h/24h format75
– configuring, refer to
MDrive50
– DVD157
– language79
Settings and information71
Setting times, refer to
Preselecting switch-on
times100
Shifting60
Shifting gears
– manual transmission57
Shift lever58
Shift Lights62
Shiftlock59
Shift paddles on steering
wheel60
Shift-up display, refer to Shift
Lights62
Shock absorber control, refer
to Electronic Damper
Control EDC83
Short commands for the voice
activation system232
Short route in navigation, refer
to Selecting route137
ba8_E9293M3_cic.book Seite 248 Dienstag, 19. August 2008 12:01 12
