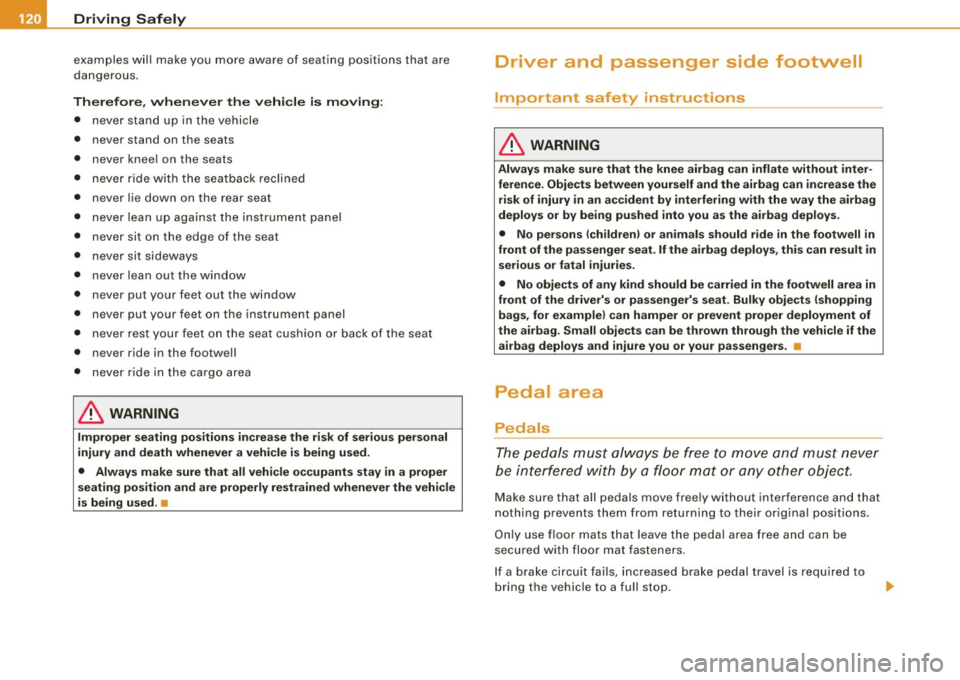

........ _o_ r_iv _i_ n""' g::;._ S_ a_f _e _ly =---------------------------------------------------
examp les w ill make you mo re aware of seating positions that ar e
d an gerous .
Therefore, whenever the vehicle is moving:
• ne ver stan d up i n the vehicle
• never stand on the seats
• never knee l on th e seats
• n ever ride with th e seatba ck re cl in ed
• never lie down on the rear seat
• nev er lea n up aga inst t he instrument pa ne l
• n ever sit on the e dge of the seat
• never sit sideways
• ne ve r le an ou t th e w indo w
• never put your feet out the window
• never put your feet on t he instrument p ane l
• n ever re st yo ur f ee t on t he seat cus hion or back of the sea t
• never ride in the footwell
• n ever ride i n the car go area
& WARNING
Improper seating positions increase the risk of serious personal
injury and death whenever a vehicle is being used.
• Always make sure that all vehi cle occupants stay in a proper
seating position and are properly restrained whenever the vehicle
is being used . •
Driver and passenger side footwell
Important safety instructions
& WARNING
Always make sure that the knee airbag can inflate without inter ­
ference . Objects between yourself and the airbag can increase the
risk of injury in an a ccident by interfering with the way the airbag
deploys or by being pushed into you as the airbag deploys .
• No persons (children) or animals should ride in the footwell
in
front of the passenger seat . If the airbag deploys , this can result in
serious or fatal injuries .
• No objects of any kind should be carried in the footwell area in
front of the driver's or passenger 's seat . Bulky objects (shopping
bags , for example) can hamper or prevent proper deployment of
the airbag. Small objects can be thrown through the vehicle if the
airbag deploys and injure you or your passengers. •
Pedal area
Pedals
The pedal s must a lways be fre e to move a nd mus t never
b e in terfe red with by a flo or mat or a ny othe r objec t.
Make sure that all pedals move freely w ithout interfe rence and that
n oth ing preve nts t hem fr om retu rni ng to t heir or igin a l pos itions.
On ly use floor mats that leave the pedal a rea free and can be
se cured w ith flo or mat fa stene rs.
If a bra ke circu it fai ls, i ncr eased brake pedal travel is r equ ired to
bring the veh icle to a full stop.

-Driving Safely at'f:I..,____--=-------=----------------
Loose items in the luggage compartment can shift
suddenly, changing vehicle handling characteristics. Loose
items can also increase the risk of serious personal injury in
a sudden vehicle maneuver or in a collision.
- Distribute the load evenly in the luggage compartment.
- Always place and properly secure heavy items in the
luggage compartment as far forward as possible
~ page 121, fig. 99.
Secure luggage using the tie-downs provided~
page 77.
- Make sure that the rear seat back is securely latched in
place.
& WARNING
Improperly stored luggage or other items can fly through the
vehicle causing serious personal injury in the event of hard braking or an accident. To help reduce the risk of serious personal injury:
• Always put objects , for example, luggage or other heavy items
in the luggage compartment.
• Always secure objects in the luggage compartment using the
tie-down eyelets and suitable straps.
& WARNING
Heavy loads will influence the way your vehicle handles. To help
reduce the risk of a loss of control leading to serious personal
injury:
• Always keep in mind when transporting heavy objects, that a
change in the center of gravity can also cause changes in vehicle
handling:
-Always distribute the load as evenly as possible.
& WARNING (continued)
-Place heavy objects as far forward in the luggage compart­
ment as possible.
• Never exceed the Gross Axle Weight Rating or the Gross
Vehicle Weight Rating specified on the safety compliance sticker
on the left door jamb. Exceeding permissible weight standards
can cause the vehicle to slide and handle differently.
• Please observe information on safe driving~
page 114.
& WARNING
To help prevent poisonous exhaust gas from being drawn into the
vehicle, always keep the rear lid closed while driving.
• Never transport objects larger than those fitting completely
into the luggage area because the rear lid cannot be fully closed.
• If you absolutely must drive with the rear lid open, observe the
following notes to reduce the risk of poisoning:
-Close all windows,
- Open all air outlets in the instrument panel,
- Switch off the air recirculation,
- Set the fresh air fan to the highest speed.
& WARNING
Always make sure that the doors, all windows and the rear lid are
securely closed and locked to reduce the risk of injury when the
vehicle is not being used.
• After closing the rear lid, always make sure that it is properly
closed and locked .
• Never leave your vehicle unattended especially with the rear lid
left open. A child could crawl into the vehicle through the luggage
compartment and close the rear lid becoming trapped and unable
~

Driving Safely -
----------------
& WARNIN G (continu ed )
to get out . Being tr apped in a vehi cle can lead to serious personal
injury.
• Never let children play in or around the vehicle .
• Never let pa ssengers ride in the lugg age compartment . Vehicle
occupants must always be properly restrained in one of the
vehicle 's seating po sitions.
[ i ] Tips
• Air circu lation helps to reduce window fogging. Stale air escapes
to the outside through vents in the trim pane l, on the left side of the
luggage compa rtme nt. Be sure t o keep t hese s lo ts free a nd ope n.
• T he tire pressure must correspond to the load -see the tire pres ­
sure sticker on driver's side B-pillar. •
Tie-downs
The lu ggag e com part men t is eq uipp ed wit h four tie­
d o wns to se cu re l uggag e and other it e ms .
Use the tie -downs to secure your car go properly=> page 121,
"Lo ad in g the luggage com partme nt".
I n a col lision, the laws o f physics mea n tha t even smaller items tha t
are loose in the vehic le will become heavy missiles that can cause
se rious i nju ry . It em s i n t he vehicl e possess e nergy w hich vary with
vehic le speed and the weight of the item. Vehic le speed is the most
s igni ficant factor .
For example, in a frontal co llision at a speed of 30 mph (48 km/h),
the forces acting on a 10 -lb ( 4.5 kg) object are about 20 times the
normal weight of the item. This means that the weight of t he item
would suddenly be about 2 00 lbs. (90 kg). You can imagine the inju ­
ries that a 200 lbs. (90 kg) item fl ying free ly t hrou gh th e passe nge r
compartment could cause in a co llision like this .
Controls and equip­
ment Safety first Vehicle operation
& WARNING
Weak
, damaged or imp roper straps used to secure items to tie ­
downs can fail during hard braking or in a collision and cause
serious personal injury .
• Always use suitable mounting straps and properly secure
items to the tie -downs in the luggage compartment to help
prevent items from shifting or flying forward as dangerous
missiles .
• When the rear seat backrest is folded down , always use suit ­
able mounting straps and properly secure items to the tie -downs
in the luggage compartment to help prevent items from flying
forward as dangerous missiles into the passenger compartment .
• Never attach a child safety seat tether strap to a tie -down. •
Reporting Safety Defects
Applicable to U.S.A. If you believe that your vehicle has a defect
which could cause a crash or could cause injury or death , you should immediately inform
the National Highway Traffic Safety Adminis­
tration (NHTSA) in addition to notifying Audi of
America , Inc.
If NHTSA receives similar complaints , it may
open an investigation, and if it finds that a
safety defects exists in a group of vehicles , it
may order a recall and remedy campaign.
However, NHTSA cannot become involved in ..,
Vehicle care Do-it-yourself service Technical data

Safety belts -----------------=------
Safety belts
General notes
Always wear safety belts!
Wearing safety belts correctly saves lives!
This chapter explains why safety belts are necessary, how they work and how to adjust and wear them correctly.
- Read all the information that follows and heed all of the
instructions and WARNINGS.
& WARNING
Not wearing safety belts or wearing them improperly increases
the risk of serious personal injury and death.
• Safety belts are the single most effective means available to
reduce the risk of serious injury and death in automobile acci­
dents. For your protection and that of your passengers, always
correctly wear safety belts when the vehicle is moving.
• Pregnant women, injured, or physically impaired persons must
also use safety belts . Like all vehicle occupants, they are more
likely to be seriously injured if they do not wear safety belts. The
best way to protect a fetus is to protect the mother -throughout
the entire pregnancy. •
Number of seats
Your Audi TI Coupe has two seating positions in the front and two
height-limited seating positions in the rear. Each seating position
has a safety belt. The rear seat area in your Audi TT Coupe does not
have enough room for passengers of all sizes. For reasons of safety,
Controls and equip­ ment Safety first
Vehicle operation
no person taller than 4'11" (1.5 meters) should ever ride in the rear
seat area.
& WARNING
Not wearing safety belts or wearing them improperly increases
the risk of serious personal injury and death.
• Never strap more than one person, including small children,
into any belt. It is especially dangerous to place a safety belt over
a child sitting on your lap.
• Never let more people ride in the vehicle than there are safety
belts available.
• Be sure everyone riding in the vehicle is properly restrained
with a separate safety belt or child restraint.
• Persons taller than 4'11" (1.5 m) as well as children in booster
seats who are too close to the rear window and roof can suffer
severe head and neck injuries when the rear lid is closed or in a
crash.
• The minimum clearance between the passenger's heads and
the rear window must never - under any circumstances -be less
that 1 inch (2.5 cm.I when the passengers sit fully upright.
• Always make sure that rear seat passengers cannot be struck
when the rear lid is closed. •
Vehicle care Do-it-yourself service Technical data

- Make sure that your safety be lt s ar e alw ay s re ady fo r use
a nd are not damaged.
& WARNING
Not wearing safety belts or wearing them improperly increases
the risk of ser ious personal injury and death . Safety belts can work
only when used correctly.
• Always fasten your safety belts correctly before driving off and
make sure all passengers are properly restrained .
• For maximum protection , safety belts must always be posi­
tioned correctly on the body.
• Never strap more than one person , including small children ,
into any single safety belt .
• Never place a safety belt over a child sitting on your lap.
• Always keep feet in the footwell in front of the seat while the
vehicle is being driven.
• Never let any person ride with feet on the instrument panel or
sticking out the window or on the seat.
• Never remove a safety belt while the vehicle is moving. Doing
so will increase your risk of being injured or killed.
• Never wear belts twisted.
• Never wear belts over rigid or breakable objects in or on your
clothing, such as eye glasses, pens, keys , etc ., as these may cause
injury .
• Never wear the shoulder part of the belt under your arm or
otherwise out of position .
• Several layers of heavy clothing may interfere with correct posi­
tioning of belts and redu ce their effectiveness .
• Always keep belt buckles free of anything that may prevent the
bu ckle from latching securely .
• Never use comfort clips or devices that create slack in the
shoulder belt . However , special clips may be required for the
correct use of some child restraint systems.
Safety first
Safety belts
& WARNING !continued)
• Never allow safety belts to become damaged by being caught
in door or seat hardware.
• Torn or frayed safety belts can tear and damaged belt hardware
can break in an accident . Inspect belts regularly . If webbing , bind ­
ings, buckles, or retractors are damaged, have belts replaced by an
authori zed Audi dealer or qualified workshop.
• Safety belts that have been worn and loaded in an accident
must be replaced with the correct replacement safety belt by an
authorized Audi dealer or qualified workshop . Replacement may
be necessary even if damage cannot be clearly seen. Anchorages
that were loaded must also be inspected .
• Never remove , modify , disassemble, or try to repair the safety
belts yourself .
• Always keep the belts clean. Dirty belts may not work properly
and can impair the function of the inertia reel
=> page 209 , "Safety
belts" .•
Safety belts
Fastening safety belts
S eat firs t - everybo dy b uckle u p!
Vehicle care I I
Fig . 106 Belt buckle
and tongue on the
driver 's seat
Iii>-
irechnical data

___ A_ ir_ b_ a-g _ s_y _s_ t_ e_ m _________________________________________________ _
& WARN ING (continued )
airbag during br aking or in a sudden m aneuver . Obje cts near the
airbags can become proje ctiles and cause injury , parti cularly when
the seat is re clined .
• Never tilt the front p assenger seat ba ckrest forward when the
vehi cle is moving . An inflating airbag will force the backrest back­
ward and can injure rear seat occupant s.
& WARNING
The fine dust created when airbags deploy can cause breathing
problems for people with a h istory of asthma or other breathing
conditions.
• To reduce the risk of breathing problems , those with asthma or
other respiratory conditions should get fresh air right away by
getting out of the veh icle or opening windows or doors .
• If you are in a collision in which airbags deploy , wash your
hands and face with mild soap and water before eating .
• Be c areful not to get the dust into your eyes , or into any cuts o r
scratches .
• If the residue should get into your eyes , flush them with
water .•
Monitoring the Advanced Airbag
System
Airbag monitoring indicator light :~
Two separ ate indi ca tor s m onitor the functi on of the
A dvance d Airbag Sys tem: th e air bag monitor ing i ndic ator
lig ht and t he
PASSENGER AIR BAG OFF light.
The Advanced Airbag Sys tem ( includ ing t he e lectronic co ntrol unit,
sensor circuits and system wiring ) is monito red continuous ly to ma
ke sure tha t it is functioning properly whenever the ignition is on .
Eac h tim e yo u turn o n the igniti on, the ai rbag m onito ring indica to r
li ght ~ wi ll come on for a few seconds (self diagnost ics).
The system must be inspected when the indicator light
m :
• does not co me o n w hen the igni tion is switche d on,
• does not go out a few seconds after you have switched on the
ig niti on, or
• comes on whi le driving.
If an a irbag sys tem malfu nction i s dete cted, the in dica tor lig ht will
first start f lashing to catch the driver 's attention and then stay on
c o nti nuou sly to serve as a c ons tan t re mind er to have the sys tem
inspected immediately.
I f a malfunction occu rs that turns the front airbag on the passenger
side o ff, the PASSENGER AIR BAG OF F lig ht w ill come on and stay on
whenever the ignition is on.
& WARNING
An airbag system that is not functioning properly cannot provide
supplemental protection in a frontal crash.
• If the airbag indicator light comes on , it means that there may
be something wrong with the Ad vanced Airbag System. It is
possible that the airbag will inflate when it is not supposed to , or
will not inflate when it should .
• Have the airbag system inspected immediately by your Audi
dealer .•

-Airbag system ----=---'---------------------------------------------
& WARNING (continued)
- Always sit in an upright position and never lean against the
area where the supplemental side airbag is located.
- Never let a child or anyone else rest their head against the
side trim panel in the area where the supplemental side airbag
inflates .
- Always make sure that safety belts are worn correctly,
- Do not let anyone sitting in the front seat put their hand or any other parts of their body out of the window.
• Always make sure that the side airbag can inflate without inter ­
ference.
- Never install seat covers or replacement upholstery over the front seat backs that have not been specifically approved by
Audi.
- Never use additional seat cushions that cover the areas
where the side airbags deploy .
- Damage to the original seat covers or to the seam in the area
of the side airbag module must always be repaired immedi­
ately by an authorized Audi dealer.
• Objects between you and the airbag can increase the risk of
injury in an accident by interfering with the way the airbag unfolds
or by being pushed into you as the airbag inflates .
- Never place or attach accessories or other objects (such as
cup holders , telephone brackets, or even large, bulky objects)
on the doors , over or near the area marked "AIRBAG" on the
seat backrests .
- Such objects and accessories can become dangerous projec ­
tiles and cause injury when the supplemental side airbag
deploys.
- Never carry any objects or pets in the deployment space
between them and the airbags or allow children or other
passengers to travel in this position.
& WARNING (continued)
• Always use the built-in coat hooks only for lightweight
clothing. Never leave any heavy or sharp -edged objects in the
pockets that may interfere with side airbag deployment and can
cause personal injury in an accident .
• Always prevent the side airbags from being damaged by heavy
objects knocking against or hitting the sides of the seatbacks.
• The airbag system can only be triggered once.
If the airbag has
been triggered, the system must be replaced by an authorized
Audi dealership .
• Damage (cracks , deep scratches etc.I to the original seat covers
or to the seam in the area of the side airbag module must always
be repaired immediately by an authorized Audi dealer .
• If children are seated improperly, their risk of injury increases
in the case of an accident~
page 157, "Child Safety ".
• Never attempt to modify any components of the airbag system
in any way .
• In a side collision , side airbags will not function properly if
sensors cannot correctly measure increasing air pressure inside
the doors when air escapes through larger , unclosed openings in
the door panel.
- Never drive with interior door trim panels removed.
-Never drive when parts have been removed from the inside
door panel and the openings they leave have not been properly
closed .
- Never drive when loudspeakers in the doors have been
removed unless the speaker holes have been properly closed.
- Always make certain that openings are covered or filled if
additional speakers or other equipment is installed in the
inside door panels .
- Always have work on the doors done by an authorized Audi
dealer or qualified workshop . •

___ C_h_ i_ ld _ S_ a_ f_ e_ t_y ____________________________________________ _
& WARNING
Not using a booster seat, using the booster seat improperly , in cor ­
rectly installing a booster seat or using the vehicle safety belt
improperly in creases the risk of serious personal injury and death
in a collision or other emergency situation. To help reduce the risk
of serious personal injury and /or death:
• Always make sure to position the shoulder portion of the three ­
po int belt over the m iddle of ch ild's shoulder .
• Never let the shoulder portion of the belt rest against or across
the neck , face , chin, or throat of the child .
• Always make sure the lap belt portion of the three-point belt is
worn snug and passes as low as possible across the child 's pelvis.
Never let the belt pass over the soft abdomen.
• Failure to properly route safety belts over a child's body will
cause severe injuries in an accident or other emergency situation
=>
page 125 .
• Children on the front seat of any car, even with Advanced
Airbags , can be seriously injured or even killed when an airbag
inflates . A child in a rearward -facing child safety seat installed on
the front passenger seat will be seriously injured and can be killed
if the front airbag inflates.
• Never let a ch ild stand or kneel on any seat , for example the
front seat.
• Never let a child ride in the cargo area of your vehicle.
• Always remember that a child leaning forward , sitting s ide ­
ways or out of position in any way during an accident can be
struck by a deploying airbag . This will result in serious personal
injury or death .
• If you must install a rearward facing child safety seat on the
front passenger seat because of exceptional circumstances the
PASSENGER AIR BAG OFF light must come on and stay on, when ­
ever the ignition is switched on .
& WARNING (continued)
• If the PASSENGER AIR BAG OFF light does not come on and stay
on, perform the checks described=>
page 146, "Monitoring the
Advanced Airbag System ".
• Take the child restraint off the front passenger seat and in stall
it properly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on whenever the ignition is switched
on .
• Always read and heed all WARNINGS whenever using a child
restrained in a vehicle is being used =>
page 125, "Safety belts",
=>
page 135, " Airbag system " and => page 157, "Important things
to know" .•
Booster seats on the rear seat
Ch ildr en who are a bo ut 7 years and older, wh o weigh mor e tha n 55
l b ( 25 kg ) and ar e not taller than 4'1 1" (1.5 m) are best protected
when pro per ly restrained on the rea r seat.
D ue t o limite d re ar s eat he ad cleara nce chil dren 4'3" (1.3 m) a nd
tal ler must not use booster seats on the rear seat of your Audi TT
Co upe . T he rear sea t of yo ur A udi TT C oupe has been spec ially
designed to permit c hildr en who are b etween 4'3" (1. 3 m) and 4'11"
( 1. 5 m ) ta ll (a bout 7 to 1 2 years old) to u se the a vai lab le thr ee -point
l ap and shoulder safety belts.
& WARNING
• The rear seat area is too small to safely transport passengers
taller than 4'11" (1.5 ml.
• Persons taller than 4'11 " (1 .5 m) as well as children in booster
seats who are too close to the rear window and roof can suffer
severe head and neck injuries when the rear lid is closed or in a
crash .
