__________________________________________________ A_ i_ r _b _a...; g::- s_ y=--- s_t _e _m ___ __
& WARNING (continued )
airbag dur ing braking or in a sudden maneuver . Objects ne ar the
airbags can become proje ctiles and cau se injury , particularly when
the seat is reclined .
• Never tilt the front passenger seat backrest forward when the
vehicle is moving . An inflating airbag will force the backrest back­
ward and can injure rear seat occupants.
_& WARNING
The fine dust created when airbags deploy can cause breathing problems for people with a history of asthma or other breathing
conditions.
• To reduce the risk of breathing problems, those with asthma or
other respiratory conditions should get fresh air right away by
getting out of the vehicle or opening windows or doors.
• If you are in a collis ion in which airbags deploy, wash your
hands and face with mild soap and water before eating.
• Be careful not to get the dust into your eyes , or into any cuts or
scratches .
• If the residue should get into your eyes, flush them w ith
water. •
Monitoring the Advanced Airbag
System
Airbag monitoring indicator light :~
Two sep arate in dica tors m onitor the fu ncti on of th e
Adv anced A irba g Sys tem: the airbag moni tor ing in dica to r
l ight and t he
PASSENGER AIR BAG OFF light.
The Advanc ed A ir b ag S yst em (includ ing the e lec tronic co ntro l unit,
sensor c ircuits and system wiring) is monitored continuously to
Controls and equip­ ment Safety first Vehicle operation make sure that it is functioning properly whenever the ignition is on
.
Eac h tim e you tu rn on t he ignit io n, th e airbag monitoring ind ica tor
light
fl wi ll come on for a few seconds (self diagnostics) .
The system must be inspected when the indicator l ight ~:
• do es not com e on when the ig nit ion is sw itch ed on,
• does not go out a few seconds after you have switched on the
i gni tion , or
• comes on while driving.
I f an a irbag s ystem malfu ncti on is detec ted , the indi cator light will
first start flash ing to catch the driver's attention and then sta y on
co nti nuou sly to serve as a constant r eminder to h ave the sys tem
inspected immediately.
If a malf unctio n occurs that t urns the front airbag on the passenger
s id e off , the PASS ENGER AIR BAG OFF light w ill come on a nd s ta y on
whenever the ig nition is on.
_& WARNING
An airbag system that is not functioning properly cannot provide
s upplemental protect ion in a frontal crash .
• If the airbag indicator light comes on , it means that there may
be something wrong with the Advanced Airbag System . It is
possible that the airbag will inflate when it is not supposed to, or
will not inflate when it should .
• Have the airbag system inspected immediately by your Audi
dealer. •
Vehicle care Do-it-yourself service Technical data

__________________________________________________ A_ i_ r _b _a...; g::- s_ y=--- s_t _e _m ___ ffllll
the weight -sensing mat to measure more weight than is actually on
the seat .
If the PA SSENGER AIR BAG OFF light still d oes not come on and does
not stay on continuously (when the ignition is switched on),
• take the child restraint off the front passenger seat and insta ll it
properly at one of the rear seat positions. Have the airbag system
inspec ted by your Audi dea ler immediately .
• move the child to a rear seat position and make sure that the
child is proper ly restrained i n a child restraint that is appropriate for
its size and age.
The
PASSENGER AIR BAG OFF light shou ld NOT come on when the
ignition is on and an adult is sitting in a proper seating position on
the front passenger seat . If the
PASSENGER AIR BAG OF F light
comes on and stays on or flashes for about 5 seconds whi le driving,
under these circumstances, make sure that:
• the adult on the front passenger seat is properly seated on the
center of the seat cushion with his or her back up against the back­
rest and the back rest is not reclined => page 148, "Pro per occupant
seating positions",
• the adult is not taking weight off the sea t by ho lding o n to the
passenger assist handle above the front passenger door or
suppo rting thei r weight on the armrest,
• the safety belt is being proper ly worn and that there is not a lot
of slack in the safety bel t webbing,
• accessory seat covers or cushions or other things that may cause
an incorrect reading or impression on the weight -sensing mat
under the upho lstery of the seat have been removed from the front
passenger seat,
• a safety belt extender has not been left in the safety be lt latch for
t he front passenger seat .
In addition to the
PASSENGER AIR BAG OFF l ight in the center of the
instr ument panel, the message
PASSENGER AIR BAG OFF or
PAS SENGER AIR BAG ON wi ll briefly appear in the instrument c luster
Controls and equip­ ment Safety first
Vehicle operation display. This is to inform the driver of the current front passenger
a
ir b ag status .•
Important safety instructions on monitoring
the Advanced Airbag System
& WARNING
An airbag system that is not fun ctioning properly cannot provide
supplemental protection in a frontal cra sh .
• If the airbag ind icator li ght come s on , it means that there may
be something wrong with the Advan ced Airbag System . It is
possible that the airbag will inflate when it is not suppo sed to , or
will not inflate when it should .
• Ha ve the airb ag system inspected immedi ately by your Audi
dealer.
& WARNING
If the front airbag inflate s, a child witho ut a child restraint , in a
rearward-facing child safety seat or i n a forward -fa cing child
restr aint that has not been properly installed will be seriously
injured and can be killed .
• Even though your vehicle is equipped with an Advanced Airbag
Sy stem , make certain that all children , e speci ally 12 year s and
younger , always ride on the back seat p roperly re strained for their
age and size .
• Always install forward or rear -facing child safety seat s on the
re ar s eat - even with an Ad van ced Airb ag Sy stem .
• If you mu st install a rearward -fa cing child safety seat on the
front pa ssenger seat be cau se of ex ceptional cir cum stance s and
the PASSENGER AIR BAG OFF light does not appear and stay on ,
immediately in stall the rear -facing child safety seat in a rear ...
Vehicle care Do-it-yourself service Technical data

__________________________________________________ A_ i_ r _b _a...; g::- s_ y=--- s_t _e _m ___ lffllll
& WARNING (continued )
• Always make sure that the side airbag can inflate without inter­
ference :
- Never install seat covers or replacement upholstery over the
front seatbacks that have not been specifically approved by
Audi.
- Never use additional seat cushions that cover the areas
where the side airbags inflate.
- Damage to the original seat covers or to the seam in the area
of the side airbag module must always be repaired immedi ­
ately by an authorized Audi dealer.
• The airbag system can be activated only once. After an airbag
has inflated, it must be replaced by an authorized Audi dealer or
qualified technician who has the technical information , training
and special equipment nece ssary.
• The airbag system can be deployed only once . After an airbag
has been deployed , it must be replaced with new replacement
part s designed and approved especially for your Audi model
version. Replacement of complete a irbag systems or airbag
components must be performed by qualified workshops only .
Make sure that any airbag service action is entered in your Audi
Warranty
& Maintenance booklet under AIRBAG REPLACEMENT
RECORD .
• In accidents when an airbag is deployed , the vehicle battery
s eparates the alternator and the starter from the vehicle electrical
system for safety reasons with a pyrotechnic circuit interrupter.
-Work on the pyrotechnic circuit interrupter must only be
performed by a qualified dealer -risk of an accident !
- If the vehi cle or the circuit interrupter is scrapped , all appli ­
cable safety precautions must be followed . •
Controls and equip­ ment Safety first
Vehicle operation
Other things that can affect Advanced Airbag
performance
Changing the vehicle 's suspension system can cha nge the way that
the Advanc ed Ai rbag Syste m perfor ms in a cras h. Fo r ex amp le,
u sing tire -rim combinations not a pproved by Audi, lowering the
ve hicle , c hang ing the st iffness o f the suspe nsion, inclu din g the
spr ings, s uspension struts, shock absorbers etc. can change the
fo rc es that ar e meas ured by th e a irbag sens ors and sent to the e lec ­
tronic control un it. Some suspens ion changes can, for example,
in crea se th e fo rc e leve ls meas ured by th e se nsors and ma ke t he
airbag system dep loy in crash es in wh ich it wou ld not dep loy if the
c h anges had no t been m ade . Ot her k in ds of cha nge s m ay red uce
the fo rce levels measured by the sensors and p revent t he airba g
fr om depl oyin g whe n it should.
T he sensors in the safe ty b elt b uckle fo r the driver a nd front
passenger seat te ll the electronic control module if the safety belt is
l a tc h e d or not. If the s afe ty be lt is bei ng use d, t he fr ont ai rbag w ill
dep loy at a s lightly higher rate of vehic le dece leration than if the
sa fe ty belt is not be ing used . T here for e, in a partic ular co lli sion , it is
possible t hat an airbag will not dep loy at a seating position w here
the safe ty belt is b ein g us ed b ut will infl ate a t th e po siti on w here the
safety belt is not being used. It is important that nothi ng interfere
with the safety belt b uck les so that the sensors can send the correct
i nformat ion about safety b elt use to the electronic control un it.
& WARNING
Changing the vehicle's suspension including use of unapproved
tire -rim combinations can change Advanced Airbag performance
and increase the risk of serious personal injury in a crash.
• Never install suspension components that do not have the
same performance characteristics as the components originally
installed on your vehicle .
• Never use tire-r im combinations that have not been approved
by Audi. .,.
Vehicle care Do-it-yourself service Technical data

Side airbags
Description of side airbags
The airbag system can provide supplemental protecti on
to pro perly restrained fr ont seat occupants.
Fi g. 177 Si de air bag
l oca tio n in th e driv er's
sea t
The s ide airbags are located in the sides of the front seat backrests
=> fig. 177 facing the doors. They are identified by the word
" AIRBAG" .
The side airba g sy stem b asica lly con sis ts of :
• the electronic contro l module and external side impact sensors
• the two s ide airbags located in th e sides of the front backrests
• the airbag warning light in the instrument cluster .
Th e airbag system is monitored elec tronically to make certain that
it is function ing properly at all times . Each time you turn on the igni ­
tion , the airbag system indicator light will come on for a few
seconds (self diagnostics).
The side airbag system supplements the safety belts and can help to reduce the risk of injury to the driver 's and front passenger 's
uppe r torso on the side of the vehicle that is struck in a side co lli­
sion . The airbag d eploys only in side impacts and on ly when the
vehicle acceleration registered by the contro l unit is high enough. If
this rate is below the reference value programmed into the contro l
Safety first
Airbag syst em
unit, the side airbags will not be triggered, even though the car may
be badly damaged as a result of the collision . It is not possible to
def ine an airbag trigger ing range that will cover every possible
ang le of impact, since the circumstances will vary considerably
between one collision and another . Important factors include , for
examp le, the nature (hard or soft) of the impacting object, the angle
of impact, vehicle speed, etc.=>
page 188, "Impo rtant safety
instructions on the side airbag system" .
Aside from their norma l safety function, safe ty bel ts work to help
keep the driver or front passenger in position in the event of a side
coll ision so that the side airbags can provide protec tion .
The airbag system is
not a subst itute for your safety belt . Rather , it
is part of the overall occupant restraint system in your vehicle.
Always remember that the side airbag system can on ly he lp to
protect you if you are wearing your safety belt and wearing it prop ­
erly. This is another reason why you should a lways wear your safety
belts, not just because th e law requires you to do so~
page 159 ,
"Genera l notes".
It is important to remember that while the supp lementa l side airbag
system is designed to reduce the likelihood of serious injuries, othe r
injuries , for example, swelling , bruising, and minor abras ions can
also be associated with deployed side airbags . Remember too, side
airbags will deploy only once and on ly in certain kinds of accidents
- your safety belts are a lways there to off er protection.
Vehic le damage , repair costs or even the lack of veh icle da mage are
not necessarily an indica tion of over -sensitive or failed airbag acti­
va tion. In some collision s, both front and side airbags may infla te .
Remember too, that airbags will deploy on ly once and only in
certain kinds of collisions -your safety belts are always there to
offer protection in those acc idents in which airbags are not
suppos ed to deploy or when they hav e already deployed .
The si de airbag system will not d eploy :
• when the ig nition is turned off
• in side collisions when the acceleration measured by the sensor
is too l ow ..
~ehicle care Technical data

__________________________________________________ A_ i_ r _b _a...; g::- s_ y=--- s_t _e _m ___ lllll
& WARNING (continued)
-Always sit in an upright position and never lean against the
area where the supplemental side airbag is located.
- Never let a child or anyone else rest their head against the
side trim panel in the area where the supplemental side airbag
inflates.
- Always make sure that safety belts are worn correctly,
- Do not let anyone sitting in the front seat put their hand or
any other parts of their body out of the window .
• Always make sure that the side airbag can inflate without inter ­
ference .
- Never install seat covers or replacement upholstery over the
front seat backs that have not been specifically approved by
Audi.
- Never use additional seat cushions that cover the areas
where the side airbags deploy.
- Damage to the original seat covers or to the seam in the area
of the side airbag module must always be repaired immedi­
ately by an authorized Audi dealer .
• Objects between you and the airbag can increase the risk of
injury in an accident by interfering with the way the airbag unfolds
or by being pushed into you as the airbag inflates .
- Never place or attach accessories or other objects (such as
cup holders, telephone brackets, or even large, bulky objects)
on the doors, over or near the area marked "AIRBAG" on the
seat backrests .
- Such objects and accessories can become dangerous projec­
tiles and cause injury when the supplemental side airbag
deploys.
- Never carry any objects or pets in the deployment space
between them and the airbags or allow children or other
passengers to travel in this position .
Controls and equip­ ment Safety first
Vehicle operation
& WARNING (continued)
• Always prevent the side airbags from being damaged by heavy
objects knocking against or hitting the sides of the seatbacks.
• The airbag system can only be triggered once. If the airbag has
been triggered, the system must be replaced by an authorized
Audi dealership.
• Damage (cracks, deep scratches etc.I to the original seat covers
or to the seam in the area of the side airbag module must always
be repaired immediately by an authorized Audi dealer .
• If children are seated improperly, their risk of injury increases
in the case of an accident~
page 190, "Child Safety".
• Never attempt to modify any components of the airbag system
in any way .
• In a side collision, side airbags will not function properly if
sensors cannot correctly measure increasing air pressure inside
the doors when air escapes through larger, unclosed openings in
the door panel.
- Never drive with interior door trim panels removed.
-Never drive when parts have been removed from the inside
door panel and the openings they leave have not been properly
closed.
- Never drive when loudspeakers in the doors have been
removed unless the speaker holes have been properly closed.
- Always make certain that openings are covered or filled if
additional speakers or other equipment is installed in the
inside door panels .
- Always have work on the doors done by an authorized Audi
dealer or qualified workshop . •
Vehicle care Do-it-yourself service Technical data

--------------------------------------------~C~ h~ il~d ~S~ a~f e~ t~ YL _III
& WA RNIN G (conti nu ed )

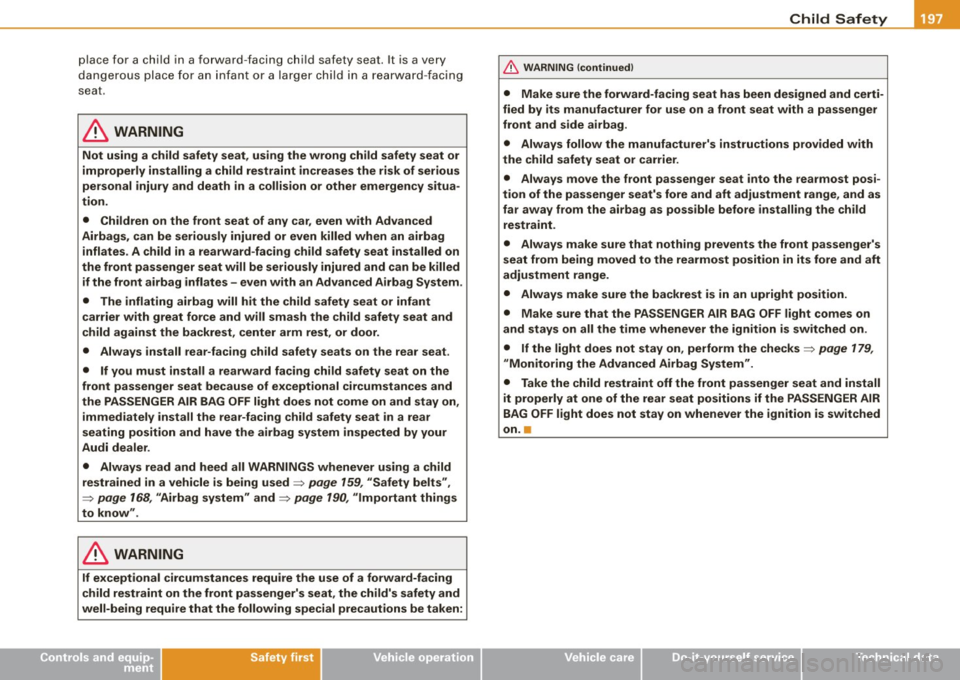

• Alway s install rear-facing child safety se ats on the rear seat.
• If you mu st in stall a rearw ard f acing chi ld safety seat on the
front pa ssenger seat in exc eptional cir cum stance s and the
PA SSENGER AIR BAG OFF light do es not come on and stay on,
im medi ate ly install the re ar-fa cing child safety s eat in a rear
s e ating po sit ion and h ave the airb ag sys tem inspe cted im medi ­
ately by your Audi de aler .
& WARNING
If, in exceptional circum stance s, you must in stall a forward -facing
c hild re st ra int on the fr ont p ass eng er' s s eat :
• Alway s make sure the forward -facing seat ha s been de signed
and cert ified by it s manufa cturer f or use on a front se at with a
p ass enger front and side airbag .
• Always follow the m anufacturer's instruct ions provided with
the child safety seat or carrier.
• Alway s m ove the pa ss e nger sea t into its rearm ost p osit ion in
the seat' s fo re and aft adju stment r ange , as far away from the
a irb ag as possib le before installing the child r estr aint . The b ack­
rest mu st be adju sted to an upr ight po sition.
• Alw ays ma ke sure th at the PAS SENGER AIR BAG OFF light
c ome s on and stay s on all the time whenever the ignition i s
s witched on . •
Advanced front airbag system and children
Your vehicle is equipped with an "Advanced Airbag System" in
compliance with United States Federal Motor Vehicle Sa fety Stan ­
dard (FMVSS) 208 as applicab le at the time your vehicle was manu ­
factured .
Controls and equip­
ment Safety first Vehicle operation
The Advanced Airbag system in your vehicle has been certified to
meet the " low -risk" requirements for 3 and 6 yea r- old child ren on
the passenger side and small adu lts on the driver side. The low risk
deployment c rite ria are intended to reduce the risk of injury th rough
interaction with the airbag that can occur, for example, by being too
close to the steering whee l and instrument panel when the airbag
in flates . In add ition, the system has been cert ified to comply with
the "suppression" requirements of the Safety Standard, to turn off
the front airbag for infants up to 12 months who are restrained on
the front passenger seat in child restraints that are listed in the
Standard.
Even though your vehic le is equipped with an Advanced Airbag
system, all ch ildren, especially those 12 years and younger, should
a lways ride in the back seat proper ly restrained for the ir age and
s ize . The a irbag on the passenger side makes the front seat a poten­
tially dangerous p lace for a chi ld to r ide. The front seat is not the
safest place for a chi ld in a forward -facing child safety seat. It can be
a very dangerous place for an infant or a larger chi ld in a rearward ­
facing seat. •
Advanced Airbags and the weight-sensing
mat in the front seat
The Advanced Airbag System in your vehicle detects the p resence
of an infant or chi ld in a chi ld restraint on the front passenger seat
using the weight -sensing mat in the seat cushion and the sensor
below the safety belt latch on the front passenger seat that
measures the tension on the safety belt .
The weight -sensing mat measures t otal weight of the ch ild and the
child safety seat and a chi ld blanket on the front passenger seat. The
weight on the front passenge r seat is related to the design of the
child restraint and its "footprint", the size and shape of the bottom
of the child restraint as it sits on the seat. The weight of a child
restraint and its "footprint" vary for different kinds of child .,
Vehicle care Do-it-yourself service Technical data

_______________________________________________ C_h _i_ld _ S_ a_ f_ e_ t...:; y ______ lllll
C . Forward-facing convertible child restraint systems,
manufactured on or after September 1, 2004:
• Britax Roundabout 161
• Britax Expressway
• Century Encore 4612
• Century STE 1000 4416
• Cosco Olympian 02803
• Cosco Touriva 02519
• Evenflo Horizon V 425
• Evenflo Medallion 254
• Safety First Comfort Ride 22-400
& WARNING
To reduce the risk of serious injury, make sure that the PASSENGER
AIR BAG OFF light comes on and stays on whenever a child restraint is installed on the front passenger seat and the ignition
is switched on.
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on.
• Have the airbag system inspected by your authorized Audi
dealer immediately .
[ i] Tips
The child seats listed in categories A to C have been tested by Audi
only for the Advanced Airbag function. •
Controls and equip­
ment Safety first Vehicle operation
Important safety instructions for using child
safety seats
Correct use of child safety seats substantially reduces the
risk of injury in an accident!
As the driver, you are responsible for the safety of every
­
body in the vehicle, especially children:
- Always use the right child safety seat for each child and
always use it properly~
page 195.
-Always carefully follow the child safety seat manufac­
turer's instructions on how to route the safety belt prop­
erly through the child safety seat.
- When using the vehicle safety belt to install a child safety
seat , you must first activate the convertible locking
retractor on the safety belt to prevent the child safety
seat from moving~
page 200.
-Push the child safety seat down with your full weight to
get the safety belt really tight so that the seat cannot
move forward or sideways more than one inch (2.5 cm).
- If a strap or tether is being used to tie the child safety
seat to the front passenger seat, make sure that it is not
so tight that it causes the weight-sensing mat to
measure more weight than is actually on the seat.
Always remember: Even though your vehicle is equipped with an
Advanced Airbag system, all children, especially those 12 years and
younger, should always ride in the back seat properly restrained for
their age and size. •
Vehicle care Do-it-yourself service Technical data

___________________________________________ _:C :..: h..:: i:.:..:: ld :::......: S:: a::..: f:..::e :.::t Ly __ ffl!III
place for a chi ld in a forward -facin g chil d safet y seat . It is a very
dan gerous place for an infant o r a larger chi ld in a rearward -fac ing
s ea t.
& WARNING
Not using a child safety seat, using the wrong child safety seat or
improperly installing a child restraint increases the risk of serious
personal injury and death in a collision or other emergency situa­
tion.
• Children on the front seat of any car, even with Advanced
Airbags, can be seriously injured or even killed when an airbag inflates . A child in a rearward -facing child safety seat installed on
the front passenger seat will be seriously injured and can be killed if the front airbag inflates - even with an Advanced Airbag System .
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will smash the child safety seat and
child against the backrest, center arm rest, or door .
• Always install rear-facing child safety seats on the rear seat .
• If you must install a rearward facing child safety seat on the
front passenger seat because of exceptional circumstances and
the PASSENGER AIR BAG OFF light does not come on and stay on ,
immediately install the rear-facing child safety seat in a rear
seating position and have the airbag system inspected by your
Audi dealer .
• Always read and heed all WARNINGS whenever using a child
restrained in a vehicle is being used=>
page 159, "Safety belts ",
=>
page 168 , "Airbag system" and=> page 190, "Important things
to know ".
& WARNING
If exceptional circumstances require the use of a forward-facing
child restraint on the front passenger's seat , the child's safety and
well-being require that the following special precautions be taken :
Controls and equip­ ment Safety first
Vehicle operation
& WARNING (continued)
• Make sure the forward-facing seat has been designed and certi­
fied by its manufacturer for use on a front seat with a passenger
front and s ide airbag .
• Always follow the manufacturer's instructions provided with
the child safety seat or carrier.
• Always move the front passenger seat into the rearmost posi ­
tion of the passenger seat's fore and aft adjustment range, and as
far away from the airbag as possible before installing the child
restraint.
• Always make sure that nothing prevents the front passenger's
seat from being moved to the rearmost position in its fore and aft
adjustment range.
• Always make sure the backrest is in an upright position.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the time whenever the ignition is switched on.
• If the light does not stay on , perform the checks =>
page 179,
"Monitoring the Advanced Airbag System" .
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on whenever the ignition is switched
on .•
Vehicle care Do-it-yourself service Technical data
