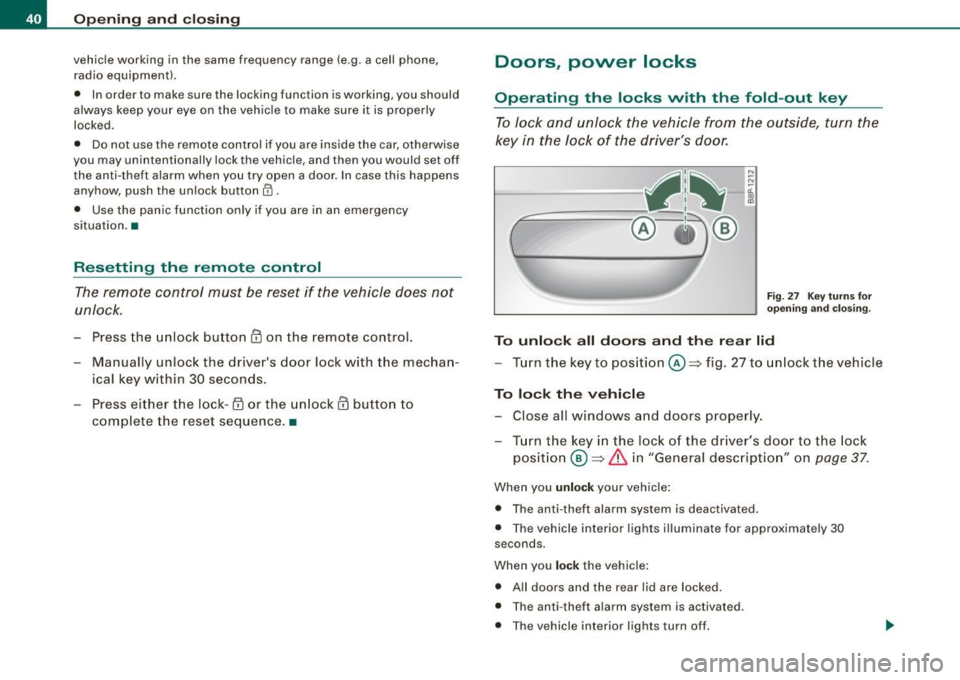

Opening and closing
vehicle working in the same frequency range (e.g. a cell phone,
radio equipment).
• In order to make sure the locking function is working, you should
a lways keep your eye on the vehicle to make sure it is properly
locked .
• Do not use the remote control if you are inside the car, otherwise
you may unintentionally lock the vehicle, and then you would set off
the anti-theft alarm when you try open a door. In case this happens
anyhow, push the unlock button@.
• Use the panic function only if you are in an emergency
situation. •
Resetting the remote control
The remote control must be reset if the vehicle does not
unlock.
- Press the unlock button III on the remote control.
- Manually unlock the driver's door lock with the mechan-
ical key within 30 seconds .
- Press either the lock-
m or the unlock III button to
complete the reset sequence .•
Doors, power locks
Operating the locks with the fold-out key
To lock and unlock the vehicle from the outside, turn the
key in the lock of the driver 's door.
N
-N
-ci. gi
Fig. 27 Key turn s for
ope ning and closing.
To unlock all doors and the rear lid
-Turn the key to position©=> fig. 27 to unlock the vehicle
To lock the vehicle
-Close all windows and doors properly.
- Turn the key in the lock of the driver's door to the lock
position @~
& in "General description" on page 37.
When you unlock your vehicle :
• The anti-theft alarm system is deactivated .
• The vehicle interior lights illuminate for approximate ly 30
seconds .
When you
lock the vehicle :
• All doors and the rear lid are locked.
• The anti -theft alarm system is activated .
• The vehicle interior lights turn off.

Opening and closing
& WARNING (continued)
entry from the outside . Locked doors can, however , delay assis­
tance to vehicle occupants and hold up rescue efforts from the
outside in an accident or other emergency .
[ i ) Tips
If the vehicle has been locked manually with the key or with the
remote control, the central locking switch is inoperative .•
Rear power locking switch
There is also a power locking switch in the rear center
console for passengers sitting in the rear.
Fig. 29 Rear power
locking switch
Press switch @=>fig. 29 to lock the vehicle => & in
"Loc king and unlocking the vehicle from inside" on
page 41.
This switch does not unlock the doors .
See also => page 41, "Locking and unlocking the vehicle from
inside". •
Rear lid c::::5
The rear lid is opened by the power locking system using
the
c::5 button.
Opening the rear lid
Fig. 30 Driver's door,
rear bottom: remote
rear lid release
Fig. 31 Handle loca­
tion in the rear lid
- Pull the switch c::::5 => fig. 30 in the driver's door.
- Unlock the rear lid by pressing the~ button on the
remote control => fig . 30.
- Lift the lid
=> fig. 31.

Closing the rear lid
- Pull it down and shut it firmly~ &-There is a recess in
the interior trim of the lid to make it easier to pull down.
& WARNING
• After closing the rear lid, always pull up on it to make sure that
it is properly closed. Otherwise it could open suddenly when the
vehicle is moving.
• To help prevent poisonous exhaust gas from being drawn into
the vehicle, always keep the rear lid closed while driving. Never
transport objects larger than those fitting completely into the
luggage area, because then the rear lid cannot be fully closed.
• Never leave your vehicle unattended especially with the rear lid
left open. A child could crawl into the car through the luggage
compartment and pull the lid shut, becoming trapped and unable
to get out. To reduce the risk of personal injury, never let children play in or around your vehicle. Always keep the rear lid, as well as
the vehicle doors, closed when not in use.
[ i] Tips
• If the rear lid is open or not properly locked when the ignition is
turned on, the door and rear lid warning appears in the instrument
cluster display.
• If the rear lid on a locked vehicle is unlocked with the middle
button
c:::5 on the remote key, the rear lid is automatically locked
again immediately after closing. This is indicated by the turn signals
blinking. •
Contro ls and eq uip­
ment
Opening and closing
Emergency release for rear lid
If the rear lid cannot be opened, an emergency release is
provided.
Fig . 32 Rear and trunk
section: Access to
emergency release
Fig . 33 Rear lid interior
section: Emergency
release
The emergency release is located on the inside of the rear
lid . To release the rear lid, proceed as follows:
Fold down the right rear seat back~ fig. 32.
Take your ignition key and move through the opening
until your head and shoulders are in the trunk .
Now insert the key bit into the slot in the cover as shown
in
~ fig. 33 (D and pry the cover up carefully. ~
Vehicle care I I irechnical data

Opening and closing
- Place the key in the round opening behind the cover 0
and turn the key in the direction of the arrow. This
unlocks the lock and the rear lid opens a crack.
- Open the rear lid from the outside and put the ignition
key in a safe place.•
Manual door locking
If the power locking system fails (power failure), you will
need to lock the passenger door separately.
Fig. 34 Emergency
locking device in the
doors
An emergency door locking device is integrated in the rear
edge of the doors (only visible when the door is open) for
those doors w ithout a lock cylinder.
- Open the door.
- Remove the plastic cap using the vehicle key~ fig. 34.
- Stick the key into the internal slot and turn the key about
90 degrees as far as it can go to the right (right-side
doors) or to the left (left-side doors).
- Replace the plastic cap.
After you close the door, you will no longer be able to open it from
the outside.
You can open it from the inside , however , by pulling on the door
latch,
once for the front doors and twice for the rear doors. •
Child safety lock
The child safety lock prevents the rear doors from being
opened from the inside.
....
"' ::: d. co m
Fig. 35 Rear doors:
child safety lock
The rear doors are equipped with a child safety lock. It is
operated with the vehicle key. The child safety lock is only
visible when the door is open.
- To
switch on the child safety lock, turn the ignition key in
the direction of the arrow .
- To
switch off the child safety lock, turn the ignition key in
the opposite direction of the arrow.
Th e child safety lock prevents the doors from being opened from the
inside when you have small children sitting in the rear .•

Anti-theft alarm system
The anti-theft alarm triggers an alarm if anyone attempts
to break into the vehicle.
F ig . 3 6 D iod e posi tion
in th e instrum ent p an el
T he anti-theft alarm system triggers an audible alarm and turns on
the emergency flasher if an unau thorized interference with the
vehicle is sensed by the system .
How is the anti -theft alarm sy ste m switched on ?
The anti -theft alarm system is switched on when you lock the
driver's door manually using the fold -out key, or when you use the
remote control. The system is activated approximate ly 30 seconds
after the vehicle is locked. The indicator light~ fig. 36 starts
flashing rapid ly for 30 seconds and then b links slowly .
How i s the anti -theft alarm s yste m switch ed off?
The anti-theft alarm system is switched off when you use the remote
co ntrol to un lock your vehicle. I f you do not open a d oor within 30
seconds after you have unlocked with the remote control, the
vehicle will lock itself again automatically.
I f you lock just the driver's door using your key, the front
passenger's door and the rear lid remain locked.
Con tro ls and eq uip­
ment
Op ening and clo sing
When will th e anti th eft alarm sy ste m b e trigg ere d ?
When the vehic le is locked, the a larm system monitors a nd protects
the following parts of the vehic le:
• engine compartment
• luggage compartment
• doors
• ignition
When the system is ac tivated, the alarm will be trigge red if one of
the doors, the engine hood or the rear lid are opened, or if the igni ­
t ion is turned on or the radio removed.
The anti-theft alarm sys tem will also go off when the battery is
disconnected .
You can also trigger the alarm by pressing the PA NIC button on your
remote-contro l key. This will alert other people in case of emer­
gency. Press the
PANIC button again to turn off the alarm.
How is th e anti-th eft alarm sw itched off when
triggered ?
The alarm system is switched off when you unlock the vehic le using
the remote -cont rol key or when the ignition is switched on . The
alarm wi ll also switch itself off when it comes to the end of its cycle .
Emergency flasher
The emergency flasher will blink briefly when the doors, engine
h o od and rear lid are properly closed.
If the emergency flashers do not blink, check the doors, engine hood
and rear lid to make sure they are properly closed. If you close a
door, the hood or the rear lid with the anti -theft alarm switched on,
the emergency flashers will blink only after you have closed the
door or lid.
[ i ] Tips
For the anti -theft a larm sys tem to func tion properly, make su re all
vehicle doors and windows are closed before leaving the vehicle . •
Vehicle care I I irechnical data

Opening and closing
Power windows
Controls
Fig. 37 Driver's door :
power window
switches
The switches are located in the driver's door . The front passenger's
door has a own power window switch of its own.
To open/close If the respective switch is pushed or pulled, the
window will , respectively.
Switches for front door windows
© operates the window in the driver's door.
@ operates the window in the front passenger's door.
Switches for rear windows
© operates the left rear window.
@ operates the right rear window.
Safety switch
© Safety switch for rear window operation.
LJ}. WARNING
• Do not leave children unattended in the vehicle, especially with
access to vehicle keys. Unsupervised use of the keys can result in
& WARNING (continued)
starting of the engine and use of vehicle systems such as power
windows, etc. which could result in serious injury.
• Remember -you can still open or close the power windows for
about ten minutes after the ignition is switched off. Only when
either of the front doors are opened are the power windows
switched off.
• Be careful when closing the windows. Check to see that no one
is in the way, or serious injury could result!
• Always remove the ignition key whenever you leave your
vehicle.
• If you lock your vehicle from the outside, no one, especially chil­
dren, should remain in the vehicle.
• Do not stick anything on the windows or the windshield that
may interfere with the driver's field of vision.•
Switches in the driver's door
The driver can operate all windows.
In addition to the switches in the driver's door, there is a
separate switch in each door for the power window in that
door=> fig. 37. If the respective switch is pushed or pulled,
the window will open or close. The power window switches have a
two-position function:
Opening the windows
Push the switch to the first stop and hold it there until the
window has lowered to the desired position.
- Push the switch briefly to the
second stop: the window
w ill automatically open all the way. _.

Closing th e window s
- Pull the switch up to the
first stop and hold it there until
the window has risen to the desired position.
- Pull the switch quickly to the
second pos iti on: the
window will automatically close all the way~
& in
"Controls".
A cti vating /d eacti va ting r ear window s
- Pu sh the switc h to the
depressed pos ition to a ctiv ate the
rear windows -the l ight in the sw itch wi ll go out.
- Briefly press t he switch to
de activat e the rear windows -
the switch will return to the sa fety position and the light
w ill illuminate.
The safety switch©=> page 46, fig. 37 in the armrest on the driver's
door turns off the rear power windows. Only when the safety switch
is depressed can the rear windows be opened or closed. The symbol
in the safety switch il lum inates when the power windows in the rear
doors are switched off (button NOT depressed). This feature has
been provided for the safety of small children riding in the rear of
the vehicle .
[ i J Tip s
The windows can still be opened and closed for about ten minutes
after the ignition has been turned off. The power windows are not
shut off until one of the front doors is opened. •
Contro ls and eq uip­
ment
Op ening and clo sing
Convenience close /open feature
You can close or open the windows from outside when
you lock or unlock your c ar with the key.
---==- ~fit ~-:..--.:..-_-_-_-_- _-_- _-_-_-_--:-
c -= ® !)®
Conv eni ence open f eatur e
N ;:.
-0:. a, m
Fig . 38 Key turns for
o pen ing a nd clos ing
Keep the key in the lock on the driver 's door @ unt il all
windows and the panorama sliding/tilt roof* have
reached the desired position.
Con venience close feature
- Hold the key in t he lock of the driver's door in t he closed
position unti l a ll windows and the panorama s lid ing/tilt
roof* are closed
~ & .
The automatic close function will cease im me diat ely if the key is
re leased. For safe ty reasons it is not possible to open and c lose the
sunroof with the remote -control key.
& WARNING
• Be c are ful when clo sin g th e window s. Check to se e that no one
i s in the way, or se riou s inju ry could result!
• Alwa ys read and heed WARNIN G~
& in "Gen eral de scription "
o n
pa ge 3 7. •
Vehicle care I I Technical data

Closing complete ly
- Press the sw itch 0 ~ p age 48, fig . 39 until the roof is
completely closed
~ & .
Closing partially
- Press the sw itch 0 ~ page 48, fig. 39 until the roof has
reac hed the des ired position~ &. If the roof is almost
closed and you interrupt the operation, the roof opens
automatically to a min imum setting; this is the smallest
possible opening that can be set.
If you park your vehicle in the sun, we recommend that you c lose the
sun b lind . You should especially make certain that the panoramic
s liding sunroof is c losed when the sun blind is closed when parked
or if there is a sudden rain shower.
The sun blind has two positions : completely open or completely
closed . The sun blind is manually operated.
& WARNING
Never clo se the pan oramic sliding sunroof careless ly or wi thout
wa tc hing -th ere i s a ri sk of per son al injur y. For t his re aso n, a lways
remove the ignit ion ke y wh en l eav ing the vehi cle.
[ i ) Tips
• When you park your vehicle, we genera lly recommend closing
the panoramic sliding sunroof and the sun blind.
• When the vehicle is parked, a wet roof shou ld be dried light ly
with a soft cloth
before it is op ened so that water does not drip into
the interior .
• In an emergency , the panoramic sliding sunroof can be closed
manually ~
page 49, "Emergency mechan ical closing for the
panoramic sliding sunroof".•
Contro ls and eq uip­
ment
Op ening and clo sing
Ap plies to vehicles: wi th panoramic sliding sunroof
Comfort closing
The open roof can also be closed from the outside.
- Hold the key in the driver's door lock in the loc k position
until the roof is closed ~& .
& WARNING
Never clo se the panor ami c sliding su nroof careles sly or without
wat ching -ther e is a r isk of p ers onal injury. •
Emergency mechanical closing for
the panoramic sliding sunroof
App lies to veh icles: with panoramic s liding sun roof
Uncovering the light unit
In an emergency, the panoramic sliding sunroof can be
closed manually. Removal of the light unit requires some
dexterity.
--- '!!ii '-,-.. ---i
EJ
Vehicle care I I
~ 0:. CD F ig. 40 Li ght unit in
th e head line r:
re m ov ing t he g lass
Technical data
