2009 Alfa Romeo Brera/Spider Owner handbook (in English)

DASHBOARD
A0F0188mfig. 1
1.Adjustable and swivel side air vents - 2.Front side window demisting/defrosting vents - 3.Passenger’s air bag -
4.Fuel level gauge/engine coolant temperature gauge/engine oil temperature gauge (petrol versions) or turbocharger pres-
sure gauge (diesel versions) - 5.Adjustable swivel centre air vents - 6.Upper central vent - 7.External lights control lever -
8.Driver’s air bag and horn - 9.Instrument panel - 10.Windscreen wiper control lever - 11.Front side window demist-
ing/defrosting vents - 12.Adjustable swivel side air vents - 13.Switches for external lights, trip meter reset and headlamp
aiming device - 14.Dashboard fusebox lid - 15.Bonnet opening lever - 16.Sound system controls on the steering wheel
(where provided) - 17.Driver’s knees air bag - 18.Cruise Control lever (where provided) - 19.Ignition device - 20.En-
gineSTART/STOPbutton - 21.Heating/ventilation/climate controls - 22.Sound system (where provided) -
23.Glove box - 24.Passenger’s knees air bag (where provided)
263
RIGHT HAND DRIVE VERSION
259-268 Alfa BRERA gb 28-08-2008 11:49 Pagina 263

INSTRUMENT PANEL
A0F0082mfig. 2
A.Speedometer (speed indicator)
B.Warning lights - C.Rev counter -
D.Multifunction display
mcWarning lights on diesel
versions only
On diesel versions the rev counter end
scale value is at 6000 rpm.
264
RIGHT HAND DRIVE VERSION
259-268 Alfa BRERA gb 28-08-2008 11:49 Pagina 264

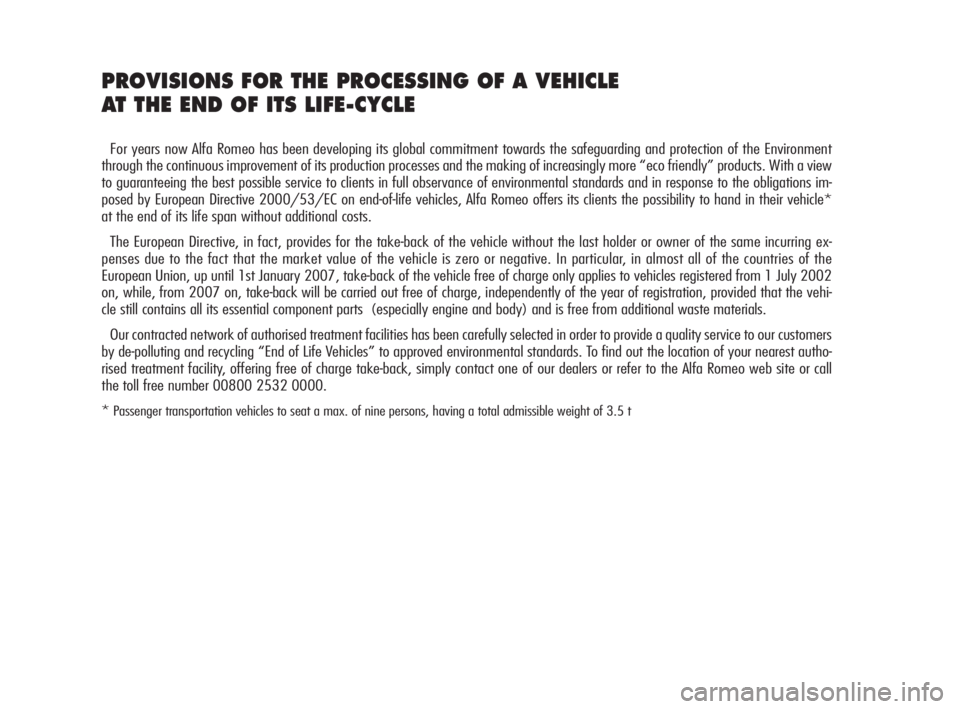

PROVISIONS FOR THE PROCESSING OF A VEHICLE
AT THE END OF ITS LIFE-CYCLE
For years now Alfa Romeo has been developing its global commitment towards the safeguarding and protection of the Environment
through the continuous improvement of its production processes and the making of increasingly more “eco friendly” products. With a view
to guaranteeing the best possible service to clients in full observance of environmental standards and in response to the obligations im-
posed by European Directive 2000/53/EC on end-of-life vehicles, Alfa Romeo offers its clients the possibility to hand in their vehicle*
at the end of its life span without additional costs.
The European Directive, in fact, provides for the take-back of the vehicle without the last holder or owner of the same incurring ex-
penses due to the fact that the market value of the vehicle is zero or negative. In particular, in almost all of the countries of the
European Union, up until 1st January 2007, take-back of the vehicle free of charge only applies to vehicles registered from 1 July 2002
on, while, from 2007 on, take-back will be carried out free of charge, independently of the year of registration, provided that the vehi-
cle still contains all its essential component parts (especially engine and body) and is free from additional waste materials.
Our contracted network of authorised treatment facilities has been carefully selected in order to provide a quality service to our customers
by de-polluting and recycling “End of Life Vehicles” to approved environmental standards. To find out the location of your nearest autho-
rised treatment facility, offering free of charge take-back, simply contact one of our dealers or refer to the Alfa Romeo web site or call
the toll free number 00800 2532 0000.
*
Passenger transportation vehicles to seat a max. of nine persons, having a total admissible weight of 3.5 t
259-268 Alfa BRERA gb 28-08-2008 11:49 Pagina 265

259-268 Alfa BRERA gb 28-08-2008 11:49 Pagina 266

259-268 Alfa BRERA gb 28-08-2008 11:49 Pagina 267

ENGINE OIL CHANGE (litres)
REFUELLING (litres)
CUSTOMER SERVICESTECHNICAL SERVICES - SERVICE ENGINEERING
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Fiat Group Automobiles S.p.A.
Publication no. 60431902 - 1
stEdition - 08/2008All rights reserved. Reproduction, even in part is prohibited without written permission
from Fiat Group Automobiles S.p.A.
SERVICE
2.2 JTS - 3.2 JTS 2.4 JTDM
Engine oil circuit 5.4 6.4
Do not discard used oil in the environment.
COLD TYRE INFLATION PRESSURE
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
Inflate tyres to full load pressures if driving at continuous speed exceeding 160 km/h
(
▼) Unchainable tyres. Size certified and admitted only for PIRELLI 235/40 ZR19 96Y. When using winter tyres, use 225/50 R17 98 tyres or 235/45 R18 98.
2.2 JTS - 2.4 JTDM- 3.2 JTS
Fuel tank capacity 70
Reserve 10
For cars with petrol engine, only use unleaded petrol with no less than 95 (R.O.N.).
For cars with diesel engine, only use diesel fuel for motor vehicles (Specification EN590).
