2009 Acura TSX navigation system

CONT INUED
Push AUTO or . The selected
temperatures appear in the display
(in the center display on models with
navigation system). When the
indicator in the DUAL button is off,
you can adjust both sides to the
same temperature by pushing the
driver’s side temperature control
switch up or down.
Thedriver’ssideandthepassenger’s
side temperature can be controlled
independently by adjusting these
switches when the green indicator in
the DUAL button is on.
Your vehicle has two temperature
control switches, one f or the driver,
and one f or the f ront passenger.
Climate Control System
T emperat ure Cont rol
Dual Temperature Control
Features
171
DUAL BUTTONPASSENGER’S SIDE
TEMPERATURE
CONTROL SWITCH
DRIVER’S SIDE
TEMPERATURE
CONTROL SWITCH
\f—\f—\fy\f

y
)!
\f\fy\f
y
2009 TSX

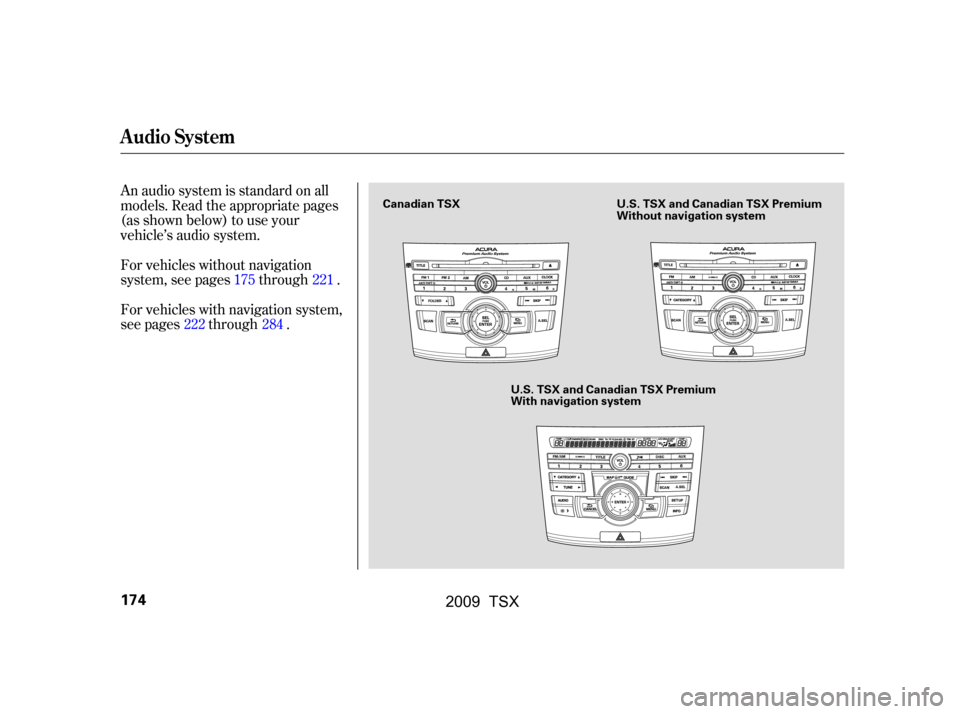

An audio system is standard on all
models. Read the appropriate pages
(as shown below) to use your
vehicle’s audio system.
For vehicles without navigation
system, see pages through .
For vehicles with navigation system,
see pages through .175221
222284
Audio System
174
Canadian TSX U.S. TSX and Canadian TSX Premium Without navigation system
U.S. TSX and Canadian TSX Premium
With navigation system
\f—\f—\fy\f
y
)!
\f\fy\f
y
2009 TSX

Most audio system f unctions can be
controlled by standard buttons, bars,
and knobs. In addition, you can
access some f unctions by using the
selector knob on the audio system.The knob turns lef t and right. Use it
to scroll through lists, to make
selections or adjustments to a list or
menu item on the display. When you
make a selection, push the center of
the selector (ENTER) to go to that
selection.
When the audio system is in XM
satellite radio mode or playing discs,
pushing the selector (ENTER) knob
switches the display between the
normal display and the extended
display. The extended display has
three segments to display the
detailed inf ormation.
Pressing the MENU button again
will also cancel the menu display
mode.
To select any setting such as the
clock, sound adjusting, or the
compass, press the MENU button.
To use any audio system f unction,
the ignition switch must be in the
ACCESSORY (I) or ON (II) position.
You can select the item by turning
the selector knob. To go back to the
previous display, press the RETURN
button.
Selector K nob Menu Display
Audio System (Models without navigation system)
Features
175
MENU
BUTTON
RETURN
BUTTON SELECTOR KNOB
\f—\f—\fy\fy
)!
\f\fy\f
\fy
2009 TSX

Playing the FM/A M Radio (Models without navigation system)
Without XMsatellite radioWith XMsatellite radio
176
MENU BUTTON
TITLE
BUTTON
RETURN BUTTON
FM
BUTTON
CATEGORY
BAR SCAN BUTTON A.SEL (AUTO SELECT)
BUTTONPRESET
BUTTONS
SKIP BAR
SELECTOR
KNOB
MENU BUTTON
TITLE
BUTTON
RETURN BUTTON
SCAN BUTTON PRESET
BUTTONS
SKIP BAR
SELECTOR
KNOB VOL/
(VOLUME/POWER) KNOB
A.SEL (AUTO SELECT)
BUTTON
FOLDER BAR VOL/
(VOLUME/POWER) KNOB
AM BUTTON AM BUTTON
FM
BUTTONS
\f—\f—\fy\fy
)!
\f\fy\f

y
2009 TSX

µµ µ
The band and f requency that the
radio was last tuned to are displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available.
On the AM band, AM noise
reduction turns on automatically. You can use any of f ive methods to
f ind radio stations on the selected
band: tune, skip, scan, the preset
buttons, and auto select.
The skip f unction searches
up and down f rom the current
f requency to f ind a station with a
strong signal. To activate it, press
and hold the or side of the
SKIP bar until you hear a beep, then
release it.
On the FM band, you can also use
the f eatures provided by the radio
data system (RDS). For more
inf ormation on the RDS, see page
.
Use the selector knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency. Each time you press and release
either side of the SKIP bar, the radio
f requency changes in small
increments.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal. When it finds
one, it will stop and play that station
f or about 10 seconds.
If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
power/volume knob or the AM or
FM button. Adjust the volume by
turning the VOL/ knob.
179
CONT INUED
To Select a Station
To Play the Radio
SK IP
TUNESCAN
Playing the FM/A M Radio (Models without navigation system)
Features
177
\f—\f—\fy\fy
)!
\f\fy\f
y
2009 TSX

µµEach preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM. If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
that preset button.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described. ,pressthe
A. SEL (auto select) button. This
restores the presets you originally
set.
Usethetune,skip,scan,orRDS
function to tune the radio to a
desired station. Press the A. SEL button. ‘‘A-SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM and twelve FM stations in
the preset buttons. For inf ormation on FM/AM radio
f requencies and reception, see page
.
1.
2.
3.
4. 285To turn of f auto selectPreset A UT O SEL ECT
Playing the FM/A M Radio (Models without navigation system)
178
\f—\f—\fy\fy
)!
\f\fy\f
y
2009 TSX

On the FM band, you can select a
favorite station and display the
program service name according to
the inf ormation provided by the
radio data system (RDS).
Theprogramservicenamedisplay
f unction shows the name of the
station you are listening to. With the
audio system on and the FM band
selected, you can turn this f unction
on or of f . To switch the f unction between onand off, press and release the TITLE
button. With the system on, you will
see the ‘‘PS ON’’ message on the
display. If the station you are
listening to is an RDS station, the
displayed f requency switches to the
station name.If the station you are listening to is
not an RDS station, the display
continues to show the f requency
with the PS name display function on.
When you turn of f this f unction by
pressing the TITLE button, the
display shows ‘‘PS OFF.’’
CONT INUED
Radio Data System (RDS)
Program Service (PS) Name Display
Playing the FM/A M Radio (Models without navigation system)
Features
179
PROGRAM SERVICE
NAME DISPLAY ON
\f—\f—\fy\f\fy
)!
\f\fy\f
y
2009 TSX

ÛÝ
On the FM band selected, you can
select the program category
provided by the RDS. Press either
side ( or ) of the CATEGORY
bar (FOLDER bar on models without
XM radio) to display and select an
RDS category. The principal RDS
categories are shown as follows;
ALL: All RDS category stations
ROCK: Rock, classic rock and sof t
rock music SOFT: Adult hits and sof t music
TOP 40: Top 40 hits
OLDIES: Nostalgia music and oldies
R & B: Rhythm and blues, and sof t
rhythm and blues
RELIGION: Religious music and
religious talk
CLASSIC: Classical music
JAZZ: Jazz
INFO: News, inf ormation, sports,
talk, f oreign language, personality,
public, college, and weather
TRAFFIC: Traffic information
Press either side of the CATEGORY
bar (FOLDER bar on models without
XM radio) to select an RDS category.
The display shows the selected RDS
category name f or about 10 seconds.
You can use the search or scan
function to find radio stations in the
selected RDS category. If you do
nothing while the RDS category
name is displayed, the selected
category is canceled.
COUNTRY: Country music
This f unction searches up and down
a f requency f or the strongest signal
f rom the f requencies that carry the
selected RDS category inf ormation.
This can help you to find a station in
your favorite category. To activate it,
press and release either side
( or ) of the SKIP bar. You
will see the selected RDS category
name blinking while searching it.
When the system finds a station, the
selected RDS category name will be
displayed again for about 5 seconds.
If the system does not find a station,
‘‘NOTHING’’ will be blinking f or
about 5 seconds, then the system
goes back to the last selected station.
Radio Data System (RDS) Category RDS Program Search
Playing the FM/A M Radio (Models without navigation system)
180
RDS CATEGORY
\f—\f—\fy\fy
)!
\f\fy\f
y
2009 TSX
