2009 Acura TSX navigation

Most AcuraLink f unctions are
controlled by the interf ace dial. The
interface dial has two parts, a knob
and a selector.
The knob turns lef t and right. Use it
to make selections or adjustments to
a list or menu on the screen.The selector can be pushed lef t,
right, up, down, and in. Use the
selector to scroll through lists, to
select menus, and to highlight menu
items. When you make a selection,
push the center of the selector
(ENTER)togotothatselection.
AcuraLink enhances your ownership
experience by providing a direct
communication link between your
vehicleandtheAcuraServer.
Working through the XM radio
satellite, AcuraLink works in
conjunction with the navigation
system, Bluetooth
HandsFreeLink
(HFL),andaudiosysteminyour
vehicle. It displays and receives
several kinds of messages, including:
Operating tips and inf ormation on
your vehicle’s f eatures.
Important recall and safety
inf ormation.
Maintenance inf ormation to keep
your vehicle in top condition.
Diagnostic inf ormation to provide
inf ormation about any problems
with your vehicle. Interf ace Dial
A curaL ink (U.S. models only)
U.S. T SX wit h navigat ion syst em
Features
337
SELECTOR
KNOB ENTER
CANCEL BUTTON
INTERFACE DIAL
\f—\f—\fy

y
)!
\f\fy\fy
2009 TSX

If you have new messages, an
envelope icon appears in the top
right corner of the navigation screen.
To open a message:
Press ENTER on the interf ace
selector, then select New Message
from the navigation system map
menu.A list of all messages will be shown.
New Messages will be at the top.
Select the message you want to read
by pressing ENTER.To view previously read messages:
Press the INFO button. The
inf ormation screen will be shown.
A red exclamation will be marked on
an envelope icon with an important
message.
Reading Messages
A curaL ink (U.S. models only)
338
\f—\f—\fy
\f\fy
)!
\f\fy\fy
2009 TSX

Unread messages have a closed
envelope icon next to them. The icon
disappears when it has already been
read.Only Diagnostic Inf o
messages appear on the navigation
screen while driving. They indicate if
your vehicle has a problem that may
need immediate attention (see page
).
Af ter purchasing your vehicle,
messages may not appear
immediately.
Your dealer has to register the
vehicle identif ication bef ore you can
receive messages. This can take
several days to process.
Select ‘‘Messages’’, then select a
message category by pressing
ENTER. Select the message you
want to read and press ENTER.
When you open a message, you can
read a summary of it, and then
choose one of several options. If an
option is not available f or a message,
that option will not be highlighted.
348
CONT INUED
Message Options
A curaL ink (U.S. models only)
Features
339
NOTE:
\f—\f—\fy
\f
y
)!
\f\fy\fy
2009 TSX

µ
µ
µ µ
µ
µ
Select this option to delete
the current message.
Select this option to hear a
voice read the entire message. This
gives you more inf ormation than the
screen can display at one time. When
you select the Voice option, it
changes to a Stop Reading option.
Select the option again to stop the
voice.
Select this option to call a
phone number embedded in the
message. When you select , the
Bluetooth
HandsFreeLink(HFL)
dials the number f or you. Select this
option to get more inf ormation about
the current diagnostic message. To
use this option, your cellphone must
be paired with the HFL. In addition,
the paired phone must have a
compatible data service and be set
up with the AcuraLink system to
make a data connection. Access the
handsf reelink.com website to f ind
out which data services are currently
compatible with AcuraLink.
To set your AcuraLink pref erences
(thetypesof messagesyouwantto
receive, if any), visit the Owner Link
website at , and
choose what you would like to
receive. If you do not have internet
access, call Acura Client Services at
(800) 382-2238; they can set your
message pref erences f or you.
To make a call, your Bluetooth
compatible phone must be paired to
the vehicle’s HandsFreeLink system,
powered on, and located within the
vehicle(seepage ). Select this
option to f ind the nearest Acura
dealer using the navigation system.
Select this
option to call the Acura dealer you
purchased your vehicle f rom.
AcuraLink also directs you to this
dealer so you can schedule a
maintenance appointment or receive
inf ormation about a message. If your
assigned servicing dealer changes,
AcuraLink will reset to call that
dealer.
315
www.owners.acura.com
Delete
Voice
Call Call Diagnostic Inf o
Message Pref erences
Find Nearest Dealer
Call Your Dealer
A curaL ink (U.S. models only)
340
\f—\f—\fy
\fy
)!
\f\fy\fy
2009 TSX

When you see the maintenance
minder message on the multi-
inf ormation display, you will also
receive a message in the navigation
screen. Select ‘‘AcuraLink/
Messages’’ on the Setup screen, then
press ENTER.The system will automatically
connect to the Acura server, then
show you an appropriate
appointment date and time on the
navigation screen. If you accept this
appointment, select ‘‘Conf irm
Appointment,’’ then press ENTER.
Select the received message, then
press ENTER. You will see the
message as shown. To make an
appointment, select ‘‘Schedule
Dealer Appt.’’ then press ENTER.
A curaL ink (U.S. models only)
344
\f—\f—\fy


y
)!
\f\fy\fy
2009 TSX

CONT INUED
The conf irmation message will be
displayed on the screen. Make sure
to conf irm the appointment date,
time and dealer. If it is OK, press
ENTER.
If you want to change or reschedule
the appointment date, select ‘‘Cancel,’’
then press ENTER.Select ‘‘AcuraLink/Messages’’ on
the Setup screen, then press ENTER.
Select ‘‘Scheduled Dealer
Appointment,’’ then press ENTER.
You will see the screen to reschedule
as shown. To make an appointment,
select ‘‘Reschedule Appointment,’’
then press ENTER.
The system will automatically
connect to the Acura server, then
show you a new appointment date
and time on the navigation screen. If
you accept this appointment, select
‘‘Conf irm Appointment,’’ then press
ENTER.
A curaL ink (U.S. models only)
T o reschedule t he appoint ment :
Scheduled Dealer A ppointment
Features
345
\f—\f—\fy
y
)!
\f\fy\f\fy
2009 TSX

The system will request you to
conf irm the cancel on the navigation
screen. To cancel the appointment,
select ‘‘YES,’’ then press ENTER. If
you select ‘‘NO,’’ the screen goes
back to the previous message display.The system will automatically
connect to the Acura server, then
show you the conf irmation on the
navigation screen. If you accept the
cancel, press ENTER.
Select ‘‘AcuraLink/Messages’’ on
the Setup screen, then press ENTER.
Select the appointment message
then press ENTER. You will see the
screen to cancel as shown. To cancel
the appointment, select ‘‘Cancel
Appointment,’’ then press ENTER.
T o cancel t he appoint ment :
A curaL ink (U.S. models only)
346
\f—\f—\fy

y
)!
\f\fy\f
y
2009 TSX

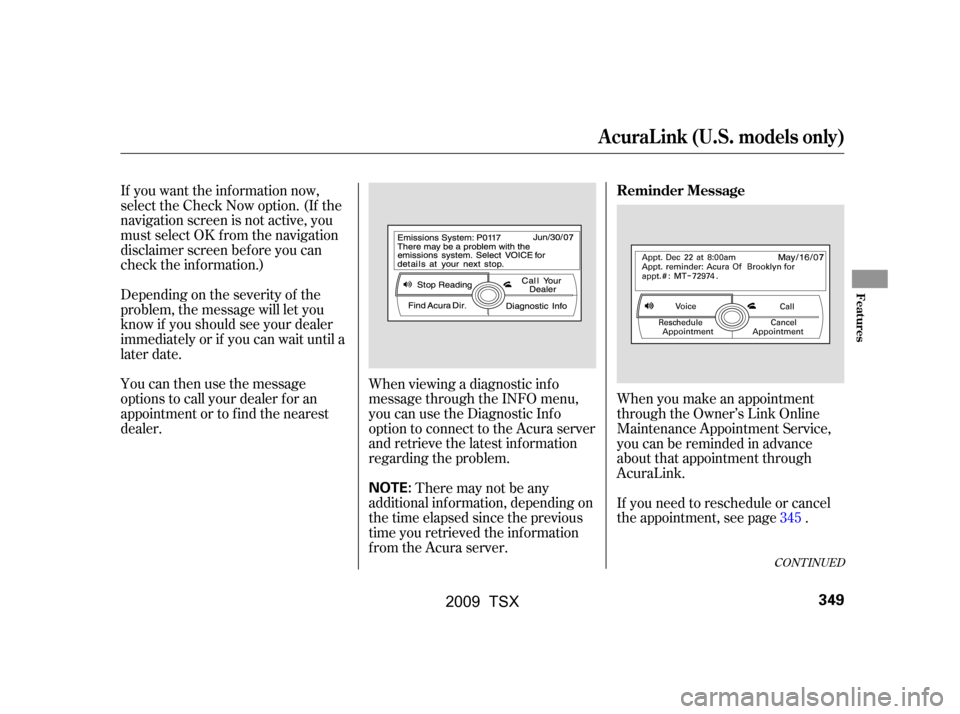

If you want the information now,
select the Check Now option. (If the
navigation screen is not active, you
must select OK f rom the navigation
disclaimer screen bef ore you can
check the inf ormation.)
Depending on the severity of the
problem, the message will let you
know if you should see your dealer
immediately or if you can wait until a
later date.
You can then use the message
options to call your dealer f or an
appointment or to f ind the nearest
dealer.When viewing a diagnostic inf o
message through the INFO menu,
you can use the Diagnostic Inf o
option to connect to the Acura server
and retrieve the latest inf ormation
regarding the problem.
There may not be any
additional inf ormation, depending on
thetimeelapsedsincetheprevious
time you retrieved the inf ormation
f rom the Acura server. When you make an appointment
through the Owner’s Link Online
Maintenance Appointment Service,
you can be reminded in advance
about that appointment through
AcuraLink.
If you need to reschedule or cancel
the appointment, see page .
345
CONT INUED
A curaL ink (U.S. models only)
Reminder Message
Features
349
NOTE:
\f—\f—\fy
\fy
)!
\f\fy\fy
2009 TSX
