2009 Abarth 500 coolant

9
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
INSTRUMENT PANEL AND ONBOARD INSTRUMENTS
F0S0008Ab
F0S0009Ab
Versions with multifunctional
display
ASpeedometer (speed indicator)
BRev counter
CMultifunctional display with digital fu-
el level indicator and digital indicator
of engine coolant temperature.
Versions with reconfigurable
multifunctional display
ASpeedometer (speed indicator)
BRev counter
CConfigurable multifunctional display
with digital fuel level indicator and dig-
ital indicator of engine coolant tem-
perature.
fig. 8
fig. 9 -
Version with reconfigurable multifunctional display
001-022 ABARTH 500 GB 29-04-2009 9:40 Pagina 9

11
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
The main panel has a projection above it
to prevent glare.
SPEEDOMETER
(SPEED INDICATOR)
fig. 11
The indicator Ashows car speed
(speedometer).
REV. COUNTER fig. 11
The indicator Bshows the engine revs.
fig. 11
B
A
CD
EF
F0S011Ab
DIGITAL FUEL LEVEL
INDICATOR fig. 11
The digital indicator C shows the amount
of fuel in the tank.
The reserve warning light E
Kturns on
to indicate that approximately 5 litres of
fuel are left in the tank.
Do not travel with the tank nearly empty:
lack of fuel supply could damage the catal-
yser.ENGINE COOLANT
TEMPERATURE GAUGE fig. 11
The digital indicator Dshows the tem-
perature of the engine coolant and begins
to operate when the coolant temperature
exceeds approx. 50°C.
The first segment is always on to show the
correct operation of the system.
F
uwarning light may light up (together
with a message shown on the display) to
indicate that the coolant temperature is
too high; in this case, stop the engine and
contact the Abarth Dealership.
001-022 ABARTH 500 GB 29-04-2009 9:40 Pagina 11

12
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR

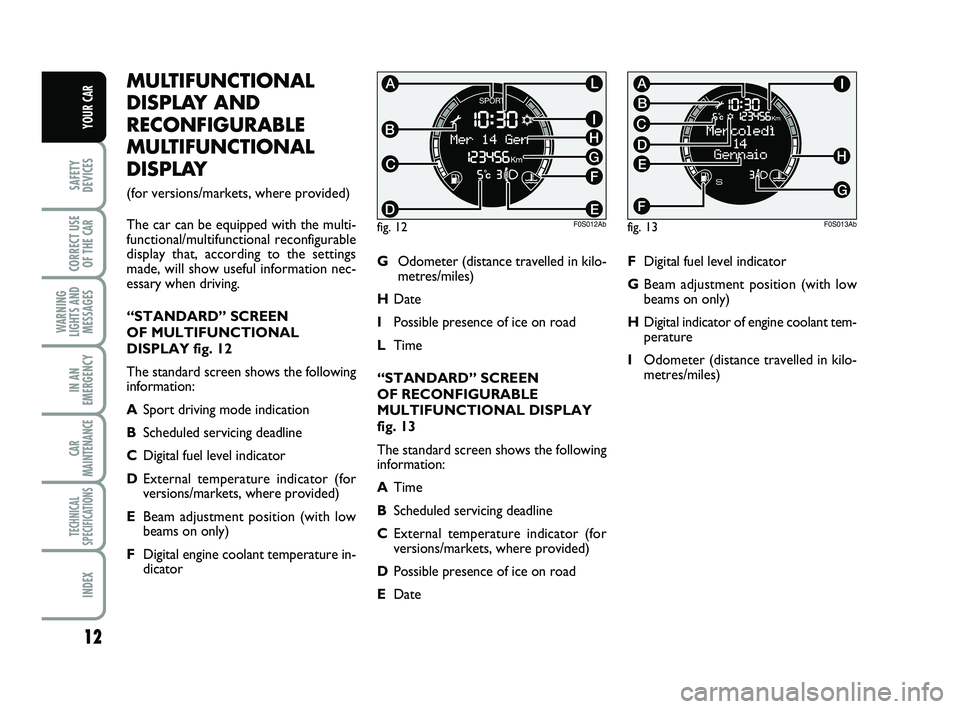

MULTIFUNCTIONAL
DISPLAY AND
RECONFIGURABLE
MULTIFUNCTIONAL
DISPLAY
(for versions/markets, where provided)
The car can be equipped with the multi-
functional/multifunctional reconfigurable
display that, according to the settings
made, will show useful information nec-
essary when driving.
“STANDARD” SCREEN
OF MULTIFUNCTIONAL
DISPLAY fig. 12
The standard screen shows the following
information:
ASport driving mode indication
BScheduled servicing deadline
CDigital fuel level indicator
DExternal temperature indicator (for
versions/markets, where provided)
EBeam adjustment position (with low
beams on only)
FDigital engine coolant temperature in-
dicatorGOdometer (distance travelled in kilo-
metres/miles)
HDate
IPossible presence of ice on road
LTime
“STANDARD” SCREEN
OF RECONFIGURABLE
MULTIFUNCTIONAL DISPLAY
fig. 13
The standard screen shows the following
information:
ATime
BScheduled servicing deadline
CExternal temperature indicator (for
versions/markets, where provided)
DPossible presence of ice on road
EDate
fig. 12
I
E
F
G
L
H
D
B
C
A
F0S012Ab
FDigital fuel level indicator
GBeam adjustment position (with low
beams on only)
HDigital indicator of engine coolant tem-
perature
IOdometer (distance travelled in kilo-
metres/miles)
fig. 13
C
B
G
A
H
I
F
D
E
F0S013Ab
001-022 ABARTH 500 GB 29-04-2009 9:40 Pagina 12

33
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
∂to the vents in the feet area (front
seats). The natural tendency of hot
air to spread upwards, allows to
warm the passenger compartment
up as quickly as possible, providing
an immediate feeling of warmth.
∂+μdistribution between feet area
vents (warmer air) and dashboard
vents (cooler air).
∂+´distribution between feet area
vents and windscreen and front
side window vents). This distribu-
tion allows an adequate warming of
the passenger compartment and
prevents the windows from mist-
ing up.
The set distribution is shown by the LEDs
on the selected buttons.
To restore automatic air distribution con-
trol, press button AUTO.
Button
-- L
Front window fast
demisting/defrosting button
Pressing the button
-the system acti-
vates all the functions required for fast
demisting/defrosting:
❒compressor switch on (if climatic con-
ditions are suitable);
❒air recycle off;
❒air temperature set to maximum (HI);
❒fan speed selection depending on
coolant temperature;
❒air flow toward the windshield and the
front side windows;
❒heated rear window on.
IMPORTANT The function remains active
for about 3 minutes since the engine
coolant temperature exceeds 50°C (for
petrol versions) or 35°C (for Diesel ver-
sions).
LOOKING AFTER THE SYSTEM
Run the climate control system for at least
10 minutes every month during the win-
ter.
Have the system inspected at a Abarth
Dealership before the summer.The system uses R134a
coolant which, in the event of
accidental leaks, is not dan-
gerous for the environment.
Do not use R12 coolant, not suitable
for the components of the system.
HEATED REAR WINDOW
DEMISTER/DEFROSTER
Press the button Mto activate this func-
tion; its activation is shown by a warning
light on the instrument panel.
The function is automatically deactivated
after about 20 minutes. To turn off the
function beforehand, press again the but-
ton
(.
IMPORTANT Do not apply stickers on
the internal side of the rear window over
the filaments of the heated rear window,
to avoid damaging it.
023-045 ABARTH 500 GB 29-04-2009 9:41 Pagina 33

81
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
CORRECT USE
OF THE CAR
HANDBRAKE
The handbrake lever is located between
the two front seats.
Pull the lever upwards to operate the
handbrake.
PARKING THE CAR
Proceed as follows:
❒stop the engine and engage the hand-
brake;
❒engage a gear (on a slope, engage first
gear if the car is faced uphill or rever-
se if it is faced downhill) and leave the
wheels steered.
If the car is parked on a steep slope, it is
further advisable to block the wheels with
a wedge or stone.
Do not leave the ignition key on MARto
prevent draining the battery. Always re-
move the key when you leave the car.
Never leave children unattended in the
car. Always remove the ignition key when
leaving the car and take it out with you. HOW TO WARM UP THE
ENGINE AFTER IT HAS JUST
STARTED
Proceed as follows:
❒drive off slowly, letting the engine turn
at medium speed. Do not accelerate
abruptly;
❒do not demand maximum performan-
ce for the first few kilometres. Wait un-
til the engine coolant temperature gau-
ge starts moving.
STOPPING THE ENGINE
Turn the ignition to STOPwhile the en-
gine is idling.
IMPORTANT After a taxing drive, you
should allow the engine to “catch its
breath” before turning it off by letting it
idle to allow the temperature in the engi-
ne compartment to fall.
A quick burst on the accele-
rator before turning off the
engine serves absolutely no
practical purpose, it wastes
fuel and is damaging especially to tur-
bocharged engines.The car must be braked after
a few snaps of the lever,
otherwise, contact the Abarth Dea-
lership for regulation.
WARNING
When the handbrake lever is pulled up
and the ignition key is on MAR, the in-
strument panel warning light
xwill turn
on.
Proceed as follows to release the hand-
brake:
❒slightly lift the handbrake and press re-
lease button A-fig. 1;
❒hold button Apressed and lower the
lever. Warning light xon the instru-
ment panel will go out.
Press the brake pedal when carrying out
this operation to prevent the car from
moving accidentally.
fig. 1
A
F0S076Ab
079-086 ABARTH 500 GB 29-04-2009 9:42 Pagina 81

87
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
GENERAL WARNINGS ..................................................... 88
LOW BRAKE FLUID............................................................ 88
HANDBRAKE ON................................................................ 88
AIR BAG FAILURE................................................................ 88
FRONT PASSENGER AIRBAG DEACTIVATED........... 89
HOT ENGINE COOLANT................................................ 89
LOW BATTERY CHARGE................................................. 90
ABS SYSTEM FAILURE......................................................... 90
EBD SYSTEM FAILURE........................................................ 90
LOW ENGINE OIL PRESSURE.......................................... 90
“DUALDRIVE” ELECTRIC POWER
STEERING FAILURE ............................................................ 91
INCOMPLETE DOOR LOCKING.................................... 91
ENGINE EOBD / INJECTION
CONTROL SYSTEM FAILURE ......................................... 91
FUEL RESERVE....................................................................... 92
FIAT CODE PROTECTION
SYSTEM FAILURE.................................................................. 92
REAR FOG LIGHTS.............................................................. 92
GENERIC FAILURE INDICATION ................................. 93
ENGINE OIL PRESSURE SENSOR FAILURE.................. 93
FUEL CUT-OFF INERTIAL SWITCH
INTERVENTION................................................................... 93
EXTERNAL LIGHTS FAILURE .......................................... 93ESP SYSTEM FAILURE ........................................................ 93
HILL HOLDER FAILURE .................................................... 93
SIDELIGHTS AND LOW BEAMS..................................... 93
FOLLOW ME HOME........................................................... 93
FRONT FOG LIGHTS ........................................................ 94
LEFT-HAND DIRECTION INDICATOR........................ 94
RIGHT-HAND DIRECTION INDICATOR.................... 94
SPORT FUNCTION ACTIVATION................................. 94
MAIN BEAM HEADLIGHTS............................................... 94
POSSIBLE ICE ON THE ROAD.........................................94
SPEED LIMIT EXCEEDED .................................................. 94
LIMITED RANGE ................................................................. 94
BRAKE PAD WEAR ............................................................ 94
SEAT BELTS NOT FASTENED.......................................... 94
W
W W W
A A A A
R R R R
N N N N
I I I I
N N N N
G G G G

L L L L
I I I I
G G G G
H H H H
T T T T
S S S S

A A A A
N N N N
D D D D

M M M M
E E E E
S S S S
S S S S
A A A A
G G G G
E EE
E
S S S S
087-094 ABARTH 500 GB 29-04-2009 9:42 Pagina 87

89
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
If when turning the key to
MAR the warning light ¬does not turn on or if it stays on when
travelling (together with the message
on the multifunctional display, where
provided) there could be a failure in
safety systems; in this event air bags
or pretensioners may not be deployed
in case of impact or, in a minor num-
ber of cases, they may be deployed
accidentally. Contact Abarth Dealer-
ship immediately to have the system
checked before driving off.
WARNING
The failure of the warning
light
¬(warning light off) is
indicated by intermittent blinking of
the warning light
“that signals front
passenger airbag deactivated.
WARNING
FRONT PASSENGER
AIRBAG
DEACTIVATED
(amber)
Warning light
“comes on when front
passenger’s airbag is deactivated.
With front passenger’s airbag on, turning
the ignition key to MAR, warning light
“comes on steadily for about 4 seconds, it
flashes for other 4 seconds and then it
shall go off.
“
Warning light “indicates
failure of warning light ¬.
This condition is indicated by inter-
mittent blinking of warning light
“for longer than 4 seconds. In this case,
warning light ¬may not indicate
fault to the system. Contact Abarth
Dealership immediately to have the
system checked before driving off.
WARNING
HOT ENGINE
COOLANT (red)
Turning the ignition key to
MARthe warning light turns on, but it
should go off after a few seconds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on, proceed as
follows:
❒during normal travel: stop the car,
stop the engine and check that the wa-
ter level in the vessel is not under the
MIN line. In this case, wait for a few
minutes for the engine to cool down,
then slowly and carefully open the cap,
top-up with coolant and check that the
level is between the MIN and MAX
references on the vessel itself. Also
check for leakages. Should the warn-
ing light turn on again at the next start-
up, contact Abarth Dealership.
u
087-094 ABARTH 500 GB 29-04-2009 9:42 Pagina 89

90
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
❒If the vehicle is used under severe
conditions(e.g. towing of trailers up-
hill or fully loaded vehicle): slow down
and stop the car if the warning light
stays on. Stand for 2 or 3 minutes with
the engine running and slightly accel-
erated to ease a better circulation of
coolant. Then stop the engine. Check
correct liquid level as described above.
IMPORTANT Under severe use of the
car, keep the engine on and slightly accel-
erated for a few minutes before switching
it off.
On certain versions the dedicated message
is displayed.
LOW BATTERY
CHARGE (red)
Turning the ignition key to
MARthe warning light turns on, but it
should go out as soon as the engine is
started (with the engine running at idle
speed a brief delay in going out is allowed).
If the warning light stays on glowing steadi-
ly or flashing: contact immediately Abarth
Dealership.
w
ABS SYSTEM FAILURE
(amber)
Turning the ignition key to
MARthe warning light turns on, but it
should go off after a few seconds.
The warning light will light up when the
system is either not working or not avail-
able. In the case, the braking system will
work as normal without the extra poten-
tials offered by the ABS system. Drive
carefully and go to a Abarth Dealership as
soon as possible.
On certain versions the dedicated message
is displayed.
>
EBD FAILURE
(red) (amber)
Warning lights
xand >lit at the same
time with the engine running indicates an
EBD system failure or that the system is
not available. Early locking of the rear
wheels may occur in the event of violent
braking causing the car to swerve. Drive
very carefully to a Abarth Dealership to
have the system inspected.
On certain versions the dedicated message
is displayed.
x>
LOW ENGINE OIL
PRESSURE (red)
Turning the ignition key to
MARthe warning light turns on,
but it should go out as soon as the engine
is started.
On certain versions the dedicated message
is displayed.
v
If the warning light vturns on when the car is trav-
elling (on certain versions together
with the message on the display) stop
the engine immediately and contact
a Abarth Dealership.
WARNING
087-094 ABARTH 500 GB 29-04-2009 9:42 Pagina 90
