Page 125 of 266
123
TROUBLESHOOTING
7
Changing a wheel
CHANGING A WHEEL
1. PARKING THE VEHICLE
- If possible, park the vehicle on level, stable and non-slippery
ground.
- It is imperative that you ensure that the occupants get out of the
vehicle and wait in a safe location.
Depending on the country of
sale and for your own safety, use
the safety jackets and warning
triangles.
- Apply the handbrake, switch off the i g n i t i o n a n d e n g a g e fi r s t o r r e v e r s e
gear (position P for the automatic
g e a r b o x ) .
- If possible, place a chock under the wheel diagonally opposite the one
to be changed.

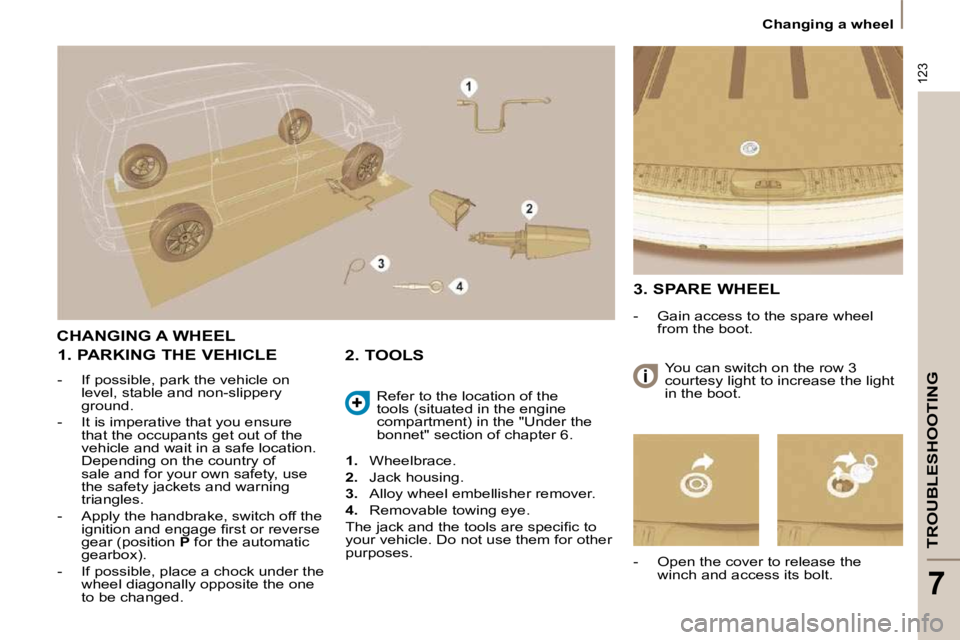

1. Wheelbrace.
2. Jack housing.
3. Alloy wheel embellisher remover.
4. Removable towing eye.
T h e j a c k a n d t h e t o o l s a r e s p e c i fi c t o
your vehicle. Do not use them for other
purposes. Refer to the location of the
tools (situated in the engine
compartment) in the "Under the
bonnet" section of chapter 6.
2. TOOLS
3. SPARE WHEEL
- Gain access to the spare wheel
from the boot.
- Open the cover to release the winch and access its bolt. You can switch on the row 3
courtesy light to increase the light
in the boot.
Page 133 of 266
130
Changing a fuse
CHANGING A FUSE
T h e f u s e b o x e s a r e l o c a t e d i n :
- the instrument panel lower glove b o x ( r i g h t - h a n d s i d e ) ,
- the battery compartment (right- h a n d s i d e fl o o r ) ,
- the engine compartment.

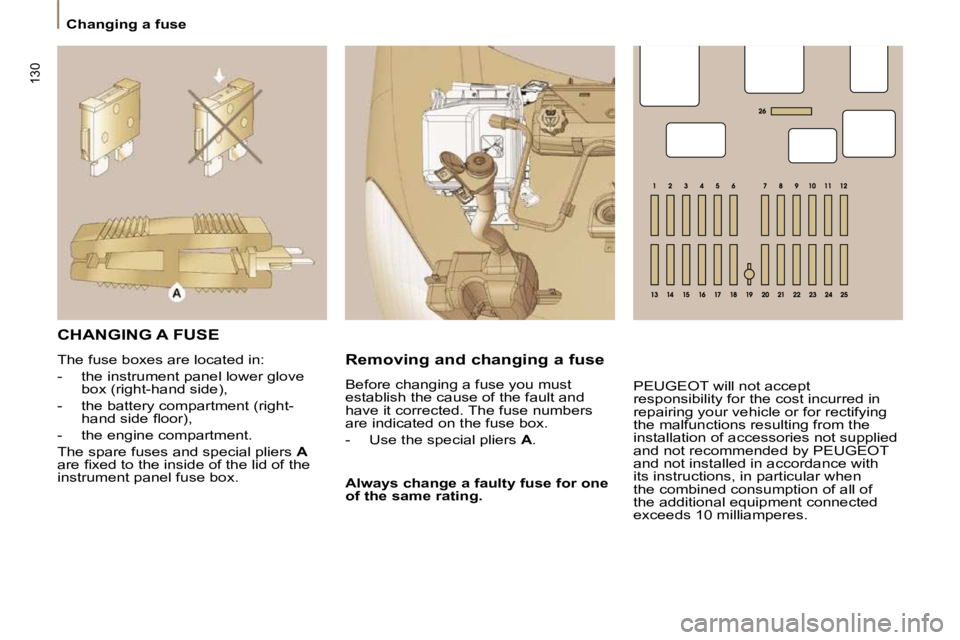

The spare fuses and special pliers A
a r e fi x e d t o t h e i n s i d e o f t h e l i d o f t h e
i n s t r u m e n t p a n e l f u s e b o x . Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
a r e i n d i c a t e d o n t h e f u s e b o x .
- Use the special pliers
A .
Always change a faulty fuse for one
of the same rating. Removing and changing a fuse
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
e x c e e d s 1 0 m i l l i a m p e r e s .
Page 137 of 266
134
Changing a fuse
Fuse box
To access the fuses located in the
engine compartment (to the left of
the coolant reservoir):
- unclip the cover.
ENGINE COMPARTMENT
FUSES
The designations communicated
only relate to the fuses which can
be changed by the user using
the pliers and spare fuses, located in
t h e g l o v e b o x b e h i n d t h e i n s t r u m e n t
p a n e l f u s e b o x , o n t h e r i g h t - h a n d s i d e .
For any other work, visit a PEUGEOT
dealer.
Carefully close the cover when you
h a v e fi n i s h e d .
The electrical system of your vehicle is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, consult a PEUGEOT dealer.
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from the
installation of accessories not supplied
and not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular where the
equipment in question consumes more
than 10 milliamperes. Intended for professionals: for full
fuse and relay information, consult the
"Methods" diagram via the PEUGEOT
network.
Page 138 of 266
135
TROUBLESHOOTING
7
Changing a fuse
N°
Rating
(Amps)
Functions
1 20 Engine control unit, Fuel supply and air supply systems, Fan assembly.
2 15 Horn.
3 10 Front and rear wash-wipe pump.
4 20 Headlamp wash pump.
5 15 Fuel supply system.
6 10 P o w e r s t e e r i n g , S e c o n d a r y b r a k e p e d a l s w i t c h , A u t o m a t i c g e a r b o x c o n t r o l u n i t .
7 10 Braking system (ABS/ESP).
8 20 Starter control.
9 10 Engine control unit.
10 30 Fuel supply and air supply systems, Emission control systems.
11 40 Front air conditioning.
12 30 Windscreen wipers.
13 40 Built-in systems interface.
14 30 Not used.
Page 140 of 266
137
TROUBLESHOOTING
7
Having your vehicle towed

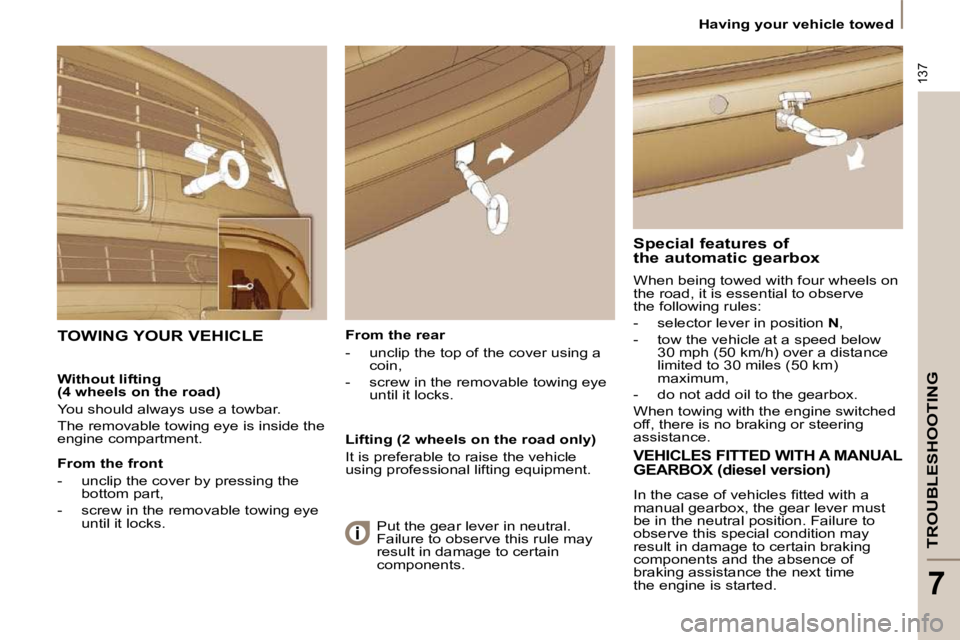

From the rear
- unclip the top of the cover using a coin,
- screw in the removable towing eye until it locks.
TOWING YOUR VEHICLE
Special features of
the automatic gearbox
When being towed with four wheels on
the road, it is essential to observe
the following rules:
- selector lever in position N ,
- tow the vehicle at a speed below 30 mph (50 km/h) over a distance
limited to 30 miles (50 km)
m a x i m u m ,
- d o n o t a d d o i l t o t h e g e a r b o x .
When towing with the engine switched
off, there is no braking or steering
assistance.
Without lifting
(4 wheels on the road)
You should always use a towbar.
The removable towing eye is inside the
engine compartment.
From the front
- unclip the cover by pressing the
bottom part,
- screw in the removable towing eye until it locks. Lifting (2 wheels on the road only)
It is preferable to raise the vehicle
using professional lifting equipment.
VEHICLES FITTED WITH A MANUAL
GEARBOX (diesel version)
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
m a n u a l g e a r b o x , t h e g e a r l e v e r m u s t
be in the neutral position. Failure to
observe this special condition may
result in damage to certain braking
components and the absence of
b r a k i n g a s s i s t a n c e t h e n e x t t i m e
the engine is started.
Put the gear lever in neutral.
Failure to observe this rule may
result in damage to certain
components.
Page 141 of 266
Petrol and Diesel technical data
138
This table presents the Petrol and Diesel Model Codes
Engine, __xxx__ Petrol 2.0 PETROL __RFJ__
Diesel 2.0 HDi __RHK__
2.0 HDi PEF __RHR__
2.2 HDi PEF
__4HP__ __4HT__
__4HR__ __4HS__
Number of seats, xx_____ 7 seats maximum EA_____
Base model: 5 individual seats 8 seats maximum EB_____
Type of gearbox , _____xx Manual
(5-speed) _____C
(6-speed) _____H
Automatic
(6-speed) _____J
Category and type of towing device A 50 X
Part number, instructions concerning
fi t t i n g R 06-0049
Page 142 of 266
139
Petrol and Diesel technical data
TECHNICAL DATA
8
PETROL CONSUMPTION
As per EC Directive 80/1268 (as amended) in MPG (li tres/100 km)
Model codes Engines Gearbox Urban driving
Extra-urban
driving
Mixed driving
Emission of
CO2 by mass
(g/km)
E_RFJ__ 2.0 PETROL Manual 12.0 7.3 9.0 213
The consumption values, presented here, are the values communica ted at the time of printing. These consumption
values were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style
o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e o f t h e
accessories.
PETROL ENGINE
Model codes
E_RFJ__
Engines
2.0 PETROL
Manual (5-speed)
Power (bhp) 140
Max. power: EU standard (KW) 103
Capacity (cm
3 ) 1 997
Bore x stroke (mm) 85 x 88
Number of valves 16
Max. power engine speed (rpm) 6 000
Max torque: EU standard (Nm) 200
Max. torque engine speed (rpm) 4 000
Fuel RON 95 - RON 98
Catalytic converter Yes
Electronic injection Yes
Oil capacities (in litres)
E n g i n e s ( w i t h fi l t e r r e p l a c e m e n t ) 5.0
Page 143 of 266
Petrol and Diesel technical data
138
This table presents the Petrol and Diesel Model Codes
Engine, __xxx__ Petrol 2.0 PETROL __RFJ__
Diesel 2.0 HDi __RHK__
2.0 HDi PEF __RHR__
2.2 HDi PEF
__4HP__ __4HT__
__4HR__ __4HS__
Number of seats, xx_____ 7 seats maximum EA_____
Base model: 5 individual seats 8 seats maximum EB_____
Type of gearbox , _____xx Manual
(5-speed) _____C
(6-speed) _____H
Automatic
(6-speed) _____J
Category and type of towing device A 50 X
Part number, instructions concerning
fi t t i n g R 06-0049
