116
Opening the bonnet
OPENING THE BONNET
From inside:
- lift the cover located at the left foot of the passenger seat.
- pull the control upwards. "Bonnet open" warning
This warning is linked to the
alarm
option only.
With the engine running or the vehicle
moving, a graphic on the display,
accompanied by an audible signal,
warns you that the bonnet is not
properly closed.
From outside:
- lift the catch and raise the bonnet.
Bonnet strut
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace the
strut in its housing.
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly locked.
Page 121 of 266
119
Levels
CHECKS
6
These regular maintenance
operations will keep your vehicle
in good running order. Consult the
instructions at PEUGEOT dealerships
or in the servicing booklet enclosed in
the handbook pack. To maintain the reliability of engines
and emission control systems, the use
of additives in engine oil is prohibited.
Oil change
It is imperative that this is carried out at
t h e i n t e r v a l s s p e c i fi e d a n d t h e v i s c o s i t y
g r a d e o f t h e o i l s e l e c t e d m u s t f u l fi l t h e
requirements in accordance with the
manufacturer’s servicing schedule.
Consult the instructions at PEUGEOT
dealerships.
R e m o v e t h e d i p s t i c k b e f o r e fi l l i n g .
C h e c k t h e l e v e l a f t e r fi l l i n g ( n e v e r
exceed the max mark).
Screw the cap back onto the sump
before closing the bonnet.
LEVELS
I f y o u h a v e t o r e m o v e / r e fi t t h e
engine style cover, handle it with
c a r e t o a v o i d d a m a g i n g t h e fi x i n g
clips.
Dipstick
Warning lights
Oil level
Check the level regularly and top up
between changes. The maximum
consumption is 0.5 litre per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the dipstick.
Viscosity selection
In all cases, the oil selected must meet
the manufacturer’s requirements. Checking by means of the
warning lights on the instrument
panel is described in chapter 2,
"Instruments and controls" section.
Changing the brake fluid
T h e b r a k e fl u i d m u s t b e c h a n g e d a t
the intervals stated, according to the
manufacturer’s servicing schedule.
U s e fl u i d s r e c o m m e n d e d b y t h e
m a n u f a c t u r e r , w h i c h f u l fi l D O T 4
standards.
The level must be between the MIN
and MAX marks on the reservoir.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
checked by a PEUGEOT dealer as
soon as possible.
There are two marks
on the dipstick:
A = maximum
I f y o u fi l l p a s t t h i s
mark, contact a
PEUGEOT dealer.
B = minimum
Never allow the level
to fall below this
mark.
Page 122 of 266
120
Levels
Cooling system
O n l y u s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
Otherwise, you risk seriously damaging
your engine.
When the engine is warm, the
temperature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to
release the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and top
up the level with coolant.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
checked by a PEUGEOT dealer as
soon as possible.
Power steering fluid level
The vehicle must be parked on level
ground with the engine cold. Unscrew
the cap integrated with the gauge and
check the level which must be between
the MIN and MAX marks. During regeneration of the particle
e m i s s i o n fi l t e r , r e l a y n o i s e m a y b e
heard under the fascia.
If the message is still displayed and
the service warning light remains on,
contact a PEUGEOT dealer.
Diesel additive level (Diesel with
particle emission filter)
When this occurs with the engine
running, this is due to the start of
s a t u r a t i o n o f t h e p a r t i c l e e m i s s i o n fi l t e r
(exceptionally prolonged urban driving
c o n d i t i o n s : l o w s p e e d , l o n g t r a f fi c
jams, ...).
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u
are advised to drive at a speed of
more than 40 mph (60 km/h) as soon
a s p o s s i b l e , w h e n t r a f fi c c o n d i t i o n s
p e r m i t , f o r a t l e a s t fi v e m i n u t e s ( u n t i l
the message disappears and the
service warning light is switched off).
Topping up
The level must be between the MIN
and MAX marks on the expansion
b o t t l e . I f m o r e t h a n 1 l i t r e o f fl u i d i s
required to top up the level, have
the system checked by a PEUGEOT
dealer.
Windscreen wash and headlamp
wash level
For best quality cleaning and for your
safety, we would advise that you use
products of the PEUGEOT range.
To avoid ice forming, do not use water.
Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer
without delay.
Used oil
Avoid prolonged contact of used oil
with the skin.
B r a k e fl u i d i s h a r m f u l t o h e a l t h a n d
very corrosive.
Do not dispose of used oil, brake
fl u i d o r c o o l a n t i n t o d r a i n s o r o n t o
the ground but into the containers
dedicated to this use at PEUGEOT
dealerships.
The minimum level of this
additive is indicated by
lighting of the service warning
light, accompanied by an
audible signal and a message
on the display.
Page 125 of 266
123
TROUBLESHOOTING
7
Changing a wheel
CHANGING A WHEEL
1. PARKING THE VEHICLE
- If possible, park the vehicle on level, stable and non-slippery
ground.
- It is imperative that you ensure that the occupants get out of the
vehicle and wait in a safe location.
Depending on the country of
sale and for your own safety, use
the safety jackets and warning
triangles.
- Apply the handbrake, switch off the i g n i t i o n a n d e n g a g e fi r s t o r r e v e r s e
gear (position P for the automatic
g e a r b o x ) .
- If possible, place a chock under the wheel diagonally opposite the one
to be changed.
1. Wheelbrace.
2. Jack housing.
3. Alloy wheel embellisher remover.
4. Removable towing eye.
T h e j a c k a n d t h e t o o l s a r e s p e c i fi c t o
your vehicle. Do not use them for other
purposes. Refer to the location of the
tools (situated in the engine
compartment) in the "Under the
bonnet" section of chapter 6.
2. TOOLS
3. SPARE WHEEL
- Gain access to the spare wheel
from the boot.
- Open the cover to release the winch and access its bolt. You can switch on the row 3
courtesy light to increase the light
in the boot.
Page 129 of 266
127
TROUBLESHOOTING
7
Changing a bulb
CHANGING A BULB
Handle the bulbs with a dry cloth.
Make access easier on the right-
hand side by removing the wash-wipe
p i p e a n d t h e f u s e b o x c o v e r .
High pressure washing: when using
this type of washing on stubborn dirt,
do not persist on the headlamps, the
lights and their surrounds to avoid
damaging their coating and their seal. 2 - Main beam headlamps
H 7 - 5 5 W o r x e n o n b u l b .
- Turn the protective cover
corresponding to the faulty bulb
a quarter of a turn to the left and
remove it.
- Disconnect the connector.
- Press the end of the securing clip to free it. Change the bulb.
W h e n fi t t i n g t h e n e w b u l b , e n s u r e t h a t
the direction notches are positioned
c o r r e c t l y a n d t h e s e c u r i n g c l i p i s fi x e d
properly.
- Reconnect the connector.
- R e fi t t h e p r o t e c t i v e c o v e r , t h e n t u r n it a quarter of a turn to the right.
3 - Fog lamps
H1-55 W.
FRONT LIGHTS
1. Dipped headlamps
2. Main beam headlamps
3. Fog lamps
4. Side lights
5. Direction indicators 1 - Dipped beam headlamps
H 7 - 5 5 W o r x e n o n b u l b .
4 - Side lights
W 5 W.
- Push the light from the inside towards the outside of the bumper.
- Pull the light forwards.
- Turn the bulb holder a quarter of a turn to the left and remove it.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
W h e n r e fi t t i n g , e n g a g e t h e l i g h t
towards the outside and move it
towards the inside of the bumper.
WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be changed by a
PEUGEOT dealer.
Page 134 of 266
131
TROUBLESHOOTING
7
Changing a fuse
INSTRUMENT PANEL FUSES
- O p e n t h e l o w e r g l o v e b o x o n t h e r i g h t - h a n d s i d e .
- Pull the handle to open the cover and access the fuses.
N°
Rating
(Amps)
Functions
1 15 Rear wiper.
2 - Not used.
3 5 Air bag control unit.
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manu
al air conditioning, Clutch
s w i t c h , H e a d l a m p b e a m h e i g h t , P a r t i c l e e m i s s i o n fi l t e r p u m p , E l e c t r o c h r o m a t i c i n t e r i o r m i r r o r .
5 30 Electric mirrors, Electric window motor.
6 30 Front electric windows supply, Sunroof row 1.
7 5 C o u r t e s y l i g h t s , G l o v e b o x l i g h t , C o u r t e s y m i r r o r l i g h t s .
8 20 Multifunction display, Anti-theft alarm siren, Audio equipmen
t, Compact disc changer, Audio/
t e l e p h o n e , T r a i l e r f u s e b o x , D i e s e l a d d i t i v e c o n t r o l u n i t , T y r e u n d e r - i n fl a t i o n d e t e c t i o n c o n t r o l u n i t ,
Sliding doors module control unit.
9 30 Lighter.
10 15 S t e e r i n g w h e e l s w i t c h i n g , T r a i l e r f u s e b o x .
11 15 D i a g n o s t i c s o c k e t , I g n i t i o n s w i t c h , A u t o m a t i c g e a r b o x .
12 15 Driver’s seat memory unit, Passenger’s electric seat, Air bag control
unit, Parking assistance
control unit, Sliding side door buttons, Hands-free kit.
13 5 E n g i n e f u s e b o x , T r a i l e r f u s e b o x .
14 15 Rain sensor, Automatic air conditioning, Instrument panel, Su
nroofs, Odometer warning lights
unit, Audio-telematics control.
15 30 Locking/unlocking/deadlocking of the accesses.
16 - Not used.
17 40 Heated rear screen.
Page 184 of 266
0 7
1
2
2
11
126 3
9
2
9.31
E a c h p r e s s o f t h e b u t t o n p e r m i t s d i s p l a y i n g o f t h e d i f f e r e n t t r i p c o m p u t e r d a t a i n s u c c e s s i o n , d e p e n d i n g o n t h e d i s p l a y .
Z e r o r e s e t When the required route is displayed, press the control for more than two seconds.
TRIP COMPUTER
V E H I C L E D I A G N O S T I C S
P r e s s t h e M A I N b u t t o n o r p r e s s the MODE button several times in succession until the trip computer is displayed.
- T h e " v e h i c l e " t a b : T h e r a n g e , the current consumption and t h e d i s t a n c e r e m a i n i n g t o t h e destination. - T a b " 1 " ( r o u t e 1 ) w i t h : T h e a v e r a g e s p e e d , t h e a v e r a g e c o n s u m p t i o n and the distance travelled calculated over route "1". - T a b " 2 " ( r o u t e 2 ) w i t h t h e s a m e functions for a second route.
CONTROL SHORT-CUTS
On-board computer
km
860
km
l/100
Instantaneous info.
Range
WARNINGS LOG
STATUS OF FUNCTIONS
TYRE UNDER-INFLATION DETECTOR ZERO RESET
Page 210 of 266
0 4
1
2
5
4
3
9.53

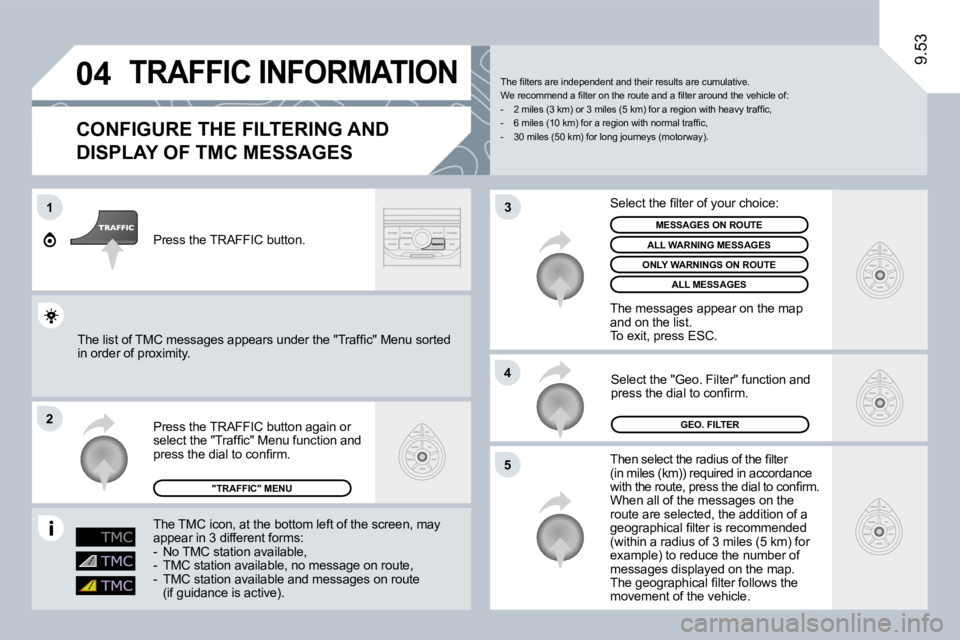

TRAFFIC INFORMATION
CONFIGURE THE FILTERING AND
DISPLAY OF TMC MESSAGES
T h e n s e l e c t t h e r a d i u s o f t h e fi l t e r ( i n m i l e s ( k m ) ) r e q u i r e d i n a c c o r d a n c e w i t h t h e r o u t e , p r e s s t h e d i a l t o c o n fi r m . W h e n a l l o f t h e m e s s a g e s o n t h e route are selected, the addition of a g e o g r a p h i c a l fi l t e r i s r e c o m m e n d e d ( w i t h i n a r a d i u s o f 3 m i l e s ( 5 k m ) f o r e x a m p l e ) t o r e d u c e t h e n u m b e r o f m e s s a g e s d i s p l a y e d o n t h e m a p . T h e g e o g r a p h i c a l fi l t e r f o l l o w s t h e movement of the vehicle.
P r e s s t h e T R A F F I C b u t t o n a g a i n o r s e l e c t t h e " T r a f fi c " M e n u f u n c t i o n a n d p r e s s t h e d i a l t o c o n fi r m .
P r e s s t h e T R A F F I C b u t t o n .
T h e fi l t e r s a r e i n d e p e n d e n t a n d t h e i r r e s u l t s a r e c u m u l a t i v e . W e r e c o m m e n d a fi l t e r o n t h e r o u t e a n d a fi l t e r a r o u n d t h e v e h i c l e o f : - 2 m i l e s ( 3 k m ) o r 3 m i l e s ( 5 k m ) f o r a r e g i o n w i t h h e a v y t r a f fi c , - 6 m i l e s ( 1 0 k m ) f o r a r e g i o n w i t h n o r m a l t r a f fi c , - 3 0 m i l e s ( 5 0 k m ) f o r l o n g j o u r n e y s ( m o t o r w a y ) .
Select the "Geo. Filter" function and p r e s s t h e d i a l t o c o n fi r m .
T h e l i s t o f T M C m e s s a g e s a p p e a r s u n d e r t h e " T r a f fi c " M e n u s o r t e d T h e l i s t o f T M C m e s s a g e s a p p e a r s u n d e r t h e " T r a f fi c " M e n u s o r t e d in order of proximity.
S e l e c t t h e fi l t e r o f y o u r c h o i c e :
MESSAGES ON ROUTE
ALL WARNING MESSAGES
ONLY WARNINGS ON ROUTE
ALL MESSAGES
T h e m e s s a g e s a p p e a r o n t h e m a p and on the list. To exit, press ESC.
" T R A F F I C " M E N U
The TMC icon, at the bottom left of the scthe screen, may appear in 3 different forms: - N o T M C s t a t i o n a v a i l a b l e , - T M C s t a t i o n a v a i l a b l e , n o m e s s a g e o n r o u t e , - T M C s t a t i o n a v a i l a b l e , n o m e s s a g e o n r o u t e , - T M C s t a t i o n a v a i l a b l e a n d m e s s a g e s o n r o u t e - T M C s t a t i o n a v a i l a b l e a n d m e s s a g e s o n r o u t e ( i f g u i d a n c e i s a c t i v e ) .
G E O . F I L T E R
