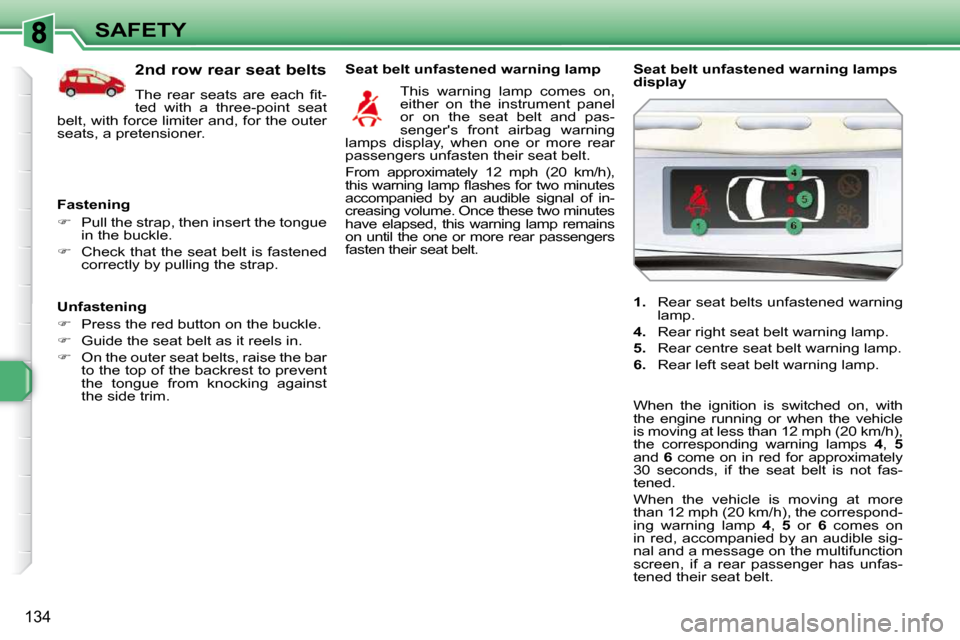

134
SAFETY
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in.
On the outer seat belts, raise the bar
to the top of the backrest to prevent
the tongue from knocking against
the side trim. Seat belt unfastened warning lamp
This warning lamp comes on,
either on the instrument panel
or on the seat belt and pas-
senger's front airbag warning
lamps display, when one or more rear
passengers unfasten their seat belt.
From approximately 12 mph (20 km/h),
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n u t e s
accompanied by an audible signal of in-
creasing volume. Once these two minutes
have elapsed, this warning lamp remains
on until the one or more rear passengers
fasten their seat belt.
1. Rear seat belts unfastened warning
lamp.
4. Rear right seat belt warning lamp.
5. Rear centre seat belt warning lamp.
6. Rear left seat belt warning lamp.
Seat belt unfastened warning lamps
display
When the ignition is switched on, with
the engine running or when the vehicle
is moving at less than 12 mph (20 km/h),
the corresponding warning lamps
4 , 5
and 6 come on in red for approximately
30 seconds, if the seat belt is not fas-
tened.
When the vehicle is moving at more
than 12 mph (20 km/h), the correspond-
ing warning lamp 4 , 5 or 6 comes on
in red, accompanied by an audible sig-
nal and a message on the multifunction
screen, if a rear passenger has unfas-
tened their seat belt.
2nd row rear seat belts
T h e r e a r s e a t s a r e e a c h fi t -
ted with a three-point seat
belt, with force limiter and, for the outer
seats, a pretensioner.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Page 155 of 329
!
i
!
141
DRIVING
When parking on a slope, direct
your wheels against the pavement,
apply the parking brake and engage
a gear.
PARKING BRAKE
Applying
Pull the parking brake lever fully up
to immobilise your vehicle. When the vehicle is being driven,
if this warning lamp and the
STOP
warning lamp come on, accom-
panied by an audible signal and a
message on the multifunction screen, this
indicates that the parking brake is still on
or has not been properly released.
Releasing
Pull the parking brake lever gently,
press the release button then lower
the lever fully.
6-SPEED MANUAL GEARBOX
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
Raise the ring under the knob and
push the gear lever to the left then
forwards.
Page 156 of 329
i

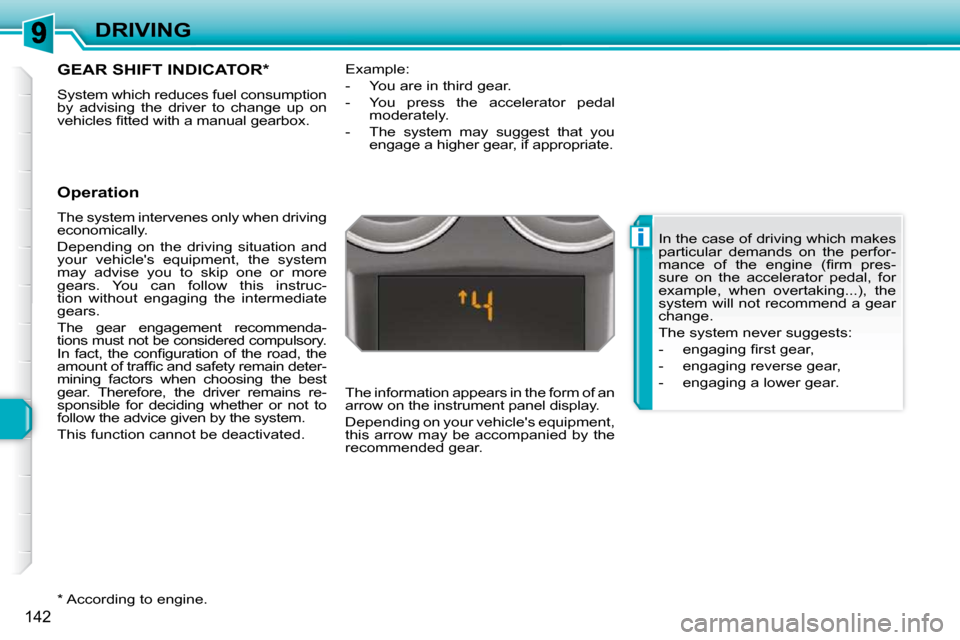

142
DRIVING
GEAR SHIFT INDICATOR *
System which reduces fuel consumption
by advising the driver to change up on
v e h i c l e s fi t t e d w i t h a m a n u a l g e a r b o x .
Operation
The system intervenes only when driving
economically.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruc-
tion without engaging the intermediate
gears.
The gear engagement recommenda-
tions must not be considered compulsory.
I n f a c t , t h e c o n fi g u r a t i o n o f t h e r o a d , t h e
a m o u n t o f t r a f fi c a n d s a f e t y r e m a i n d e t e r -
mining factors when choosing the best
gear. Therefore, the driver remains re-
sponsible for deciding whether or not to
follow the advice given by the system.
This function cannot be deactivated.
* According to engine. E x a m p l e :
- You are in third gear.
- You press the accelerator pedal
moderately.
- The system may suggest that you engage a higher gear, if appropriate.
The information appears in the form of an
arrow on the instrument panel display.
Depending on your vehicle's equipment,
this arrow may be accompanied by the
recommended gear. In the case of driving which makes
particular demands on the perfor-
m a n c e o f t h e e n g i n e ( fi r m p r e s -
sure on the accelerator pedal, for
e x a m p l e , w h e n o v e r t a k i n g . . . ) , t h e
system will not recommend a gear
change.
The system never suggests:
- e n g a g i n g fi r s t g e a r ,
- engaging reverse gear,
- engaging a lower gear.
Page 158 of 329
ii
!i

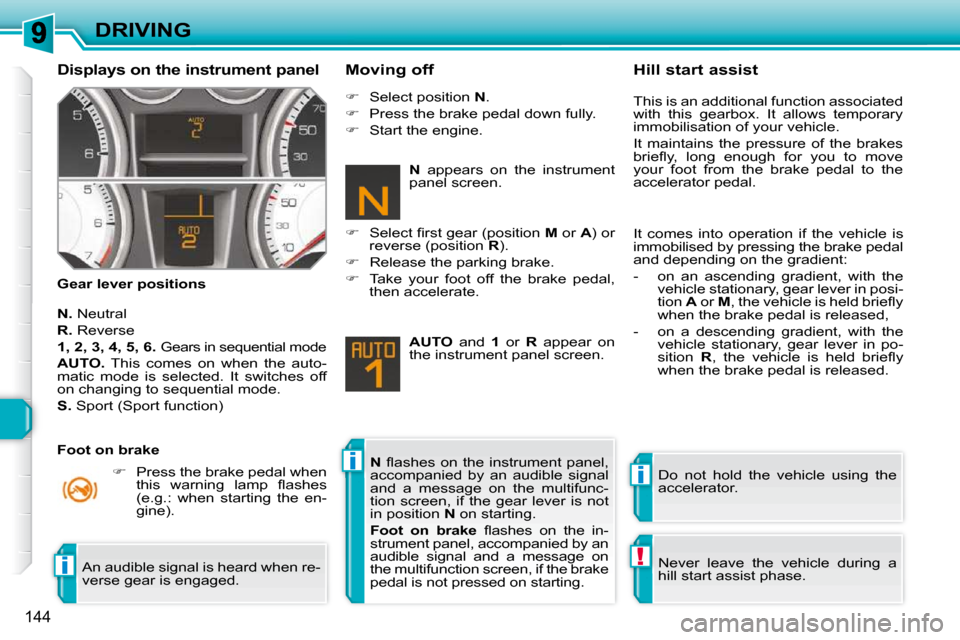

144
DRIVING
Displays on the instrument panel
Gear lever positions Moving off
N. Neutral
R. Reverse
1, 2, 3, 4, 5, 6.
Gears in sequential mode
AUTO. This comes on when the auto-
matic mode is selected. It switches off
on changing to sequential mode.
S. S p o r t ( S p o r t f u n c t i o n )
Press the brake pedal when
t h i s w a r n i n g l a m p fl a s h e s
(e.g.: when starting the en-
g i n e ) .
Select position N .
Press the brake pedal down fully.
Start the engine.
S e l e c t fi r s t g e a r ( p o s i t i o n M or A ) o r
reverse (position R ) .
Release the parking brake.
Take your foot off the brake pedal,
then accelerate.
AUTO and 1 or R appear on
the instrument panel screen.
Do not hold the vehicle using the
accelerator.
N fl a s h e s o n t h e i n s t r u m e n t p a n e l ,
accompanied by an audible signal
and a message on the multifunc-
tion screen, if the gear lever is not
in position N on starting.
Foot on brake fl a s h e s o n t h e i n -
strument panel, accompanied by an
audible signal and a message on
the multifunction screen, if the brake
pedal is not pressed on starting. Hill start assist
This is an additional function associated
w i t h t h i s g e a r b o x . I t a l l o w s t e m p o r a r y
immobilisation of your vehicle.
It maintains the pressure of the brakes
b r i e fl y , l o n g e n o u g h f o r y o u t o m o v e
your foot from the brake pedal to the
accelerator pedal.
Never leave the vehicle during a
hill start assist phase.
It comes into operation if the vehicle is
immobilised by pressing the brake pedal
and depending on the gradient:
- on an ascending gradient, with the
vehicle stationary, gear lever in posi-
tion A or M , t h e v e h i c l e i s h e l d b r i e fl y
when the brake pedal is released,
- on a descending gradient, with the vehicle stationary, gear lever in po-
sition R , t h e v e h i c l e i s h e l d b r i e fl y
when the brake pedal is released.
An audible signal is heard when re-
verse gear is engaged.
N appears on the instrument
panel screen.
Foot on brake
Page 159 of 329
i
!i

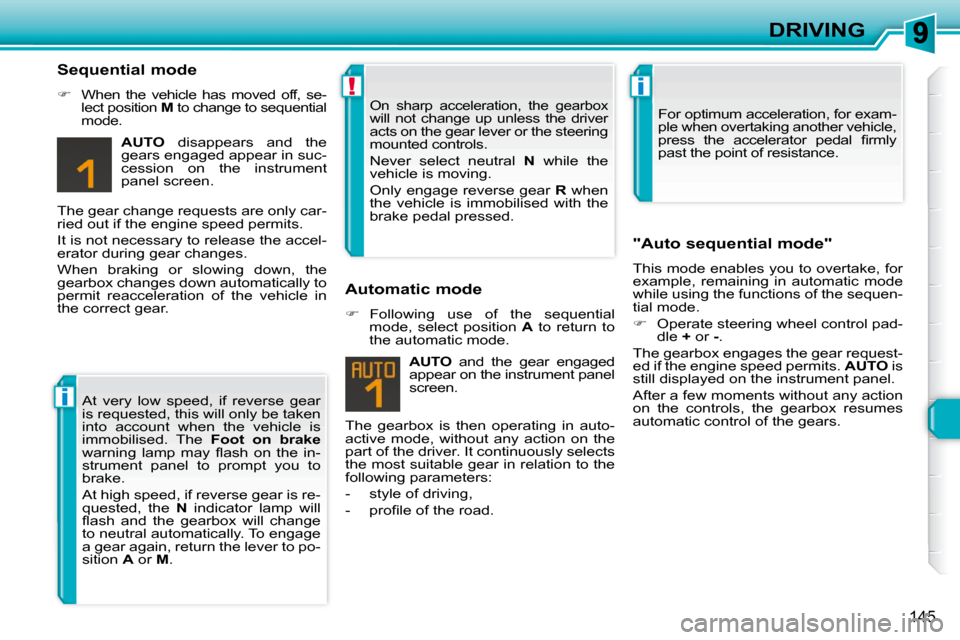

145
DRIVING
Sequential mode
When the vehicle has moved off, se-
lect position M to change to sequential
mode.
AUTO disappears and the
gears engaged appear in suc-
cession on the instrument
panel screen.
The gear change requests are only car-
ried out if the engine speed permits.
It is not necessary to release the accel-
erator during gear changes.
When braking or slowing down, the
g e a r b o x c h a n g e s d o w n a u t o m a t i c a l l y t o
permit reacceleration of the vehicle in
the correct gear.
T h e g e a r b o x i s t h e n o p e r a t i n g i n a u t o -
active mode, without any action on the
part of the driver. It continuously selects
the most suitable gear in relation to the
following parameters:
- style of driving,
- p r o fi l e o f t h e r o a d .
AUTO and the gear engaged
appear on the instrument panel
screen.
Automatic mode
Following use of the sequential
mode, select position A to return to
the automatic mode. "Auto sequential mode"
This mode enables you to overtake, for
e x a m p l e , r e m a i n i n g i n a u t o m a t i c m o d e
while using the functions of the sequen-
tial mode.
Operate steering wheel control pad-
dle + or - .
T h e g e a r b o x e n g a g e s t h e g e a r r e q u e s t -
ed if the engine speed permits. AUTO is
still displayed on the instrument panel.
After a few moments without any action
o n t h e c o n t r o l s , t h e g e a r b o x r e s u m e s
automatic control of the gears.
At very low speed, if reverse gear
is requested, this will only be taken
into account when the vehicle is
immobilised. The
Foot on brake
w a r n i n g l a m p m a y fl a s h o n t h e i n -
strument panel to prompt you to
brake.
At high speed, if reverse gear is re-
quested, the N indicator lamp will
fl a s h a n d t h e g e a r b o x w i l l c h a n g e
to neutral automatically. To engage
a gear again, return the lever to po-
sition A or M .
O n s h a r p a c c e l e r a t i o n , t h e g e a r b o x will not change up unless the driver
acts on the gear lever or the steering
mounted controls.
Never select neutral N while the
vehicle is moving.
Only engage reverse gear R when
the vehicle is immobilised with the
brake pedal pressed. F o r o p t i m u m a c c e l e r a t i o n , f o r e x a m -
ple when overtaking another vehicle,
p r e s s t h e a c c e l e r a t o r p e d a l fi r m l y
past the point of resistance.
Page 160 of 329
!!
i
146
DRIVING Stopping the vehicle Operating fault With the ignition on, if this warn-
ing lamp comes on and AUTO
fl a s h e s , a c c o m p a n i e d b y a n a u -
dible signal and a message on
the multifunction screen, this indicates
a m a l f u n c t i o n o f t h e g e a r b o x .
Have it checked by a PEUGEOT dealer.
It is essential to press the brake
pedal when starting the engine.
When parking, is it essential to ap-
ply the parking brake to immobilise
the vehicle, whatever the circum-
stances.
When immobilising the vehicle,
with the engine running, it is es-
sential to place the gear lever in
neutral
N .
Before carrying out any work in the
engine compartment, check that
the gear lever is in neutral N and
that the parking brake is applied.
With the ignition on, if the warning
lamp above and this warning lamp
come on, accompanied by an au-
dible signal and a message on the
multifunction screen, this indicates a mal-
function of the hill start assist system.
Have it checked by a PEUGEOT dealer.
Sport function
Following selection of the sequential
mode or automatic mode, press but-
ton S to activate the Sport function
which offers you a more dynamic
style of driving.
S a p p e a r s n e x t t o t h e g e a r e n -
gaged on the instrument panel
screen.
Press button S again to deactivate
the function.
S is then cleared from the instrument
panel screen.
The Sport function is deactivated
each time the ignition is switched
off. Before switching off the engine, you can
choose to:
- move to position
N to engage neutral,
- leave the gear engaged; in this
case, it will not be possible to move
the vehicle.
In both cases, it is essential that you ap-
ply the parking brake to immobilise the
vehicle. This warning lamp may also come on if
a door is opened.
Page 161 of 329
147
DRIVING
"PORSCHE TIPTRONIC SYSTEM" AUTOMATIC GEARBOX
F o u r o r s i x s p e e d a u t o m a t i c g e a r b o x
which offers a choice between the comfort
of fully automatic operation, enhanced by
sport and snow programmes, or manual
gear changing.
Four driving modes are provided:
- automatic operation for electronic
management of the gears by the
g e a r b o x ,
- sport programme for a more dy-
namic style of driving,
- snow programme to improve dri-
ving when traction is poor,
- manual operation for sequential
changing of the gears by the driver. Gear lever
P. Park.
- Immobilisation of the vehicle, parking brake on or off.
- Starting the engine.
R. Reverse.
- Reversing manoeuvres, vehicle sta- tionary, engine at idle.
N. Neutral.
- Immobilisation of the vehicle, parking brake on.
- Starting the engine.
D. Automatic operation.
M.+/- Manual operation with sequential
c h a n g i n g o f t h e f o u r o r s i x g e a r s .
Push forwards to change up through
the gears.
or
Pull rearwards to change down
through the gears. Displays on the instrument panel
When you move the lever in the gate
to select a position, the corresponding
indicator lamp is displayed on the in-
strument panel.
P. Park
R. Reverse
N. Neutral
D. D r i v e ( A u t o m a t i c d r i v i n g )
S. Sport programme
. Snow programme
1 to 4. Gear engaged during
1 to 6. manual operation
-. Invalid value during manual op-
eration
Press the brake pedal when
t h i s i n d i c a t o r l a m p fl a s h e s
( e . g . : s t a r t i n g t h e e n i n e ) .

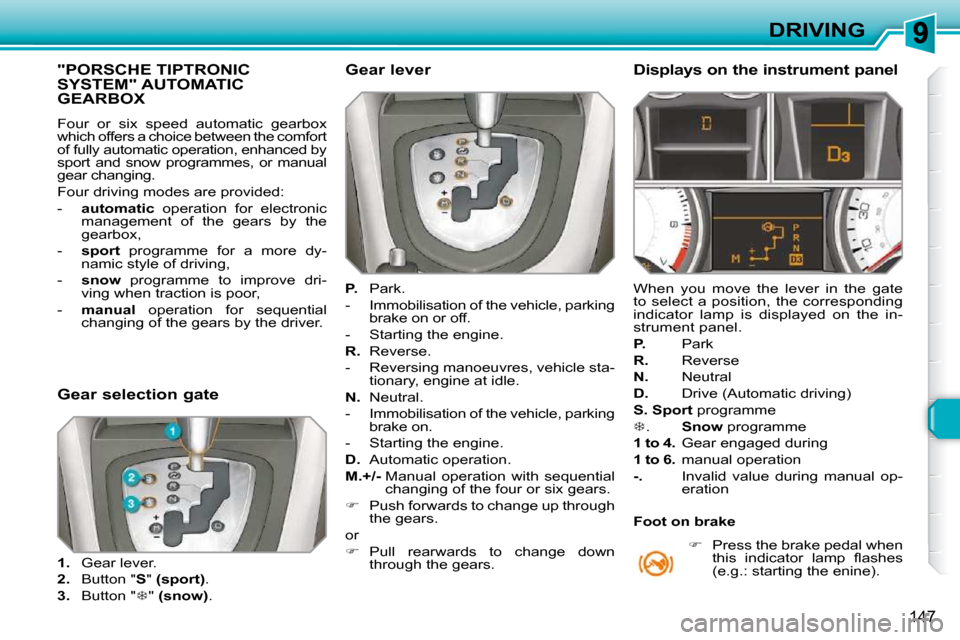

Gear selection gate
1. Gear lever.
2. Button " S " (sport) .
3. Button " " (snow) . Foot on brake
Page 162 of 329
!
!
i
148
DRIVING

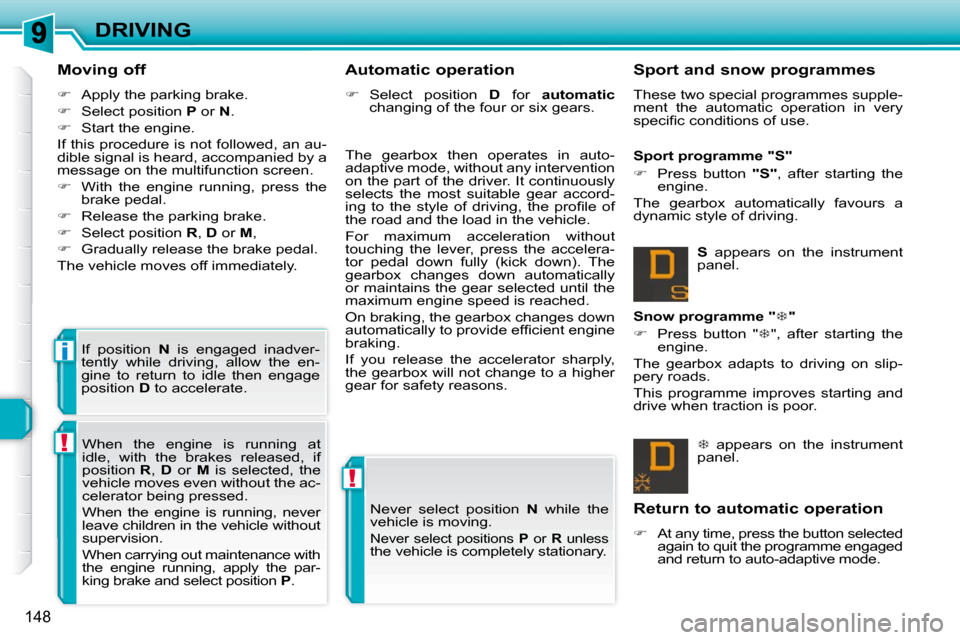

Moving off
Apply the parking brake.
Select position P or N .
Start the engine.
If this procedure is not followed, an au-
dible signal is heard, accompanied by a
message on the multifunction screen.
With the engine running, press the
brake pedal.
Release the parking brake.
Select position R , D or M ,
Gradually release the brake pedal.
The vehicle moves off immediately.
If position N is engaged inadver-
tently while driving, allow the en-
gine to return to idle then engage
position D to accelerate. T h e g e a r b o x t h e n o p e r a t e s i n a u t o -
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
i n g t o t h e s t y l e o f d r i v i n g , t h e p r o fi l e o f
the road and the load in the vehicle.
F o r m a x i m u m a c c e l e r a t i o n w i t h o u t
touching the lever, press the accelera-
t o r p e d a l d o w n f u l l y ( k i c k d o w n ) . T h e
g e a r b o x c h a n g e s d o w n a u t o m a t i c a l l y
or maintains the gear selected until the
m a x i m u m e n g i n e s p e e d i s r e a c h e d .
O n b r a k i n g , t h e g e a r b o x c h a n g e s d o w n
a u t o m a t i c a l l y t o p r o v i d e e f fi c i e n t e n g i n e
braking.
If you release the accelerator sharply,
t h e g e a r b o x w i l l n o t c h a n g e t o a h i g h e r
gear for safety reasons.
Automatic operation
Select position D for automatic
c h a n g i n g o f t h e f o u r o r s i x g e a r s .
appears on the instrument
panel.
Snow programme "
"
Press button " ", after starting the
engine.
T h e g e a r b o x a d a p t s t o d r i v i n g o n s l i p -
pery roads.
This programme improves starting and
drive when traction is poor.
S appears on the instrument
panel.
Sport programme "S"
Press button "S" , after starting the
engine.
T h e g e a r b o x a u t o m a t i c a l l y f a v o u r s a
dynamic style of driving.
Never select position N while the
vehicle is moving.
Never select positions P or R unless the vehicle is completely stationary.
When the engine is running at
idle, with the brakes released, if
position
R , D or M is selected, the
vehicle moves even without the ac-
celerator being pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the par-
king brake and select position P . Sport and snow programmes
These two special programmes supple-
ment the automatic operation in very
s p e c i fi c c o n d i t i o n s o f u s e .
Return to automatic operation
At any time, press the button selected
again to quit the programme engaged
and return to auto-adaptive mode.
