PRACTICAL INFORMATION
Fixing the steel spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a l l o y
wheels, it is normal to notice, when
t i g h t e n i n g t h e b o l t s o n fi t t i n g , t h a t
the washers do not come into con-
tact with the steel spare wheel. The
wheel is secured by the conical
contact of each bolt.
Access to the spare wheel
The spare wheel is installed in the boot
u n d e r t h e fl o o r .
According to country, the spare wheel
may be steel or alloy.
To gain access to it, refer to the paragraph
"Access to the tools" on the previous
page.
Taking out the wheel
Unscrew the yellow central bolt.
Raise the spare wheel towards you
from the rear.
Take the wheel out of the boot.
Putting the wheel back in place
Put the wheel back in its housing.
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
Tighten fully until the central bolt
clicks to retain the wheel correctly.
P u t t h e b o x b a c k i n p l a c e i n t h e
centre of the wheel and clip it.
T y r e u n d e r - i n fl a t i o n d e t e c t i o n
T h e s p a r e w h e e l i s n o t fi t t e d w i t h
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer.
Page 176 of 313
11
180

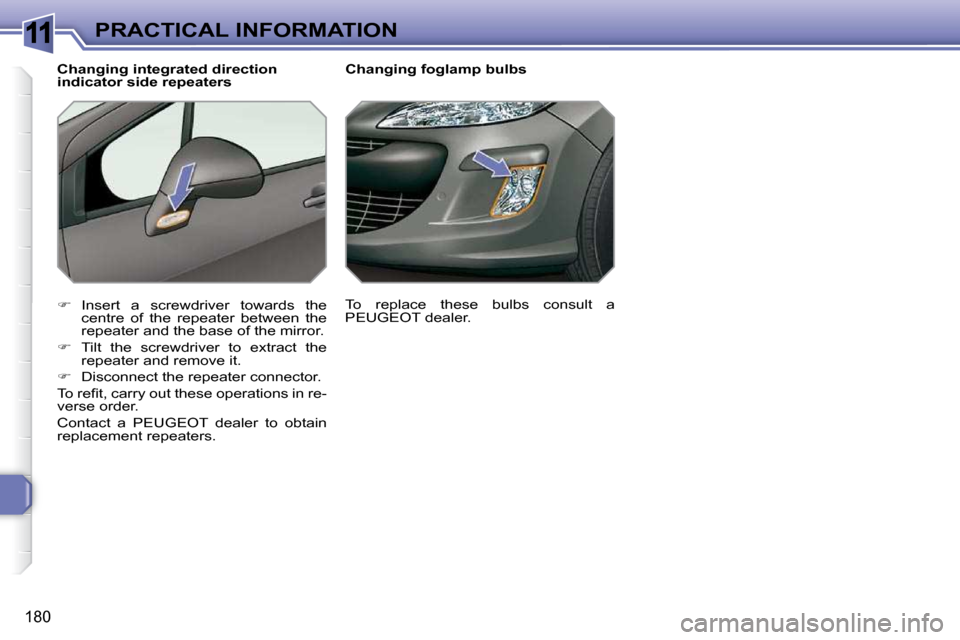

PRACTICAL INFORMATION Changing foglamp bulbs
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
T i l t t h e s c r e w d r i v e r t o e x t r a c t t h e
repeater and remove it.
Disconnect the repeater connector.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters.
Changing integrated direction
indicator side repeaters
To replace these bulbs consult a
PEUGEOT dealer.
Page 179 of 313
11
183
PRACTICAL INFORMATION

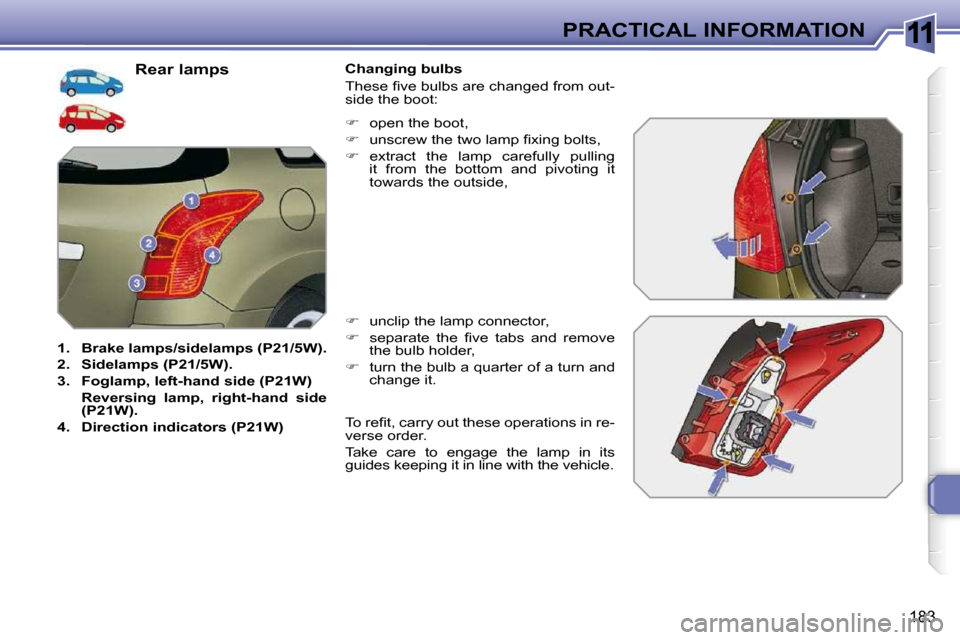

Rear lamps
1. Brake
lamps/
sidelamps
(
P21
/
5W
).
2. Sidelamps
(
P21
/
5W
).
3. Foglamp,
left-hand side (
P21W
)
Reversing
lamp,
right-hand side
(
P21W
).
4. Direction indicators (
P21W
) Changing bulbs
T h e s e fi v e b u l b s a r e c h a n g e d f r o m o u t -
s i d e t h e b o o t :
unclip the lamp connector,
s e p a r a t e t h e fi v e t a b s a n d r e m o v e
the bulb holder,
turn the bulb a quarter of a turn and
change it.
open the boot,
u n s c r e w t h e t w o l a m p fi x i n g b o l t s ,
e x t r a c t t h e l a m p c a r e f u l l y p u l l i n g
it from the bottom and pivoting it
towards the outside,
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Take care to engage the lamp in its
guides keeping it in line with the vehicle.
Page 191 of 313
11
!i
195
PRACTICAL INFORMATION
TOWING THE VEHICLE
Access to the tools Towing your vehicle
On the front bumper, unclip the
cover by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
On the rear bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the boot
u n d e r t h e fl o o r .
T o g a i n a c c e s s t o i t :
open the boot,
r a i s e t h e fl o o r ,
secure it by hooking its cord on the
hook on the shelf support,
remove the polystyrene storage
b o x ,
remove the towing eye from the
holder. When towing with all four wheels on
the ground, always use a towing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the electronic
g e a r c o n t r o l g e a r b o x o r
a u t o m a t i c g e a r b o x ) .
Failure to observe this special condition could result in damage
to certain braking components
and the absence of braking
a s s i s t a n c e t h e n e x t t i m e t h e
engine is started.
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Page 192 of 313
11
!i
196
PRACTICAL INFORMATION
TOWING THE VEHICLE
Procedure for having your
vehicle towed or for towing
another vehicle using a re-
movable towing eye.
Access to the tools Towing your vehicle
On the front bumper, unclip the
cover by pressing it on the left.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
On the rear bumper, unclip the cover
by pressing it on the left.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the left-
hand side trim of the boot.
T o g a i n a c c e s s t o i t :
open the boot,
o p e n t h e a c c e s s fl a p i n t h e l e f t - h a n d
side trim,
remove the wheelbrace from its
support,
remove the towing eye from the
same support. When towing with all four wheels
on the ground, always use a tow-
ing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the automatic
g e a r b o x ) .
Failure to observe this special condition could result in damage
to certain braking components
and the absence of braking
a s s i s t a n c e t h e n e x t t i m e t h e
engine is started.
Page 193 of 313
11
i
i
197
PRACTICAL INFORMATION
TOWING A TRAILER, A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
T h e m a x i m u m t o w i n g l o a d o n a l o n g
slope depends on the gradient and the
ambient temperature.
In all cases, pay attention to the coolant
temperature.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
Check the electrical lighting and
signalling on the trailer.
The rear parking sensors will be de-
activated automatically if a genuine
PEUGEOT towbar is used.
If the warning lamp and the
STOP warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
a s p o s s i b l e t o t h e a x l e a n d t h e n o s e
w e i g h t a p p r o a c h e s t h e m a x i m u m
p e r m i t t e d w i t h o u t e x c e e d i n g i t .
Air density decreases with altitude, thus
reducing engine performance. Above
1 0 0 0 m e t r e s , t h e m a x i m u m t o w i n g l o a d
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d i t s
driver must be particularly careful.
We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
o f y o u r v e h i c l e , a n d t h a t t h e fi t -
ting of the towbar is entrusted to a
PEUGEOT dealer.
I f t h e t r a i l e r i s n o t fi t t e d b y a
PEUGEOT dealer, it is imperative
t h a t i t i s fi t t e d u s i n g t h e e l e c t r i c a l
pre-equipment installed at the rear
of the vehicle, in accordance with
the manufacturer's instructions.
Page 195 of 313
11
i
199
PRACTICAL INFORMATION

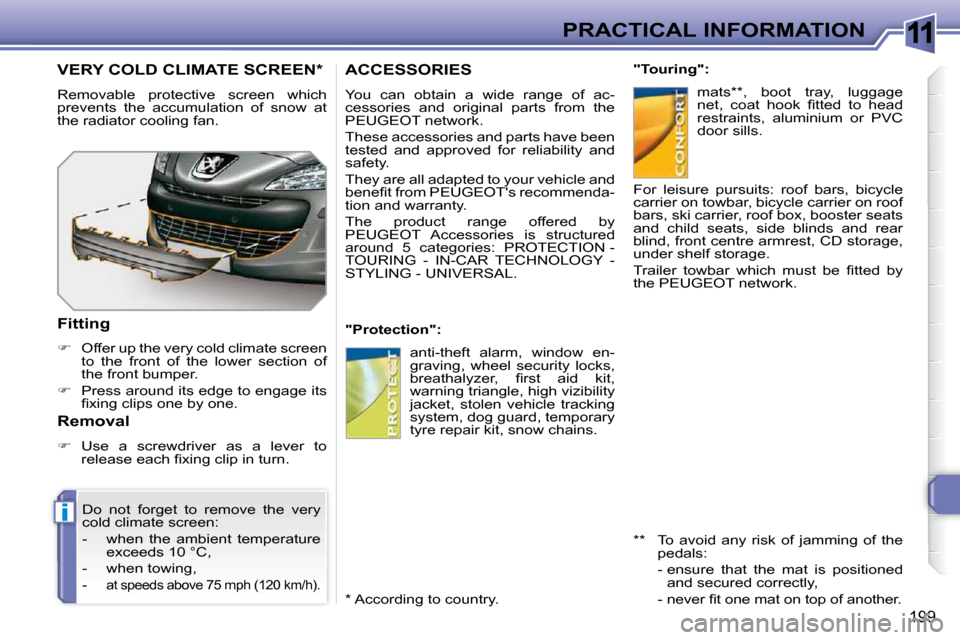

ACCESSORIES
You can obtain a wide range of ac-
cessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by
PEUGEOT Accessories is structured
a r o u n d 5 c a t e g o r i e s : P R O T E C T I O N -
TOURING - IN-CAR TECHNOLOGY -
STYLING - UNIVERSAL.
"Protection": "Touring":
m a t s * * , b o o t t r a y , l u g g a g e
n e t , c o a t h o o k fi t t e d t o h e a d
restraints, aluminium or PVC
door sills.
anti-theft alarm, window en-
graving, wheel security locks,
b r e a t h a l y z e r , fi r s t a i d k i t ,
warning triangle, high vizibility
jacket, stolen vehicle tracking
system, dog guard, temporary
tyre repair kit, snow chains. F o r l e i s u r e p u r s u i t s : r o o f b a r s , b i c y c l e
carrier on towbar, bicycle carrier on roof
b a r s , s k i c a r r i e r , r o o f b o x , b o o s t e r s e a t s
and child seats, side blinds and rear
blind, front centre armrest, CD storage,
under shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
* * T o a v o i d a n y r i s k o f j a m m i n g o f t h e
p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
VERY COLD CLIMATE SCREEN *
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
Fitting
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.
Press around its edge to engage its
fi x i n g c l i p s o n e b y o n e .
Do not forget to remove the very
c o l d c l i m a t e s c r e e n :
- when the ambient temperature e x c e e d s 1 0 ° C ,
- when towing,
-
a t s p e e d s a b o v e 7 5 m p h ( 1 2 0 k m / h ) .
Removal
Use a screwdriver as a lever to
r e l e a s e e a c h fi x i n g c l i p i n t u r n .
* A c c o r d i n g t o c o u n t r y .
Page 196 of 313
11
i
199
PRACTICAL INFORMATION
ACCESSORIES
You can obtain a wide range of ac-
cessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by
PEUGEOT Accessories is structured
a r o u n d 5 c a t e g o r i e s : P R O T E C T I O N -
TOURING - IN-CAR TECHNOLOGY -
STYLING - UNIVERSAL.
"Protection": "Touring":
m a t s * * , b o o t t r a y , l u g g a g e
n e t , c o a t h o o k fi t t e d t o h e a d
restraints, aluminium or PVC
door sills.
anti-theft alarm, window en-
graving, wheel security locks,
b r e a t h a l y z e r , fi r s t a i d k i t ,
warning triangle, high vizibility
jacket, stolen vehicle tracking
system, dog guard, temporary
tyre repair kit, snow chains. F o r l e i s u r e p u r s u i t s : r o o f b a r s , b i c y c l e
carrier on towbar, bicycle carrier on roof
b a r s , s k i c a r r i e r , r o o f b o x , b o o s t e r s e a t s
and child seats, side blinds and rear
blind, front centre armrest, CD storage,
under shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
* * T o a v o i d a n y r i s k o f j a m m i n g o f t h e
p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
VERY COLD CLIMATE SCREEN *
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
Fitting
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.
Press around its edge to engage its
fi x i n g c l i p s o n e b y o n e .
Do not forget to remove the very
c o l d c l i m a t e s c r e e n :
- when the ambient temperature e x c e e d s 1 0 ° C ,
- when towing,
-
a t s p e e d s a b o v e 7 5 m p h ( 1 2 0 k m / h ) .
Removal
Use a screwdriver as a lever to
r e l e a s e e a c h fi x i n g c l i p i n t u r n .
* A c c o r d i n g t o c o u n t r y .
