i
65
COMFORT

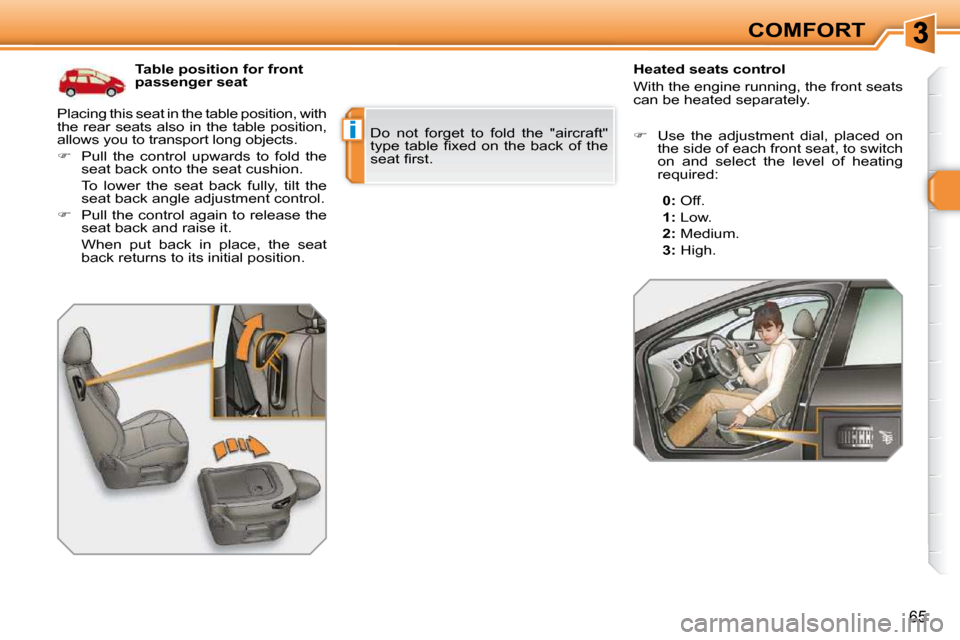

Table position for front
passenger seat
Placing this seat in the table position, with
the rear seats also in the table position,
allows you to transport long objects.
Pull the control upwards to fold the
seat back onto the seat cushion.
To lower the seat back fully, tilt the seat back angle adjustment control.
Pull the control again to release the
seat back and raise it.
When put back in place, the seat back returns to its initial position. D o n o t f o r g e t t o f o l d t h e " a i r c r a f t "
t y p e t a b l e fi x e d o n t h e b a c k o f t h e
s e a t fi r s t .
Heated seats control
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating
required:
0
: Off.
1
: Low.
2
: Medium.
3
: High.
Page 47 of 313
i!
66
COMFORT
S t o r i n g d r i v i n g p o s i t i o n s
System which takes into account the
electrical settings of the driver's seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver's seat and
two further driving positions using the
two remote control keys.
Recalling a stored position
When the vehicle is unlocked, the driv-
er's seat and the door mirrors return to
the position stored by the remote con-
trol key.
Storing a position Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
U s i n g t h e r e m o t e c o n t r o l k e y s
When the vehicle is locked, the remote
control key stores the position of the
driver's seat and door mirrors.
Each remote control key can store one
s p e c i fi c s e t t i n g .
Ignition on
B r i e fl y p r e s s b u t t o n 1 or 2 to recall
the corresponding position.
An audible signal is heard indicating the end of the adjustment. V e h i c l e m o v i n g
Press and hold button 1 or 2 until
the audible signal is heard indicating
the end of the adjustment.
Using buttons M/1/2
Switch on the ignition.
Adjust your seat and the door
mirrors.
Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the position has been stored.
Page 48 of 313
i
65
COMFORT
Table position for front
passenger seat
Placing this seat in the table position, with
the rear seats also in the table position,
allows you to transport long objects.
Pull the control upwards to fold the
seat back onto the seat cushion.
To lower the seat back fully, tilt the seat back angle adjustment control.
Pull the control again to release the
seat back and raise it.
When put back in place, the seat back returns to its initial position. D o n o t f o r g e t t o f o l d t h e " a i r c r a f t "
t y p e t a b l e fi x e d o n t h e b a c k o f t h e
s e a t fi r s t .
Heated seats control
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating
required:
0
: Off.
1
: Low.
2
: Medium.
3
: High.
Page 57 of 313
!
i
i
75
COMFORT
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
MIRRORS
Door mirrors
E a c h fi t t e d w i t h a n a d j u s t a b l e m i r r o r
glass permitting the lateral rearward vi-
sion necessary for overtaking or parking.
They can also be folded for parking in
c o n fi n e d s p a c e s . Folding
From outside: lock the vehicle using
the remote control or the key.
From inside: with the ignition on, pull
control A rearwards.
The folding and unfolding of the door
mirrors using the remote control
can be deactivated by a PEUGEOT
dealer.
Never fold or unfold the electric fold-
ing mirrors manually.
A d j u s t m e n t
Unfolding
From outside: unlock the vehicle
using the remote control or the key.
From inside: with the ignition on, pull
control A rearwards.
If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
Move control A to the right or to
the left to select the corresponding
mirror.
Move control B in all four directions
to adjust.
Return control A to the central
position.
D e m i s t i n g - D e f r o s t i n g I f y o u r v e h i c l e i s fi t t e d w i t h
heated mirrors, the demisting-
defrosting operates with the
engine running, by switching
on the heated rear screen (refer to the
" R e a r s c r e e n d e m i s t - d e f r o s t " p a g e ) .
Page 58 of 313
!
76
COMFORT A d j u s t m e n t
Adjust the mirror so that the glass
i s d i r e c t e d c o r r e c t l y i n t h e " d a y "
position.
As a safety precaution, the mirrors
must be adjusted to reduce the
" b l i n d s p o t " .
M a n u a l d a y / n i g h t m o d e l
D a y / n i g h t p o s i t i o n
P u l l t h e l e v e r t o c h a n g e t o t h e " n i g h t "
anti-dazzle position.
Push the lever to change to the
n o r m a l " d a y " p o s i t i o n .
A u t o m a t i c t i l t i n g i n r e v e r s e g e a r
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
S w i t c h i n g o n
With the engine running, engage
reverse gear.
Move control A to the right or to
the left to select the corresponding
mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. S w i t c h i n g o f f
Exit reverse gear and wait ten
seconds.
or
Return control A to the central
position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
R e a r v i e w m i r r o r
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.
Page 59 of 313
!
76
COMFORT A d j u s t m e n t
Adjust the mirror so that the glass
i s d i r e c t e d c o r r e c t l y i n t h e " d a y "
position.
As a safety precaution, the mirrors
must be adjusted to reduce the
" b l i n d s p o t " .
M a n u a l d a y / n i g h t m o d e l
D a y / n i g h t p o s i t i o n
P u l l t h e l e v e r t o c h a n g e t o t h e " n i g h t "
anti-dazzle position.
Push the lever to change to the
n o r m a l " d a y " p o s i t i o n .
A u t o m a t i c t i l t i n g i n r e v e r s e g e a r
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
S w i t c h i n g o n
With the engine running, engage
reverse gear.
Move control A to the right or to
the left to select the corresponding
mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. S w i t c h i n g o f f
Exit reverse gear and wait ten
seconds.
or
Return control A to the central
position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
R e a r v i e w m i r r o r
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.
Page 63 of 313
!
i
79
ACCESS
Deadlocking renders the exterior
and interior door controls inopera-
tive.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone in-
side the vehicle when it is dead-
locked.
Deadlocking using the remote
control
Deadlocking using the key The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer.
Press the closed padlock
to lock the vehicle com-
pletely or press the closed
padlock for more than two
seconds to close the win-
dows automatically in ad-
dition to locking (according
to version).
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k t h e
vehicle. D e a d l o c k i n g i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.
Turn the key to the right in the
driver's door lock to lock the vehicle
completely and hold it in this
position for more than two seconds
to close the windows automatically
in addition to locking (according to
version).
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k t h e
vehicle. Folding the key
First press button A to fold the key. Locating your vehicle
This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.
Press the closed padlock on the
remote control.
This will switch on the courtesy lamps
a n d t h e d i r e c t i o n i n d i c a t o r s w i l l fl a s h f o r
a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Page 64 of 313
i
!
80
ACCESS
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the
dashboard to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to
position 1 (Stop) .
Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e i n -
formed by lighting of this warn-
ing lamp, an audible signal and
a message on the multifunction
screen.
This replacement battery is available
from PEUGEOT dealers.
Key left in the "Ignition"
position
If the key has been left in the ignition
switch, the ignition will be switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position
1 (Stop) , then
back to position 2 (Ignition) .
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s
location.
Slide the new battery into its location
observing the original direction.
Clip the casing.
Reinitialise the remote control.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
