Page 16 of 313
i
i
37
INSTRUMENTS and CONTROLS
Service indicator zero reset
After each service, the service indicator must be reset to zero.
The procedure for resetting to zero is as follows :
switch off the ignition,
press and hold the trip distance recorder zero reset button,
switch on the ignition; the distance recorder display begins a countdown,
when the display indicates "=0" , release the button; the spanner disappears.
The distance remaining may be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on,
t h e s p a n n e r fl a s h e s to
indicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
300 miles (km).
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit .
Retrieving the service information
You can access the service information at any time.
Press the trip distance recorder zero reset button.
The service information is displayed for a few seconds, then disappears.
Page 69 of 313
!
i
82

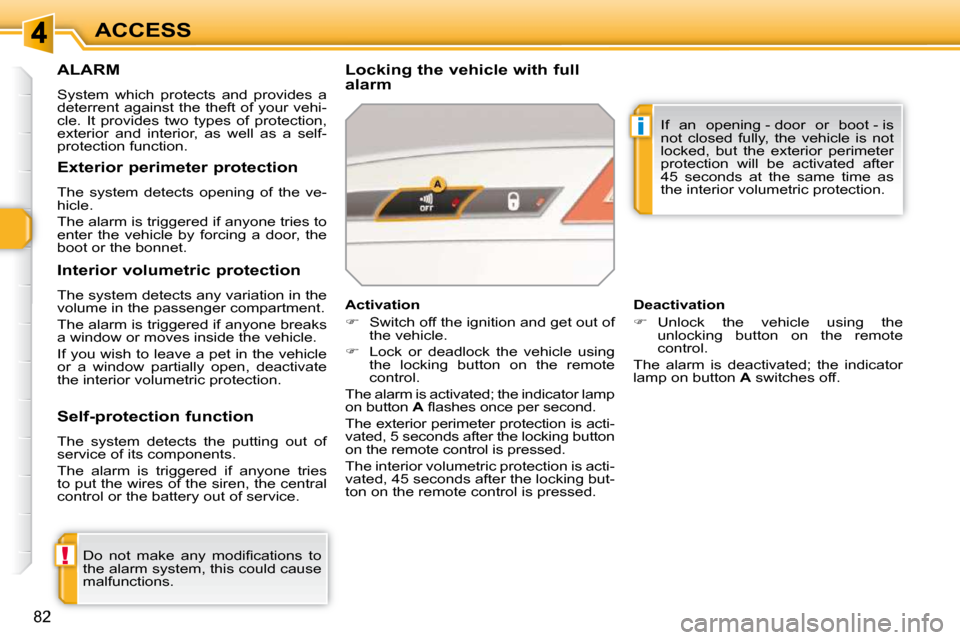

ACCESS
ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as a self-
protection function. Locking the vehicle with full
alarm
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the alarm system, this could cause
malfunctions. Activation
Switch off the ignition and get out of
the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator lamp
on button A fl a s h e s o n c e p e r s e c o n d .
The exterior perimeter protection is acti-
vated, 5 seconds after the locking button
on the remote control is pressed.
The interior volumetric protection is acti-
vated, 45 seconds after the locking but-
ton on the remote control is pressed.
Exterior perimeter protection
The system detects opening of the ve-
hicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Self-protection function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation
Unlock the vehicle using the
unlocking button on the remote
control.
The alarm is deactivated; the indicator
lamp on button A switches off.
If an opening - door or boot - is
not closed fully, the vehicle is not
locked, but the exterior perimeter
protection will be activated after
45 seconds at the same time as
the interior volumetric protection.
Page 224 of 313
228
EMERGENCY CALL ASSISTANCE CALL
OPERATION OF THE SYSTEM
In an emergency, press this button for more than 2 seconds. Flashing of the green diode and a voice m e s s a g e c o n fi r m t h a t t h e c a l l h a s b e e n m a d e t o t h e PEUGEOT Emergency team * .
Pressing this button again immediately cancels the request. The green diode switches off.
T h e g r e e n d i o d e r e m a i n s o n ( w i t h o u t fl a s h i n g ) w h e n c o m m u n i c a t i o n i s established. It switches off at the end of communication.
This call is dealt with by the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in whi ch the team is not operational, or when the locating service has been expressly refused, t h e c a l l i s d e a l t w i t h d i r e c t l y b y t h e e m e r g e n c y s e r v i c e s ( 1 1 2 ) w i t h o u t t h e vehicle location.
If an impact is detected by the airbag ECU, and independently of any triggering of the airbags, an emergency call is mad e automatically.
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
Press this button for more than 2 seconds to requ est assistance if the vehicle breaks down. A v o i c e m e s s a g e c o n fi r m s t h a t t h e c a l l h a s b e e n m a d e * .
Pressing this button again immediately cancels the request. T h e c a n c e l l a t i o n i s c o n fi r m e d b y a v o i c e m e s s a g e .
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
I f t h e o r a n g e i n d i c a t o r l a m p fl a s h e s : t h e r e i s a system malfunction. I f t h e o r a n g e i n d i c a t o r l a m p i s l i t c o n t i n u o u s l y : the backup battery must be replaced. In both cases, consult a PEUGEOT dealer.
Page 225 of 313
229
PEUGEOT ASSISTANCE
CUSTOMER CALL
Press this button for access to PEUGEOT services * .
Select "Customer call" to request any information about the PEUGEOT marque.
Select "PEUGEOT Assistance" to make a breakdown assistance call.
* These services and options are subject to conditions and availability.
EMERGENCY CALL
EMERGENCY OR ASSISTANCE CALL using PC Com 3D
ASSISTANCE CALL
In an emergency, press the SOS button until an au dible s i g n a l i s h e a r d a n d a " C o n fi r m a t i o n / C a n c e l l a t i o n " s c r e e n i s d i s p l a y e d ( i f v a l i d S I M c a r d i n s e r t e d ) . A call is made * to the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the relevant emergency services. In countries in which the team is not operational, or when the locating service has been expressly reject ed, t h e c a l l i s s e n t t o t h e e m e r g e n c y s e r v i c e s ( 1 1 2 ) .
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
If an impact is detected by the airbag control uni t, and inand independently of the triggering of any airbags, an emergency call is mal is made automatically. T h e m e s s a g e " D e t e r i o r a t e d e m e r g e n c y c a l l " a s s o c i a t e d w i t h fl a s h i n g T h e m e s s a g e " D e t e r i o r a t e d e m e r g e n c y c a l l " a s s o c i a t e d w i t h fl a s h i n g of the orange indicator lamp indicates a malfunction. Con. Consult a PEUGEOT dealer.
Warning - the emergency call and the services are only a only active if the internal telephone is used with a valid SIM card. Wrd. With a Bluetooth telephone and without a SIM card, these s ervi services are not operational.
