229
PEUGEOT ASSISTANCE
CUSTOMER CALL
Press this button for access to PEUGEOT services * .
Select "Customer call" to request any information about the PEUGEOT marque.
Select "PEUGEOT Assistance" to make a breakdown assistance call.
* These services and options are subject to conditions and availability.
EMERGENCY CALL
EMERGENCY OR ASSISTANCE CALL using PC Com 3D
ASSISTANCE CALL
In an emergency, press the SOS button until an au dible s i g n a l i s h e a r d a n d a " C o n fi r m a t i o n / C a n c e l l a t i o n " s c r e e n i s d i s p l a y e d ( i f v a l i d S I M c a r d i n s e r t e d ) . A call is made * to the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the relevant emergency services. In countries in which the team is not operational, or when the locating service has been expressly reject ed, t h e c a l l i s s e n t t o t h e e m e r g e n c y s e r v i c e s ( 1 1 2 ) .
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
If an impact is detected by the airbag control uni t, and inand independently of the triggering of any airbags, an emergency call is mal is made automatically. T h e m e s s a g e " D e t e r i o r a t e d e m e r g e n c y c a l l " a s s o c i a t e d w i t h fl a s h i n g T h e m e s s a g e " D e t e r i o r a t e d e m e r g e n c y c a l l " a s s o c i a t e d w i t h fl a s h i n g of the orange indicator lamp indicates a malfunction. Con. Consult a PEUGEOT dealer.
Warning - the emergency call and the services are only a only active if the internal telephone is used with a valid SIM card. Wrd. With a Bluetooth telephone and without a SIM card, these s ervi services are not operational.
Page 226 of 313
231

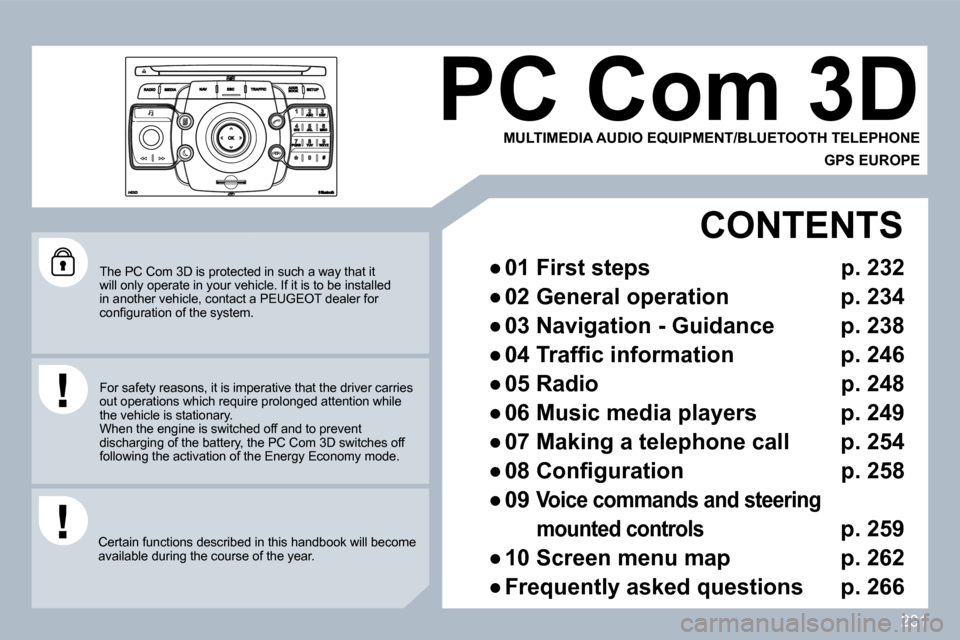

The PC Com 3D is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a PEUGEOT dealer for c o n fi g u r a t i o n o f t h e s y s t e m .
Certain functions described in this handbook will become available during the course of the year.
PC Com 3D
MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE
GPS EUROPE
CONTENTS
Page 227 of 313
232
0 1
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
1 0
2
3
4
6 1 2
9
7
8
1 1 5
TU
PQRS
0
*

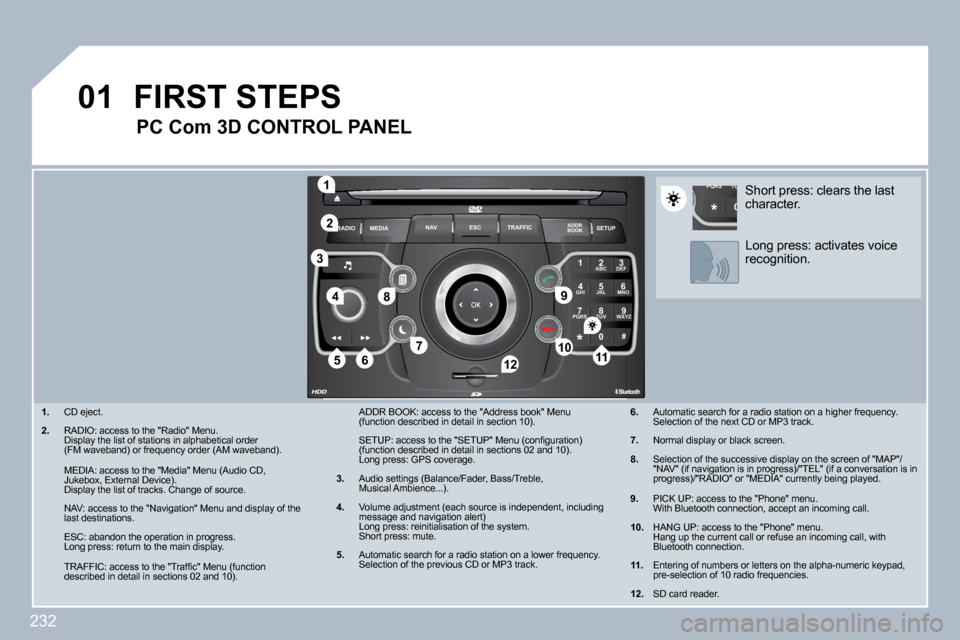

1 . CD eject.
2 . R A D I O : a c c e s s t o t h e " R a d i o " M e n u . Display the list of stations in alphabetical order ( F M w a v e b a n d ) o r f r e q u e n c y o r d e r ( A M w a v e b a n d ) .
M E D I A : a c c e s s t o t h e " M e d i a " M e n u ( A u d i o C D , J u k e b o x , E x t e r n a l D e v i c e ) . Display the list of tracks. Change of source.
N A V : a c c e s s t o t h e " N a v i g a t i o n " M e n u a n d d i s p l a y o f t h e last destinations.
E S C : a b a n d o n t h e o p e r a t i o n i n p r o g r e s s . L o n g p r e s s : r e t u r n t o t h e m a i n d i s p l a y .
T R A F F I C : a c c e s s t o t h e " T r a f fi c " M e n u ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n s 0 2 a n d 1 0 ) .
A D D R B O O K : a c c e s s t o t h e " A d d r e s s b o o k " M e n u ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n 1 0 ) .
S E T U P : a c c e s s t o t h e " S E T U P " M e n u ( c o n fi g u r a t i o n ) ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n s 0 2 a n d 1 0 ) . L o n g p r e s s : G P S c o v e r a g e .
3 . A u d i o s e t t i n g s ( B a l a n c e / F a d e r , B a s s / T r e b l e , M u s i c a l A m b i e n c e . . . ) .
4 . Volume adjustment (each source is independent, inc luding m e s s a g e a n d n a v i g a t i o n a l e r t ) L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e s y s t e m . S h o r t p r e s s : m u t e .
5 . Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
FIRST STEPS
PC Com 3D CONTROL PANEL
6 . Automatic search for a radio station on a higher f requency. Selection of the next CD or MP3 track.
7 . Normal display or black screen.
8 . S e l e c t i o n o f t h e s u c c e s s i v e d i s p l a y o n t h e s c r e e n o f " M A P " / " N A V " ( i f n a v i g a t i o n i s i n p r o g r e s s ) / " T E L " ( i f a c o n v e r s a t i o n i s i n p r o g r e s s ) / " R A D I O " o r " M E D I A " c u r r e n t l y b e i n g p l a y e d .
9 . P I C K U P : a c c e s s t o t h e " P h o n e " m e n u . With Bluetooth connection, accept an incoming call .
1 0 . H A N G U P : a c c e s s t o t h e " P h o n e " m e n u . Hang up the current call or refuse an incoming call, with Bluetooth connection.
1 1 . Entering of numbers or letters on the alpha-numeric keypad, pre-selection of 10 radio frequencies.
1 2 . SD card reader.
S h o r t p r e s s : c l e a r s t h e l a s t character.
L o n g p r e s s : a c t i v a t e s v o i c e recognition.
Page 249 of 313
254
0 7
1
2

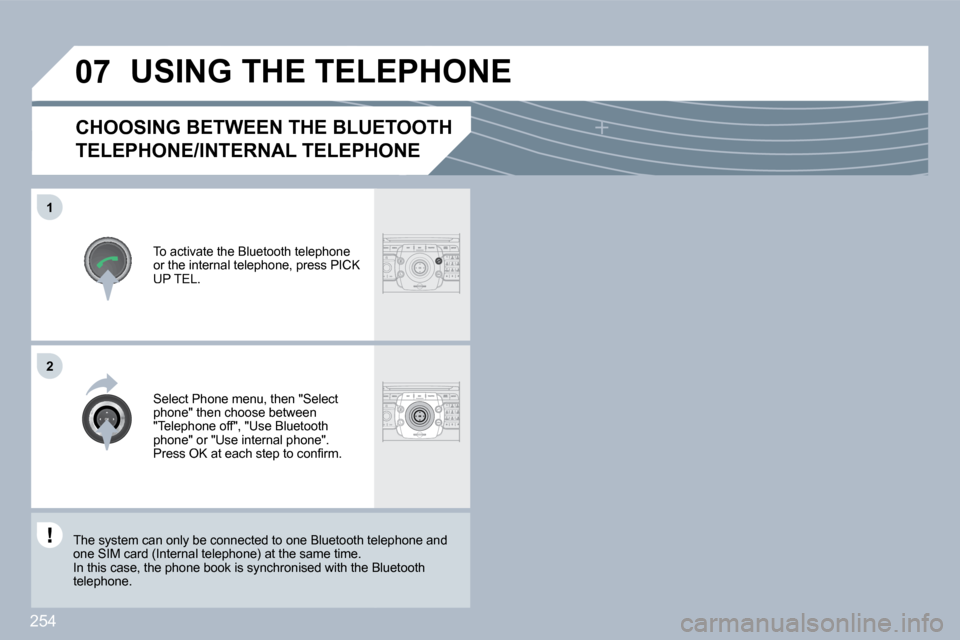

CHOOSING BETWEEN THE BLUETOOTH
TELEPHONE/INTERNAL TELEPHONE
To activate the Bluetooth telephone or the internal telephone, press PICK UP TEL.
USING THE TELEPHONE
Select Phone menu, then "Select phone" then choose between "Telephone off", "Use Bluetooth phone" or "Use internal phone". P r e s s O K a t e a c h s t e p t o c o n fi r m .
The system can only be connected to one Bluetooth teleth telephone and o n e S I M c a r d ( I n t e r n a l t e l e p h o n e ) a t t h e s a m e t i m e . In this case, the phone book is synchronised with the Blthe Bluetooth telephone.
Page 250 of 313
255
0 7
1
3
5
4
2
1
* The services available via the telephone depend on the network, the SIM card and the compatibili ty of the Bluetooth equipment used. Refer to your telephone's manual and your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.
USING THE TELEPHONE

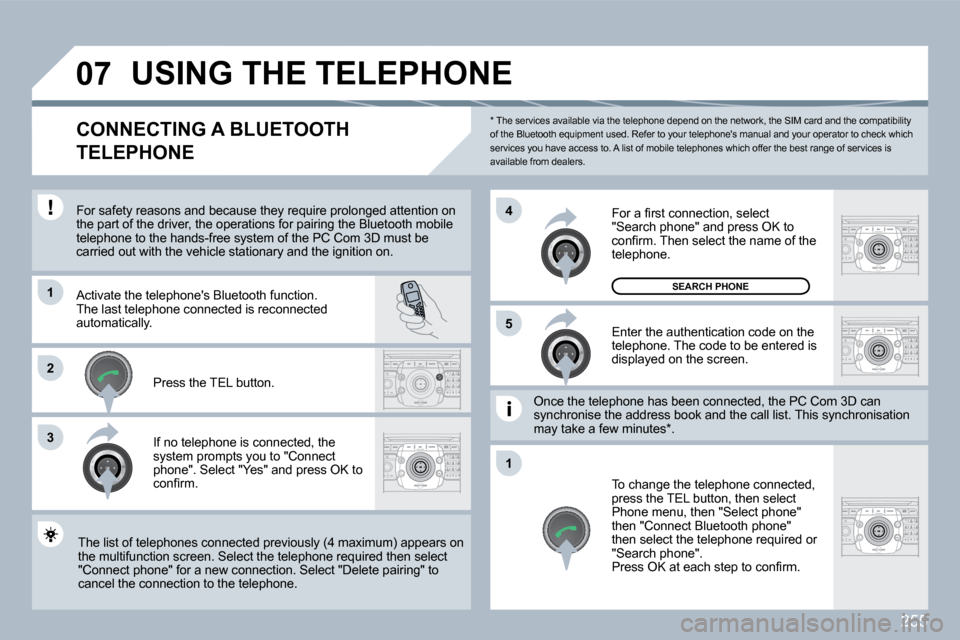

CONNECTING A BLUETOOTH
TELEPHONE
For safety reasons and because they require prolo ngedonged attention on the part of the driver, the operations for pairing the Blue Bluetooth mobile telephone to the hands-free system of the PC Com 3D m 3D must be carried out with the vehicle stationary and the ignition onition on.
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
If no telephone is connected, the system prompts you to "Connect phone". Select "Yes" and press OK to c o n fi r m .
Enter the authentication code on the telephone. The code to be entered is displayed on the screen.
To change the telephone connected, press the TEL button, then select Phone menu, then "Select phone" then "Connect Bluetooth phone" then select the telephone required or "Search phone". P r e s s O K a t e a c h s t e p t o c o n fi r m .
Once the telephone has been connected, the PC Com 3Com 3D can synchronise the address book and the call list. This syncis synchronisation may take a few minutes * .
T h e l i s t o f t e l e p h o n e s c o n n e c t e d p r e v i o u s l y ( 4 m a x i m u m ) a p p e a r s o n T h e l i s t o f t e l e p h o n e s c o n n e c t e d p r e v i o u s l y ( 4 m a x i m u m ) a p p e a r s o n the multifunction screen. Select the telephone requ ired uired then select "Connect phone" for a new connection. Select "Delet e pelete pairing" to cancel the connection to the telephone.
Press the TEL button.
F o r a fi r s t c o n n e c t i o n , s e l e c t "Search phone" and press OK to c o n fi r m . T h e n s e l e c t t h e n a m e o f t h e telephone.
SEARCH PHONE
Page 251 of 313
256
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
0 7
1
2 2
33
1 1
2 2

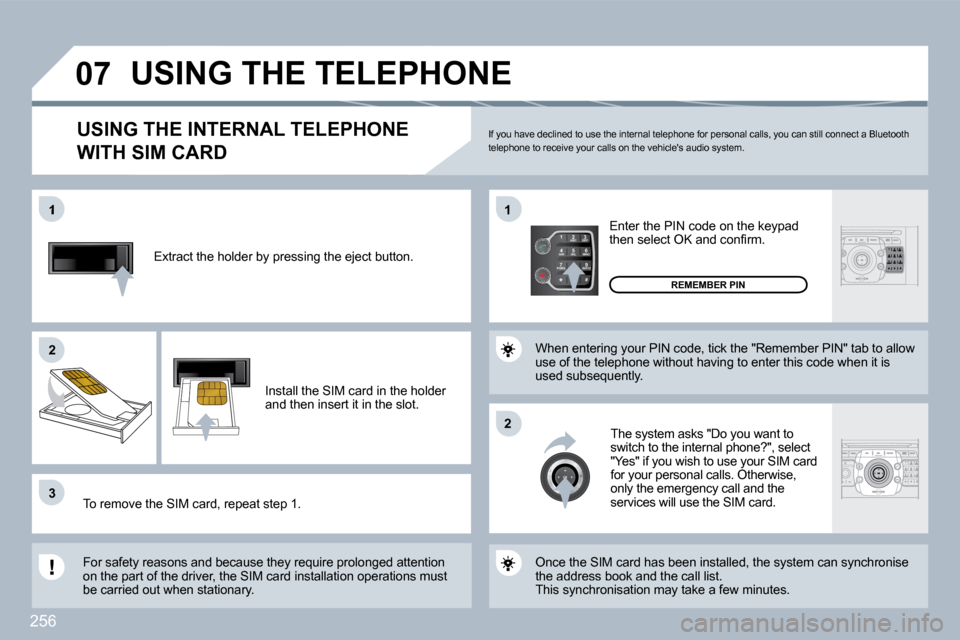

Extract the holder by pressing the eject button.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
For safety reasons and because they require prolo nged attention on the part of the driver, the SIM card installation operations must be carried out when stationary.
Enter the PIN code on the keypad t h e n s e l e c t O K a n d c o n fi r m .
The system asks "Do you want to s w i t c h t o t h e i n t e r n a l p h o n e ? " , s e l e c t "Yes" if you wish to use your SIM card for your personal calls. Otherwise, only the emergency call and the services will use the SIM card.
REMEMBER PIN
When entering your PIN code, tick the "Remember P IN" tab to allow use of the telephone without having to enter this code when it is used subsequently.
USING THE INTERNAL TELEPHONE
WITH SIM CARD
USING THE TELEPHONE
Once the SIM card has been installed, the system can synchronise the address book and the call list. This synchronisation may take a few minutes.
If you have declined to use the internal telephone for personal calls, you can still connect a Bluetooth telephone to receive your calls on the vehicle's au dio system.
Page 264 of 313
269

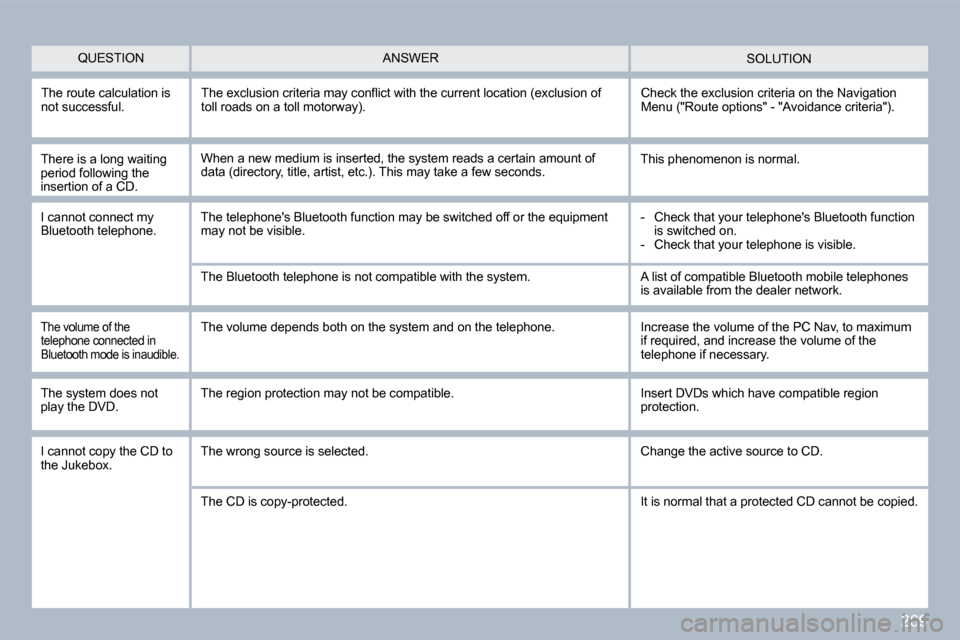

SOLUTION
There is a long waiting period following the insertion of a CD.
When a new medium is inserted, the system reads a certain amount of d a t a ( d i r e c t o r y , t i t l e , a r t i s t , e t c . ) . T h i s m a y t a k e a f e w s e c o n d s . This phenomenon is normal.
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be switched off or the equipment may not be visible. - Check that your telephone's Bluetooth function is switched on. - Check that your telephone is visible.
QUESTION ANSWER
The Bluetooth telephone is not compatible with the system. A list of compatible Bluetooth mobile telephones is available from the dealer network.
The system does not play the DVD. The region protection may not be compatible. Insert DVDs which have compatible region protection.
I cannot copy the CD to the Jukebox. The wrong source is selected. Change the active source to CD.
The CD is copy-protected. It is normal that a protected CD cannot be copied.
The route calculation is not successful. T h e e x c l u s i o n c r i t e r i a m a y c o n fl i c t w i t h t h e c u r r e n t l o c a t i o n ( e x c l u s i o n o f t o l l r o a d s o n a t o l l m o t o r w a y ) . Check the exclusion criteria on the Navigation M e n u ( " R o u t e o p t i o n s " - " A v o i d a n c e c r i t e r i a " ) .
The volume of the telephone connected in Bluetooth mode is inaudible.
The volume depends both on the system and on the t elephone. Increase the volume of the PC Nav, to maximum if required, and increase the volume of the telephone if necessary.
Page 265 of 313
270
The system does not receive SMS. The Bluetooth mode does not permit sending of the SMS to the system. Use your SIM card and the internal telephone.
The SIM card used is a twin card. Use the original SIM card to receive the SMS.
I cannot update the h a z a r d o u s l o c a t i o n POIs.
The Navigation Menu - "Update personal POI" is not displayed. Check that the medium used for the update ( S D c a r d o r U S B s t i c k ) i s i n s e r t e d c o r r e c t l y .
An error message is displayed at the end of the procedure. - Start the procedure again in full. - Consult a PEUGEOT dealer if the problem persists. - Check that the data on the MEDIUM is s u p p l i e d b y a n o f fi c i a l p a r t n e r o f P E U G E O T .
QUESTION SOLUTION ANSWER
The voice frequencies ( D T M F ) a r e n o t active when I am communicating and I press numbers on the keypad.
The numeric buttons on the keypad are only active for calls if the display is in telephone mode. To activate them, press the MODE button until the telephone is displayed on the screen.
An accident area which does not concern me is displayed on the screen.
T h e a c c i d e n t a r e a s a r e d i s p l a y e d n e a r a p o i n t d e fi n e d o n t h e m a p a n d i n relation to a direction of travel. The alert may be triggered when travelling under a road or near a road which has a speed camera.
