Page 177 of 221
9.42
1
5
10
01
2
3 4 6
1 3
11
9
1 4 1 5
7 8 1 2
1 6
1 . Engine not running - Short press: on/off. - Long press: CD pause, mute for the radio. Engine running - Short press: CD pause, mute for the radio. - Long press: reinitialisation of the system.
2 . Volume adjustment.
3 . Access to the "Radio" Menu. Display the list of st
ations.
4 . Access to the "Music" Menu. Display the tracks.
6 . Access to the "Phone" Menu. Display the call list.
7 . Access to the "MODE" Menu. Selection of the successive display of: Radio, Map, NAV (if navigation is in progress), Te lephone (if a conversation is in progress). Long press: display of a black screen (DARK).
8 . Access to the "Navigation" Menu. Display the last destinations.
9 . A c c e s s t o t h e " T r a f fi c " M e n u . D i s p l a y t h e c u r r e n t t r a f fi c a l e r t s .
1 0 . ESC: abandon the operation in progress.
1 1 . CD eject.
1 2 . Selection of the previous/next radio station from the list. Selection of the previous/next MP3 directory. Selection of the previous/next page of a list.
1 3 . Selection of the previous/next radio station. Selection of the previous/next CD or MP3 track. Selection of the previous/next line of a list.
1 4 . Buttons 1 to 6: Selection of the stored radio station. Selection of the CD in the CD changer. Long press: store the current radio station.
1 5 . SD card reader.
1 6 . Dial for selection of the screen display and accor ding to the context of the menu. S h o r t p r e s s : c o n fi r m a t i o n .
FIRST STEPS
M y W a y C O N T R O L P A N E L
3 - 4 . Long press: access to the audio settings: front/rear and left/right balance, bass/treble, equalizer, loudness, automatic volume adjustment, initialise the settings.
5 . Access to the "SETUP" Menu. Long press: access to the GPS coverage and the demonstration mode.
Page 183 of 221
9.48
0 3
5
6
7
1
2
3
4
N A V I G A T I O N - G U I D A N C E
ROUTE OPTIONS
Select the "Route dynamics" function. This function gives access to the " T r a f fi c i n d e p e n d e n t " o r " S e m i -dynamic" options.
Select the "Avoidance criteria" function. This function provides access to the AVOID options (motorways, toll roads, ferries).
Turn the dial and select the "Recalculate" function to take into account the route options selected. P r e s s t h e d i a l t o c o n fi r m .
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and p r e s s t h e d i a l t o c o n fi r m .
Select the "Route type" function and p r e s s t h e d i a l t o c o n fi r m . T h i s f u n c t i o n allows you to change the route type.
Select the "Route options" function a n d p r e s s t h e d i a l t o c o n fi r m .
" N A V I G A T I O N " M E N U
ROUTE OPTIONS
ROUTE TYPE
ROUTE DYNAMICS
A V O I D A N C E C R I T E R I A
RECALCULATE
The route selected by the MyWay audio/telephone depends directly on the route options. Changing these options may change the route comple tely.
Page 189 of 221
9.54
11
2
3
0 5
SELECTING A STATION
When the current radio station is displayed on the screen, press the dial.
The radio source short-cuts menu appears and providesovides access to the following short-cuts:
Select the function required and press t h e d i a l t o c o n fi r m t o g a i n a c c e s s t o the corresponding settings.
TRAFFIC INFO (TA)
The RDS, if displayed, allows you to continue listening tning to the same station by automatic retuning to alternative freque ncies.ncies. However, in certain conditions, coverage of an RDS station may not y not be assured throughout the entire country as radio stations do not conot cover 100 % of the territory. This explains the loss of reception of the stathe station during a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. This ph enomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE - TRAFFIC INFO
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning t h e d i a l a n d p r e s s t o c o n fi r m .
While listening to the radio, press one of the buttons to select the previous or next station on the list.
Press one of the buttons on the numeric keypad for moor more than 2 seconds to store the current station. Press the button on the numeric keypad to recall the stothe stored radio station.
RDS
RADIOTEXT
R E G I O N A L P R O G .
AM
RADIO
A long press of one of the buttons starts the automatic search for a station with a lower or higher frequency.
Page 190 of 221
0 6
9.55
MUSIC MEDIA PLAYERS
C D , M P 3 / W M A C D
I N F O R M A T I O N A N D A D V I C E
In order to be able to play a recorded CDR or CDRW, wRW, when recording it is preferable to select the ISO 9660 level 1, vel 1, 2 or Joliet standard. If the disc is recorded in another format it may not be plat be played correctly. It is recommended that the same recording standard is ard is always used for an individual disc, with as low a speed as possible (4ible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet stoliet standard is recommended.
T h e M y W a y w i l l o n l y p l a y a u d i o fi l e s w i t h t h e e x t e n s i o n " . m p 3 " w i t h T h e M y W a y w i l l o n l y p l a y a u d i o fi l e s w i t h t h e e x t e n s i o n " . m p 3 " w i t h a speed of between 8 Kbps and 320 Kbps and the extee extension ".wma" with a speed of between 5 Kbps and 384 Kbps.
The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 A 2.5 Audio Layer 3 and the WMA format, an abbreviation of Windows Medi Media Audio and the property of Microsoft, are audio compression standastandards which p e r m i t t h e r e c o r d i n g o f s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c . p e r m i t t h e r e c o r d i n g o f s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c .
It also supports the VBR (Variable Bit Rate) mode. N o o t h e r t y p e o f fi l e ( . m p 4 , . m 3 u . . . ) c a n b e p l a y e d .
I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s , w i t h o u t u s i n g o f I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s , w i t h o u t u s i n g o f special characters (e.g.: " " ? ; ù) to avoid any p laying anying and displaying problems.
Page 192 of 221
1
2
3
4
1
4
0 6
2
3
5
9.57
Connect the portable equipment (MP3/WMA player…) ter…) to the audio sockets (white and red, RCA type) in the glove box usinx using a JACK/RCA audio cable.
Press the MUSIC button then press it again or select the "Music" Menu f u n c t i o n a n d p r e s s t h e d i a l t o c o n fi r m .
Select the AUX music source and p r e s s t h e d i a l t o c o n fi r m . P l a y b e g i n s automatically.
Select the "External device" function and press the dial to activate it.
E X T E R N A L D E V I C E
Insert one or more CDs in the changer. Press the MUSIC button.
Press one of the buttons on the numeric keypad to select the corresponding CD.
Select the CD CHANGER music s o u r c e a n d p r e s s t h e d i a l t o c o n fi r m .
The display and management of the controls is via the pa the portable equipment.
CD CHANGER
Select the SELECT MUSIC function a n d p r e s s t h e d i a l t o c o n fi r m .
U S I N G T H E E X T E R N A L D E V I C E ( A U X )
AUDIO/RCA CABLE NOT SUPPLIED
CD CHANGER
P L A Y I N G A C D ( N O T M P 3 / W M A C O M P A T I B L E )
SELECT MUSIC
Press the MUSIC button again or select the MUSIC MENU function and p r e s s t h e d i a l t o c o n fi r m .
MUSIC MENU
MUSIC MEDIA PLAYERS

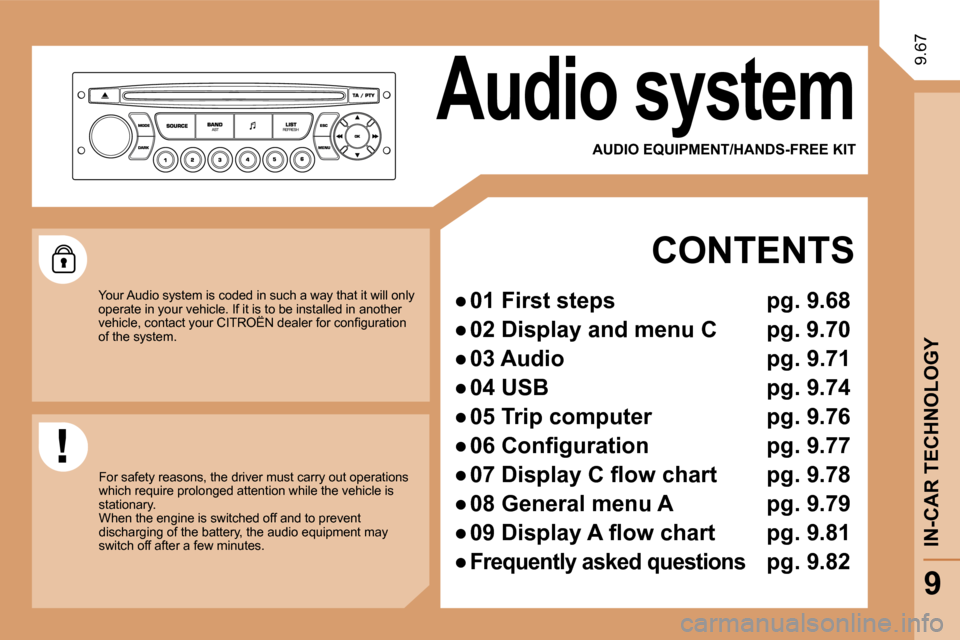

Page 200 of 221
9.67
AUDIO EQUIPMENT/HANDS-FREE KIT
CONTENTS
Page 201 of 221
9.68
01 FIRST STEPS
CD eject.
On - Off. Volume dial.
M o d e : Selection of the screen display mode. D a r k : Hide the screen display, until completely black, by successive presses. Pressing again reactivates the display.
S o u r c e : Selection of the source; radio, CD and CD changer. B a n d : Selection of the FM1, FM2, FMast and AM wavebands. : Setting the audio options: Front/rear balance, left/right balance, loudness,sound ambiences. L i s t : Displaying of the local stations, of the tracks on the CD or of the MP3 directories. - Storing of a station. - Selection of a stored radio station. - Selection of a CD in the CD changer. Updating of the stations received.
E S C : Abandon current operation. M e n u : Displaying of the general menu.
Navigator which selects the choices above or the step by step or rapid advances. Pressing the navigation dial c o n fi r m s t h e c h o i c e , b u t d o e s n o t store it.
A long press is required.
For a detailed global view of the menus available, refer to t h e " D i s p l a y fl o w c h a r t " s e c t i o n o f t h i s c h a p t e r .
Page 203 of 221
9.70
9
0 2 DISPLAY AND MENU C
AUDIO FUNCTION: radio, CD, options.
PERSONALISATION - CONFIGURATION: vehicle parameters, display, languages.
TELEPHONE: hands-free kit, matching, management of a call.
> GENERAL MENU > DISPLAY C
This displays the following information, via the audio equipment control pad: - the time, - the date, - t h e e x t e r i o r t e m p e r a t u r e ( t h i s fl a s h e s i f t h e r e i s a r i s k o f i c e ) , - the audio source displays (radio, CD, ...), - the accesses check (doors, boot, ...), - the warning messages (e.g.: "Antipollution fau lt") or information messages (e.g.: "Auto lighting activated") displaye d temporarily, can be cleared by pressing the "ESC" button, - the trip computer, - the location of a faulty wheel, - the detection of a rear obstacle. TRIP COMPUTER: distance entering, warnings, status of functions.
