NAVIGATION - GUIDANCE
SEARCHING FOR POINTS OF INTEREST
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and press the dial to confi rm.
Select the "POI nearby" function to search for POIs around the vehicle.
Select the "POI search" function and press the dial to confi rm.
"NAVIGATION" MENU
POI SEARCH
POI NEARBY
Select the "POI in city" function to search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.
Select the "POI near route" function to search for POIs near the route.
Select the "POI in country" function to search for POIs in the country required.
Select the "POI near destination" function to search for POIs near the point of arrival of the route.
POI NEAR DESTINATION
POI IN COUNTRY
POI NEAR ROUTE
A list of cities present in the country selected can be accbe accessed via the LIST button on the virtual keypad.
POI IN CITY
The points of interest (POIs) indicate all of the service locations in the vicinity (hotels, various businesses, airports...).

03
9.519.51
NAVIGATION - GUIDANCE
List of POIs
* According to availability in the country.
This icon appears when several POIs are grouped together in the same area. Zooming in on this icon shows details of the POIs.

9.52
03
6
4
5
1
2
3
NAVIGATION SETTINGS
Select the "Navi volume" function and turn the dial to set the volume of each voice synthesiser (traffi c information, alert messages…).
Select "Set parameters for risk areas" to gain access to the "Display on map", "Visual alert" and "Sound alert" functions.
Select the "POI categories on Map" function to select the POIs to be displayed on the map by default.
NAVI VOLUME
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and press the dial to confi rm.
Select the "Settings" function and press the dial to confi rm.
"NAVIGATION" MENU
SETTINGS
POI CATEGORIES ON MAP
SET PARAMETERS FOR RISK AREAS
NAVIGATION - GUIDANCE
Contact a CITROËN dealer for details of the procedure for obtaining the HAZARDOUS LOCATION POIs. Updating of the HAZARDOUS LOCATION POIs requires a n SDHC (High Capacity) compatible reader.

04
1
2
5
4
3
9.53
TRAFFIC INFORMATION
CONFIGURE THE FILTERING AND
DISPLAY OF TMC MESSAGES
Then select the radius of the fi lter (in miles (km)) required in accordance with the route, press the dial to confi rm. When all of the messages on the route are selected, the addition of a geographical fi lter is recommended (within a radius of 3 miles (5 km) for example) to reduce the number of messages displayed on the map. The geographical fi lter follows the movement of the vehicle.
Press the TRAFFIC button again or select the "Traffi c" Menu function and press the dial to confi rm.
GEO. FILTER
Press the TRAFFIC button.
The fi lters are independent and their results are cumulative. We recommend a fi lter on the route and a fi lter ar ound the vehicle of: - 2 miles (3 km) or 3 miles (5 km) for a region with heavy traffi c, - 6 miles (10 km) for a region with normal traffi c, - 30 miles (50 km) for long journeys (motorway).
Select the "Geo. Filter" function and press the dial to confi rm.
The list of TMC messages appears under the "Traffi c" Menu sorted The list of TMC messages appears under the "Traffi c" Menu sorted in order of proximity.
Select the fi lter of your choice:
MESSAGES ON ROUTE
ALL WARNING MESSAGES
ONLY WARNINGS ON ROUTE
ALL MESSAGES
The messages appear on the map and on the list. To exit, press ESC.
"TRAFFIC" MENU
The TMC icon, at the bottom left of the scthe screen, may appear in 3 different forms: - No TMC station available, - TMC station available, no message on re on route, - TMC station available and messages onges on route (if guidance is active).

9.54
11
2
3
05
SELECTING A STATION
When the current radio station is displayed on the screen, press the dial.
The radio source short-cuts menu appears and providesovides access to the following short-cuts:
Select the function required and press the dial to confi rm to gain access to the corresponding settings.
TRAFFIC INFO (TA)
The RDS, if displayed, allows you to continue listening tning to the same station by automatic retuning to alternative freque ncies.ncies. However, in certain conditions, coverage of an RDS station may not y not be assured throughout the entire country as radio stations do not conot cover 100 % of the territory. This explains the loss of reception of the stathe station during a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. This ph enomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE - TRAFFIC INFO
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning the dial and press to confi rm.
While listening to the radio, press one of the buttons to select the previous or next station on the list.
Press one of the buttons on the numeric keypad for moor more than 2 seconds to store the current station. Press the button on the numeric keypad to recall the stothe stored radio station.
RDS
RADIOTEXT
REGIONAL PROG.
AM
RADIO
A long press of one of the buttons starts the automatic search for a station with a lower or higher frequency.

06
9.55
MUSIC MEDIA PLAYERS
CD, MP3/WMA CD
INFORMATION AND ADVICE
In order to be able to play a recorded CDR or CDRW, wRW, when recording it is preferable to select the ISO 9660 level 1, vel 1, 2 or Joliet standard. If the disc is recorded in another format it may not be plat be played correctly. It is recommended that the same recording standard is ard is always used for an individual disc, with as low a speed as possible (4ible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet stoliet standard is recommended.
The MyWay will only play audio fi les with the exte nsion ".mp3" with The MyWay will only play audio fi les with the extension ".mp3" with a speed of between 8 Kbps and 320 Kbps and the extee extension ".wma" with a speed of between 5 Kbps and 384 Kbps.
The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 A 2.5 Audio Layer 3 and the WMA format, an abbreviation of Windows Medi Media Audio and the property of Microsoft, are audio compression standastandards which permit the recording of several tens of music fi les on a single disc. permit the recording of several tens of music fi les on a single disc.
It also supports the VBR (Variable Bit Rate) mode. No other type of fi le (.mp4, .m3u...) can be played.
It is advisable to restrict fi le names to 20 characters, without using of It is advisable to restrict fi le names to 20 characters, without using of special characters (e.g.: " " ? ; ù) to avoid any p laying anying and displaying problems.

9.56
1
2
3
5
4
6
SELECTING/PLAYING MUSIC
CD, MP3/WMA CD
The playing and displaying of an MP3/WMA compilationilation may depend on the recording programme and/or the settin gsettings used. We recommend the ISO 9660 fi le standard.
Press the MUSIC button.
Select the "Select music" function and press the dial to confi rm.
Press the up or down button to select the next/previous folder.
Select the music source required: CD, MP3/WMA CD. Press the dial to confi rm. Play begins.
SELECT MUSIC
Press the MUSIC button again or select the "Music" Menu function and press the dial to confi rm.
Press one of the buttons to select a music track. Press and hold one of the buttons for fast forward or rewind play. "MUSIC" MENU
The list of tracks or MP3/WMA fi les appears under "Music" Menu. The list of tracks or MP3/WMA fi les appears under "Music" Menu.

1
2
3
4
1
4
06
2
3
5

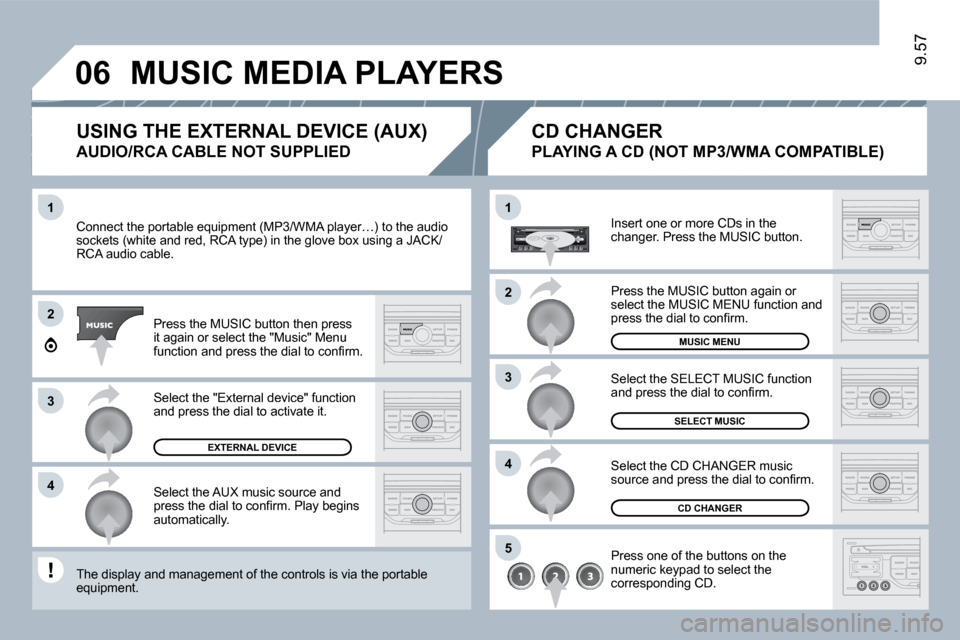

9.57
Connect the portable equipment (MP3/WMA player…) ter…) to the audio sockets (white and red, RCA type) in the glove box usinx using a JACK/RCA audio cable.
Press the MUSIC button then press it again or select the "Music" Menu function and press the dial to confi rm.
Select the AUX music source and press the dial to confi rm. Play begins automatically.
Select the "External device" function and press the dial to activate it.
EXTERNAL DEVICE
Insert one or more CDs in the changer. Press the MUSIC button.
Press one of the buttons on the numeric keypad to select the corresponding CD.
Select the CD CHANGER music source and press the dial to confi rm.
The display and management of the controls is via the pa the portable equipment.
CD CHANGER
Select the SELECT MUSIC function and press the dial to confi rm.
USING THE EXTERNAL DEVICE (AUX)
AUDIO/RCA CABLE NOT SUPPLIED
CD CHANGER
PLAYING A CD (NOT MP3/WMA COMPATIBLE)
SELECT MUSIC
Press the MUSIC button again or select the MUSIC MENU function and press the dial to confi rm.
MUSIC MENU
MUSIC MEDIA PLAYERS
