Under the bonnet
CHECKS
6
PETROL ENGINES
5. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
6. Jack housing.
7. A i r fi l t e r .
8. Removable towing eye.
9. Dipstick.
10. E n g i n e o i l fi l l e r c a p .
11. Power steering reservoir.
UNDER THE BONNET
1. Windscreen/headlamp wash
reservoir.
2. Fuse box.
3. Coolant reservoir.
4. Wheelbrace.
Page 120 of 270
118
Under the bonnet
DIESEL ENGINES
5. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
6. Jack housing.
7. A i r fi l t e r .
8. Removable towing eye.
9. E n g i n e o i l fi l l e r c a p .
10. Dipstick
( a: 2.2 HDi; b: 2.0 HDi).
11. Power steering reservoir.
12. Repriming pump (2.0 HDi).
1. Windscreen/headlamp wash
reservoir.
2. Fuse box.
3. Coolant reservoir.
4. Wheelbrace.
Page 122 of 270
120
Levels
Cooling system
O n l y u s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
Otherwise, you risk seriously damaging
your engine.
When the engine is warm, the
temperature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to
release the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and top
up the level with coolant.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
checked by a CITROËN dealer as
soon as possible.
Power steering fluid level
The vehicle must be parked on level
ground with the engine cold. Unscrew
the cap integrated with the gauge and
check the level which must be between
the MIN and MAX marks. During regeneration of the particle
e m i s s i o n fi l t e r , r e l a y n o i s e m a y b e
heard under the fascia.
If the message is still displayed and
the service warning light remains on,
contact a CITROËN dealer.
Diesel additive level (Diesel with
particle emission filter)
When this occurs with the engine running,
this is due to the start of saturation of
t h e p a r t i c l e e m i s s i o n fi l t e r ( e x c e p t i o n a l l y
prolonged urban driving conditions: low
s p e e d , l o n g t r a f fi c j a m s , . . . ) .
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u a r e
advised to drive at a speed of more than
40 mph (60 km/h) as soon as possible,
w h e n t r a f fi c c o n d i t i o n s p e r m i t , f o r a t
l e a s t fi v e m i n u t e s ( u n t i l t h e m e s s a g e
disappears and the service warning light
is switched off).
Topping up
The level must be between the MIN
and MAX marks on the expansion
b o t t l e . I f m o r e t h a n 1 l i t r e o f fl u i d i s
required to top up the level, have the
system checked by a CITROËN dealer.
Windscreen wash and headlamp
wash level
For best quality cleaning and for your
safety, we would advise that you use
products of the CITROËN range.
To avoid ice forming, do not use water.
Topping up
It is imperative that this additive is
topped up by a CITROËN dealer
without delay.
Used oil
Avoid prolonged contact of used oil
with the skin.
B r a k e fl u i d i s h a r m f u l t o h e a l t h a n d
very corrosive.
Do not dispose of used oil, brake
fl u i d o r c o o l a n t i n t o d r a i n s o r o n t o
the ground but into the containers
dedicated to this use at CITROËN
dealerships.
The minimum level of this
additive is indicated by
lighting of the service warning
light, accompanied by an
audible signal and a message
on the display.
Page 129 of 270
127
TROUBLESHOOTING
7
Changing a bulb
CHANGING A BULB
Handle the bulbs with a dry cloth.
Make access easier on the right-
hand side by removing the wash-wipe
p i p e a n d t h e f u s e b o x c o v e r .
High pressure washing: when using
this type of washing on stubborn dirt,
do not persist on the headlamps, the
lights and their surrounds to avoid
damaging their coating and their seal. 2 - Main beam headlamps
H 7 - 5 5 W o r x e n o n b u l b .
- Turn the protective cover
corresponding to the faulty bulb
a quarter of a turn to the left and
remove it.
- Disconnect the connector.
- Press the end of the securing clip to free it. Change the bulb.
W h e n fi t t i n g t h e n e w b u l b , e n s u r e t h a t
the direction notches are positioned
c o r r e c t l y a n d t h e s e c u r i n g c l i p i s fi x e d
properly.
- Reconnect the connector.
- R e fi t t h e p r o t e c t i v e c o v e r , t h e n t u r n it a quarter of a turn to the right.
3 - Fog lamps
H1-55 W.
FRONT LIGHTS
1. Dipped headlamps
2. Main beam headlamps
3. Fog lamps
4. Side lights
5. Direction indicators 1 - Dipped beam headlamps
H 7 - 5 5 W o r x e n o n b u l b .
4 - Side lights
W 5 W.
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Change the bulb.
WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be changed by a
CITROËN dealer.
Page 130 of 270
128
Changing a bulb
Rear lights
1. Direction indicators
PY 21 W (amber).
2. Side lights
5 W.
3. Brake/side lights
P 21 W/5 W.
4. Reversing lights
P 21 W.
5 - Direction indicators
PY 21 W (amber).
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Change the bulb.
T h e h e a d l a m p s a r e fi t t e d w i t h
polycarbonate glass with a
protective coating. Do not clean
them with a dry or abrasive cloth, nor
with a detergent or solvent product.
Use a sponge and soapy water.
In certain climatic conditions (low
temperature, humidity), condensation
inside the headlamp glass is normal;
it disappears a few minutes after the
lights are switched on. Direction indicator side repeaters
WY 5 W (amber).
- Push the repeater rearwards and
release it from the mirror.
- Hold the connector and turn the bulb holder a quarter of a turn to
the left.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
W h e n r e fi t t i n g , e n g a g e t h e r e p e a t e r
towards the rear and move it towards
the front of the mirror.
Amber coloured bulbs (direction
indicators and side repeaters)
must be changed for bulbs of
i d e n t i c a l s p e c i fi c a t i o n a n d c o l o u r .
5. Fog lamps
P 21 W.
These 5 bulbs are changed from inside
the vehicle:
- open the tailgate,
- r e m o v e t h e a i r e x t r a c t i o n g r i l l e o n the side concerned,
Page 131 of 270
128
Changing a bulb
Rear lights
1. Direction indicators
PY 21 W (amber).
2. Side lights
5 W.
3. Brake/side lights
P 21 W/5 W.
4. Reversing lights
P 21 W.
5 - Direction indicators
PY 21 W (amber).
- Turn the bulb holder a quarter of a
turn to the left and remove it.
- Change the bulb.
T h e h e a d l a m p s a r e fi t t e d w i t h
polycarbonate glass with a
protective coating. Do not clean
them with a dry or abrasive cloth, nor
with a detergent or solvent product.
Use a sponge and soapy water.
In certain climatic conditions (low
temperature, humidity), condensation
inside the headlamp glass is normal;
it disappears a few minutes after the
lights are switched on. Direction indicator side repeaters
WY 5 W (amber).
- Push the repeater rearwards and
release it from the mirror.
- Hold the connector and turn the bulb holder a quarter of a turn to
the left.
- Turn the bulb a quarter of a turn to the left, remove it and change it.
W h e n r e fi t t i n g , e n g a g e t h e r e p e a t e r
towards the rear and move it towards
the front of the mirror.
Amber coloured bulbs (direction
indicators and side repeaters)
must be changed for bulbs of
i d e n t i c a l s p e c i fi c a t i o n a n d c o l o u r .
5. Fog lamps
P 21 W.
These 5 bulbs are changed from inside
the vehicle:
- open the tailgate,
- r e m o v e t h e a i r e x t r a c t i o n g r i l l e o n the side concerned,
Page 138 of 270
135
TROUBLESHOOTING
7
Changing a fuse

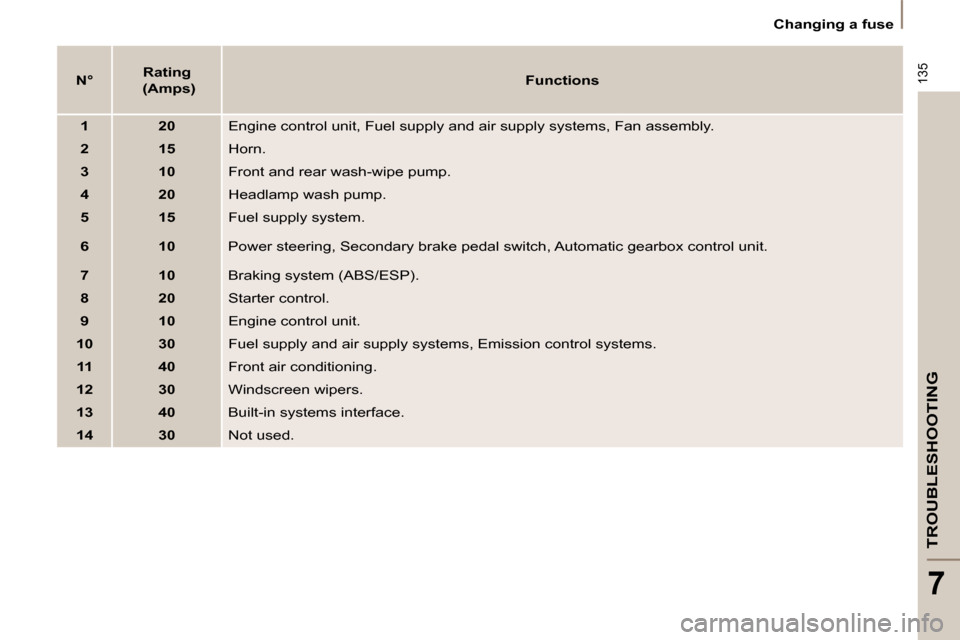

N°
Rating
(Amps)
Functions
1 20 Engine control unit, Fuel supply and air supply systems, Fan assembly.
2 15 Horn.
3 10 Front and rear wash-wipe pump.
4 20 Headlamp wash pump.
5 15 Fuel supply system.
6 10 P o w e r s t e e r i n g , S e c o n d a r y b r a k e p e d a l s w i t c h , A u t o m a t i c g e a r b o x c o n t r o l u n i t .
7 10 Braking system (ABS/ESP).
8 20 Starter control.
9 10 Engine control unit.
10 30 Fuel supply and air supply systems, Emission control systems.
11 40 Front air conditioning.
12 30 Windscreen wipers.
13 40 Built-in systems interface.
14 30 Not used.
