II
41
M U L T I F U N C T I O N S C R E E N S
16/9 COLOUR SCREEN (WITH MY WAY)
Displays on the screen
It displays the following information
automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k
of ice),
- audio functions,
- satellite navigation system infor- mation. Controls
From the MyWay control panel, to
select one of the applications:
press the dedicated "RADIO" ,
"MUSIC" , "NAV" , "TRAFFIC" ,
"SETUP" or "PHONE" button
for access to the corresponding
menu,
turn the dial to move the selection,
p r e s s t h e d i a l t o c o n fi r m t h e s e -
lection,
or
press the "ESC" button to aban-
don the current operation and re-
turn to the previous display.
* According to country. For more information on these
applications, refer to the "Audio
E q u i p m e n t " s e c t i o n o r t o t h e s p e -
c i fi c u s e r g u i d e g i v e n t o y o u w i t h
the other owner's documents. "SETUP" menu
Press the "SETUP" button to
gain access to the "SETUP"
menu. This allows you to select
from the following functions:
- "System language",
- "Date & time",
- "Display",
- "Units",
- "System".
System language
This menu allows you to select
the language used by the dis-
play: Deutsch, English, Espanol,
Français, Italiano, Nederlands,
P o l s k i , P o r t u g u e s , T ü r k ç e * .
Page 41 of 314
II
42
M U L T I F U N C T I O N S C R E E N S
Display
This menu allows you to set the
brightness of the screen, the screen
colour scheme and the colour of the
map (day/night or auto mode). Units
This menu allows you to select the
units for temperature (°C or °F) and
d i s t a n c e ( m i l e s o r k i l o m e t r e s ) .
System
This menu allows you to restore the
f a c t o r y c o n fi g u r a t i o n , d i s p l a y t h e
software version and activate scroll-
ing text.
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must be only done when sta-
tionary.
Date & time
This menu allows you to set the date
and time, the format of the date and
the format of the time.
To set the date and time:
Press the "SETUP" control.
Turn the dial to select "DATE &
TIME" .
P r e s s t h e d i a l t o c o n fi r m .
Turn the dial to select "SET
DATE & TIME" .
P r e s s t h e d i a l t o c o n fi r m .
T u r n t h e d i a l t o s e l e c t a fi e l d :
- C for the day,
- D for the month,
- E for the year,
- F for the time.
P r e s s t h e d i a l t o c o n fi r m .
Turn the dial or use the alphanu-
m e r i c k e y p a d t o s e l e c t t h e d i g i t s
which form the date and time.
P r e s s t h e d i a l t o c o n fi r m e a c h
fi e l d .
Turn the dial to select "DATE
FORMAT" .
C h o o s e t h e f o r m a t r e q u i r e d a n d
p r e s s t h e d i a l t o c o n fi r m .
Turn the dial to select "TIME
FORMAT" .
C h o o s e t h e f o r m a t r e q u i r e d a n d
p r e s s t h e d i a l t o c o n fi r m .
Page 42 of 314
II
43
M U L T I F U N C T I O N S C R E E N S
16/9 HIGH DEFINITION COLOUR SCREEN (WITH NAVIDRIVE 3D)
Displays on the screen
It displays the following information
automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k
of ice),
- audio functions,
- t e l e p h o n e a n d a d d r e s s b o o k i n - formation,
- satellite navigation system infor- mation. Controls
From the NaviDrive 3D control panel,
to select one of the applications:
press the dedicated "RADIO" ,
"MEDIA" , "NAV" , "TRAFFIC" ,
"ADDR BOOK" or "SETUP"
button for access to the corre-
sponding menu,
turn the dial to move the selection,
p r e s s t h e d i a l t o c o n fi r m t h e s e -
lection,
or
press the "ESC" button to aban-
don the current operation and
return to the previous display. For more information on these
applications, refer to the "Audio
E q u i p m e n t " s e c t i o n o r t o t h e s p e -
c i fi c u s e r g u i d e g i v e n t o y o u w i t h
the other owner's documents.
Page 43 of 314
II
44
M U L T I F U N C T I O N S C R E E N S * According to country.
"SETUP" menu
Press the "SETUP" button to gain
access to the "SETUP" menu.
This allows you to select from
the following functions:
- "Languages and Speech",
- "Date & Time",
- "Display",
- "Units",
- "System".
Language & Speech
This menu allows you to:
- select the language used by the display (Deutsch, English,
Espanol, Français, Italiano,
N e d e r l a n d s , P o l s k i , P o r t u g u e s ,
T ü r k ç e * ) ,
- select the voice recognition pa- rameters (activation/deactivation,
advice on use, personal voice
programming, etc.),
- set the volume of the voice syn- thesiser. Date & Time
This menu allows you to set the date
and time, the format of the date and
the format of the time (refer to the
" A u d i o E q u i p m e n t " s e c t i o n o r t o t h e
s p e c i fi c u s e r g u i d e g i v e n t o y o u w i t h
the other owner's documents).
Display
This menu allows you to set the
brightness of the screen, the screen
colour scheme and the colour of the
map (day/night or auto mode).
Units
This menu allows you to select the
units: temperature (°C or °F) and
d i s t a n c e ( k m o r m i l e s ) .
System
This menu allows you to restore the
f a c t o r y c o n fi g u r a t i o n , d i s p l a y t h e
software version and activate scroll-
ing text.
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when
stationary.
Page 46 of 314
III
47
C O M F O R T
DIGITAL AIR CONDITIONING (MONO-ZONE)
This is the normal sys-
tem operating mode.
In accordance with the
level of comfort cho-
sen, pressing this con-
t r o l , c o n fi r m e d b y t h e
switching on of indicator lamp A , per-
mits automatic and simultaneous con-
trol of all of the following functions:
- A i r fl o w .
- Temperature in the passenger compartment.
- Air distribution.
- Air intake.
- Air conditioning.
1. Automatic operation
It is advisable to leave all of the
vents open.
Simply pressing one of the controls,
with the exception of control
2 , switches
the system to manual mode.
Indicator lamp A switches off. 2. Temperature adjustment
Turn control 2 to
change the tempera-
ture:
-
Clockwise to increase
the temperature.
- Anticlockwise to reduce the tem- perature.
The setting required is displayed.
The value indicated on the display
corresponds to a level of comfort
and not to a temperature in degrees
Celsius or Fahrenheit, depending on
t h e s c r e e n c o n fi g u r a t i o n .
A setting around the value 21 usu-
ally makes it possible to obtain opti-
mum comfort. However, depending
on your requirements, a setting be-
tween 18 and 24 is usual.
On entering the vehicle, the interior
temperature may be much colder (or
warmer) than is comfortable. There is
no need to change the temperature
displayed in order to obtain rapidly
the level of comfort required.
The automatic regulation of the air
conditioning will use its maximum
performance settings to correct the
temperature difference as quickly as
possible.
Mono-zone: this is the overall regu-
lation of the temperature, distribu-
t i o n a n d fl o w o f a i r i n t h e p a s s e n g e r
compartment.
The symbols and messages associ-
ated with the digital air conditioning
controls appear on the multifunction
screen.
1. Automatic operation
2. Temperature adjustment
3. Air distribution adjustment
4. Activation/deactivation of the air
conditioning
5. A i r fl o w a d j u s t m e n t
6. Front demisting - defrosting
7. Rear demisting - defrosting
8. Air recirculation - intake of exte-
rior air
9. Screen
Page 47 of 314
III
48
C O M F O R T

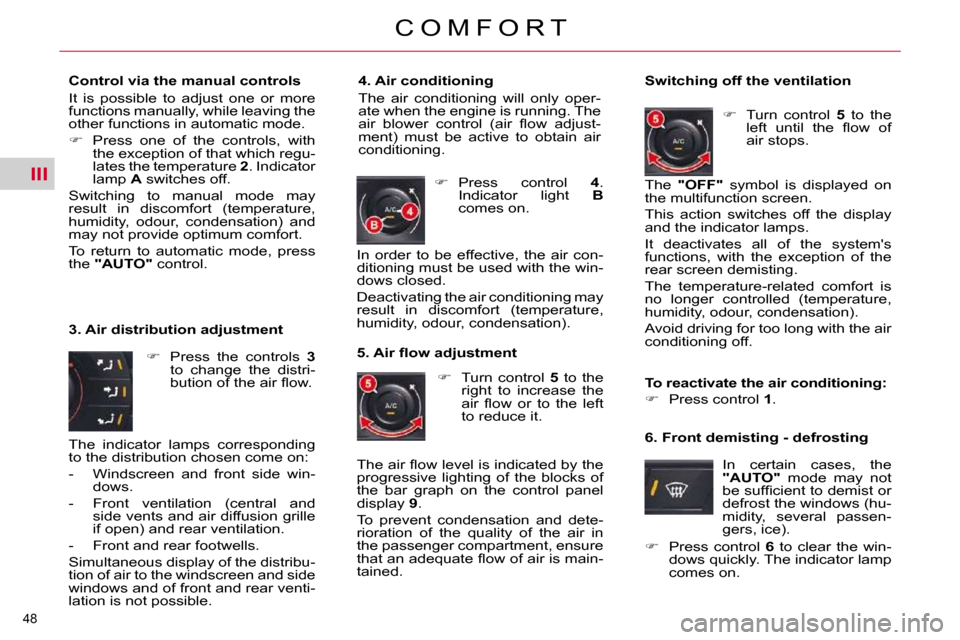

Control via the manual controls
It is possible to adjust one or more
functions manually, while leaving the
other functions in automatic mode.
Press one of the controls, with
the exception of that which regu-
lates the temperature 2 . Indicator
lamp A switches off.
Switching to manual mode may
result in discomfort (temperature,
humidity, odour, condensation) and
may not provide optimum comfort.
To return to automatic mode, press
the "AUTO" control.
3. Air distribution adjustment
Press the controls 3
to change the distri-
b u t i o n o f t h e a i r fl o w . 4. Air conditioning
The air conditioning will only oper-
ate when the engine is running. The
a i r b l o w e r c o n t r o l ( a i r fl o w a d j u s t -
ment) must be active to obtain air
conditioning.
Switching off the ventilation
Turn control 5 to the
l e f t u n t i l t h e fl o w o f
air stops.
Press control 4 .
Indicator light B
comes on.
5 . A i r fl o w a d j u s t m e n t
Turn control 5 to the
right to increase the
a i r fl o w o r t o t h e l e f t
to reduce it.
6. Front demisting - defrosting
In certain cases, the
"AUTO" mode may not
b e s u f fi c i e n t t o d e m i s t o r
defrost the windows (hu-
midity, several passen-
gers, ice).
Press control 6 to clear the win-
dows quickly. The indicator lamp
comes on.
The
"OFF" symbol is displayed on
the multifunction screen.
This action switches off the display
and the indicator lamps.
It deactivates all of the system's
functions, with the exception of the
rear screen demisting.
The temperature-related comfort is
no longer controlled (temperature,
humidity, odour, condensation).
Avoid driving for too long with the air
conditioning off.
In order to be effective, the air con-
ditioning must be used with the win-
dows closed.
Deactivating the air conditioning may
result in discomfort (temperature,
humidity, odour, condensation).
The indicator lamps corresponding
to the distribution chosen come on:
- Windscreen and front side win- dows.
- Front ventilation (central and side vents and air diffusion grille
if open) and rear ventilation.
- Front and rear footwells.
Simultaneous display of the distribu-
tion of air to the windscreen and side
windows and of front and rear venti-
lation is not possible. T h e a i r fl o w l e v e l i s i n d i c a t e d b y t h e
progressive lighting of the blocks of
the bar graph on the control panel
display
9 .
To prevent condensation and dete-
rioration of the quality of the air in
the passenger compartment, ensure
t h a t a n a d e q u a t e fl o w o f a i r i s m a i n -
tained.
To reactivate the air conditioning:
Press control 1 .
Page 48 of 314
III
49
C O M F O R T
I t c o n t r o l s t h e t e m p e r a t u r e , a i r fl o w
and intake and distributes the ven-
tilation to the windscreen and front
side windows.
Resuming manual control exits from
"Demisting" mode. It must be can-
celled to permit renewal of the air
in the passenger compartment and
demisting.
Once the screen is clear, press-
ing control 1 returns the system to
"AUTO" mode.
Press control 7 , with
the engine running,
to demist the rear
screen and the door
mirrors. The indica-
tor lamp comes on.
Demisting is switched off automati-
cally to prevent an excessive con-
sumption of current and in relation
to the ambient temperature.
It may be stopped by pressing con-
trol 7 again or when the engine is
switched off.
7. Rear demisting - defrosting
The heated rear screen operates in-
dependently of the air conditioning
system.
8. Intake of exterior air/
Recirculation of interior air
This function enables you to isolate
the passenger compartment from
exterior fumes and odours. - When starting with the engine
c o l d , t h e fl o w w i l l r e a c h i t s o p -
timum level gradually to pre-
vent an excessive distribution
of cold air.
- When entering the vehicle af- ter it has been parked for a
fairly long period, if the inte-
rior temperature is very differ-
ent from your comfort setting
there is no need to change
the temperature displayed
in order to quickly reach the
level of comfort required. The
system automatically uses its
maximum performance to cor-
rect the difference in tempera-
ture as quickly as possible.
- The water resulting from the air conditioning condensation
is discharged via an open-
ing provided for this purpose;
therefore, a puddle of water
may form underneath the ve-
hicle when stationary.
- In all seasons, if the weather is cool, the air conditioning
is useful as it removes the
humidity from the air and the
condensation. Avoid driving
for prolonged periods with the
air conditioning switched off.
However, demisting resumes when
the engine is switched on again.
Switch off the rear screen and door
mirrors demisting when you consider
this necessary as low current con-
sumption reduces fuel consumption.
Press control 8 sev-
eral times to set the
air intake mode, the
indicator lamp comes
on.
It must be cancelled as soon as
possible to permit renewal of the
air in the passenger compartment
and demisting.
Page 50 of 314
III
51
C O M F O R T
2a-2b. Temperature adjustment Control via the manual controls
Press one of the controls, with
the exception of temperature
regulation 2a and 2b . The indi-
cator lamps A on the "AUTO"
controls switch off.
It is possible to adjust one or more
functions manually while leaving the
other functions in automatic mode.
Switching to manual mode may re-
sult in discomfort (temperature, hu-
midity, odour, condensation) and
may not provide optimum comfort.
To return to "AUTO" mode, press
controls 1a and 1b . The indicator
lamps A come on. 3a-3b. Air distribution adjustment
Press control
3a to change
the distribu-
tion of the air
fl o w o n t h e
driver's side.
Press control 3b to change the
d i s t r i b u t i o n o f t h e a i r fl o w o n t h e
passenger's side.
The indicator lamps corresponding
to the distribution chosen come on:
- Windscreen and front side win- dows.
- Front ventilation (central and side vents and air diffusion grille
if open) and rear ventilation.
- Front and rear footwells.
Simultaneous display of the distribu-
tion of air to the windscreen and side
windows and of front and rear venti-
lation is not possible.
Turn control 2a to change the
temperature on the driver's side
and control 2b to change the
temperature on the passenger's
side: to the right to increase the
temperature or to the left to re-
duce it.
The setting required is displayed.
The value indicated on the display
corresponds to a level of comfort
and not to a temperature in degrees
Celsius or Fahrenheit, depending on
t h e s c r e e n c o n fi g u r a t i o n .
A setting around the value 21 usually
makes it possible to obtain optimum
comfort. However, depending on
your requirements, a setting between
18 and 24 is usual.
On entering the vehicle, the interior
temperature may be much colder
(or warmer) than is comfortable.
There is no need to change the tem-
perature displayed in order to quickly obtain the level of comfort required.
The automatic regulation of the air
conditioning will use its maximum
performance settings to correct the
temperature difference as quickly as
possible.
