2009.5 Citroen C4 PICASSO headlamp

4
F A M I L I A R I S A T I O N

Panoramic glass roof

 81

Xenon directional
headlamps
Whether on dipped beams
or main beams, this function
allows your headlamps to fol-
low the direction of the road
ahead.

 88
Opening rear screen

 80

Pneumatic rear suspension
This enhances driving comfort and
maintains a constant body height,
whatever the vehicle load.
 155

Exterior side spotlamps
These light up the zones fac-
ing the driver’s and passenger’s
doors.

 87

Front/rear parking
assistance
Sensors, located in the
bumpers, detect obstacles.
 153

Parking space sensor
This measures the size of a
space and informs you of the
possibility of parking.

 149
Exterior rear view mirrors
With electric foldback.
Automatically tilts in reverse gear.
 66
E X T E R I O R

27
I
I N S T R U M E N T S a n d C O N T R O L S
Indicator and warning lamps
When the ignition is switched on
The warning lamps come on for a
few seconds when the vehicle’s ig-
nition is switched on.
When the engine is started, these
warning lamps should switch off.
If they remain on, before moving off,
consult information on the warning
lamp concerned. Associated warnings
The switching on of certain warning
lamps may be accompanied by an
audible signal and a message on
the multifunction screen.
The warning lamps may come on
continuously or fl ash.
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operation of the vehicle can it be
ascertained whether the situation
is normal or whether a fault has oc-
curred. Operation indicator lamps

If one of the following indicator lamps
comes on, this confi rms that the corre-
sponding system has come into operation.
Front fog lamps.
Left-hand direction
indicator.
Sidelamps.
Main beam headlamps.
Dipped headlamps.
Right-hand direction
indicator.
Rear fog lamp.
Visual indicators informing the driver
that a system is in operation (opera-
tion or deactivation indicator lamps)
or of the occurrence of a fault (warn-
ing lamp).

84
V I S I B I L I T Y
LIGHTING CONTROLS
System for selection and control of
the various front and rear lamps pro-
viding the vehicle's lighting.
Main lighting
The various front and rear lamps of
the vehicle are designed to adapt
the driver's visibility progressively in
relation to the climatic conditions:
- sidelamps, to be seen,
- dipped headlamps to see with-out dazzling other drivers,
- main beam headlamps to see clearly when the road is clear,
- directional headlamps for im- proved visibility when cornering.
Additional lighting
Other lamps are fi tted to fulfi l the
requirements of particular driving
conditions:
- a rear foglamp to be seen from a distance,
- front foglamps for even better forward vision,
- daytime running lamps to be seen during the day. Programming
Various automatic lighting control
modes are also available depending
on options:
- guide-me-home lighting,
- automatic lighting,
- directional lighting.
Manual controls
lamps off,
automatic lighting,
sidelamps only,
dipped headlamps or
main beam headlamps.

B. Stalk for switching headlamps by
pulling: dipped headlamps/main
beam headlamps.
In the lamps off and sidelamps
modes, the driver can switch on the
main beam headlamps temporarily
("headlamp fl ash") by maintaining a
pull on the stalk.
Displays
Lighting of the corresponding indi-
cator lamp on the instrument panel
confi rms the selective switching on
of the lighting selected.
The lighting commands are issued
directly by the driver by means of
the ring
A and the stalk B .
A. Main lighting mode selection ring,
with:

85
V I S I B I L I T Y
V

C. Foglamps selection ring.
The foglamps operate with the side-
lamps and the dipped and main
beam headlamps.
- 1 st turn forwards: rear foglamp on.
-
1 st turn rearwards: rear foglamp off.
- 1 st turn forwards: front foglamps on.
- 2 nd turn forwards: rear foglamps on.
- 1 st turn rearwards: rear foglamps off.
- 2 nd turn rearwards: front foglamps
off.
Model with rear foglamp only Model with front and rear
foglamps In good or rainy weather, both day
and night, the front foglamps and
the rear foglamp are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped headlamps
manually as the brightness sensor
may detect suffi cient light.
Do not forget to switch off the front
foglamps and the rear foglamp
when they are no longer necessary.
Lighting on buzzer
On switching off the ignition, all of
the lamps turn off immediately, ex-
cept for dipped beam if guide-me-
home lighting is activated.
To reactivate the lighting control, ro-
tate ring
A to the "0" position, lamps
off, then to the desired position.
On opening the driver's door a
temporry audible signal warns the
driver that the lamps are on.
The lamps, with the exception of
the sidelamps, switch off automati-
cally after thirty minutes to prevent
discharging of the battery.

86
V I S I B I L I T Y
V
* According to country.
Daytime-running lamps *
System which switches on the ve-
hicle's dipped headlamps automati-
cally on starting.
This safety system makes the vehi-
cle more visible to other road users
during the day.
The lighting of the instruments and
controls (instrument panel, multi-
function screen, air conditioning
control panel, ...) is independent of
this function. It is provided by the
automatic lighting mode or when the
lamps are switched on manually.
Manual guide-me-home
lighting
The temporary lighting of dipped
headlamps after the vehicle's igni-
tion has been switched off makes
the driver's exit easier when the light
is poor.
Switching on

 With the ignition off, "fl ash" the
headlamps using the lighting
stalk B .

 A second "headlamp fl ash"
switches the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
The manual guide-me-home light-
ing is also available by pressing the
lighting button on the remote con-
trol (refer to the section "Access -
§ Remote control key"). Automatic lighting
The sidelamps and dipped head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns
to a suffi cient level or after the wind-
screen wipers are switched off, the
lamps are switched off automatically.
Activation

 Turn ring A to the "AUTO" posi-
tion. The automatic lighting is ac-
companied by a message on the
multifunction screen.
Deactivation

 Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction screen.
In countries in which it is imposed by
regulations:
- by default, this function is acti-
vated,
- the sidelamps and the number plate lamps are also switched on.

87
V I S I B I L I T Y
V
Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing provides the "guide-me-home"
lighting with the following additional
options:
- selection of the lighting duration to 15, 30 or 60 seconds in the
vehicle parameters on the mul-
tifunction screen confi guration
menu (in the case of the mono-
chrome screen A, the duration is
fi xed),
- automatic activation of "guide- me-home" lighting when auto-
matic lighting is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps comes
on, a message appears on the multi-
function screen, accompanied by an
audible signal.
Consult a CITROËN dealer. In fog or snow, the brightness
sensor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled. EXTERIOR SIDE SPOTLAMPS
These illuminate:
- the zones facing the driver’s and passenger’s doors,
- the zones forward of the door mirrors and rearward of the front
doors.
Switching on
The side spotlamps come on:
- when you unlock the vehicle or press on the lighting button on
the remote control,
- when you remove the key from the ignition,
- when you open a door,
- when you use the remote control.
Switching off
They are timed to go out automati-
cally.
THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle. To do this,
turn the control, located below the
dashboard to the right of the driver,
to the appropriate position:

0. 1 or 2 people in the front seats.

-. 3 people.

1. 4 to 7 people.

-. Intermediate setting.

2. 4 to 7 people + maximum author-
ised loads.

-. Intermediate setting.

3. Driver + maximum authorised
loads.
Initial setting is position "0".

88
V I S I B I L I T Y
V

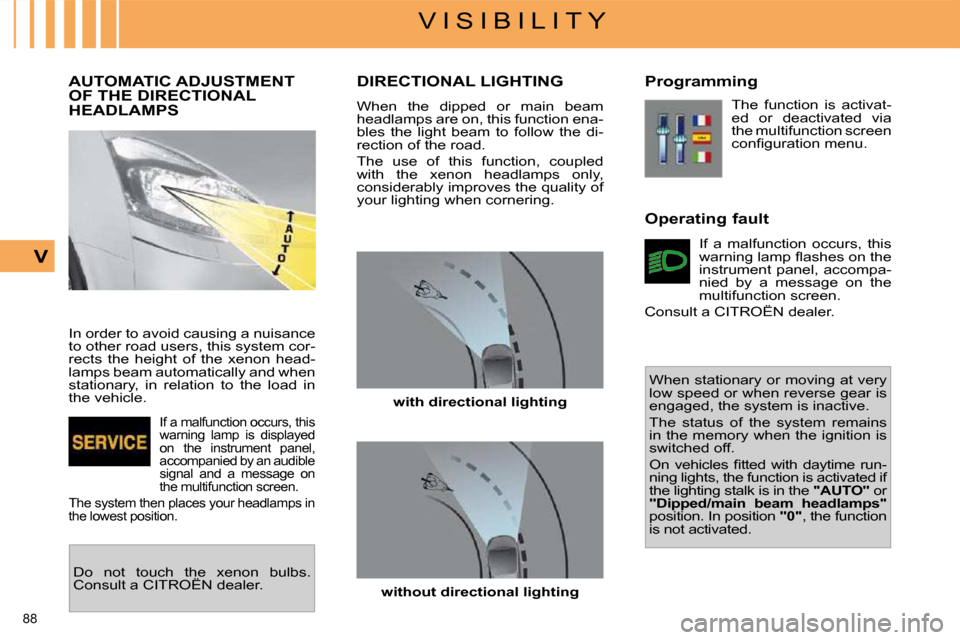

AUTOMATIC ADJUSTMENT OF THE DIRECTIONAL HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle.
If a malfunction occurs, this
warning lamp is displayed
on the instrument panel,
accompanied by an audible
signal and a message on
the multifunction screen.
The system then places your headlamps in
the lowest position.
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
DIRECTIONAL LIGHTING
When the dipped or main beam
headlamps are on, this function ena-
bles the light beam to follow the di-
rection of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.

with directional lighting

without directional lighting Programming
The function is activat-
ed or deactivated via
the multifunction screen
confi guration menu.
Operating fault If a malfunction occurs, this
warning lamp fl ashes on the
instrument panel, accompa-
nied by a message on the
multifunction screen.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the system is inactive.
The status of the system remains
in the memory when the ignition is
switched off.
On vehicles fi tted with daytime run-
ning lights, the function is activated if
the lighting stalk is in the "AUTO" or

"Dipped/main beam headlamps"
position. In position "0" , the function
is not activated.

86
V I S I B I L I T Y
V
* According to country.
Daytime-running lamps *
System which switches on the ve-
hicle's dipped headlamps automati-
cally on starting.
This safety system makes the vehi-
cle more visible to other road users
during the day.
The lighting of the instruments and
controls (instrument panel, multi-
function screen, air conditioning
control panel, ...) is independent of
this function. It is provided by the
automatic lighting mode or when the
lamps are switched on manually.
Manual guide-me-home
lighting
The temporary lighting of dipped
headlamps after the vehicle's igni-
tion has been switched off makes
the driver's exit easier when the light
is poor.
Switching on

 With the ignition off, "fl ash" the
headlamps using the lighting
stalk B .

 A second "headlamp fl ash"
switches the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
The manual guide-me-home light-
ing is also available by pressing the
lighting button on the remote con-
trol (refer to the section "Access -
§ Remote control key"). Automatic lighting
The sidelamps and dipped head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns
to a suffi cient level or after the wind-
screen wipers are switched off, the
lamps are switched off automatically.
Activation

 Turn ring A to the "AUTO" posi-
tion. The automatic lighting is ac-
companied by a message on the
multifunction screen.
Deactivation

 Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction screen.
In countries in which it is imposed by
regulations:
- by default, this function is acti-
vated,
- the sidelamps and the number plate lamps are also switched on.
