2009.5 Citroen C3 PICASSO ECO mode

4
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)

Engines
Petrol
VTi 95 Diesel HDi 90 PEF

Model codes:
SH...
8FP0 9HP0
- Unladen weight 1 246 1 277
- Kerb weight 1 321 1 352
- Payload 501 502
- Gross vehicle weight (GVW) 1 747 1 779
- Gross train weight (GTW) on a 12 % gradient 2 597 2 979
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 850 1 200
- Braked trailer * (with load transfer within the GTW limit) 1 100 1 200
- Unbraked trailer 650 675
- Recommended nose weight 54 54
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

!
19
INSTRUMENTS and CONTROLS Certain warning lamps may come
on in two different modes. Only
by relating the type of lighting to
the operating status of the vehicle
can it be ascertained whether the
situation is normal or whether a
fault has occurred.
Indicator and warning lamps
Visual indicators informing the driver that a syst
em is in operation (operation or deactivation indic ator lamps) or of the occurrence
of a fault (warning lamp).
Associated warnings
The switching on of certain warning lamps may be accompanied b y an audible
signal and a message on the multifunction screen.
The warning lamps may come on continuously (fi xed) or fl ash.
Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding
system has come into operation.
When the ignition is switched on
Certain warning lamps come on for a few seconds when the veh
icle's ignition is switched on.
When the engine is started, these same warning lamps should switch off.
If they remain on, before moving off, refer to the information on the warning lamp concerned.

Warning lamp is on Cause Action/Observations

Left-hand
direction
indicato
r fl ashing with
buzzer. The lighting stalk is pushed
down.


Right-hand
direction
indicator fl ashing with
buzzer. The lighting stalk is pushed
up.


Sidelamps fi xed. The lighting stalk is in the
"Sidelamps" position. Turn the control to the desired position.

Dipped beam
headlamps fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position. Turn the control to the desired position .

Main beam
headlamps fi xed. The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam headlamps.

INSTRUMENTS and CONTROLS
Total distance recorder
System which measures the total
distance travelled by the vehicle during
its life. Lighting rheostat
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior bright-
ness.
The total and trip distances are dis-
played for thirty seconds when the igni-
tion is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
until it is reset to zero by the driver.

 With the ignition on, press the button
until zeros appear. Activation
When the lighting is on:

 press the button to change the
brightness of the instruments and
controls,

 when the level of brightness required
is reached, release the button.
Deactivation
When the lighting is off, or in day mode
on vehicles fi tted with daytime running
lamps, pressing the button does not
have any effect.

!
i
31

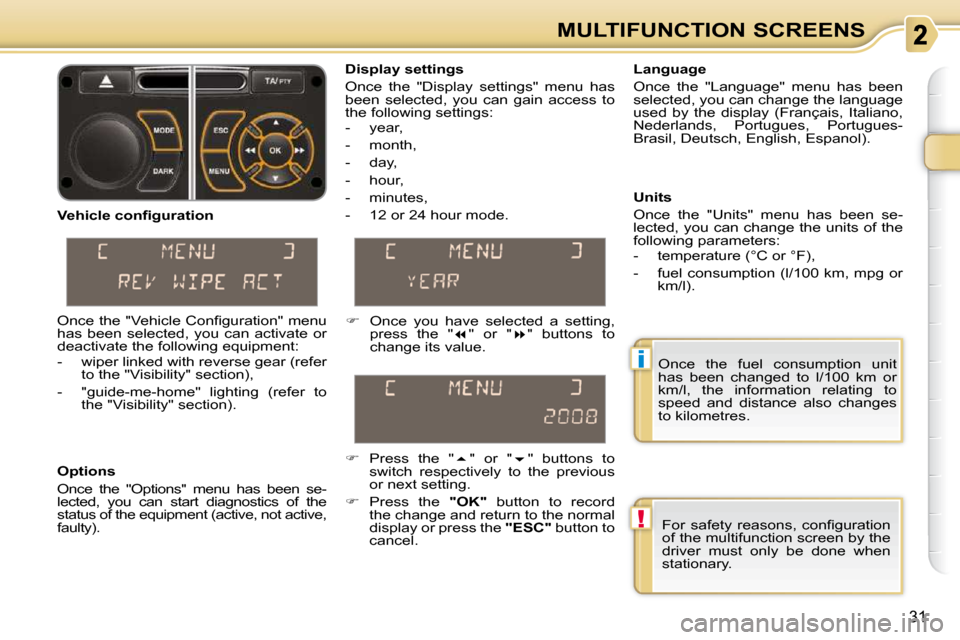

MULTIFUNCTION SCREENS Once the fuel consumption unit
has been changed to l/100 km or
km/l, the information relating to
speed and distance also changes
to kilometres.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).

 Once you have selected a setting,
press the "  " or "  " buttons to
change its value.

 Press the "  " or "  " buttons to
switch respectively to the previous
or next setting.

 Press the "OK" button to record
the change and return to the normal
display or press the "ESC" button to
cancel.
Vehicle confi guration
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not active,
faulty).
Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary.

ii
44
COMFORT When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will reach its optimum
level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, side windows and footwells
only. On entering the vehicle, if the inte-
rior temperature is much colder or
warmer than the comfort value, there
is no need to change the value dis-
played in order to obtain the comfort
required. The system corrects the
difference in temperature automati-
cally and as quickly as possible.
The air conditioning only operates when
the engine is running. The driver and his front pas-
senger can each adjust the
temperature to their require-
ments.

 Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending
on your requirements, a setting between
18 and 24 is normal.
You are advised to avoid a left/right
setting difference of more than 3. 4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost the
windscreen and side windows
(humidity, several passengers,
ice, etc.).

 In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation

 Press the "AUTO" button.
The indicator lamp on the
button comes on. 2. Driver's side adjustment
DUAL-ZONE DIGITAL AIR CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
ger compartment temperature, air fl ow,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.

 To switch it off, press the "visibility"
button again or press the "AUTO"
button, the indicator lamp on the but-
ton switches off and the indicator lamp
on the "AUTO" button comes on.
1. Automatic comfort programme
3. Passenger side adjustment

i
i
i
57
ACCESS
WINDOW CONTROLS
System which opens or closes a win-
dow manually or automatically. It is
fi tted with anti-pinch protection if an
obstacle is detected on the one-touch
models and a deactivation system to
prevent misuse of the rear switches on
all models.

1. Driver's electric window control
switch.

2. Passenger's electric window
control switch.

3. Rear right electric window control
switch.

4. Rear left electric window control
switch.

5. Deactivating the rear electric
window and door controls. In the event of unwanted opening of
the window on closing (for example
in the presence of frost):

 press the switch until it opens
completely,

 then pull it immediately until it
closes,

 continue to hold the switch for
approximately one second after
the window has closed.

The safety anti-pinch function is
not active during these operations.
Safety anti-pinch
The one-touch electric windows are
fi tted with a safety anti-pinch function.
When the window rises and meets an
obstacle, it stops and partially lowers
again.
The electric window switches re-
main operational for approximately
45 seconds after the ignition is
switched off or until a front door is
opened.
Electric windows

 Press or pull the switch.
The window stops as soon
as the switch is released.
One-touch electric windows There are two methods
of operation:
- manual mode

 Press or pull the switch gently.
The window stops as soon as the
switch is released.
- automatic mode

 Press or pull the switch fully. The
window opens or closes completely
when the switch is released.

 Pressing the switch again stops
the movement of the window. The electric window switches re-
main operational for approximately
45 seconds after the ignition is
switched off or until a front door is
opened.

!
i
66
VISIBILITY
Model with rear foglamp only rear foglamp

 To switch on the foglamp, turn the
ring C forwards.
When the lighting is switched off au-
tomatically (with AUTO model), the fo-
glamp and the dipped headlamps will
remain on.

 To switch off all of the lighting, turn
the ring C rearwards. In good or rainy weather, by both day
and night, the front foglamps and the
rear foglamp are prohibited. In these
situations, the power of their beams
may dazzle other drivers.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.
Lighting on buzzer
When the ignition is switched off,
all of the lamps switch off automati-
cally, unless "guide-me-home lighting"
is activated.
If the lighting is switched on manu-
ally after switching off the ignition,
there is an audible signal when a
front door is opened to warn the
driver that they have forgotten to
switch off the vehicle's lighting, with
the ignition off.
Model with front foglamps
and a rear foglamp
Front and rear foglamps
Rotate and release the ring C :

 forwards a fi rst time to switch on the
front foglamps.

 forwards a second time to switch on
the rear foglamp,

 rearwards a fi rst time to switch off
the rear foglamp

 rearwards a second time to switch
of the front fog lamps.

C. fog lamps selection ring.
The fog lamps operate with the dipped
and main beam headlamps. When the lighting is switched off auto-
matically (with AUTO model) or when
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.

 Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.

i
72
VISIBILITY
COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.

1. Front courtesy lamp

2. Map reading lamps

3. Rear courtesy lamp Front and rear courtesy lamps
Map reading lamps

 With the ignition on, press the cor-
responding switch. In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unlimited.
In this position, the courtesy
lamp comes on gradually:
Permanently off.
Permanent lighting.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking but- ton is activated, in order to locate
your vehicle.
Footwell lighting
These lamps come on at the same time
as the courtesy lamps.
