5
VISIBILITY To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the load
in the vehicle.
0 . 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum authorised load.
3. Driver + maximum authorised load.
The initial setting is position "0" .
HEADLAMP ADJUSTMENT Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides "guide-me-home" lighting with
the following additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic lighting
is in operation.
Operating fault In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t
light. Therefore, the lighting will
not come on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior
mirror; the associated functions
would no longer be controlled.
In the event of a fault with
the brightness sensor,
the lighting come on, this
warning lamp is displayed
on the instrument panel and/or a mes-
sage appears on the multifunction screen,
accompanied by an audible signal.
Consult a CITROËN dealer.
Page 76 of 209
5
VISIBILITY To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the load
in the vehicle.
0 . 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum authorised load.
3. Driver + maximum authorised load.
The initial setting is position "0" .
HEADLAMP ADJUSTMENT Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides "guide-me-home" lighting with
the following additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic lighting
is in operation.
Operating fault In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t
light. Therefore, the lighting will
not come on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior
mirror; the associated functions
would no longer be controlled.
In the event of a fault with
the brightness sensor,
the lighting come on, this
warning lamp is displayed
on the instrument panel and/or a mes-
sage appears on the multifunction screen,
accompanied by an audible signal.
Consult a CITROËN dealer.
Page 77 of 209
5
VISIBILITY
WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the climatic
conditions.
Programming
Various automatic wiper control modes
are also available according to the fol-
lowing options:
- automatic wiping for the windscreen wipers,
- rear wiping on engaging reverse gear. Model with intermittent wiping
Model with AUTO wiping Manual controls
The wiper commands are issued directly
by the driver by means of the stalk
A
and the ring B .
Windscreen wipers
A. wiping speed selection stalk:
s i n g l e w i p e ( p r e s s d o w n w a r d s ) ,
or f a s t ( h e a v y r a i n ) ,
n o r m a l ( m o d e r a t e r a i n ) ,
intermittent (proportional to the
s p e e d o f t h e v e h i c l e ) ,
park,
automatic, then single
w i p e ( s e e n e x t p a g e ) .

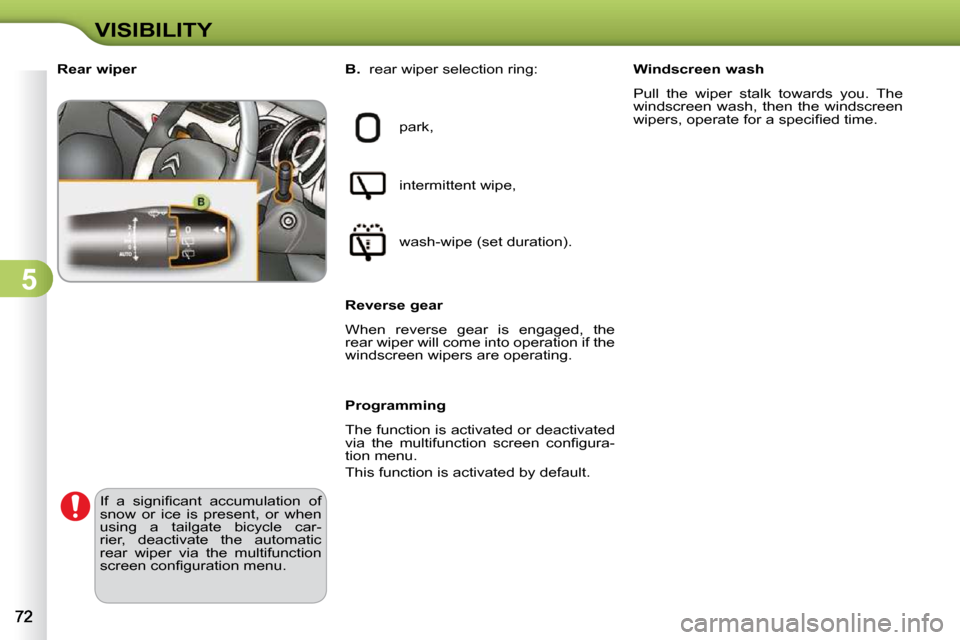

Page 78 of 209
5
VISIBILITY
Rear wiper
park,
intermittent wipe,
w a s h - w i p e ( s e t d u r a t i o n ) .
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
Programming
The function is activated or deactivated
v i a t h e m u l t i f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
This function is activated by default. Windscreen wash
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen
w i p e r s , o p e r a t e f o r a s p e c i fi e d t i m e .
B. rear wiper selection ring:
I f a s i g n i fi c a n t a c c u m u l a t i o n o f
snow or ice is present, or when
using a tailgate bicycle car-
rier, deactivate the automatic
rear wiper via the multifunction
s c r e e n c o n fi g u r a t i o n m e n u .
Page 79 of 209
5
VISIBILITY
Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
b e h i n d t h e i n t e r i o r m i r r o r ) , a d a p t i n g t h e i r
speed to the intensity of the rainfall.
Activation
Switching off Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in inter-
mittent mode.
Have it checked by a CITROËN dealer. Special position of the
windscreen wipers
For optimum and lasting wiping
o f t h e " fl a t - b l a d e " w i p e r b l a d e s ,
it is advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain cardboard on the windscreen.
Do not cover the rain sensor,
linked with the brightness sensor
and located in the centre of the
windscreen behind the interior
mirror.
Switch off the automatic wiping
when using an automatic car
wash.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic wiping.
The automatic wiping must be re-
activated if the ignition has been
off for more than one minute, by
pushing stalk
A downwards.
In the minute following switching off of the
ignition, any action on the stalk positions
the wipers vertically.
This action enables you to position the
wiper blades for winter parking, cleaning
or replacement without damaging the
bonnet.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
This is controlled manually by the driver by
pushing stalk
A to the "AUTO" position.
This is controlled manually by the driver
by moving stalk A upwards and returning
it to position "0" . It is accompanied by the indica-
tor lamp in the instrument panel
switching off and a message on
the multifunction screen.
It is accompanied by the lighting
of this indicator lamp in the in-
strument panel and a message
on the multifunction screen.
Page 80 of 209
5
VISIBILITY
Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
b e h i n d t h e i n t e r i o r m i r r o r ) , a d a p t i n g t h e i r
speed to the intensity of the rainfall.
Activation
Switching off Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in inter-
mittent mode.
Have it checked by a CITROËN dealer. Special position of the
windscreen wipers
For optimum and lasting wiping
o f t h e " fl a t - b l a d e " w i p e r b l a d e s ,
it is advisable to:
- handle them with care,
- clean them regularly using soapy water,
- change them approximately every 6 months,
- avoid using them to retain cardboard on the windscreen.
Do not cover the rain sensor,
linked with the brightness sensor
and located in the centre of the
windscreen behind the interior
mirror.
Switch off the automatic wiping
when using an automatic car
wash.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic wiping.
The automatic wiping must be re-
activated if the ignition has been
off for more than one minute, by
pushing stalk
A downwards.
In the minute following switching off of the
ignition, any action on the stalk positions
the wipers vertically.
This action enables you to position the
wiper blades for winter parking, cleaning
or replacement without damaging the
bonnet.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
This is controlled manually by the driver by
pushing stalk
A to the "AUTO" position.
This is controlled manually by the driver
by moving stalk A upwards and returning
it to position "0" . It is accompanied by the indica-
tor lamp in the instrument panel
switching off and a message on
the multifunction screen.
It is accompanied by the lighting
of this indicator lamp in the in-
strument panel and a message
on the multifunction screen.
Page 82 of 209
5
VISIBILITY
AMBIENCE LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
Switching on
At night, the illumination of footwell and
the central dashboard stoarge compart-
ment comes on automatically when the
sidelamps are switched on. Switching off
The ambience lighting switches off au-
tomatically when the sidelamps are
switched off.
It can be switched off manually using
the instrument panel lighting rheostat
button.
With the lighting on, press several
times on the left hand button of the
instrument panel to progressively
reduce the dashboard lighting level.
Press again to reduce the lighting
level to the minimum and switch off
the ambience lighting. This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LIGHTING
Different lighting times are avail-
able:
- when the ignition is off, ap-
proximately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- when the engine is running, no limit.
On certain versions, three lamps locat-
ed in the support between the roof and
the automatic day/night interior mirror
come on as well.
Page 85 of 209
6
FITTINGS
USB READER
This connection box, consisting of a
JACK socket and a USB port, is located
on the centre console.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
or USB stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 , o g g ,
wma, wav...) which are transmitted to
your audio equipment and played via the
vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable
equipment charges automatically.
For further details concerning the use of
this equipment, refer to the Audio sys-
tem part of the "Audio and Telematics"
section.
12 V ACCESSORIES SOCKET
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
JACK SOCKET
This connection box, consisting of a
JACK socket is located on the centre
console.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
type.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav, ...) which are transmit-
ted to your audio equipment and played
via the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable
equipment charges automatically.
For further details concerning the use
of this equipment, refer to MyWay
Audio system part of the "Audio and
Telematics" section.
