2
MULTIFUNCTION SCREENS
MONOCHROME SCREEN C
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- status of doors and boot,
- audio sources (radio, CD, USB port, jack socket etc.),
- trip computer (refer to the "Instruments and controls" section).
Warning messages (E.g. "Emisions
control system faulty") or information
messages (E.g.: Automatic headlamps
active") may appear temporarily. These
can be cleared by pressing the "ESC"
button. Controls
From your Audio system control panel,
you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip
computer, audio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. General menu
Press the "MENU" button to gain
access to the general menu :
- audio functions,
- the trip computer,
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n fi r m
by pressing the "OK" button.
"Audio functions" menu
With the Audio system switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
R a d i o T e x t ) , t h e C D ( i n t r o s c a n , s h u f fl e ,
CD repeat) or the MP3 player (USB
port/jack socket).
For further details on the "Audio func-
tions" application, refer to the Audio sys-
tem part of the "Audio and Telematics"
section.
Page 41 of 209
3
COMFORT
VENTILATION
System which creates and maintains
comfortable conditions in the vehicle's
passenger compartment.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-
partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits. The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o i n -
crease or reduce the speed of the venti-
lation blower.
Control panel
The controls of this system are grouped
together on control panel
A on the cen-
tre console. Depending on the model,
the functions offered are:
- level of comfort required,
- a i r fl o w ,
- air distribution,
- demisting and defrosting,
- manual or automatic air conditioning controls.
Air diffusion
1. Windscreen demisting/defrosting
vents.
2. Front side window demisting/de-
frosting vents.
3. Side adjustable and closing vents.
4. Central adjustable and closing vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.
Page 46 of 209
3
COMFORT
REAR SCREEN DEMIST AND
DEFROST
Switching on
The rear screen demisting/defrosting
can only operate when the engine is
running.
Press this button to demist/defrost
the rear screen and (depending on
version) the exterior mirrors. The
indicator lamp associated with the
button comes on.
Switching off
The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
It is possible to stop the demist-
ing/defrosting operation before it is
switched off automatically by press-
ing the button again. The indicator
lamp associated with the button
switches off. The control button is located on
the heating or air conditioning
system control panel.
If the engine is switched off be-
fore the demisting/defrosting is
switched off automatically, demist-
ing/defrosting will resume next
time the engine is switched on.
Switch off the demisting/de-
frosting of the rear screen
and exterior mirrors as soon
as you consider this neces-
sary as lower current con-
sumption results in reduced
fuel consumption.
With the heating/ventilation
system
P u t t h e t e m p e r a t u r e a n d a i r fl o w
controls to the dedicated marked
position.
P u t t h e a i r i n t a k e c o n t r o l t o t h e " E x -
t e r i o r a i r i n t a k e " p o s i t i o n
(manual control to the right or elec- tric control with indicator lamp off).
Put the air distribution control to the
" W i n d s c r e e n " p o s i t i o n .
FRONT DEMIST - DEFROST
These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.
With the manual air
conditioning system
P u t t h e t e m p e r a t u r e a n d a i r fl o w
controls to the dedicated marked
position.
P u t t h e a i r i n t a k e c o n t r o l t o t h e " E x -
t e r i o r a i r i n t a k e " p o s i t i o n
(manual control to the right or electric control with indicator lamp off).
Put the air distribution control to the
" W i n d s c r e e n " p o s i t i o n .
Switch on the air conditioning by
pressing the "A/C" button; the associ-
ated green warning lamp comes on.
Page 47 of 209
3
COMFORT
AUTOMATIC AIR CONDITIONING
The air conditioning can only operate
when the engine is running. For your comfort, when the en-
gine is switched off, the settings
are retained until the engine is
switched on again.
To prevent too great a distribu-
tion of cold air when the engine
i s c o l d , t h e a i r fl o w w i l l o n l y r e a c h
its optimum level gradually.
On entering the vehicle, if the
interior is very cold or hot, there
is no need to change the value
displayed in order to reach the
required level of comfort. The
system corrects the temperature
difference automatically and as
quickly as possible.
Automatic operation
1. Automatic "comfort" programme
Press the "AUTO" button. The
"AUTO" symbol is displayed.
We recommend that you use this mode,
it provides optimised automatic control
of all of the following functions: passen-
g e r c o m p a r t m e n t t e m p e r a t u r e , a i r fl o w ,
air distribution and air intake, in accord-
ance with the comfort value that you
have chosen.
This system is designed to operate
effectively in all seasons, with the win-
dows closed. 2. Temperature adjustment
The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
Press the "
" and "
" but-
tons to change this value. A
setting around the value 21
enables optimum comfort to be
obtained. However, depending
on your requirements, a setting
between 18 and 24 is usual. 3. Automatic "visibility" programme
The automatic comfort pro-
g r a m m e m a y n o t b e s u f fi c i e n t
for rapid demisting or defrost-
ing of the windscreen and side
windows (humidity, several
passengers, ice, etc.).
In this case, select the automatic visibil-
ity programme. The button 3 indicator
lamp comes on.
The system automatically controls the
a i r c o n d i t i o n i n g a n d t h e fl o w o f a i r a n d
provides optimum distribution of the ven-
tilation to the windscreen and side win-
dows. It deactivates air recirculation 5 .
To exit this programme, press button 3
again or "AUTO" , the indicator lamp on
the button is switched off and "AUTO"
is displayed.
Manual override
It is possible to adjust one or more func-
tions manually while leaving the other
functions in automatic mode.
The "AUTO" symbol switches off.
To return to automatic mode, press the
"AUTO" button.
Switching to manual mode may
not be suitable (temperature,
humidity, odour, condensation)
and does not provide optimum
comfort.
Page 48 of 209
3
COMFORT
4. Air conditioning on/off Press this button to switch off
the air conditioning.
Stopping the air conditioning may cause
some problems (humidity, misting).
Automatic operation of the air condi-
tioning is resumed when the button is
pressed again. The symbol "A/C" is
displayed.
5. Air intake/Air recirculation
Press this button for recircula-
tion of the interior air. The air
recirculation symbol 5 is dis-
played.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke. 6. Air distribution adjustment
Avoid prolonged recirculation of
interior air (risk of condensation
or deterioration of the air quality).
Pressing this button several
times in succession enables
t h e a i r fl o w t o b e d i r e c t e d i n
turn towards:
- the windscreen and the side win- dows (demisting or defrosting),
- the windscreen, side windows and air vents,
- the windscreen, the side windows, the air vents and the footwells,
- the windscreen, the side windows and the footwells,
- the footwells,
- the air vents and the footwells,
- the air vents. 7. Air flow adjustment
Press the "full fan" symbol to
i n c r e a s e t h e a i r fl o w .
T h e a i r fl o w s y m b o l , t h e f a n , fi l l s p r o -
gressively according to the value re-
quested.
Switching the system off
Avoid driving for long periods
with the air conditioning switched
off (risk of misting and reduction
of the air quality in the cabin). P r e s s t h e a i r fl o w
"empty fan"
b u t t o n o f a i r fl o w 7 until the fan
symbol disappears.
This action switches off all of the func-
tions of the air conditioning system.
Thermal comfort is no longer control-
l e d . A s l i g h t fl o w o f a i r r e s u l t i n g f r o m t h e
movement of the vehicle, remains per-
ceptible however.
P r e s s i n g t h e a i r fl o w "full fan" button of
a i r fl o w 7 or on "AUTO" reactivates the
system with the values set before it was
switched off. Press the
"empty fan" symbol
t o d e c r e a s e t h e a i r fl o w .
For maximum cooling or heating
of the cabin, it is possible to go
beyond the minimum 14 or maxi-
mum 28 values.
Press the blue button 2 until
"LO" is displayed or the red
button 2 until "HI" is displayed. Press this button again or press the
"AUTO" button to resume automatic
management of the intake of air. The air
recirculation symbol 5 is switched off.
Page 54 of 209
3
COMFORT
STEERING WHEEL ADJUSTMENT
The height and reach of the steering
wheel can be adjusted to adapt the driv-
ing position to the size of the driver.
Adjustment
When stationary , pull the control to
unlock the steering wheel.
Adjust the height and depth.
Push the control to lock the steering
wheel.
As a safety precaution, it is im-
perative that these operations
are carried out while the vehicle
is stationary.
Interior mirror
Adjustable mirror providing a central
rearward view.
Adjustment
Adjust the mirror so that the glass is
d i r e c t e d c o r r e c t l y i n t h e " d a y " p o s i t i o n .
Day/night position
P u l l t h e l e v e r t o c h a n g e t o t h e " n i g h t "
anti-dazzle position.
Push the lever to change to the normal
" d a y " p o s i t i o n . Automatic day/night model
System which automatically and pro-
gressively changes between the day
and night uses.
In order to prevent dazzle, the interior
mirror glass darkens automatically in
relation to the intensity of the light from
the rear.
It lightens when the light (light beam of
following vehicles, sun...) decreases, so
guaranteeing optimum visibility.
In order to guarantee optimum
visibility during your manoeu-
vres, the mirror lightens auto-
matically when reverse gear is
engaged.
As a safety precaution, the mir-
rors must be adjusted to reduce
t h e " b l i n d s p o t " .
Manual model
T h e m i r r o r i s fi t t e d w i t h a n i g h t - t i m e
anti-dazzle device.
Page 55 of 209
4
ACCESS
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unlocking the vehicle
Unfolding the key
First press button A to unfold the
key.
Unlocking using the remote control
Press the open padlock to
unlock the vehicle. Unlocking using the key
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Locking the vehicle
Locking using the remote control
Press the closed padlock
to lock the vehicle.
Locking using the key
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely. If one of the doors or the boot is
still open, the central locking does
not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will re-
lock automatically after thirty sec-
onds unless a door or the boot is
open.
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
CITROËN dealer.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t i n g o f
the direction indicators for approximately
two seconds.
According to version, the exterior mir-
rors fold at the same time.
U n l o c k i n g i s c o n fi r m e d b y r a p i d fl a s h i n g
of the direction indicators for approxi-
mately two seconds.
According to version, the exterior mir-
rors unfold at the same time.
Page 62 of 209
4

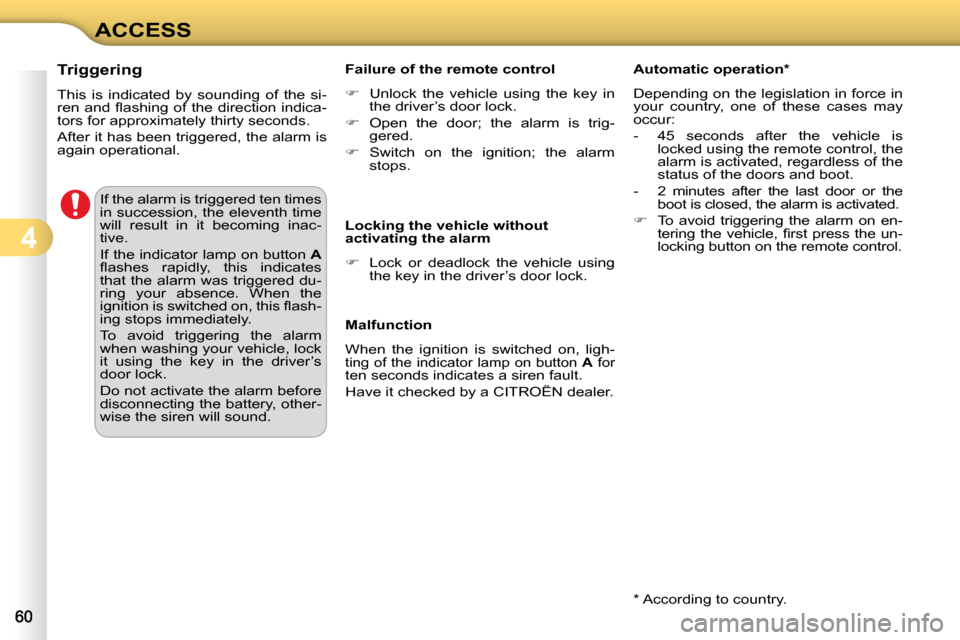

ACCESS If the alarm is triggered ten times
in succession, the eleventh time
will result in it becoming inac-
tive.
If the indicator lamp on button A
fl a s h e s r a p i d l y , t h i s i n d i c a t e s
that the alarm was triggered du-
ring your absence. When the
i g n i t i o n i s s w i t c h e d o n , t h i s fl a s h -
ing stops immediately.
To avoid triggering the alarm
when washing your vehicle, lock
it using the key in the driver’s
door lock.
Do not activate the alarm before
disconnecting the battery, other-
wise the siren will sound.
Triggering
This is indicated by sounding of the si-
r e n a n d fl a s h i n g o f t h e d i r e c t i o n i n d i c a -
tors for approximately thirty seconds.
After it has been triggered, the alarm is
again operational.
Failure of the remote control
Unlock the vehicle using the key in
the driver’s door lock.
Open the door; the alarm is trig-
gered.
Switch on the ignition; the alarm
stops.
Locking the vehicle without
activating the alarm
Lock or deadlock the vehicle using
the key in the driver’s door lock.
* According to country.
Malfunction
When the ignition is switched on, ligh-
ting of the indicator lamp on button
A for ten seconds indicates a siren fault.
Have it checked by a CITROËN dealer. Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.
- 2 minutes after the last door or the boot is closed, the alarm is activated.
To avoid triggering the alarm on en-
t e r i n g t h e v e h i c l e , fi r s t p r e s s t h e u n -
locking button on the remote control.
