FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Audio equipment controls.
2. Telephone controls.
3. Steering wheel adjustment control.
4. Lights and direction indicators
controls.
Headlamp wash control.
5. Instrument panel.
6. Driver's air bag.
Horn.
7. Cruise control switches.
8. Gear lever.
9. Handbrake.
10. B o n n e t r e l e a s e .
11. Enclosed storage compartment.
Fuse box.
12. Headlamp height adjustment.
Deactivation of the ASC system.
Deactivation of the audible parking
assistance.
13. Cup holder.
14. Side adjustable and closing vent.
15. Information button.
16. Window de-icing and demisting
vent.
17. Windscreen de-icing vent.
Page 135 of 230
VIII
128

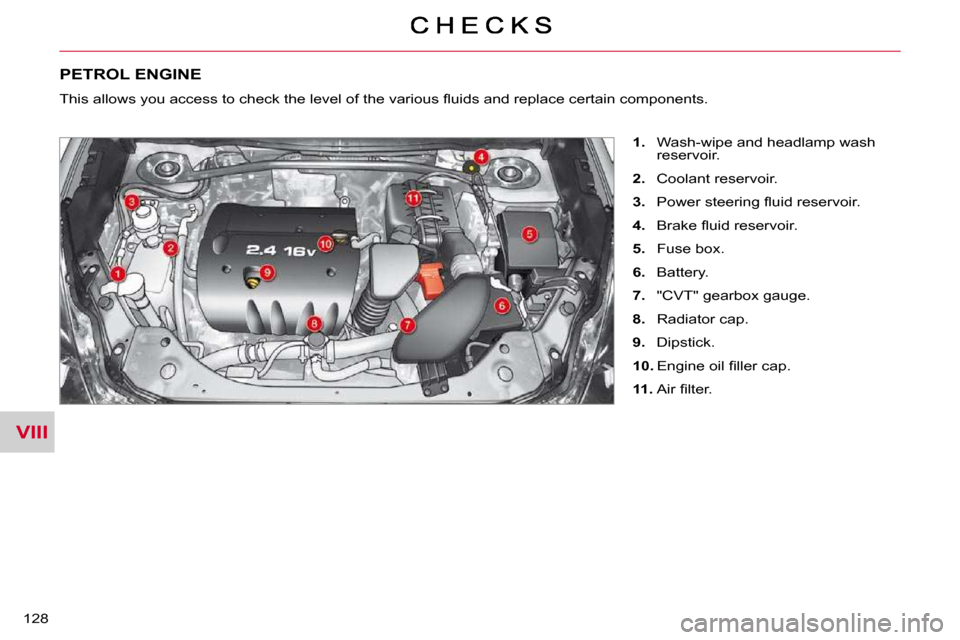

PETROL ENGINE
1. Wash-wipe and headlamp wash
reservoir.
2. Coolant reservoir.
3. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
4. B r a k e fl u i d r e s e r v o i r .
5. Fuse box.
6. Battery.
7. "CVT" gearbox gauge.
8. Radiator cap.
9. Dipstick.
10. E n g i n e o i l fi l l e r c a p .
11. A i r fi l t e r .
T h i s a l l o w s y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s a
n d r e p l a c e c e r t a i n c o m p o n e n t s .
Page 136 of 230
VIII
129
DIESEL ENGINE
T h i s a l l o w s y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s a n d r e p l a c e c e r t a i n c o m p o n e n t s .
1. Coolant reservoir.
2. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
3. Wash-wipe and headlamp wash
reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Fuse box.
6. Battery.
7. Dipstick.
8. E n g i n e o i l fi l l e r c a p .
9. A i r fi l t e r .
