2008 YAMAHA YFM80R engine

6-2
1
2
3
4
56
7
8
9
10
11

Position (1):

Cold engine start with ambient temperature be-
low 30 °C (90 °F).
Position (2):

Warming up position.
Position (3):

Cold engine start with ambient temperature
above 25 °C (80 °F).
Ambient temp./choke position
6. Completely close the throttle lever and start
the engine by pushing the start switch.
NOTE:

If the engine fails to start, release the start switch,
then push it again. Pause a few seconds before
the next attempt. Each cranking should be as short
as possible to preserve battery energy. Do not
1. Fully open “ON”
2. Half open (warming up position)
3. Closed “OFF”
4. Choke
ON
OFF
0°
30°10°20°30°
50°70°90°°F °C
4 1
133
2

6-3
1
2
3
4
56
7
8
9
10
11

crank the engine more than 10 seconds on each
attempt.
7. If the engine is started with the choke in posi-
tion (1), the choke should be returned to posi-
tion (2) to warm up the engine. If the engine is
started with the choke in position (2), keep the
choke in this position to warm up the engine.
CAUTION:

ECB00160
For maximum engine life, always warm the en-
gine up before starting off. Never accelerate
hard when the engine is cold!
8. Continue warming up the engine until it idles
smoothly, then return the choke to position (3)
before riding.
NOTE:

The engine is warm when it responds normally to
the throttle with the choke turned off.
EBU20301
Starting a warm engine
Follow the same procedure as for starting a cold
engine, with the exception that the choke is not re-
quired when the engine is warm. Instead, start the
engine with the throttle slightly open.
EBU20550
Shifting
This ATV has a 3-speed forward transmission with
a centrifugal, automatic clutch. The transmission
allows you to control the amount of power you
have available at a given speed or for starting ac-
celerating, climbing, etc.
To shift into neutral, return the throttle lever to the
closed position and repeatedly depress the shift
pedal until it stops.
EBU20610
To start out and accelerate
1. Release the throttle lever.
1. Shift pedal
2. Neutral position
3
2
1
1
N
2

6-4
1
2
3
4
56
7
8
9
10
11
CAUTION:

ECB00200
Always close the throttle before shifting gears,
otherwise damage to the engine and drive train
may result.
2. Shift into first gear and release the shift pedal.
3. Open the throttle gradually.
4. Once the ATV has attained adequate speed,
release the throttle lever.
5. Shift into second gear and release the shift
pedal.
6. Open the throttle gradually.
7. Follow the same procedure when shifting to
the next higher gear.
WARNING

EWB00740
Always open the throttle gradually. Opening
the throttle abruptly would increase the chance
of an accident. It could make the ATV wheelie
or overturn.
EBU20650
To decelerate
When slowing down or stopping, release the throt-
tle and apply the brakes smoothly and evenly. As
you slow down, shift to a lower gear. Be sure thatthe engine has sufficiently slowed before engaging
a lower gear. Improper use of the brakes or shifting
can cause the tires to lose traction, reducing con-
trol and increasing the possibility of an accident.WARNING
EWB00710
Make sure the engine has sufficiently slowed
before shifting to a lower gear. Engaging a low-
er gear when the engine speed is too high
could make the wheels stop rotating and lose
traction. This could cause loss of control, an
accident and injury. It could also cause engine
or drive train damage.
CAUTION:

ECB00190
Even with the transmission in the neutral posi-
tion, do not coast for long periods of time with
the engine off, and do not tow the ATV for long
distances. The transmission is properly lubri-
cated only when the engine is running. Inade-
quate lubrication may damage the
transmission.

6-5
1
2
3
4
56
7
8
9
10
11

EBU20672
Engine break-in
NOTE:


For ATVs equipped with an odometer or an hour
meter, follow the figures given in km (mi) or the
figures given in hours.

For ATVs not equipped with an odometer or
hour meter, follow the figures given in hours.
There is never a more important period in the life of
your engine than the first 320 km (200 mi) or 20
hours of riding. For this reason, you should read
the following material carefully.
Since the engine is brand new, do not put an ex-
cessive load on it for the first 320 km (200 mi) or 20
hours. The various parts in the engine wear and
polish themselves to the correct operating clear-
ances. During this period, prolonged full-throttle
operation or any condition that might result in en-
gine overheating must be avoided.
0–160 km (0–100 mi) or 0–10 hours
Avoid prolonged operation above 1/2 throttle. Vary
the speed of the ATV regularly. Do not operate it at
one set throttle position.
160–320 km (100–200 mi) or 10–20 hours
Avoid prolonged operation above 3/4 throttle. Rev
the engine through the gears freely, but do not use
full throttle at any time.
320 km (200 mi) or 20 hours and beyond
The ATV can now be operated normally.CAUTION:

ECB00220
If any engine trouble should occur during the
engine break-in period, immediately have a
Yamaha dealer check the ATV.
EBU20721
Parking
When parking the ATV, stop the engine, shift into
first gear, apply the parking brake, and then turn
the fuel cock to “OFF”.

6-6
1
2
3
4
56
7
8
9
10
11

EBU20840
Parking on a slope
WARNING

EWB00850
Avoid parking on hills or other inclines. Park-
ing on a hill or other incline could cause the
ATV to roll out of control, increasing the
chance of an accident. If you must park on an
incline, place the ATV transversely across the
incline, shift into first gear, stop the engine, ap-
ply the parking brake, and then block the front
and rear wheels with rocks or other objects.
Do not park the ATV at all on hills that are so
steep you could not walk up them easily.
1. Bring the ATV to a stop by applying the brakes
in first gear.
2. Stop the engine.
3. With the rear brake lever and brake pedal ap-
plied, apply the parking brake and slowly re-
lease the brake pedal.
1. Parking brake lock plate
1. Locked position
1
1

7-3
1
2
3
4
5
67
8
9
10
11

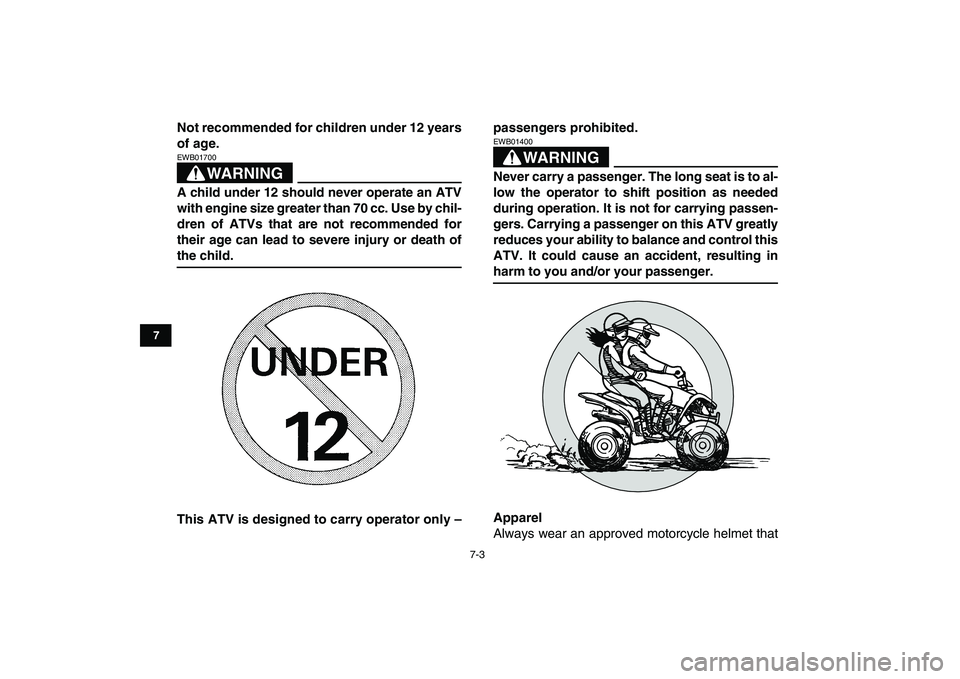

Not recommended for children under 12 years
of age.
WARNING

EWB01700
A child under 12 should never operate an ATV
with engine size greater than 70 cc. Use by chil-
dren of ATVs that are not recommended for
their age can lead to severe injury or death of
the child.
This ATV is designed to carry operator only –passengers prohibited.
WARNING

EWB01400
Never carry a passenger. The long seat is to al-
low the operator to shift position as needed
during operation. It is not for carrying passen-
gers. Carrying a passenger on this ATV greatly
reduces your ability to balance and control this
ATV. It could cause an accident, resulting in
harm to you and/or your passenger.
Apparel
Always wear an approved motorcycle helmet that

7-5
1
2
3
4
5
67
8
9
10
11
WARNING

EWB01420
Never consume alcohol or drugs before or
while driving this ATV.
Pre-operation checks
Always perform the pre-operation checks listed on
page 5-1 before riding for proper care of the ATV
and to ensure safety.
WARNING

EWB01430
Always inspect your ATV each time you use it
to make sure the ATV is in safe operating con-
dition. Always follow the inspection and main-
tenance procedures and schedules described
in the Owner’s Manual. Failure to inspect the
ATV before operating or failure to properly
maintain the ATV increases the possibility of
an accident or equipment damage.
WARNING

EWB01440
Always use the size and type tires specified in
the Owner’s Manual for this ATV on page 5-4.
Always maintain proper tire pressure as de-
scribed in the Owner’s Manual on page 5-5.Use of improper tires on this ATV, or operation
of this ATV with improper or uneven tire pres-
sure, may cause loss of control, increasing
your risk of an accident.
Do not operate at speeds too fast for your
skills or the conditions.WARNING
EWB01450
Always go at a speed that is proper for the ter-
rain, visibility and operating conditions, and
your experience. Operating this ATV at speeds
too fast for your skills or the conditions in-
creases your chances of losing control of the
ATV, which can result in an accident.
Speed limiter
For riders less experienced with this model, the
throttle lever housing is equipped with a speed lim-
iter. The speed limiter keeps the throttle from fully
opening, even when the throttle lever is pushed to
the maximum. Turning in the adjusting screw limits
the maximum engine power available and de-
creases the maximum speed of the ATV. Turning
in the adjusting screw decreases top speed, and
turning it out increases top speed. (See page 4-3.)

7-6
1
2
3
4
5
67
8
9
10
11

This model also has an air intake restrictor plate to
limit the amount of engine power available.
Yamaha recommends that all beginning riders
start off with the speed limiter turned in and the air
intake restrictor plate installed to limit the amount
of speed available while they learn. The limiter may
be gradually adjusted to increase maximum speed
as the beginner becomes more familiar with oper-
ating the ATV. Parents should decide when to ad-
just the ATV for more power as their youngster’s
riding skills improve. Once the ATV rider can oper-
ate with skill at the top speed permitted by adjust-
ing the speed limiter alone, the air intake restrictor
plate can be removed. Since removal of this plate
will result in a significant increase in power, turn
the speed limiter back in again; adjust it out in stag-
es as you did before.
Adjusting for maximum throttle lever movement
without removing the air intake restrictor plate will
cause the engine to run roughly at higher speeds.
For air intake restrictor plate removal instructions,
see page 8-17.
Loading and accessories
Use extra caution when riding the ATV with addi-
tional loads, such as accessories or cargo. The
ATV’s handling may be adversely affected. Re-
duce your speed when adding additional loads.
1. Locknut
2. Adjusting screw
MAXIMUM LOADING LIMIT
ATV loading limit (total weight of cargo, rider,
accessories, and tongue):
95.0 kg (209 lb)
1
2
