2008 YAMAHA YFM250R engine

6-2
1
2
3
4
56
7
8
9
10
11

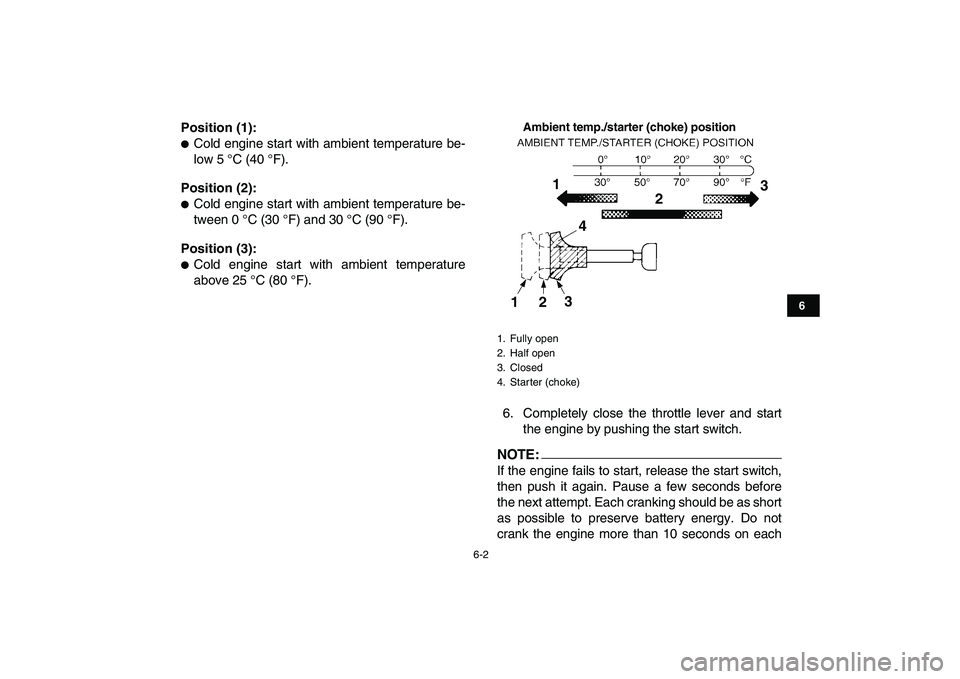

Position (1):

Cold engine start with ambient temperature be-
low 5 °C (40 °F).
Position (2):

Cold engine start with ambient temperature be-
tween 0 °C (30 °F) and 30 °C (90 °F).
Position (3):

Cold engine start with ambient temperature
above 25 °C (80 °F).
Ambient temp./starter (choke) position
6. Completely close the throttle lever and start
the engine by pushing the start switch.
NOTE:

If the engine fails to start, release the start switch,
then push it again. Pause a few seconds before
the next attempt. Each cranking should be as short
as possible to preserve battery energy. Do not
crank the engine more than 10 seconds on each
1. Fully open
2. Half open
3. Closed
4. Starter (choke)
1
23
123
4

6-3
1
2
3
4
56
7
8
9
10
11

attempt.
7. If the engine is started with the starter (choke)
in position (1), the starter (choke) should be
returned to position (2) to warm up the engine.
If the engine is started with the starter (choke)
in position (2), keep the starter (choke) in this
position to warm up the engine.
CAUTION:

ECB00160
For maximum engine life, always warm the en-
gine up before starting off. Never accelerate
hard when the engine is cold!
8. Continue warming up the engine until it idles
smoothly, then return the starter (choke) to
position (3) before riding.
NOTE:

The engine is warm when it responds normally to
the throttle with the starter (choke) turned off.
EBU20291
Starting a warm engine
Follow the same procedure as for starting a cold
engine, with the exception that the starter (choke)
is not required when the engine is warm. Instead,
start the engine with the throttle slightly open.
EBU20520
Shifting
This ATV has a 5-speed forward transmission. The
transmission allows you to control the amount of
power you have available at a given speed or for
starting, accelerating, climbing hills, etc.
To shift into neutral, return the throttle lever to the
closed position, apply the clutch, and then repeat-
edly depress the shift pedal until it stops.
When it stops, it will be in first gear. Raise the pedal
slightly to reach the neutral position.
1. Shift pedal
2. Neutral position
1
2
2 3 4 5N1

6-4
1
2
3
4
56
7
8
9
10
11

EBU20570
To start out and accelerate
1. Release the throttle lever.
CAUTION:

ECB00200
Always close the throttle before shifting gears,
otherwise damage to the engine and drive train
may result.
2. Pull the clutch lever to disengage the clutch.
3. Shift into first gear.
4. Open the throttle gradually and at the same
time, release the clutch lever slowly.
5. Once the ATV has attained adequate speed,
release the throttle, and at the same time,
quickly pull in the clutch lever.
6. Shift the transmission into second gear.
(Make sure not to shift the transmission into
neutral)
7. Open the throttle part way and gradually re-
lease the clutch lever.
8. Follow the same procedure when shifting to
the next higher gear.
WARNING

EWB00730
Opening the throttle abruptly or releasing the
clutch lever too quickly could make the ATVwheelie, which would increase the chance of
an accident, including an overturn.
EBU20650
To decelerate
When slowing down or stopping, release the throt-
tle and apply the brakes smoothly and evenly. As
you slow down, shift to a lower gear. Be sure that
the engine has sufficiently slowed before engaging
a lower gear. Improper use of the brakes or shifting
can cause the tires to lose traction, reducing con-
trol and increasing the possibility of an accident.WARNING

EWB00710
Make sure the engine has sufficiently slowed
before shifting to a lower gear. Engaging a low-
er gear when the engine speed is too high
could make the wheels stop rotating and lose
traction. This could cause loss of control, an
accident and injury. It could also cause engine
or drive train damage.
CAUTION:

ECB00180

Even with the transmission in the neutral po-
sition, do not coast for long periods of time
with the engine off, and do not tow the ATV

6-5
1
2
3
4
56
7
8
9
10
11

for long distances. The transmission is prop-
erly lubricated only when the engine is run-
ning. Inadequate lubrication may damage
the transmission.

Always use the clutch when changing gears.
The engine, transmission and drive train are
not designed to withstand the shock of
forced shifting and can be damaged by shift-
ing without using the clutch.
EBU20672
Engine break-in
NOTE:


For ATVs equipped with an odometer or an hour
meter, follow the figures given in km (mi) or the
figures given in hours.

For ATVs not equipped with an odometer or
hour meter, follow the figures given in hours.
There is never a more important period in the life of
your engine than the first 320 km (200 mi) or 20
hours of riding. For this reason, you should read
the following material carefully.
Since the engine is brand new, do not put an ex-
cessive load on it for the first 320 km (200 mi) or 20
hours. The various parts in the engine wear andpolish themselves to the correct operating clear-
ances. During this period, prolonged full-throttle
operation or any condition that might result in en-
gine overheating must be avoided.
0–160 km (0–100 mi) or 0–10 hours
Avoid prolonged operation above 1/2 throttle. Vary
the speed of the ATV regularly. Do not operate it at
one set throttle position.
160–320 km (100–200 mi) or 10–20 hours
Avoid prolonged operation above 3/4 throttle. Rev
the engine through the gears freely, but do not use
full throttle at any time.
320 km (200 mi) or 20 hours and beyond
The ATV can now be operated normally.
CAUTION:

ECB00220
If any engine trouble should occur during the
engine break-in period, immediately have a
Yamaha dealer check the ATV.
EBU20721
Parking
When parking the ATV, stop the engine, shift into
first gear, apply the parking brake, and then turn

6-6
1
2
3
4
56
7
8
9
10
11

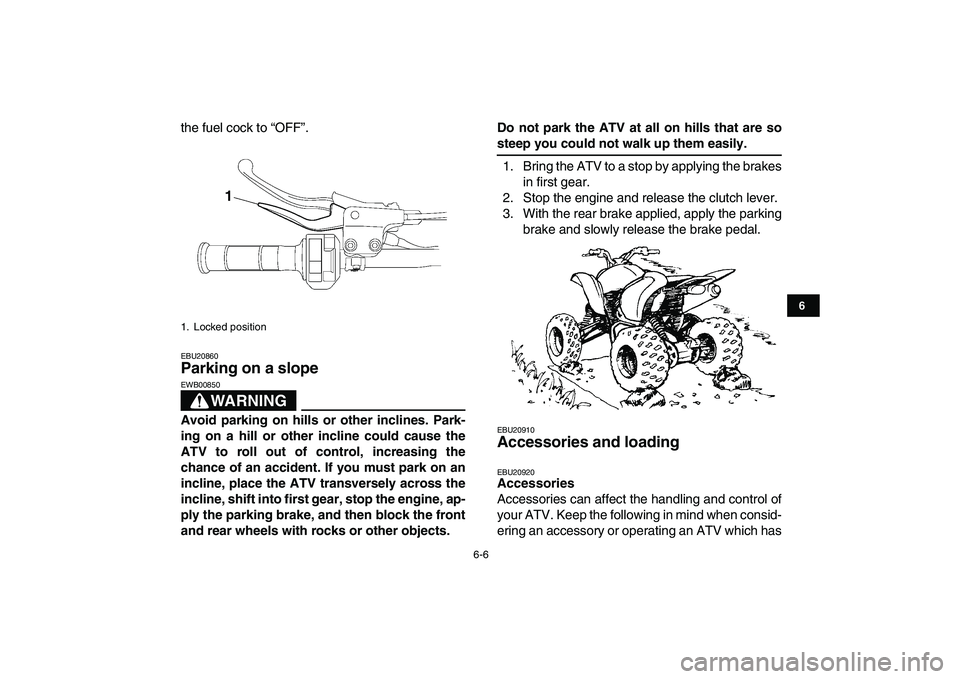

the fuel cock to “OFF”.
EBU20860
Parking on a slope
WARNING

EWB00850
Avoid parking on hills or other inclines. Park-
ing on a hill or other incline could cause the
ATV to roll out of control, increasing the
chance of an accident. If you must park on an
incline, place the ATV transversely across the
incline, shift into first gear, stop the engine, ap-
ply the parking brake, and then block the front
and rear wheels with rocks or other objects.Do not park the ATV at all on hills that are so
steep you could not walk up them easily.
1. Bring the ATV to a stop by applying the brakes
in first gear.
2. Stop the engine and release the clutch lever.
3. With the rear brake applied, apply the parking
brake and slowly release the brake pedal.
EBU20910
Accessories and loading
EBU20920
Accessories
Accessories can affect the handling and control of
your ATV. Keep the following in mind when consid-
ering an accessory or operating an ATV which has
1. Locked position
1

7-3
1
2
3
4
5
67
8
9
10
11

with engine size greater than 90 cc. Use by chil-
dren of ATVs that are not recommended for
their age can lead to severe injury or death of
the child.
This ATV is designed to carry operator only –
passengers prohibited.
WARNING

EWB01400
Never carry a passenger. The long seat is to al-
low the operator to shift position as needed
during operation. It is not for carrying passen-
gers. Carrying a passenger on this ATV greatly
reduces your ability to balance and control this
ATV. It could cause an accident, resulting in
harm to you and/or your passenger.
Apparel
Always wear an approved motorcycle helmet that
fits properly.
You should also wear:

eye protection (goggles or face shield)

gloves

boots

long-sleeved shirt or jacket

long pants

7-5
1
2
3
4
5
67
8
9
10
11

page 5-1 before riding for proper care of the ATV
and to ensure safety.
WARNING

EWB01430
Always inspect your ATV each time you use it
to make sure the ATV is in safe operating con-
dition. Always follow the inspection and main-
tenance procedures and schedules described
in the Owner’s Manual. Failure to inspect the
ATV before operating or failure to properly
maintain the ATV increases the possibility of
an accident or equipment damage.
WARNING

EWB01440
Always use the size and type tires specified in
the Owner’s Manual for this ATV on page 5-4.
Always maintain proper tire pressure as de-
scribed in the Owner’s Manual on page 5-5.
Use of improper tires on this ATV, or operation
of this ATV with improper or uneven tire pres-
sure, may cause loss of control, increasing
your risk of an accident.Do not operate at speeds too fast for your
skills or the conditions.WARNING
EWB01450
Always go at a speed that is proper for the ter-
rain, visibility and operating conditions, and
your experience. Operating this ATV at speeds
too fast for your skills or the conditions in-
creases your chances of losing control of the
ATV, which can result in an accident.
Speed limiter
For riders less experienced with this model, the
throttle lever housing is equipped with a speed lim-
iter. The speed limiter keeps the throttle from fully
opening, even when the throttle lever is pushed to
the maximum. Turning in the adjusting screw limits
the maximum engine power available and de-
creases the maximum speed of the ATV. Turning
in the adjusting screw decreases top speed, and
turning it out increases top speed. (See page 4-3.)

7-11
1
2
3
4
5
67
8
9
10
11
WARNING

EWB01550
Always mount a caution flag on the ATV to
make you more visible when operating in areas
where you might not be seen by other vehicles.
Watch carefully for other vehicles.
Do not ride in areas posted “no trespassing”.
Do not ride on private property without getting per-
mission.Select a large, flat, unpaved area to become famil-
iar with your ATV. Make sure that this area is free
of obstacles and other riders. You should practice
control of the throttle, brakes, shifting procedures,
and turning techniques in this area before trying
more difficult terrain. Always avoid riding on paved
surfaces: the ATV is designed for use on unpaved
surfaces only, and handling maneuvers are more
difficult to perform on pavement.
Set the parking brake and follow the instruction on
page 6-1 to start the engine. Once it has warmed
up you are ready to begin riding your ATV. As you
get on the ATV, be sure not to accidentally move
the shift pedal. Remember that the engine and ex-
haust pipe will be hot when riding and afterwards;
do not allow skin or clothing to come in contact with
