INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAUM1791
Fuel tank cap To remove the fuel tank cap
1. Open the fuel tank cap lock cover.
2. Insert the key into the lock and turn
it 1/4 turn clockwise. The lock will
be released and the fuel tank cap
can be removed.
To install the fuel tank cap
1. Push and install the fuel tank cap
into position with the key inserted
in the lock.
2. Turn the key counterclockwise to
the original position, and then re-
move it.
NOTE:The fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap isnot properly installed and locked.
WARNING
EWA11140
Make sure that the fuel tank cap isproperly installed before riding.
1. Brake pedal
1. Fuel tank cap lock cover
2. Unlock.
U5VKE1E0.book Page 10 Tuesday, July 18, 2006 1:00 PM
Page 26 of 92
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU13211
Fuel Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING
EWA10880
Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.
Avoid spilling fuel on the hot en-gine.
CAUTION:
ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-es or plastic parts.
EAU13390
CAUTION:
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use premium unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-curs, use a gasoline of a different
brand. Use of unleaded fuel will extend
spark plug life and reduce maintenance
costs.
1. Fuel tank filler tube
2. Fuel level
Recommended fuel:
PREMIUM UNLEADED GASOLINE
ONLY
Fuel tank capacity:
15.0 L (3.96 US gal) (3.30 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on):
5.0 L (1.32 US gal) (1.10 Imp.gal)
U5VKE1E0.book Page 11 Tuesday, July 18, 2006 1:00 PM
Page 27 of 92
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
EAU13431
Catalytic converter This model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-ing any maintenance work.CAUTION:
ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.
Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.
Do not allow the engine to idletoo long.
EAU13900
Seat To remove the seat
1. Insert the key into the seat lock,
and then turn it as shown.
2. Pull the seat off.
To install the seat
1. Insert the projection on the front of
the seat into the seat holder as
shown.2. Push the rear of the seat down to
lock it in place.
3. Remove the key.
NOTE:Make sure that the seat is properly se-cured before riding.
1. Seat lock
2. Unlock.
1. Seat holder
2. Projection
U5VKE1E0.book Page 12 Tuesday, July 18, 2006 1:00 PM
Page 28 of 92
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
EAU14422

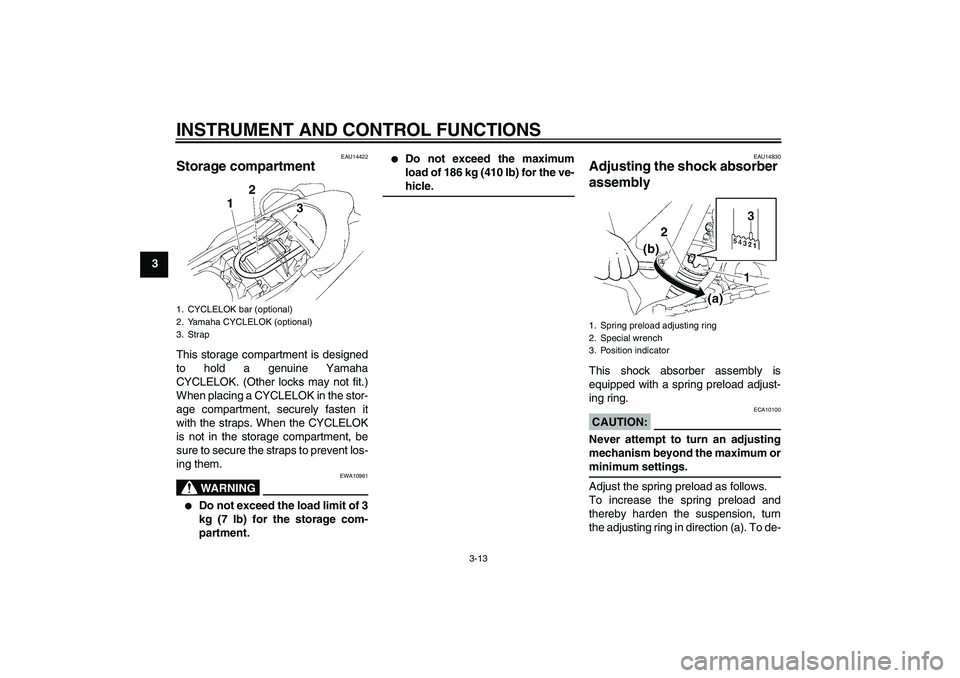

Storage compartment This storage compartment is designed
