Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering.
NOTE:
Be sure to use the standard key
(black bow) for regular use of the
vehicle. To minimize the risk of losing
the code re-registering key (red bow),
keep it in a safe place and only use it
for code re-registering.
EAU34121
ON
All electrical circuits are supplied with
power; the meter lighting, taillight,
license plate light and auxiliary lights
come on, and the engine can be star-
ted. The key cannot be removed.
NOTE:
The headlights come on automatically
when the engine is started and stay
on until the key is turned to “OFF” or
the sidestand is moved down.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.T
o lock the steering
1. Push
2. Turn
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF”
position, and then turn it to
“LOCK” while still pushing it.
3. Remove the key.
INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 17
Page 18 of 88
To unlock the steering
1. Push
2. Turn
Push the key in, and then turn it to
“OFF” while still pushing it.
EWA10060
s s
WARNING
Never turn the key to “OFF” or
“LOCK” while the vehicle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the vehi-
cle is stopped before turning the
key to “OFF” or “LOCK”.
EAU11003
Indicator and warning lights
1. High beam indicator light “j”
2. Left turn signal indicator light “c”
3. Right turn signal indicator light “d”
4. Engine trouble warning light “”
5. Immobilizer system indicator light “ ”
6. Fuel level warning light “ ”
EAU11030
Turn signal indicator lights “c” and
“
d”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “j”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
EAU12090
Self-diagnosis device
This model is equipped with a self-
diagnosis device for various electrical
circuits.
If any of those circuits are defective,
the engine trouble warning light will
come on or flash. If this occurs, have
a Yamaha dealer check the vehicle.
ECA11170
CAUTION:
To prevent engine damage, be sure
to consult a Yamaha dealer as soon
as possible if this occurs.
EAUT1931
Engine trouble warning light “ ”
This warning light flashes or stays on
when an electrical circuit monitoring
the engine is defective. When this
occurs, have a Yamaha dealer check
the self-diagnosis system.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. If the warning light does
not come on for a few seconds, then
go off, have a Yamaha dealer check
the electrical circuit.
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 18
Page 19 of 88
EAU11350
Fuel level warning light “ ”
This warning light comes on when the
fuel level drops below approximately
2 L (0.53 US gal) (0.44 Imp.gal). When
this occurs, refuel as soon as possi-
ble.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
EAU38620
Immobilizer system indicator light
“”
The electrical circuit of the indicator
light can be checked by turning the
key to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and
30 seconds have passed, the indica-
tor light will start flashing indicating
the immobilizer system is enabled.
After 24 hours have passed, the indi-cator light will stop flashing, however
the immobilizer system is still ena-
bled.
EAU11591
Speedometer
1. Speedometer
UK ONLY
1. Speedometer
The speedometer shows the riding
speed.
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 19
Page 20 of 88
EAUM1470

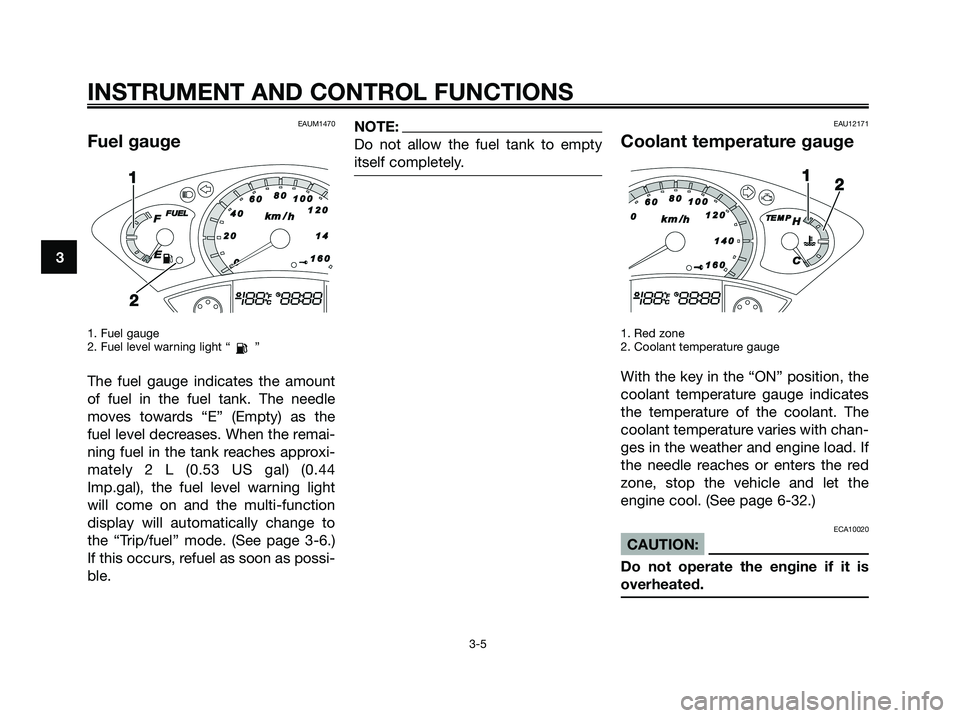

Fuel gauge
1. Fuel gauge
2. Fuel level warning light “ ”
The fuel gauge indicates the amount
of fuel in the fuel tank. The needle
moves towards “E” (Empty) as the
fuel level decreases. When the remai-
ning fuel in the tank reaches approxi-
mately 2 L (0.53 US gal) (0.44
Imp.gal), the fuel level warning light
will come on and the multi-function
display will automatically change to
the “Trip/fuel” mode. (See page 3-6.)
If this occurs, refuel as soon as possi-
ble.
NOTE:
Do not allow the fuel tank to empty
itself completely.EAU12171
Coolant temperature gauge
1. Red zone
2. Coolant temperature gauge
With the key in the “ON” position, the
coolant temperature gauge indicates
the temperature of the coolant. The
coolant temperature varies with chan-
ges in the weather and engine load. If
the needle reaches or enters the red
zone, stop the vehicle and let the
engine cool. (See page 6-32.)
ECA10020
CAUTION:
Do not operate the engine if it is
overheated.
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 20
Page 21 of 88
EAUM2050

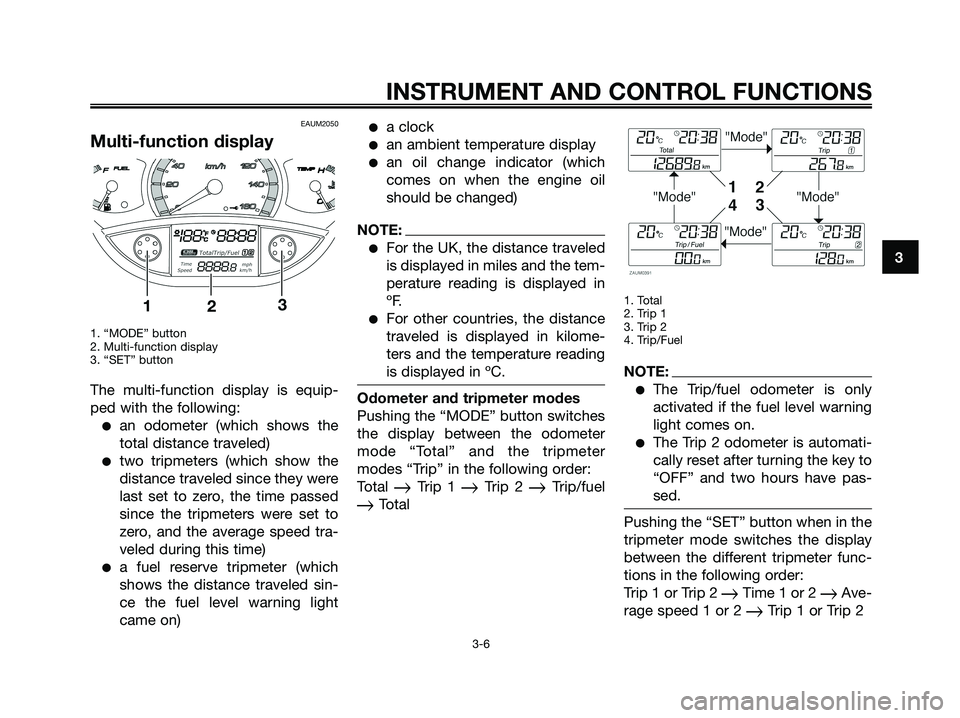

Multi-function display
1. “MODE” button
2. Multi-function display
3. “SET” button
The multi-function display is equip-
ped with the following:
●an odometer (which shows the
total distance traveled)
●two tripmeters (which show the
distance traveled since they were
last set to zero, the time passed
since the tripmeters were set to
zero, and the average speed tra-
veled during this time)
●a fuel reserve tripmeter (which
shows the distance traveled sin-
ce the fuel level warning light
came on)
●a clock
●an ambient temperature display
●an oil change indicator (which
comes on when the engine oil
should be changed)
NOTE:
●For the UK, the distance traveled
is displayed in miles and the tem-
perature reading is displayed in
ºF.
●For other countries, the distance
traveled is displayed in kilome-
ters and the temperature reading
is displayed in ºC.
Odometer and tripmeter modes
Pushing the “MODE” button switches
the display between the odometer
mode “Total” and the tripmeter
modes “Trip” in the following order:
Total
Trip 1 Trip 2 Trip/fuel
Total
1. Total
2. Trip 1
3. Trip 2
4. Trip/Fuel
NOTE:
●The Trip/fuel odometer is only
activated if the fuel level warning
light comes on.
●The Trip 2 odometer is automati-
cally reset after turning the key to
“OFF” and two hours have pas-
sed.
Pushing the “SET” button when in the
tripmeter mode switches the display
between the different tripmeter func-
tions in the following order:
Trip 1 or Trip 2
Time 1 or 2 Ave-
rage speed 1 or 2
Trip 1 or Trip 2
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 21
Page 22 of 88

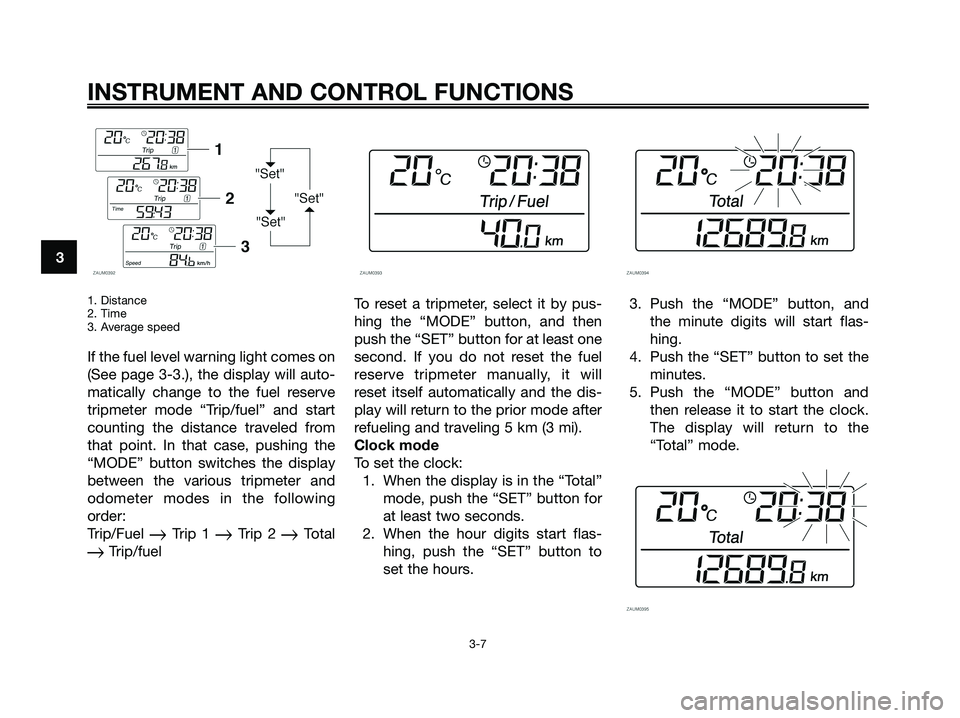

1. Distance
2. Time
3. Average speed
If the fuel level warning light comes on
(See page 3-3.), the display will auto-
matically change to the fuel reserve
tripmeter mode “Trip/fuel” and start
counting the distance traveled from
that point. In that case, pushing the
“MODE” button switches the display
between the various tripmeter and
odometer modes in the following
order:
Trip/Fuel
Trip 1 Trip 2 Total
Trip/fuelTo reset a tripmeter, select it by pus-
hing the “MODE” button, and then
push the “SET” button for at least one
second. If you do not reset the fuel
reserve tripmeter manually, it will
reset itself automatically and the dis-
play will return to the prior mode after
refueling and traveling 5 km (3 mi).
Clock mode
To set the clock:
1. When the display is in the “Total”
mode, push the “SET” button for
at least two seconds.
2. When the hour digits start flas-
hing, push the “SET” button to
set the hours.3. Push the “MODE” button, and
the minute digits will start flas-
hing.
4. Push the “SET” button to set the
minutes.
5. Push the “MODE” button and
then release it to start the clock.
The display will return to the
“Total” mode.
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 22
Page 23 of 88

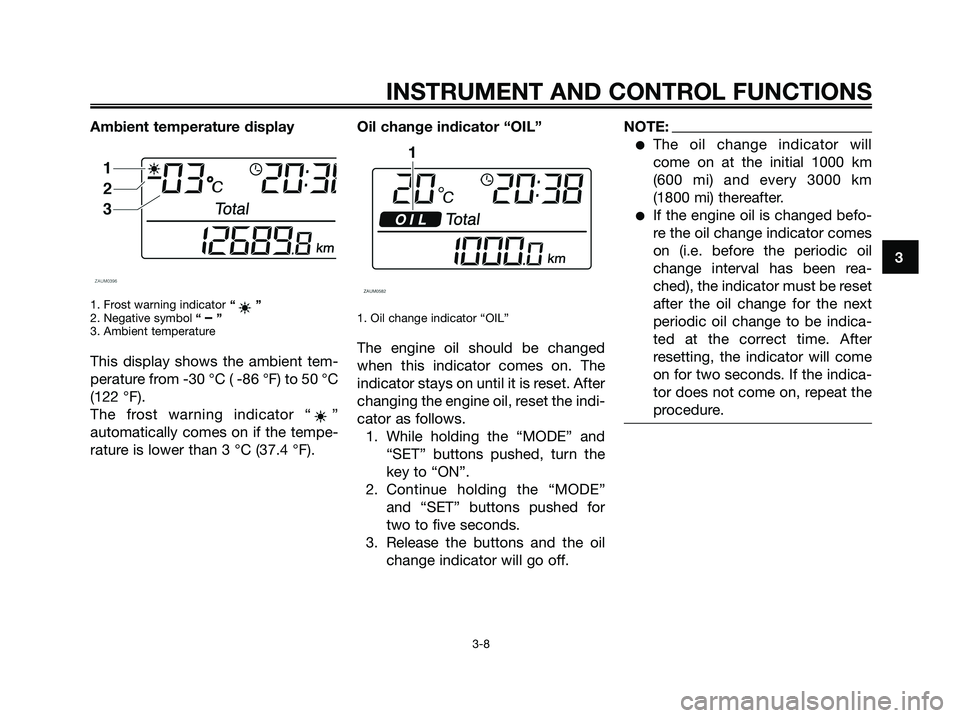

Ambient temperature display
1. Frost warning indicator“”
2. Negative symbol “ – ”
3. Ambient temperature
This display shows the ambient tem-
perature from -30 °C ( -86 °F) to 50 °C
(122 °F).
The frost warning indicator “ ”
automatically comes on if the tempe-
rature is lower than 3 °C (37.4 °F).Oil change indicator “OIL”
1. Oil change indicator “OIL”
The engine oil should be changed
when this indicator comes on. The
indicator stays on until it is reset. After
changing the engine oil, reset the indi-
cator as follows.
1. While holding the “MODE” and
“SET” buttons pushed, turn the
key to “ON”.
2. Continue holding the “MODE”
and “SET” buttons pushed for
two to five seconds.
3. Release the buttons and the oil
change indicator will go off.
NOTE:
●The oil change indicator will
come on at the initial 1000 km
(600 mi) and every 3000 km
(1800 mi) thereafter.
●If the engine oil is changed befo-
re the oil change indicator comes
on (i.e. before the periodic oil
change interval has been rea-
ched), the indicator must be reset
after the oil change for the next
periodic oil change to be indica-
ted at the correct time. After
resetting, the indicator will come
on for two seconds. If the indica-
tor does not come on, repeat the
procedure.
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 23
Page 24 of 88
EAU12331
Anti-theft alarm (optional)
This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12347

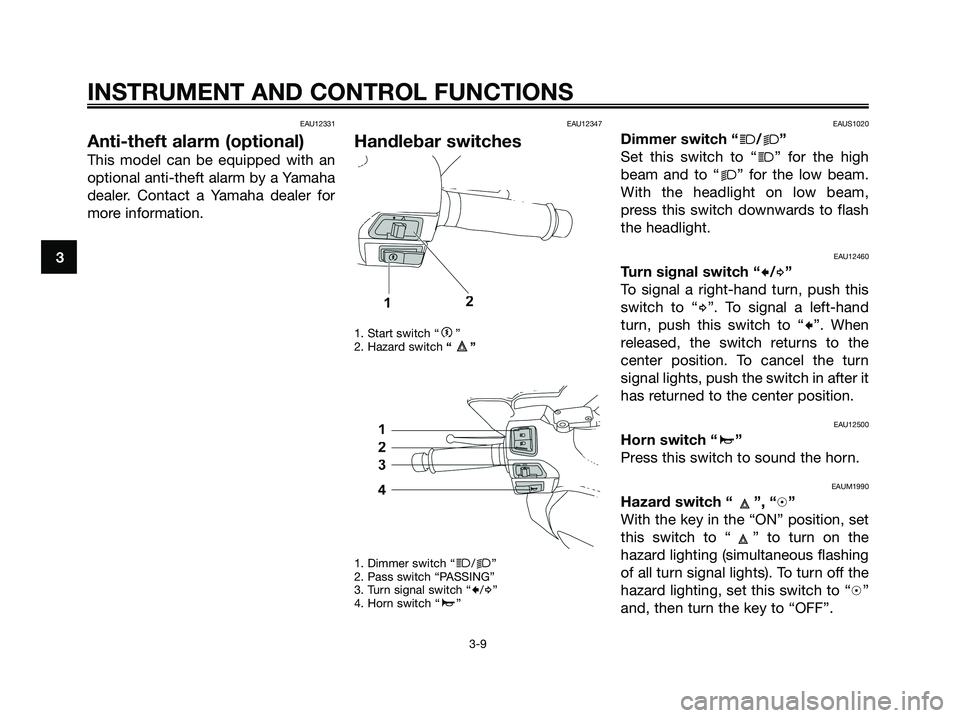

Handlebar switches
1. Start switch “g”
2. Hazard switch“”
1. Dimmer switch “
j/k”
2. Pass switch “PASSING”
3. Turn signal switch “
c/d”
4. Horn switch “a”
EAUS1020
Dimmer switch “j/k”
Set this switch to “
j” for the high
beam and to “
k” for the low beam.
With the headlight on low beam,
press this switch downwards to flash
the headlight.
EAU12460
Turn signal switch “c/d”
To signal a right-hand turn, push this
switch to “
d”. To signal a left-hand
turn, push this switch to “
c”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “a”
Press this switch to sound the horn.
EAUM1990
Hazard switch “ ”, “h”
With the key in the “ON” position, set
this switch to “ ” to turn on the
hazard lighting (simultaneous flashing
of all turn signal lights). To turn off the
hazard lighting, set this switch to “h”
and, then turn the key to “OFF”.
INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
1C0-F8199-E4.qxd 22/11/07 05:41 Página 24
