EAU10430

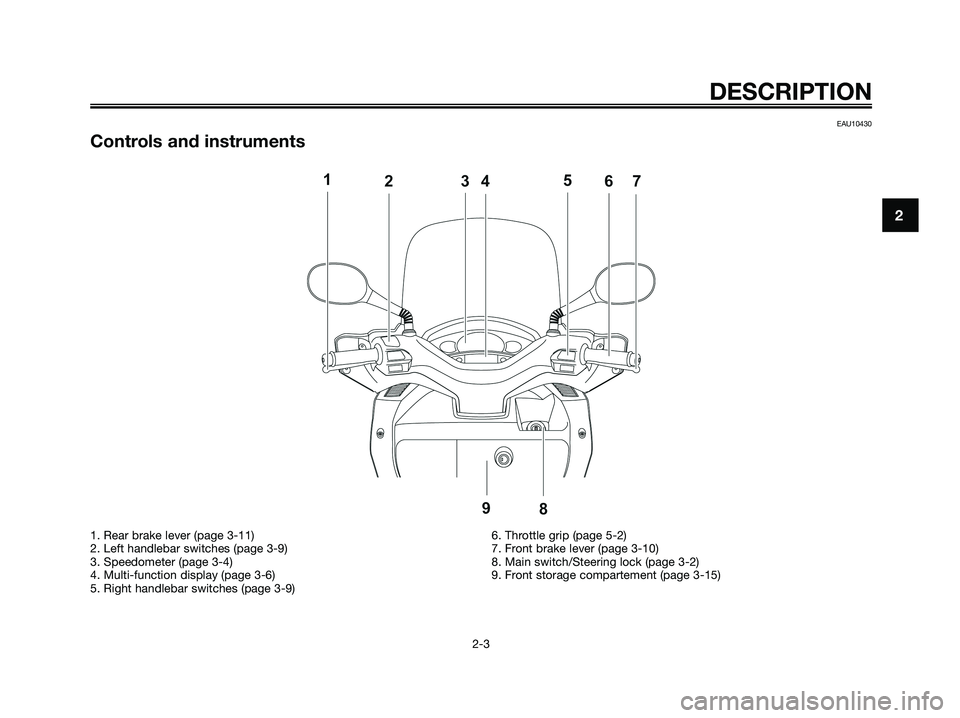

Controls and instruments
DESCRIPTION
2-3
2
1. Rear brake lever (page 3-11)
2. Left handlebar switches (page 3-9)
3. Speedometer (page 3-4)
4. Multi-function display (page 3-6)
5. Right handlebar switches (page 3-9)6. Throttle grip (page 5-2)
7. Front brake lever (page 3-10)
8. Main switch/Steering lock (page 3-2)
9. Front storage compartement (page 3-15)
1B9-F8199-E2.qxd 13/11/07 12:18 Página 15

EAUM1470
Fuel gauge
1. Fuel gauge
2. Fuel level warning light “ ”
The fuel gauge indicates the amount
of fuel in the fuel tank. The needle
moves towards “E” (Empty) as the
fuel level decreases. When the remai-
ning fuel in the tank reaches approxi-
mately 2 L (0.53 US gal) (0.44
Imp.gal), the fuel level warning light
will come on and the multi-function
display will automatically change to
the “Trip/fuel” mode. (See page 3-6.)
If this occurs, refuel as soon as possi-
ble.
NOTE:
Do not allow the fuel tank to empty
itself completely.EAU12171
Coolant temperature gauge
1. Red zone
2. Coolant temperature gauge
With the key in the “ON” position, the
coolant temperature gauge indicates
the temperature of the coolant. The
coolant temperature varies with chan-
ges in the weather and engine load. If
the needle reaches or enters the red
zone, stop the vehicle and let the
engine cool. (See page 6-34.)
ECA10020
CAUTION:
Do not operate the engine if it is
overheated.
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
1B9-F8199-E2.qxd 13/11/07 12:18 Página 20

EAUM2050
Multi-function display
1. “MODE” button
2. Multi-function display
3. “SET” button
The multi-function display is equip-
ped with the following:
●an odometer (which shows the
total distance traveled)
●two tripmeters (which show the
distance traveled since they were
last set to zero, the time passed
since the tripmeters were set to
zero, and the average speed tra-
veled during this time)
●a fuel reserve tripmeter (which
shows the distance traveled sin-
ce the fuel level warning light
came on)
●a clock
●an ambient temperature display
●an oil change indicator (which
comes on when the engine oil
should be changed)
NOTE:
●For the UK, the distance traveled
is displayed in miles and the tem-
perature reading is displayed in
ºF.
●For other countries, the distance
traveled is displayed in kilome-
ters and the temperature reading
is displayed in ºC.
Odometer and tripmeter modes
Pushing the “MODE” button switches
the display between the odometer
mode “Total” and the tripmeter
modes “Trip” in the following order:
Total
Trip 1 Trip 2 Trip/fuel
Total
1. Total
2. Trip 1
3. Trip 2
4. Trip/Fuel
NOTE:
●The Trip/fuel odometer is only
activated if the fuel level warning
light comes on.
●The Trip 2 odometer is automati-
cally reset after turning the key to
“OFF” and two hours have pas-
sed.
Pushing the “SET” button when in the
tripmeter mode switches the display
between the different tripmeter func-
tions in the following order:
Trip 1 or Trip 2
Time 1 or 2 Ave-
rage speed 1 or 2
Trip 1 or Trip 2
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
1B9-F8199-E2.qxd 13/11/07 12:18 Página 21

1. Distance
2. Time
3. Average speed
If the fuel level warning light comes on
(See page 3-3.), the display will auto-
matically change to the fuel reserve
tripmeter mode “Trip/fuel” and start
counting the distance traveled from
that point. In that case, pushing the
“MODE” button switches the display
between the various tripmeter and
odometer modes in the following
order:
Trip/Fuel
Trip 1 Trip 2 Total
Trip/fuelTo reset a tripmeter, select it by pus-
hing the “MODE” button, and then
push the “SET” button for at least one
second. If you do not reset the fuel
reserve tripmeter manually, it will
reset itself automatically and the dis-
play will return to the prior mode after
refueling and traveling 5 km (3 mi).
Clock mode
To set the clock:
1. When the display is in the “Total”
mode, push the “SET” button for
at least two seconds.
2. When the hour digits start flas-
hing, push the “SET” button to
set the hours.3. Push the “MODE” button, and
the minute digits will start flas-
hing.
4. Push the “SET” button to set the
minutes.
5. Push the “MODE” button and
then release it to start the clock.
The display will return to the
“Total” mode.
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
1B9-F8199-E2.qxd 13/11/07 12:18 Página 22

Ambient temperature display
1. Frost warning indicator“”
2. Negative symbol “ – ”
3. Ambient temperature
This display shows the ambient tem-
perature from –30 °C (–86 °F) to 50 °C
(122 °F).
The frost warning indicator “ ”
automatically comes on if the tempe-
rature is lower than 3 °C (37.4 °F).Oil change indicator “OIL”
1. Oil change indicator “OIL”
The engine oil should be changed
when this indicator comes on. The
indicator stays on until it is reset. After
changing the engine oil, reset the indi-
cator as follows.
1. While holding the “MODE” and
“SET” buttons pushed, turn the
key to “ON”.
2. Continue holding the “MODE”
and “SET” buttons pushed for
two to five seconds.
3. Release the buttons and the oil
change indicator will go off.
NOTE:
●The oil change indicator will come
on at the initial 1000 km (600 mi),
5000 km (3000 mi) after the initial
1000 km (600 mi) and every 6000
km (3600 mi) thereafter.
●If the engine oil is changed befo-
re the oil change indicator comes
on (i.e. before the periodic oil
change interval has been rea-
ched), the indicator must be reset
after the oil change for the next
periodic oil change to be indica-
ted at the correct time. After
resetting, the indicator will come
on for two seconds. If the indica-
tor does not come on, repeat the
procedure.
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
1B9-F8199-E2.qxd 13/11/07 12:18 Página 23

INDEX
AAcceleration and deceleration ...................5-2
Air filter and V-belt case air filter
elements ................................................6-15
Anti-theft alarm (optional) ..........................3-9
Auxiliary light bulb, replacing ...................6-32
BBattery......................................................6-26
Brake fluid level, checking .......................6-21
Brake fluid, changing ...............................6-22
Brake lever, front ......................................3-10
Brake lever, rear .......................................3-11
Brake levers, lubricating ..........................6-23
Braking .......................................................5-3
CCables, checking and lubricating ............6-23
Care............................................................7-1
Catalytic converters .................................3-13
Centerstand and sidestand, checking
and lubricating .......................................6-24
Coolant.....................................................6-14
Coolant temperature gauge .......................3-5
Cowlings and panel, removing and
installing ...................................................6-7
DDimmer switch ...........................................3-9
Display, multi-function ...............................3-6
EEngine break-in ..........................................5-4
Engine oil .................................................6-10
Engine trouble warning light ......................3-3
FFinal transmission oil ...............................6-13
Front and rear brake lever free play.........6-20Front and rear brake pads, checking ......6-21
Front fork, checking .................................6-24
Fuel ..........................................................3-12
Fuel consumption, tips for reducing ..........5-3
Fuel gauge .................................................3-5
Fuel level warning light ..............................3-3
Fuel tank cap ...........................................3-11
Fuses, replacing .......................................6-27
HHandlebar switches ...................................3-9
Hazard switch ............................................3-9
Headlight bulb, replacing .........................6-29
High beam indicator light...........................3-3
Horn switch ................................................3-9
I
Identification numbers ...............................9-1
Ignition circuit cut-off system ..................3-18
Immobilizer system ....................................3-1
Immobilizer system indicator light .............3-3
Indicator and warning lights ......................3-3
KKey identification number ..........................9-1
LLicense plate light bulb, replacing ...........6-32
MMain switch/steering lock ..........................3-2
Matte color, caution ...................................7-4
Model label ................................................9-2
PParking .......................................................5-4
Part locations .............................................2-1
Periodic maintenance and lubrication
chart .........................................................6-3
Pre-operation check list .............................4-2
SSafe-riding points.......................................1-1
Safety information ......................................1-1
Seat ..........................................................3-14
Self-diagnosis device.................................3-4
Shock absorber assemblies, adjusting....3-17
Sidestand .................................................3-18
Spark plug, checking .................................6-9
Specifications.............................................8-1
Speedometer .............................................3-4
Start switch ................................................3-9
Starting off .................................................5-2
Starting the engine.....................................5-1
Steering, checking ...................................6-25
Storage.......................................................7-3
Storage compartment (front) ...................3-15
Storage compartment (rear) .....................3-16
Storage compartments ............................3-14
TTail/brake light bulb or rear turn signal
light bulb, replacing ...............................6-30
Throttle cable free play, adjusting ............6-17
Throttle grip and cable, checking and
lubricating ..............................................6-23
Tires .........................................................6-18
Tool kit ........................................................6-1
Troubleshooting .......................................6-32
Troubleshooting charts ............................6-33
Turn signal indicator lights .........................3-3
Turn signal light bulb (front), replacing ....6-30
Turn signal switch ......................................3-9
VValve clearance ........................................6-17
Vehicle identification number .....................9-1
1B9-F8199-E2.qxd 13/11/07 12:18 Página 85
